AGH35W-PFXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )AGH3#

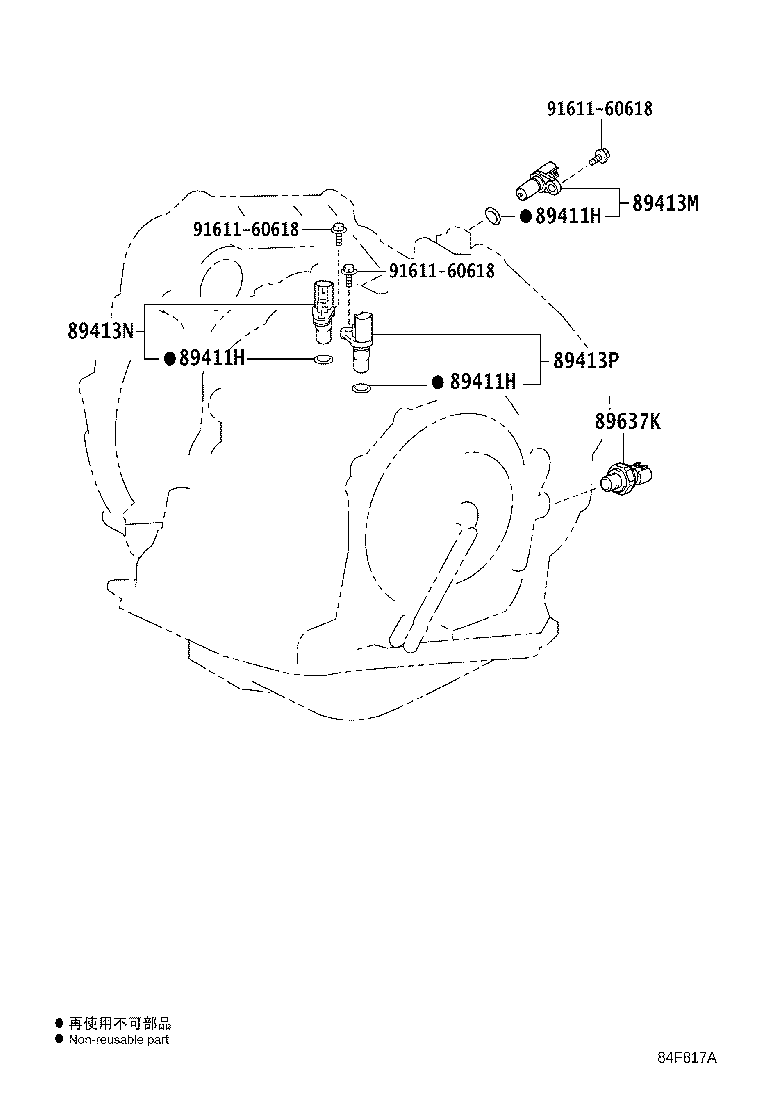

Click highlighted areas on diagram

diagram 89411H 89411H 89411H 89413M 89413N 89413P 89637K 9161160618 9161160618 9161160618
Part # Description Qty Price
89411H - RING, O
90301-11008

AGH3#

 3
89411H - RING, O
90301-11008

AGH3#

 3
89411H - RING, O
90301-11008

AGH3#

 3
89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT)
89413-28010

AGH3#

 1
89413N - SENSOR, TRANSMISSION REVOLUTION, (NT)
89413-28010

AGH3#

 1
89413P - SENSOR, TRANSMISSION REVOLUTION, (NIN)
89413-60020

AGH3#

 1
89637K - SENSOR, OIL PRESSURE
89637-63010

AGH3#

 1
Common parts
91611-60618
