AGH35W-NRXSK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1501-1801)07S..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ; (1801- )AYH30..07S..SR,X,ZR ; (180

Click highlighted areas on diagram

ｳｪﾙｷｬﾌﾞ(ﾗｲﾄ)

diagram 57066D 6455 6455 72129J 72129K 72129T 72129U 72160H 72160J 72180H 72275D 9011910951 9011910951 9017610009 9017610009 9017610009 9017810029 9017812014 9017812014
Part # Description Qty Price
57066D - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57066-58010

AGH3#,AYH30,GGH3#

 1
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-58270C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2
72129-58280C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
72129-58260C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72129U - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2
72129-58250C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72160H - TRACK ASSY, REAR SEAT, OUTER RH
72160-58230

AGH3#,AYH30..08S

 1
72180H - TRACK ASSY, REAR RH SEAT, OUTER NO.2
72180-58040

AGH3#,AYH30,GGH3#

 1
72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1
72275-58020

AGH3#,AYH30,GGH3#

 1
Common parts
90119-10951
90176-10009
90178-10029
90178-12014
Linked diagrams
6455

ILLUST NO. 2 OF 2(1501-1801)07S..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ; (1801- )AYH30..07S..SR,X,ZR ; (180

Click highlighted areas on diagram

ｳｪﾙｷｬﾌﾞ(ﾚﾌﾄ) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ

diagram 57067B 6455 72129P 72129Q 72129R 72190F 9011910409 9011910951 9011910951 9017610009 9017610009 9017610009 9017810029 9017812014 9017812014 9046315003 C7120E C7120F
Part # Description Qty Price
57067B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57067-58010

AGH3#,AYH30,GGH3#

 1
72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
72129-58240C0

AGH3#..S,Z;AGH3#..08S..(G,V,X);AYH30,GGH3#..EL,SR,X,ZR

BLACK,TRIM0#,2#

 1
72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2
72129-58240C0

AGH3#..S,Z;AGH3#..08S..(G,V,X);AYH30,GGH3#..EL,SR,X,ZR

BLACK,TRIM0#,2#

 1
72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
72129-58270C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2
72190-58050

AGH3#,AYH30,GGH3#

 1
Common parts
90119-10409
90119-10951
90176-10009
90178-10029
90178-12014
90463-15003
Linked diagrams
6455

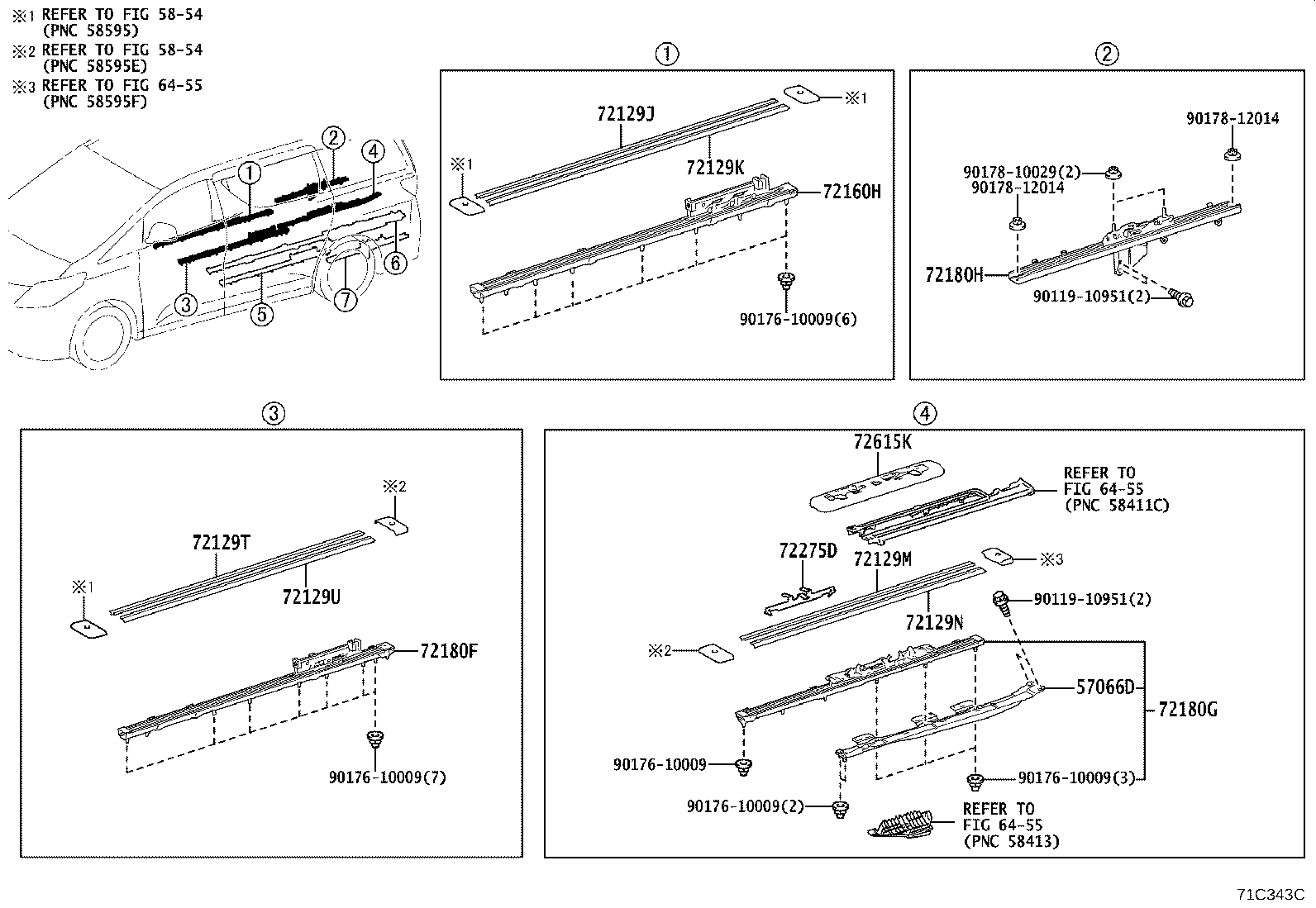

ILLUST NO. 1 OF 2(1501- )08S

Click highlighted areas on diagram

ﾗｲﾄ

diagram 57066D 5854 5854 6455 6455 6455 72129J 72129K 72129M 72129N 72129T 72129U 72160H 72180F 72180G 72180H 72275D 72615K 9011910951 9011910951 9017610009 9017610009 9017610009 9017610009 9017610009 9017810029 9017812014 9017812014
Part # Description Qty Price
57066D - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57066-58010

AGH3#,AYH30,GGH3#

 1
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-58270C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2
72129-58280C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72129M - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER REAR NO.1
72129-58290C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72129N - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER REAR NO.2
72129-58290C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
72129-58260C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72129U - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2
72129-58250C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72160H - TRACK ASSY, REAR SEAT, OUTER RH
72160-58230

AGH3#,AYH30..08S

 1
72180F - TRACK ASSY, REAR SEAT, INNER RH
72180-58070

AGH3#,AYH30..08S

 1
72180G - TRACK ASSY, REAR SEAT, INNER RH REAR
72160-58260

AGH3#,AYH30..08S

 1
72160-58260C0

AGH3#..08S..(S,Z)

BLACK,TRIM2#

 1
72160-58260C0

AGH3#,AYH30..08S..(G,V,X)

BLACK,TRIM0#

 1
72180H - TRACK ASSY, REAR RH SEAT, OUTER NO.2
72180-58040

AGH3#,AYH30,GGH3#

 1
72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1
72275-58020

AGH3#,AYH30,GGH3#

 1
72615K - COVER, REAR SEAT LOCK STRIKER, RH
72615-58070C0

AGH3#,AYH30,GGH3#..G,GF,V,VL,X

BLACK,TRIM0#

 1
72615-58090C0

AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR

BLACK,TRIM2#

 1
72615-58070C0

AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR

BLACK,TRIM2#

 1
72615-58090C0

AGH3#,AYH30,GGH3#..G,GF,V,VL,X

BLACK,TRIM0#

 1
Common parts
90119-10951
90176-10009
90178-10029
90178-12014
Linked diagrams
5854
6455

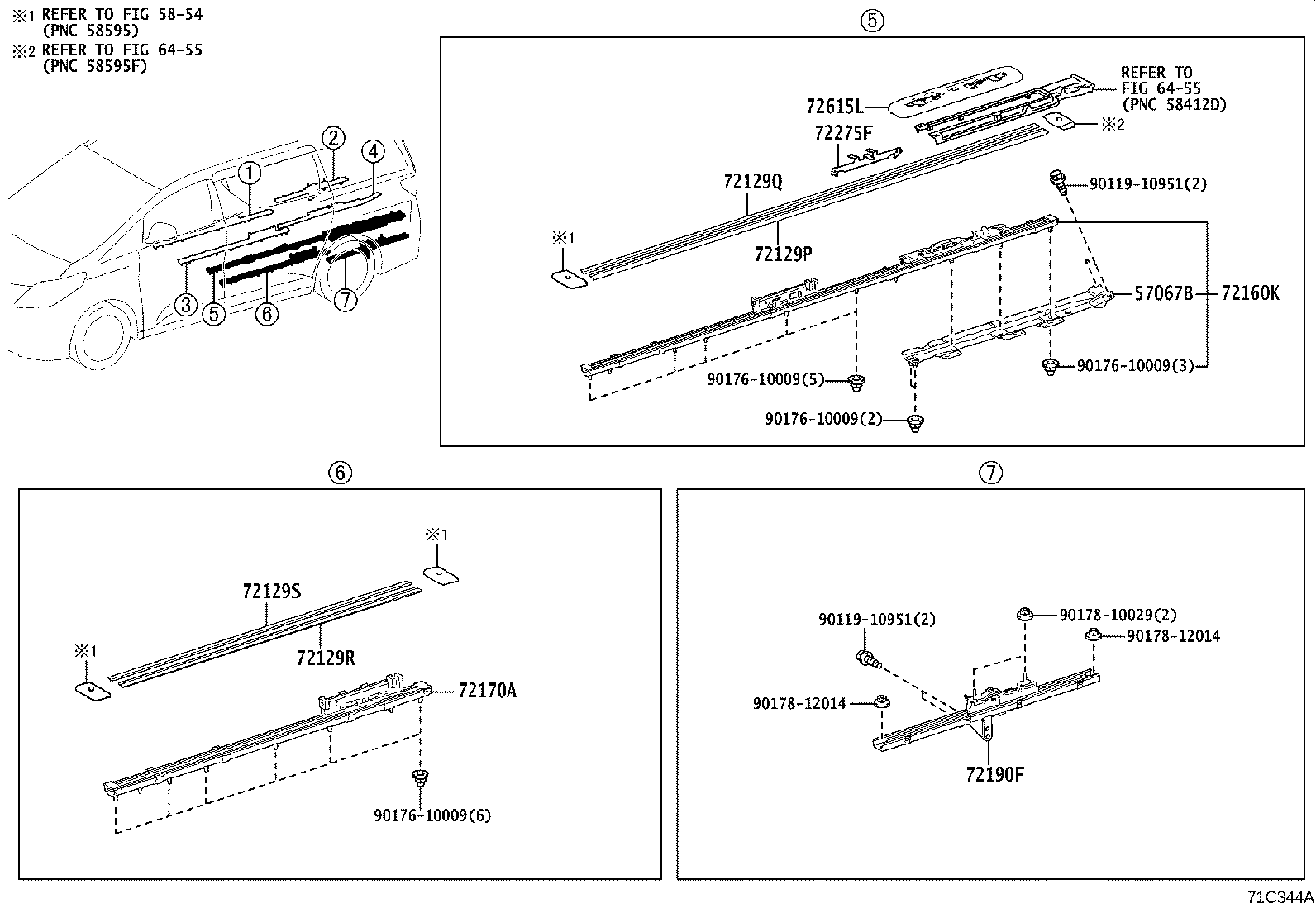

ILLUST NO. 2 OF 2(1501- )08S

Click highlighted areas on diagram

ﾚﾌﾄ

diagram 57067B 5854 6455 6455 72129P 72129Q 72129R 72129S 72160K 72170A 72190F 72275F 72615L 9011910951 9011910951 9017610009 9017610009 9017610009 9017610009 9017810029 9017812014 9017812014
Part # Description Qty Price
57067B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57067-58010

AGH3#,AYH30,GGH3#

 1
72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
72129-58240C0

AGH3#..S,Z;AGH3#..08S..(G,V,X);AYH30,GGH3#..EL,SR,X,ZR

BLACK,TRIM0#,2#

 1
72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2
72129-58240C0

AGH3#..S,Z;AGH3#..08S..(G,V,X);AYH30,GGH3#..EL,SR,X,ZR

BLACK,TRIM0#,2#

 1
72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
72129-58270C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2
72129-58280C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 1
72160K - TRACK ASSY, REAR LH SEAT, INNER NO.1
72160-58250C0

AGH3#,AYH30..08S..(G,V,X)

BLACK,TRIM0#

 1
72160-58250

AGH3#,AYH30..08S

 1
72160-58250C0

AGH3#..08S..(S,Z)

BLACK,TRIM2#

 1
72170A - TRACK ASSY, REAR SEAT, OUTER LH
72170-58150

AGH3#,AYH30..08S

 1
72190F - TRACK ASSY, REAR LH SEAT, OUTER NO.2
72190-58050

AGH3#,AYH30,GGH3#

 1
72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1
72275-58020

AGH3#..S,Z;AGH3#..08S..(G,V,X);AYH30,GGH3#..EL,G,SR,V,X,ZR

 1
72615L - COVER, REAR SEAT LOCK STRIKER, LH
72615-58060C0

AGH3#,AYH30,GGH3#..G,GF,V,VL,X

BLACK,TRIM0#

 1
72615-58060C0

AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR

BLACK,TRIM2#

 1
72615-58080C0

AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR

BLACK,TRIM2#

 1
72615-58080C0

AGH3#,AYH30,GGH3#..G,GF,V,VL,X

BLACK,TRIM0#

 1
Common parts
90119-10951
90176-10009
90178-10029
90178-12014
Linked diagrams
5854
6455
