AGH35W-NRXSK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )AGH3#..08S

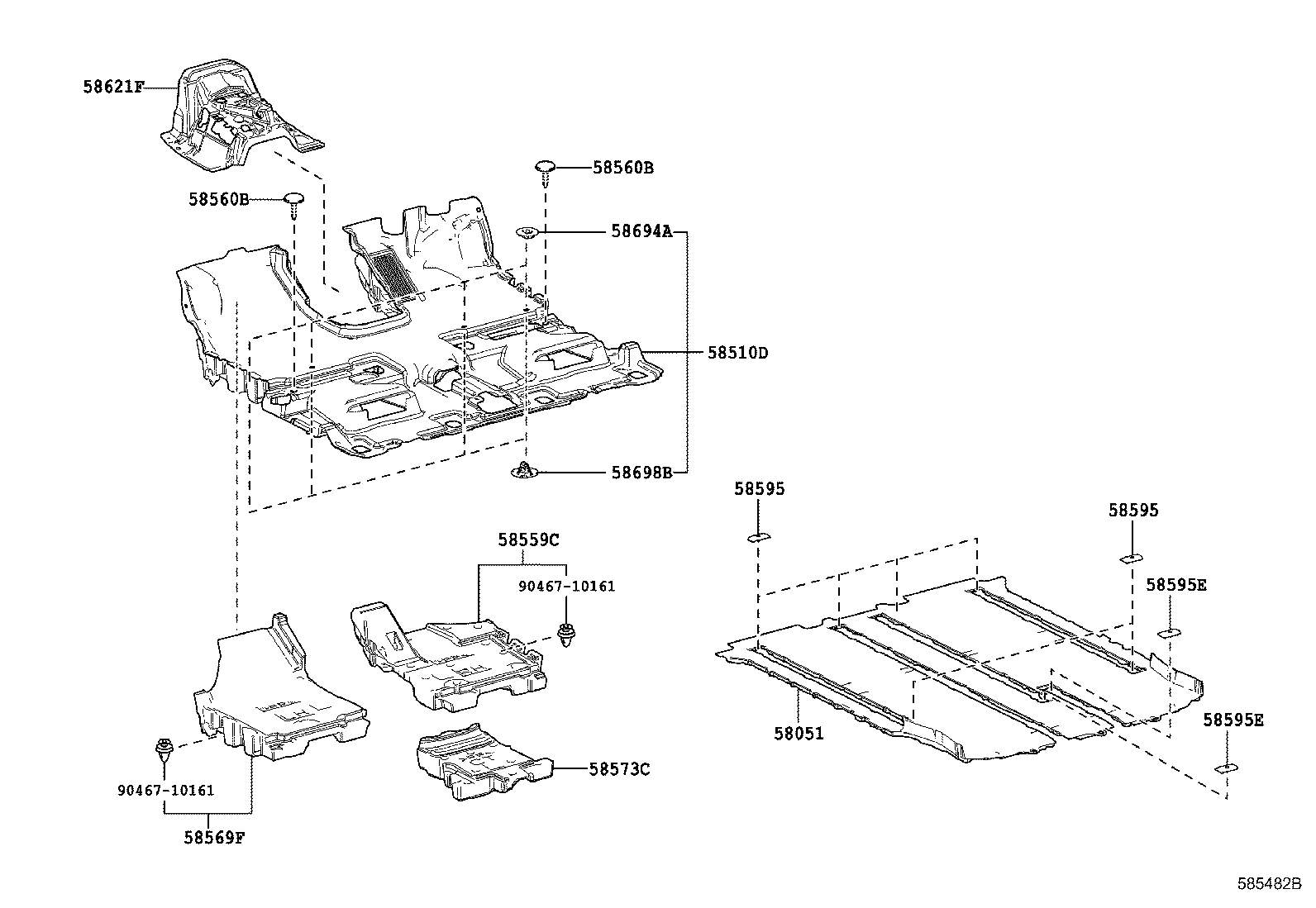

Click highlighted areas on diagram

diagram 58051 58510D 58559C 58560B 58560B 58569F 58573C 58595 58595 58595E 58595E 58621F 58694A 58698B 9046710161 9046710161
Part # Description Qty Price
58051 - MAT SET, FLOOR
58051-58320B1

AGH3#..08S..(S,Z)

DK. GREY,TRIM2#

 1
58051-58320B1

AGH3#,AYH30..08S..(G,V,X)

DK. GREY,TRIM0#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58500-58190C1

AGH3#..S,Z

DK. GREY,TRIM2#

 1
58500-58190C1

AGH3#..X;AGH3#..08S..(G,V)

DK. GREY,TRIM0#

 1
58559C - PAD, FRONT FLOOR SIDE, RH
58559-58010

AGH3#,AYH30,GGH3#

 1
58560B - CLIP(FOR FLOOR CARPET, REAR)
90467-05164C0

AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR

BLACK

 2
90467-05164C7

AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR

BLACK

 2
58560B - CLIP(FOR FLOOR CARPET, REAR)
90467-05164C0

AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR

BLACK

 2
90467-05164C7

AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR

BLACK

 2
58569F - PAD, FRONT FLOOR SIDE, LH
58569-58010

AGH3#..S,X,Z;AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,X,ZR

 1
58573C - PAD, FRONT FLOOR CENTER
58573-58030

AGH3#..S,X,Z;AGH3#..08S..(G,V)

 1
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

AGH3#..S,Z;AYH30..SR,X,ZR;AGH3#..08S..(G,V,X)

BLACK,TRIM0#,2#

 6
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

AGH3#..S,Z;AYH30..SR,X,ZR;AGH3#..08S..(G,V,X)

BLACK,TRIM0#,2#

 6
58595E - MOULDING, FLOOR CARPET, NO.4
58595-58080C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 2
58595E - MOULDING, FLOOR CARPET, NO.4
58595-58080C0

AGH3#,AYH30..08S

BLACK,TRIM0#,2#

 2
58621F - SILENCER, CENTER CONSOLE, NO.1
58621-58010

AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR

 1
58621-58010

AGH3#,AYH30..S,X,Z

ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL

 1
58694A - PLATE, MAT SET, UPPER
58694-78010

AGH3#,AYH30,GGH3#

 3
58698B - PLATE, MAT SET, LOWER
58698-78010

AGH3#,AYH30,GGH3#

 3
Common parts
90467-10161
