AGH35W-NRXQK (2015)
Toyota Alphard/Vellfire/Hv

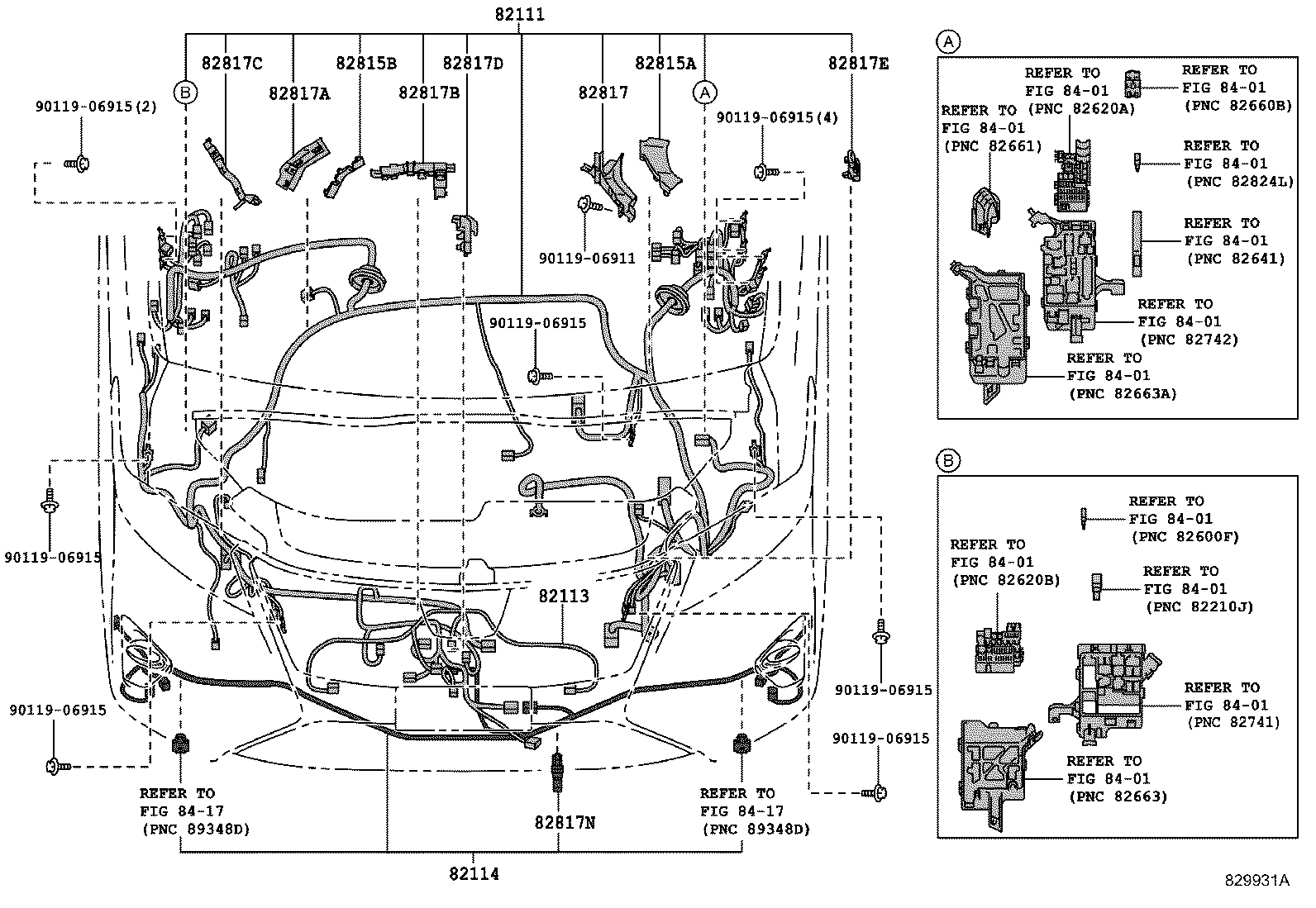

ILLUST NO. 1 OF12(1501-1801)AGH3#,GGH3#
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-58590 |
AGH35 |
1 | ||
| 82111-58600 |
AGH35 寒冷地仕様 |
1 | ||
| 82111-58610 |
AGH35 ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82111-58610 |
AGH35 ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82111-58620 |
AGH35 寒冷地仕様&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82111-58620 |
AGH35 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82111-58591 |
AGH35 |
1 | ||
| 82111-58601 |
AGH35 寒冷地仕様 |
1 | ||
| 82111-58611 |
AGH35 ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82111-58611 |
AGH35 ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82111-58621 |
AGH35 寒冷地仕様&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82111-58621 |
AGH35 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-58240 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82113-58240 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82113-58240 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-58350 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82114-58330 |
AGH3#,AYH30,GGH3#..S,SA,SR |
1 | ||
| 82114-58340 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82114-58350 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82114-58380 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82114-58360 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) |
1 | ||
| 82114-58370 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82114-58380 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-58650 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-28B20 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-58D10 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-28G20 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-58G60 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-58G80 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-58J00 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-58K40 |
AGH3#,GGH3# |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-12G70 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 90119-06911 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||

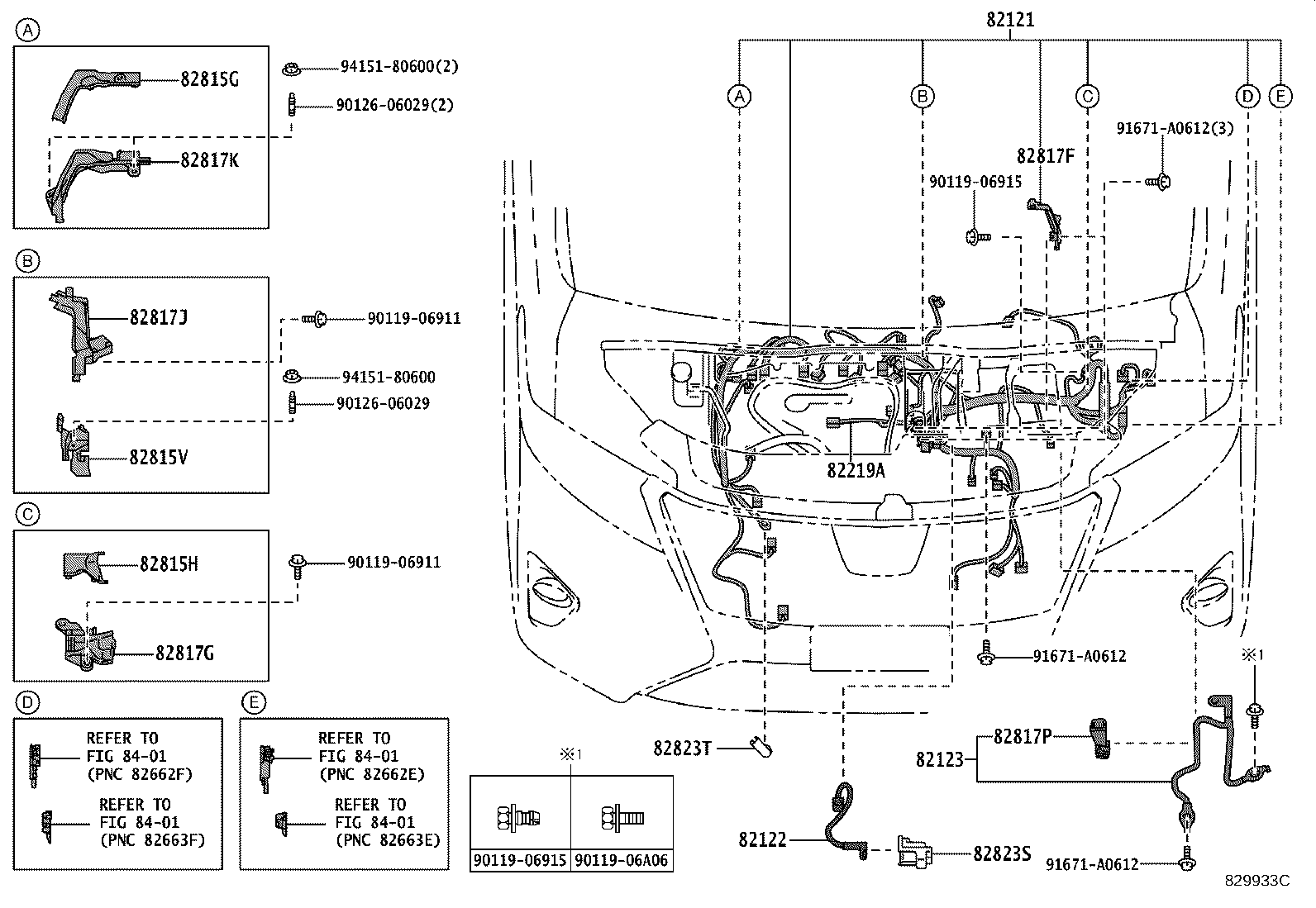

ILLUST NO. 2 OF12(1501- )AGH3#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-58110 |
AGH35 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-58060 |
AGH3# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-58040 |
AGH3# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-73010 |
AGH3# |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-42040 |
AGH3#,AYH30 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-58640 |
AGH3#,GGH3# |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-58660 |
AGH3# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-28R40 |
AGH3# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-58D00 |
AGH3#,GGH3# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-58D20 |
AGH3# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-58G90 |
AGH3#,AYH30 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-58D30 |
AGH3#,GGH3# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-42020 |
AGH3# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-60040 |
AGH3# |
1 | ||
| Common parts | ||||
| 90119-06911 | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90126-06029 | ||||
| 91671-A0612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

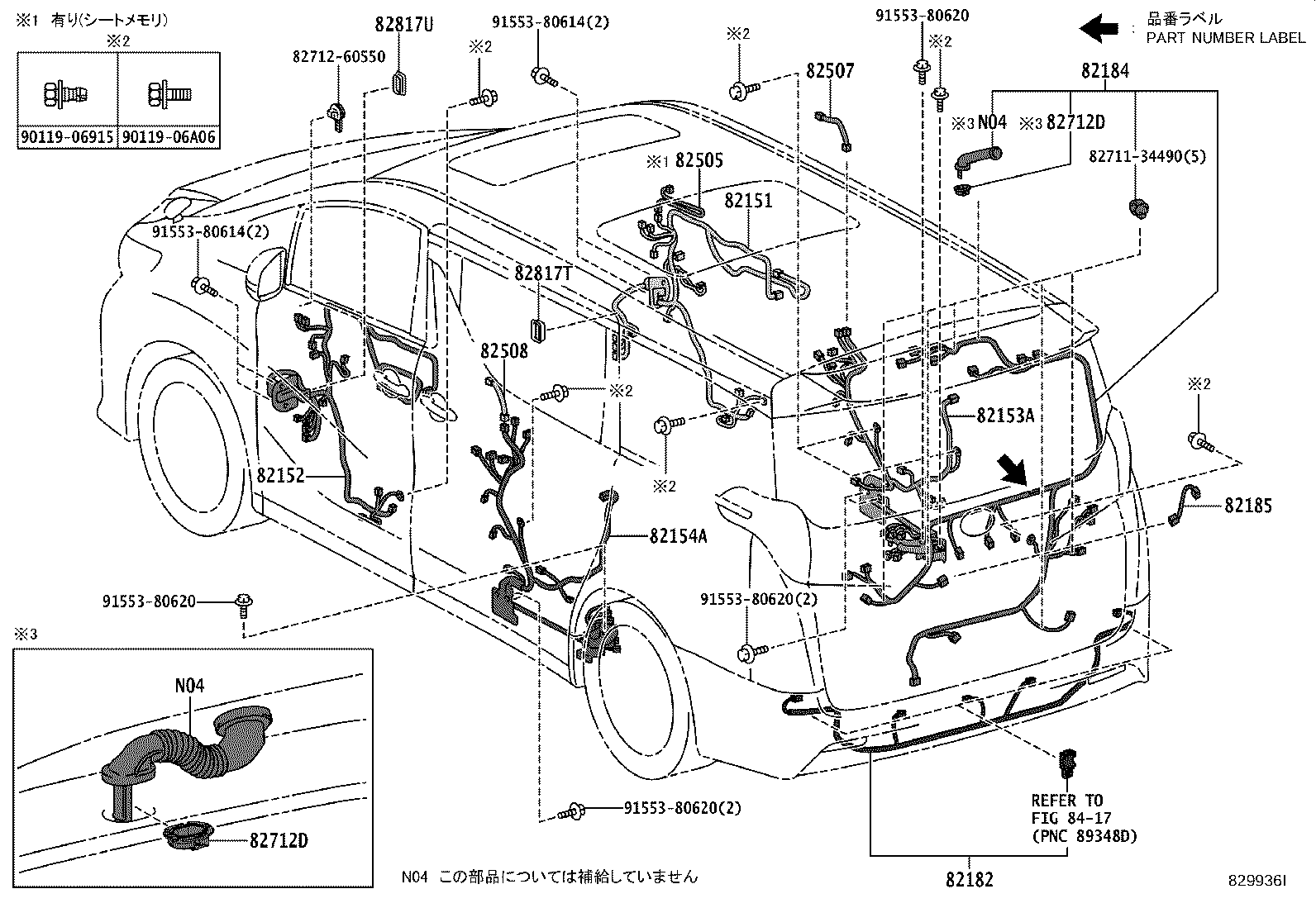

ILLUST NO. 4 OF12(1501-2001)
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-58100 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 82151-58120 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 82151-58110 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 寒冷地仕様 |
1 | ||
| 82151-58140 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82151-58140 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82151-58130 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-58110 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 寒冷地仕様 |
1 | ||
| 82152-58100 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 82152-58120 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 82152-58140 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82152-58140 |
AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82152-58130 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82053-58060 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC) |
1 | ||
| 82053-58060 |
AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 82053-58070 |
AGH3#,AYH30..S,X,Z |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82054-58060 |
AYH30,GGH3#;AGH3#..08S..X;AGH3#..G,S,V,Z |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-58130 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR |
1 | ||
| 82182-58140 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82182-58120 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82182-58120 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82182-58110 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82182-58150 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82182-58150 |
AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82182-58100 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-58200 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC) |
1 | ||
| 82184-58200 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR |
1 | ||
| 82184-58240 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82184-58240 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82184-58230 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82184-58190 |
AGH3#,AYH30..S,X,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82184-58210 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82184-58210 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82184-58180 |
AGH3#,AYH30..S,X,Z |
1 | ||
| 82184-58210 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82184-58190 |
AGH3#,AYH30..S,X,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82184-58231 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),品番ﾗﾍﾞﾙ≠W2184−58231 |
1 | ||
| 82184-58181 |
AGH3#,AYH30..S,X,Z 品番ﾗﾍﾞﾙ=82184−58181 |
1 | ||
| 82184-58241 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),品番ﾗﾍﾞﾙ=82184−58241 |
1 | ||
| 82184-58210 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82184-58191 |
AGH3#,AYH30..S,X,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),品番ﾗﾍﾞﾙ=82184−58191 |
1 | ||
| 82184-58211 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),品番ﾗﾍﾞﾙ=82184−58211 |
1 | ||
| 82184-58201 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC),品番ﾗﾍﾞﾙ=82184−582O1 |
1 | ||
| 82184-58211 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),品番ﾗﾍﾞﾙ≠W2184−58211 |
1 | ||
| 82184-58182 |
AGH3#,AYH30..S,X,Z 品番ﾗﾍﾞﾙ=82184−58182 |
1 | ||
| 82184-58202 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC),品番ﾗﾍﾞﾙ=82184−582O2 |
1 | ||
| 82184-58211 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),品番ﾗﾍﾞﾙ=82184−58211 |
1 | ||
| 82184-58202 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR 品番ﾗﾍﾞﾙ=82184−58202 |
1 | ||
| 82184-58212 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),i番ﾗﾍﾞﾙ=82184−58212 |
1 | ||
| 82184-58212 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),品番ﾗﾍﾞﾙ=82184−58212 |
1 | ||
| 82184-58241 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),品番ﾗﾍﾞﾙ=82184−58241 |
1 | ||
| 82184-58211 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),i番ﾗﾍﾞﾙ=82184−58211 |
1 | ||
| 82184-58212 |
AGH3#,AYH30..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),品番ﾗﾍﾞﾙ≠W2184−58212 |
1 | ||
| 82184-58212 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),品番ﾗﾍﾞﾙ=82184−58212 |
1 | ||
| 82184-58192 |
AGH3#,AYH30..S,X,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),品番ﾗﾍﾞﾙ=82184−58192 |
1 | ||
| 82184-58192 |
AGH3#,AYH30..S,X,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),品番ﾗﾍﾞﾙ=82184−58192 |
1 | ||
| 82184-58242 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),品番ﾗﾍﾞﾙ=82184−58242 |
1 | ||
| 82184-58201 |
AGH3#,AYH30,GGH3#..G,GF,SA,SR,V,VL,ZA,ZR 品番ﾗﾍﾞﾙ=82184−58201 |
1 | ||
| 82184-58232 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391),品番ﾗﾍﾞﾙ≠W2184−58232 |
1 | ||
| 82184-58242 |
AGH3#..08S..(G,V);AGH3#,AYH30,GGH3#..07S..(G,GF,S,SR,V,VL,Z,ZR) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),品番ﾗﾍﾞﾙ=82184−58242 |
1 | ||
| 82184-58191 |
AGH3#,AYH30..S,X,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),品番ﾗﾍﾞﾙ=82184−58191 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-58020 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82185-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82505 - WIRING SUB-ASSY, FRONT DOOR, RH | ||||
| 82505-58020 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||
| 82507 - WIRING SUB-ASSY, REAR DOOR, RH | ||||
| 82507-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82508 - WIRING SUB-ASSY, REAR DOOR, LH | ||||
| 82507-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82712D - SUPPORT, WIRING HARNESS | ||||
| 82712-58280 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82712D - SUPPORT, WIRING HARNESS | ||||
| 82712-58280 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-58E20 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-58E20 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 82711-34490 | ||||
| 82712-60550 | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 91553-80614 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8417 | ||||

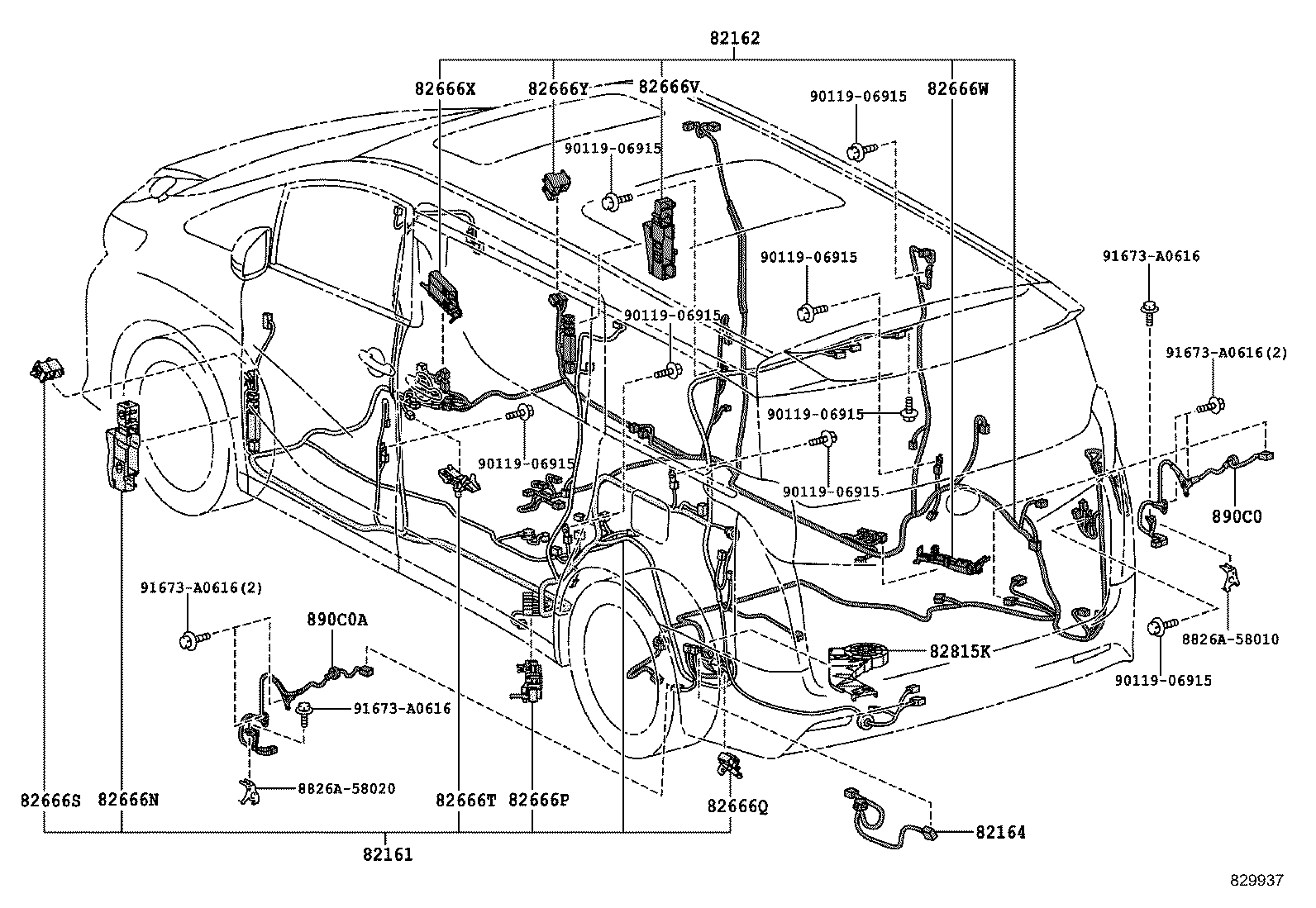

ILLUST NO. 5 OF12(1501-1801)
ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-58390 |
AGH35..S,X,Z;AGH30..07S..X |
1 | ||
| 82161-58400 |
AGH3#..08S..(G,V) |
1 | ||
| 82161-58400 |
AGH3#..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC) |
1 | ||
| 82161-58440 |
AGH3#..08S..(G,V) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58391 |
AGH35..S,X,Z;AGH30..07S..X |
1 | ||
| 82161-58401 |
AGH3#..08S..(G,V) |
1 | ||
| 82161-58401 |
AGH3#..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 寒冷地仕様&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58441 |
AGH3#..08S..(G,V) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82161-58530 |
AGH3#..08S..(G,V) 有り(*POSD(運転席側,助手席側)&*BDC&*PBD&*391) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-58520 |
AGH3#..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC) |
1 | ||
| 82162-58520 |
AGH3#..S,Z;AGH3#..08S..X 有り(*POSD(運転席側,助手席側)&*BDC)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82162-58520 |
AGH3#..S,Z;AGH3#..08S..X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82162-58520 |
AGH3#..S,Z;AGH3#..08S..X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC) |
1 | ||
| 82162-58510 |
AGH3#..S,Z;AGH3#..08S..X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82162-58510 |
AGH3#..S,Z;AGH3#..08S..X ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82162-58510 |
AGH3#..S,Z;AGH3#..08S..X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82162-58510 |
AGH3#..S,Z;AGH3#..08S..X ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82162-58510 |
AGH3#..S,Z;AGH3#..08S..X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82162-58520 |
AGH3#,GGH3#..G,GF,SA,V,VL,ZA |
1 | ||
| 82162-58500 |
AGH3#..S,Z;AGH3#..08S..X |
1 | ||
| 82162-58510 |
AGH3#..S,Z;AGH3#..08S..X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82162-58520 |
AGH3#..S,Z;AGH3#..08S..X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82162-58510 |
AGH3#..S,Z;AGH3#..08S..X ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82162-58520 |
AGH3#..S,Z;AGH3#..08S..X 有り(*POSD(運転席側,助手席側)&*BDC)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82162-58520 |
AGH3#..S,Z;AGH3#..08S..X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82162-58520 |
AGH3#..S,Z;AGH3#..08S..X 有り(*POSD(運転席側,助手席側)&*BDC)&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):1個 |
1 | ||
| 82162-58460 |
AGH3#..S,X,Z 有り(*POSD(運転席側,助手席側)&*BDC) |
1 | ||
| 82162-58460 |
AGH3#..S,Z;AGH3#..08S..X 有り(*POSD(運転席側,助手席側)&*BDC)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82162-58460 |
AGH3#..S,Z;AGH3#..08S..X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC) |
1 | ||
| 82162-58460 |
AGH3#..S,Z;AGH3#..08S..X ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&有り(*POSD(運転席側,助手席側)&*BDC)&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-58080 |
AGH35,GGH35 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-58320 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-58340 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-58360 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-58490 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-58520 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-58310 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-58330 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-58470 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-58500 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-58810 |
AGH3#,AYH30,GGH3# |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 8826A-58010 | ||||
| 8826A-58020 | ||||
| 90119-06915 | ||||
| 91673-A0616 | ||||
ILLUST NO. 6 OF12(1501- )
ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

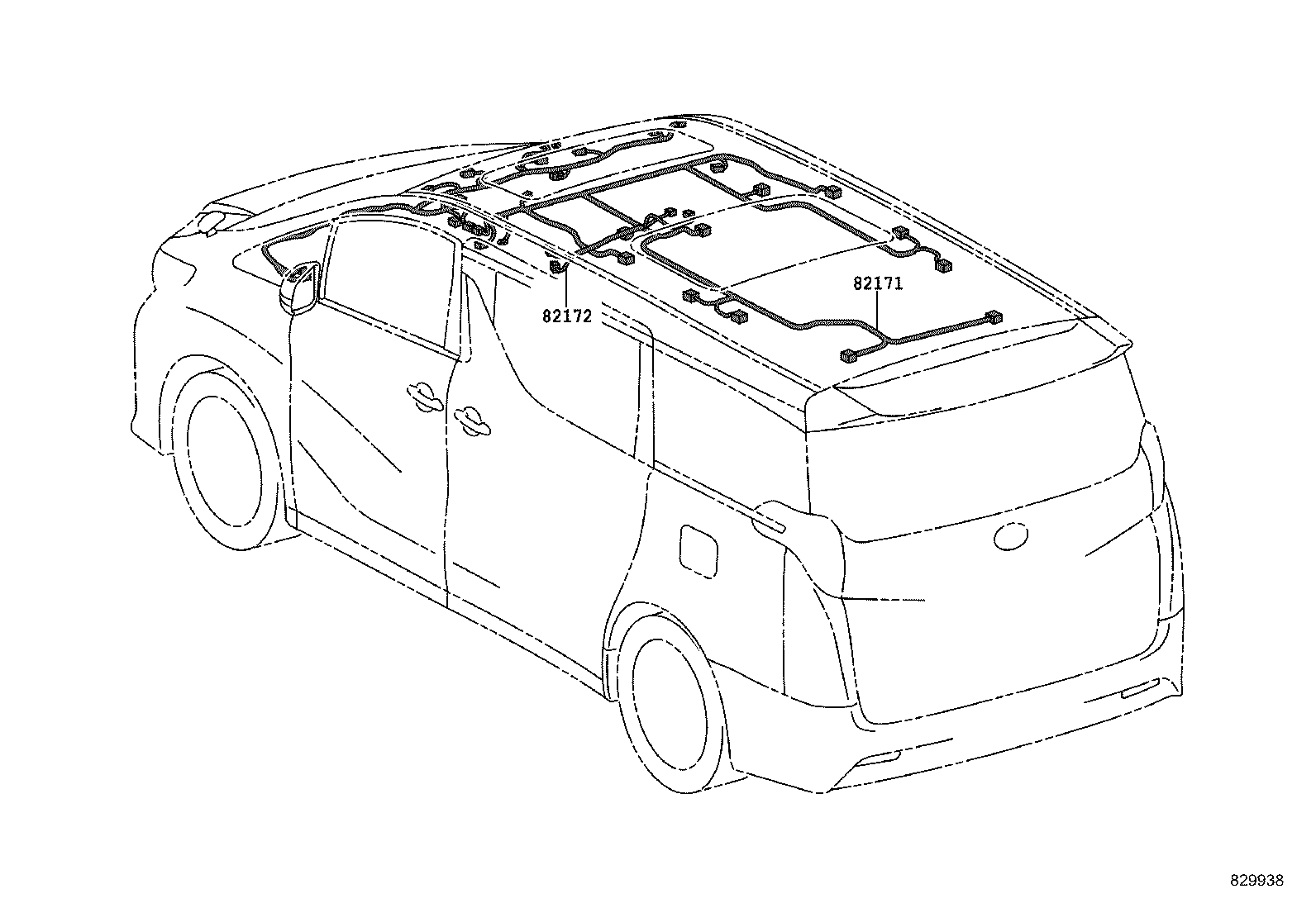

| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-58260 |
AGH3#..S,X,Z |
1 | ||
| 82171-58300 |
AGH3#..S,X,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82171-58340 |
AGH3#,GGH3#..EL,G,GF,V,VL |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-58100 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 82172-58090 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
ILLUST NO.10 OF12(1501-1801)AGH3#

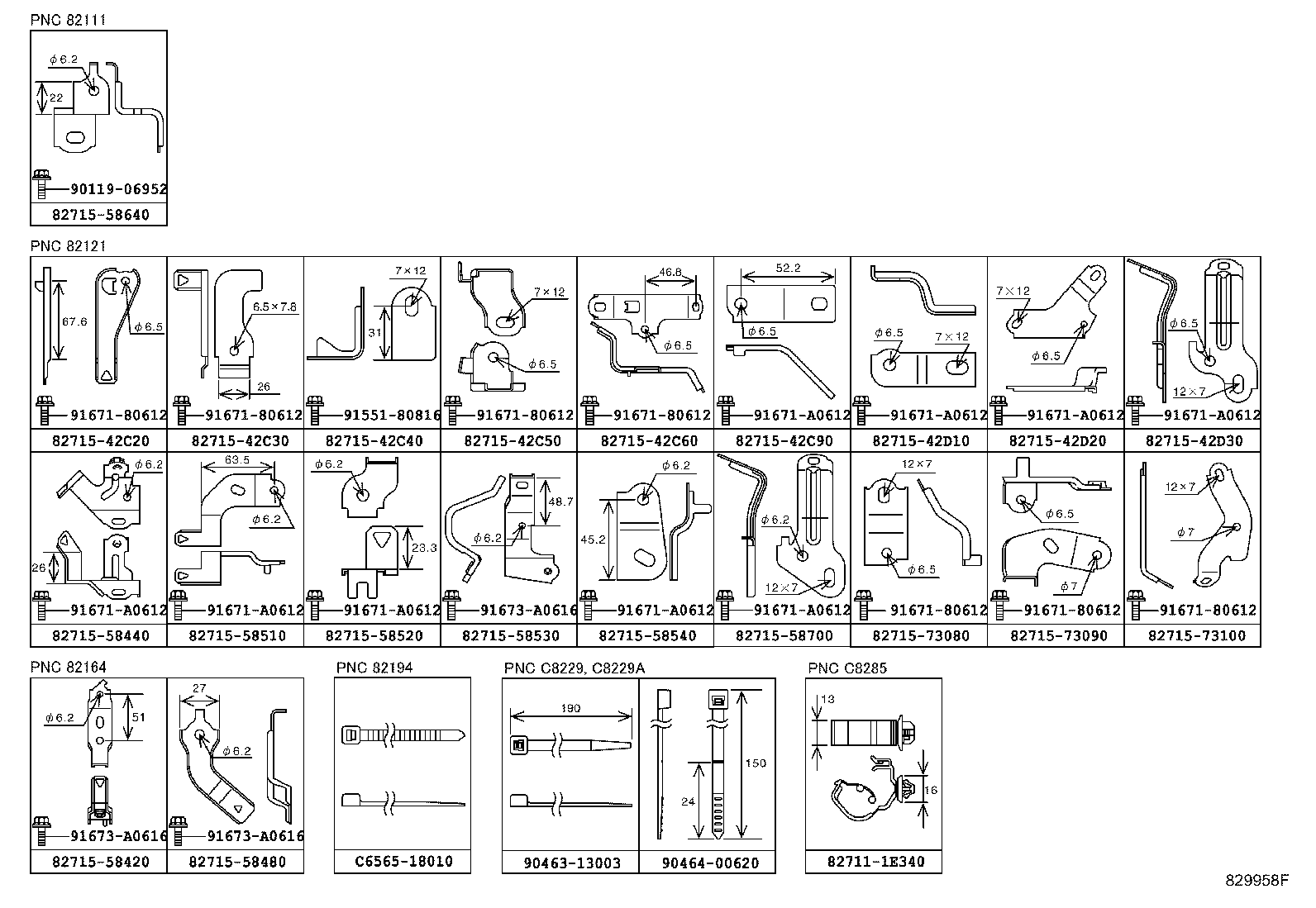

ｸﾗﾝﾌﾟ&ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E340 | ||||
| 82715-42C20 | ||||
| 82715-42C30 | ||||
| 82715-42C40 | ||||
| 82715-42C50 | ||||
| 82715-42C60 | ||||
| 82715-42C90 | ||||
| 82715-42D10 | ||||
| 82715-42D20 | ||||
| 82715-42D30 | ||||
| 82715-58420 | ||||
| 82715-58440 | ||||
| 82715-58480 | ||||
| 82715-58510 | ||||
| 82715-58520 | ||||
| 82715-58530 | ||||
| 82715-58540 | ||||
| 82715-58640 | ||||
| 82715-58700 | ||||
| 82715-73080 | ||||
| 82715-73090 | ||||
| 82715-73100 | ||||
| 90119-06952 | ||||
| 90463-13003 | ||||
| 90464-00620 | ||||
| 91551-80816 | ||||
| 91671-80612 | ||||
| 91671-A0612 | ||||
| 91673-A0616 | ||||
| C6565-18010 | ||||

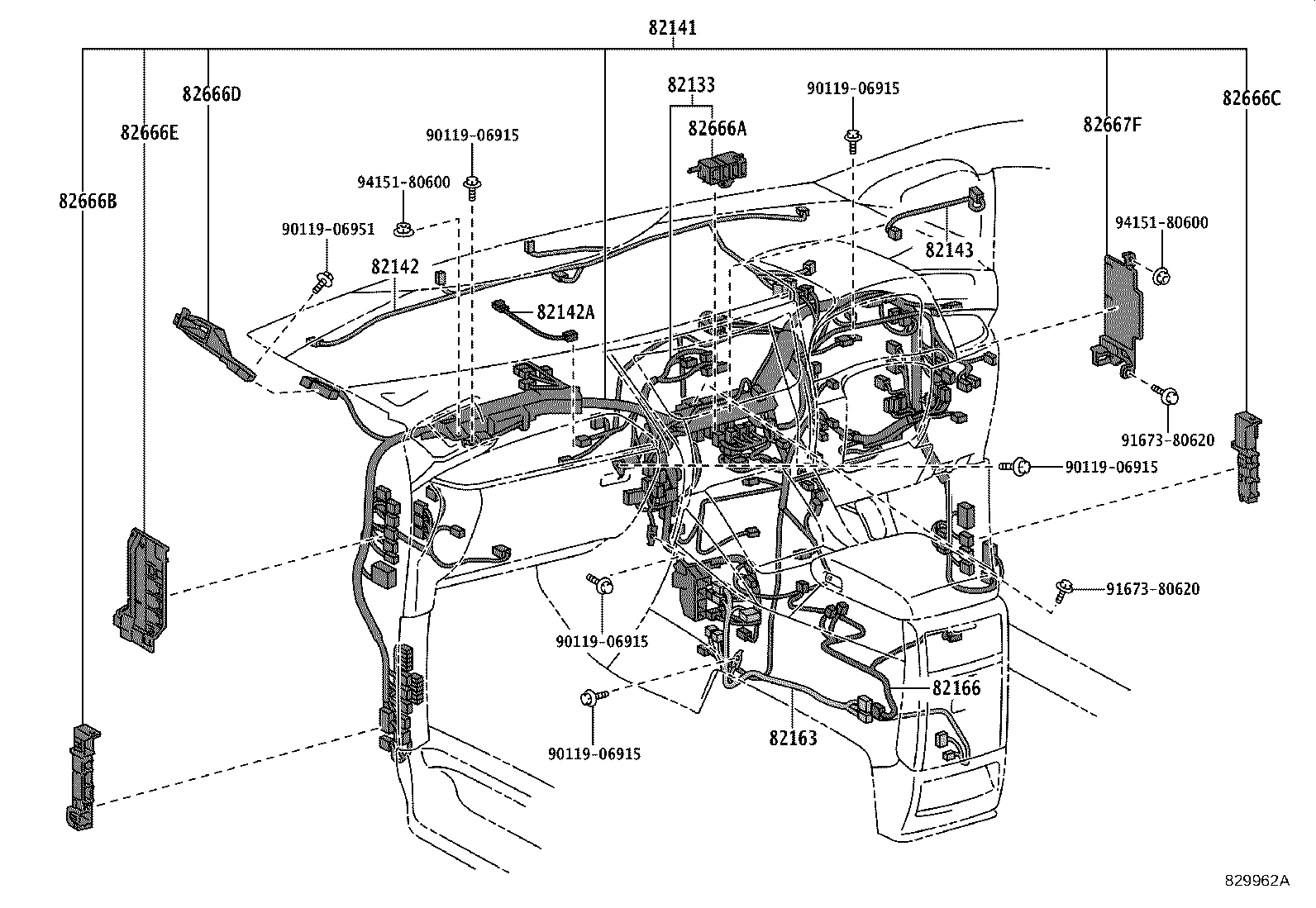

ILLUST NO. 3 OF12(1501-1801)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-58420 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 82133-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82133-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82133-58421 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 82133-58470 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82133-58470 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82133-58470 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 82133-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−*DOP ﾌﾞﾗｹｯﾄ&配線&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-58570 |
AGH35..S,X,Z |
1 | ||
| 82141-58580 |
AGH35..S,X,Z ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82141-58580 |
AGH35..S,X,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58580 |
AGH35..S,X,Z ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58590 |
AGH35..G,V |
1 | ||
| 82141-58600 |
AGH35..G,V ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58600 |
AGH35..G,V ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58600 |
AGH35..G,V ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82141-58571 |
AGH35..S,X,Z |
1 | ||
| 82141-58581 |
AGH35..S,X,Z ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58581 |
AGH35..S,X,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58581 |
AGH35..S,X,Z ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82141-58591 |
AGH35..G,V |
1 | ||
| 82141-58601 |
AGH35..G,V ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82141-58601 |
AGH35..G,V ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82141-58601 |
AGH35..G,V ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-58111 |
AGH3#..X ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82142-58120 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..G,GF,S,SA,V,VL,Z,ZA |
1 | ||
| 82142-58140 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..G,GF,S,SA,V,VL,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82142-58141 |
AYH30..G,SR,V,X,ZR;AGH3#,GGH3#..G,GF,S,SA,V,VL,Z,ZA ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82142-58110 |
AGH3#..X ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82142-58090 |
AGH3#..X |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-58030 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82143-58020 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR |
1 | ||
| 82143-58040 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
1 | ||
| 82143-58010 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-58390 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-58400 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-58410 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-58420 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-58430 |
AGH3#,AYH30,GGH3# |
1 | ||
| 82667F - HOLDER, CONNECTOR, NO.21 | ||||
| 82666-58440 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06951 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||

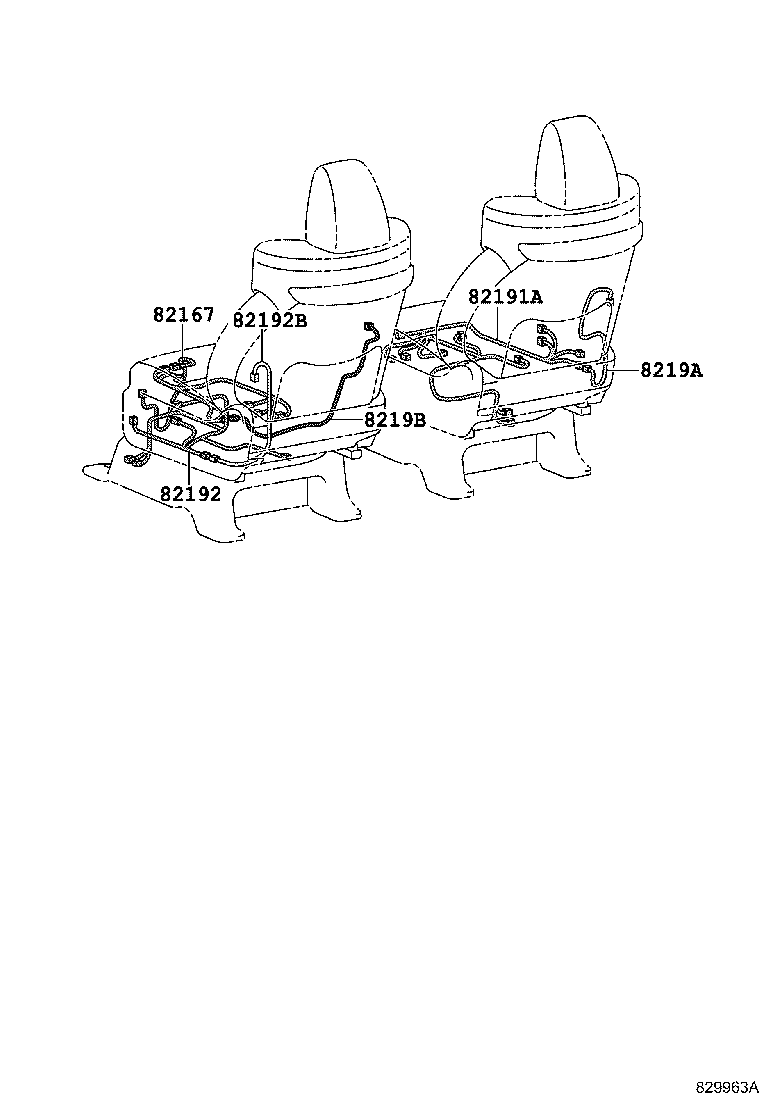

ILLUST NO. 8 OF12(1501-1801)
ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-58060 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-58190 |
AGH3#,AYH30,GGH3#..G,GF,SR,V,VL,ZR |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-58150 |
AYH30..G,SR,V,ZR;AGH3#..08S..(G,V) |
1 | ||
| 82192B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-58020 |
AGH3#..08S..(G,V);AYH30,GGH3#..EL,G,SR,V,ZR |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-58010 |
AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR |
1 | ||

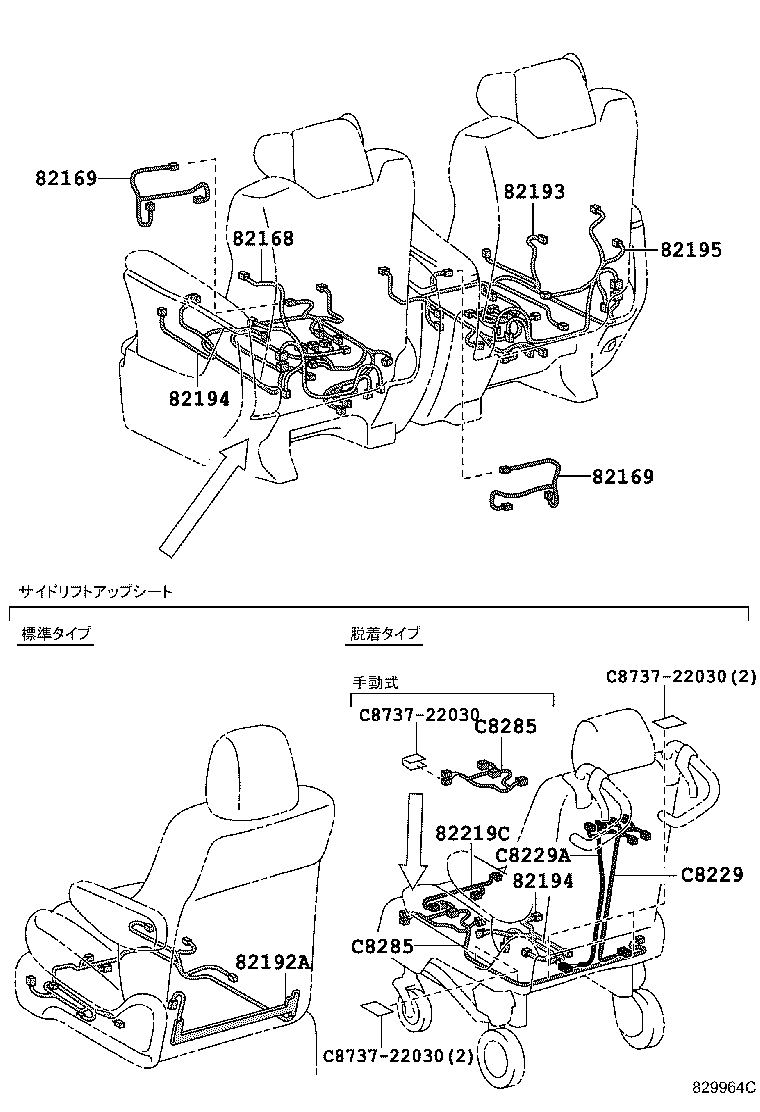

ILLUST NO. 9 OF12(1501-1801)
ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| C8737-22030 | ||||
ILLUST NO.12 OF12(1501- )

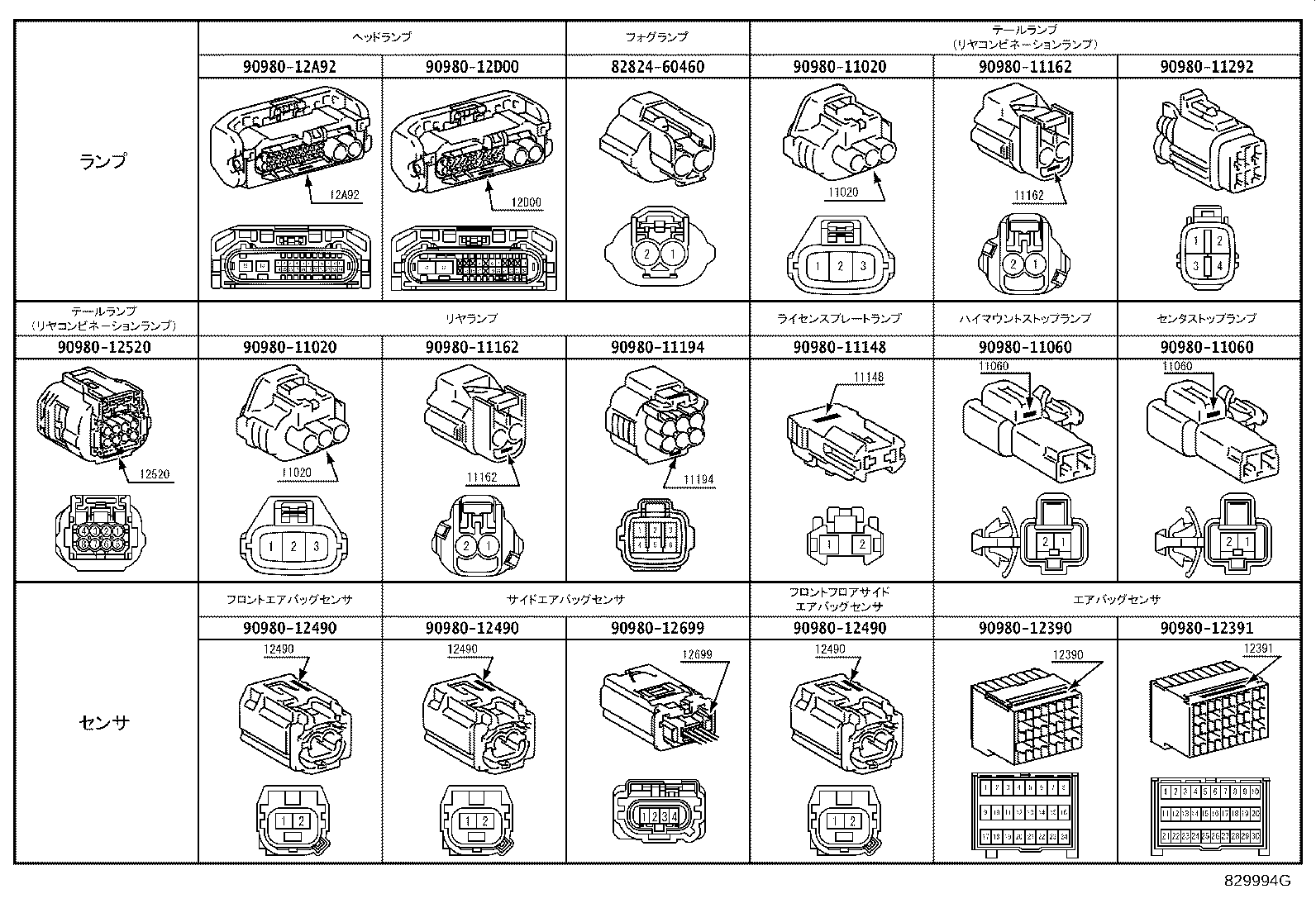

ｺﾈｸﾀ 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-11020 | ||||
| 90980-11060 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11292 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12A92 | ||||
| 90980-12D00 | ||||

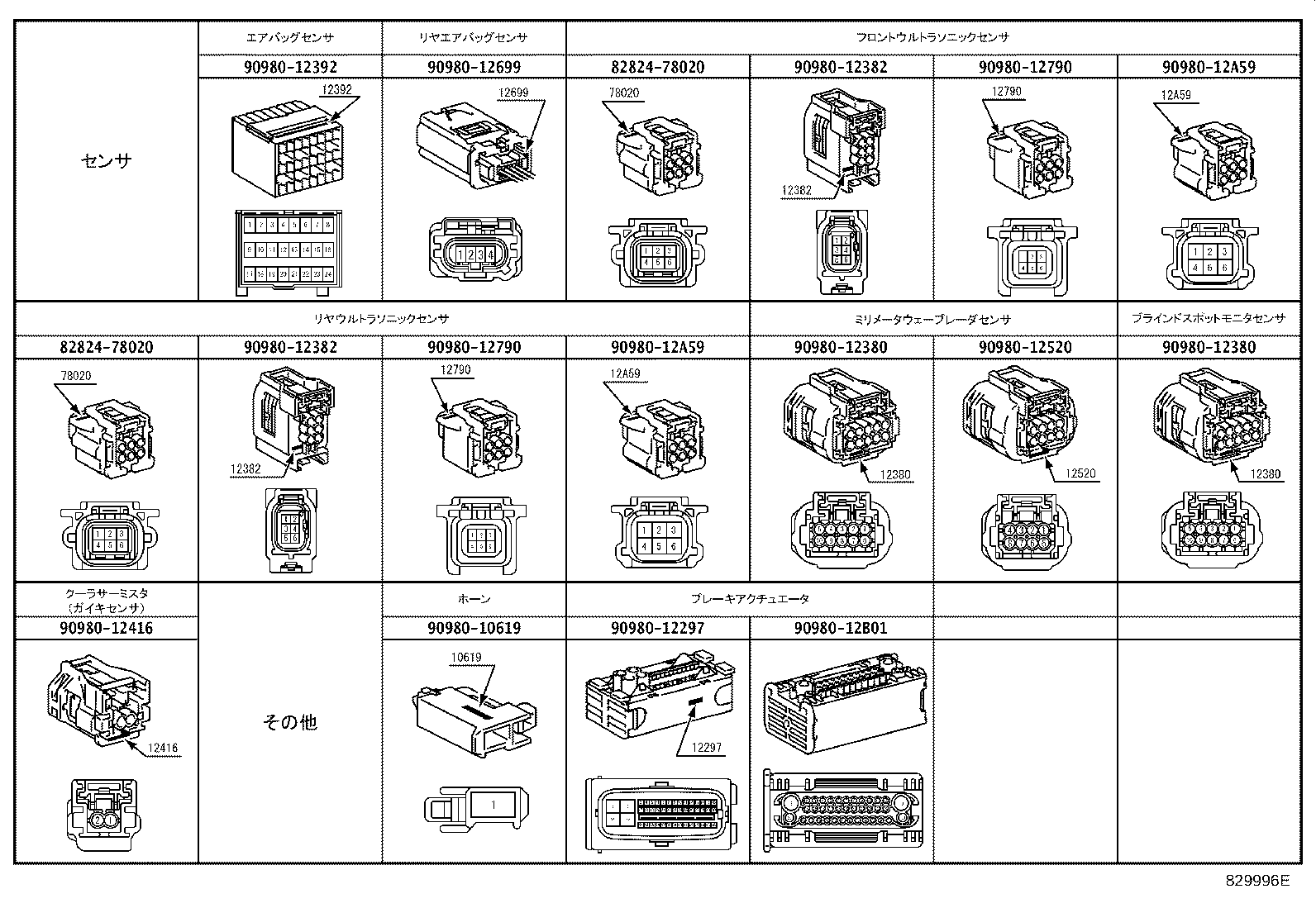

ILLUST NO.12 OF12(1501- )
ｺﾈｸﾀ 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-12297 | ||||
| 90980-12380 | ||||
| 90980-12382 | ||||
| 90980-12392 | ||||
| 90980-12416 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12B01 | ||||

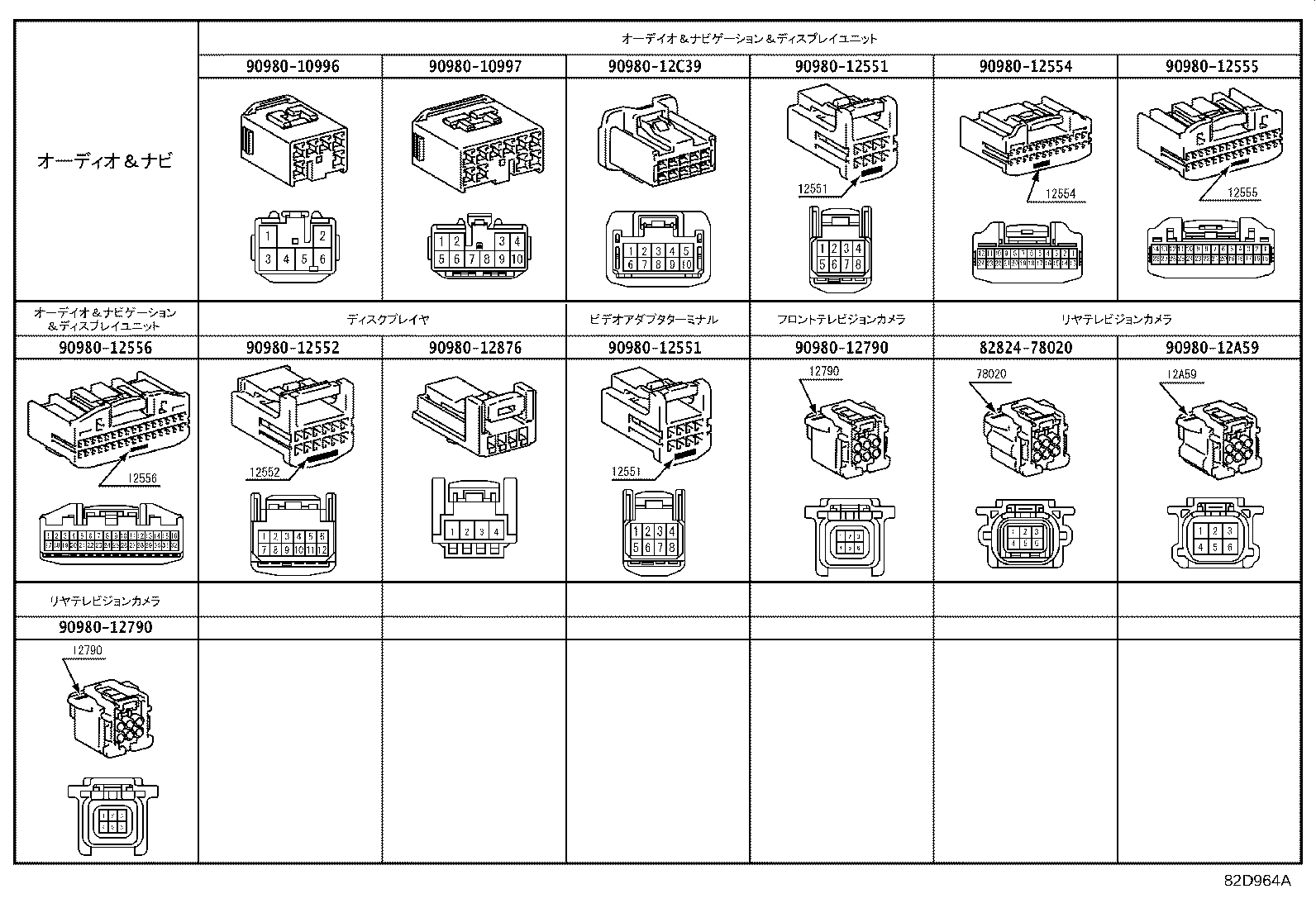

ILLUST NO.12 OF12(1501- )
ｺﾈｸﾀ 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12556 | ||||
| 90980-12790 | ||||
| 90980-12876 | ||||
| 90980-12A59 | ||||
| 90980-12C39 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
