AGH35W-NRXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

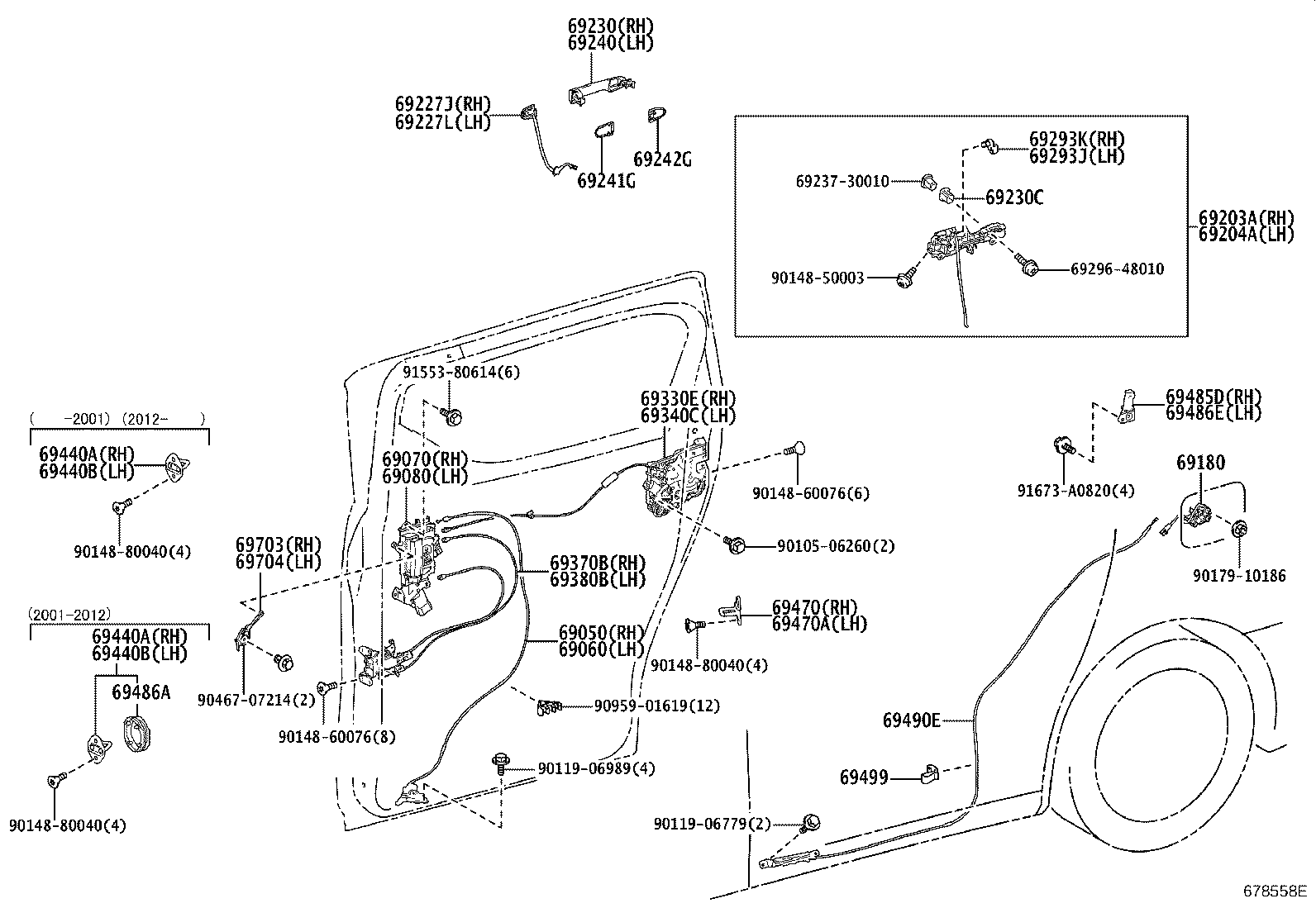

Click highlighted areas on diagram

diagram 69050 69060 69070 69080 69180 69203A 69204A 69227J 69227L 69230 69230C 6923730010 69240 69241G 69242G 69293J 69293K 6929648010 69330E 69340C 69370B 69380B 69440A 69440A 69440B 69440B 69470 69470A 69485D 69486A 69486E 69490E 69499 69703 69704 9010506260 9011906779 9011906989 9014850003 9014860076 9014860076 9014880040 9014880040 9014880040 9017910186 9046707214 9095901619 9155380614 91673A0820
Part # Description Qty Price
69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69305-58010

AGH3#,AYH30,GGH3#

 1
69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
69306-58010

AGH3#,AYH30,GGH3#

 1
69070 - HANDLE ASSY, SLIDE DOOR, INSIDE, RH
69070-58130C0

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

BLACK,TRIM0#,2#

 1
69070-58160C0

AGH3#,AYH30..S,X,Z

有り(*POSD(運転席側,助手席側)&*BDC),BLACK,TRIM0#,2#

 1
69070-58170C0

AGH3#,AYH30..S,X,Z

BLACK,TRIM0#,2#

 1
69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH
69080-58150C0

AGH3#,AYH30,GGH3#..S,SA,X,Z,ZA

BLACK,TRIM0#,2#

 1
69080-58120C0

AGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR

BLACK,TRIM0#,2#

 1
69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69180-58020

AGH3#,AYH30,GGH3#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-58030

AGH3#,AYH30,GGH3#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-58030

AGH3#,AYH30,GGH3#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-58021

AGH3#,AYH30..S,X,Z

*CR,有り(*POSD(運転席側,助手席側)&*BDC)

 1
69217-52081

AGH3#,AYH30..S,X,Z

*CR

 1
69227-58020

AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR

*CR

 1
69227-58020

AGH3#,AYH30..S,X,Z

*CR,有り(*POSD(運転席側,助手席側)&*BDC)

 1
69227-58021

AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR

*CR

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-58021

AGH3#,AYH30,GGH3#

*CR

 1
69227-58020

AGH3#,AYH30,GGH3#

*CR

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69213-58060

AGH3#,AYH30,GGH3#

ﾒｯｷ

 1
69230C - BUSH(FOR REAR DOOR OUTSIDE HANDLE)
69239-30010

AGH3#,AYH30,GGH3#

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69213-58060

AGH3#,AYH30,GGH3#

ﾒｯｷ

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242-33040

AGH3#,AYH30,GGH3#

 2
69242-52030

AGH3#,AYH30,GGH3#

 2
69242-52030

AGH3#,AYH30,GGH3#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69241-33030

AGH3#,AYH30,GGH3#

 2
69241-52020

AGH3#,AYH30,GGH3#

 2
69241-52020

AGH3#,AYH30,GGH3#

 2
69293J - SNAP, REAR DOOR OUTSIDE HANDLE, LH
69293-28030

AGH3#,AYH30,GGH3#

 1
69293K - SNAP, REAR DOOR OUTSIDE HANDLE, RH
69293-28040

AGH3#,AYH30,GGH3#

 1
69330E - LOCK ASSY, SLIDE DOOR, RH
69200-58030

AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR

 1
69200-58030

AGH3#,AYH30..S,X,Z

有り(*POSD(運転席側,助手席側)&*BDC)

 1
69200-58040

AGH3#,AYH30..S,X,Z

 1
69200-58031

AGH3#,AYH30,GGH3#..EL,G,GF,SA,SR,V,VL,ZA,ZR

 1
69200-58031

AGH3#,AYH30..S,X,Z

有り(*POSD(運転席側,助手席側)&*BDC)

 1
69200-58031

AGH3#,AYH30..S,X,Z

寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC)

 1
69200-58030

AGH3#,AYH30..S,X,Z

寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC)

 1
69200-58041

AGH3#,AYH30..S,X,Z

 1
69340C - LOCK ASSY, SLIDE DOOR, REAR LH
69300-58050

AGH3#,AYH30,GGH3#

 1
69300-58051

AGH3#,AYH30,GGH3#

 1
69370B - LOCK ASSY, SLIDE DOOR, FRONT RH
69370-58070

AGH3#,AYH30,GGH3#

寒冷地仕様

 1
69370-58060

AGH3#,AYH30,GGH3#

 1
69370-58070

AGH3#,AYH30..S,X,Z

寒冷地仕様&有り(*POSD(運転席側,助手席側)&*BDC)

 1
69380B - LOCK ASSY, SLIDE DOOR, FRONT LH
69380-58060

AGH3#,AYH30,GGH3#

寒冷地仕様

 1
69380-58050

AGH3#,AYH30,GGH3#

 1
69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440-28060

AGH3#,AYH30,GGH3#

 1
69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440-28060

AGH3#,AYH30,GGH3#

 1
69440B - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440-28060

AGH3#,AYH30,GGH3#

 1
69440B - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440-28060

AGH3#,AYH30,GGH3#

 1
69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470-58010

AGH3#,AYH30,GGH3#

 1
69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69470-58010

AGH3#,AYH30,GGH3#

 1
69485D - STRIKER, SLIDE DOOR OPEN, RH
69485-58030

AGH3#,AYH30,GGH3#

 1
69486E - STRIKER, SLIDE DOOR OPEN, LH
69486-58050

AGH3#,AYH30,GGH3#

 1
69490E - STOPPER ASSY, SLIDE DOOR HALF OPEN
69490-58030

AGH3#,AYH30,GGH3#

 1
69499 - CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE
69499-28020

AGH3#,AYH30,GGH3#

 1
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69703-58010

AGH3#,AYH30,GGH3#

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69704-58010

AGH3#,AYH30,GGH3#

 1
Common parts
69237-30010
69296-48010
90105-06260
90119-06779
90119-06989
90148-50003
90148-60076
90148-80040
90179-10186
90467-07214
90959-01619
91553-80614
91673-A0820
