AGH35W-NRXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

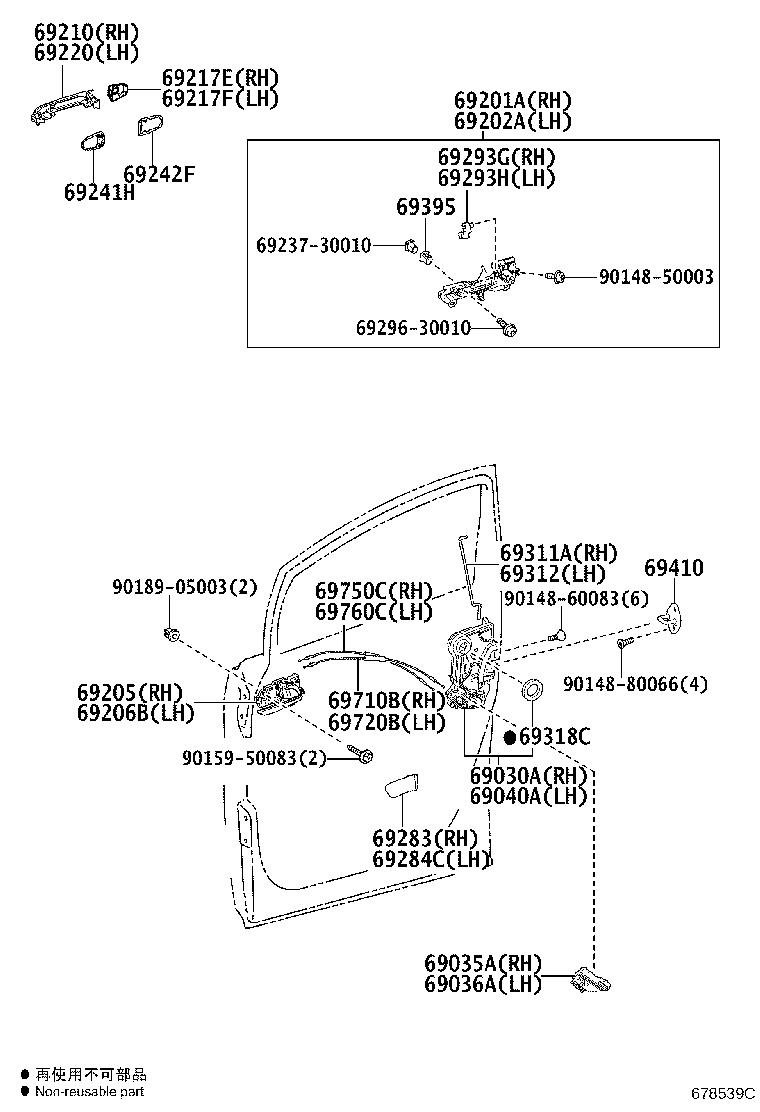

Click highlighted areas on diagram

diagram 69030A 69035A 69036A 69040A 69201A 69202A 69205 69206B 69210 69217E 69217F 69220 6923730010 69241H 69242F 69283 69284C 69293G 69293H 6929630010 69311A 69312 69318C 69395 69410 69710B 69720B 69750C 69760C 9014850003 9014860083 9014880066 9015950083 9018905003
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-30A70

AGH3#,AYH30,GGH3#

 1
69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH
69035-30010

AGH3#,AYH30,GGH3#

 1
69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH
69036-30010

AGH3#,AYH30,GGH3#

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-30A80

AGH3#,AYH30,GGH3#

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-52130

AGH3#,AYH30,GGH3#

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-52070

AGH3#,AYH30,GGH3#

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-30210C1

AGH3#,AYH30,GGH3#..G,GF,V,VL,X

BLACK,TRIM0#

 1
69205-30210C1

AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR

BLACK,TRIM2#

 1
69205-30210C0

AGH3#,AYH30,GGH3#

BLACK,TRIM0#,2#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-30210C1

AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR

BLACK,TRIM2#

 1
69206-30210C1

AGH3#,AYH30,GGH3#..G,GF,V,VL,X

BLACK,TRIM0#

 1
69206-30210C0

AGH3#,AYH30,GGH3#

BLACK,TRIM0#,2#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-58030

AGH3#,AYH30,GGH3#

ﾒｯｷ

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-52070

AGH3#,AYH30,GGH3#

*CR

 1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69217-52081

AGH3#,AYH30,GGH3#

*CR

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-58030

AGH3#,AYH30,GGH3#

ﾒｯｷ

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-52020

AGH3#,AYH30,GGH3#

 2
69241-33030

AGH3#,AYH30,GGH3#

 2
69241-52020

AGH3#,AYH30,GGH3#

 2
69242F - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-52030

AGH3#,AYH30,GGH3#

 2
69242-33040

AGH3#,AYH30,GGH3#

 2
69242-52030

AGH3#,AYH30,GGH3#

 2
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69283-30060C1

AGH3#,AYH30,GGH3#

BLACK,TRIM0#,2#

 1
69283-30060C2

AGH3#,AYH30,GGH3#..G,GF,V,VL,X

BLACK,TRIM0#

 1
69283-30060C2

AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR

BLACK,TRIM2#

 1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69284-30060C2

AGH3#,AYH30,GGH3#..S,SA,SR,Z,ZA,ZR

BLACK,TRIM2#

 1
69284-30060C1

AGH3#,AYH30,GGH3#

BLACK,TRIM0#,2#

 1
69284-30060C2

AGH3#,AYH30,GGH3#..G,GF,V,VL,X

BLACK,TRIM0#

 1
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

AGH3#,AYH30,GGH3#

 1
69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

AGH3#,AYH30,GGH3#

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-58030

AGH3#,AYH30,GGH3#

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-58030

AGH3#,AYH30,GGH3#

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

AGH3#,AYH30,GGH3#

 2
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
69239-30010

AGH3#,AYH30,GGH3#

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20110

AGH3#,AYH30,GGH3#

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-58030

AGH3#,AYH30,GGH3#

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-58030

AGH3#,AYH30,GGH3#

 1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-58030

AGH3#,AYH30,GGH3#

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-58030

AGH3#,AYH30,GGH3#

 1
Common parts
69237-30010
69296-30010
90148-50003
90148-60083
90148-80066
90159-50083
90189-05003
