AGH35W-NRXQK (2015)
Toyota Alphard/Vellfire/Hv

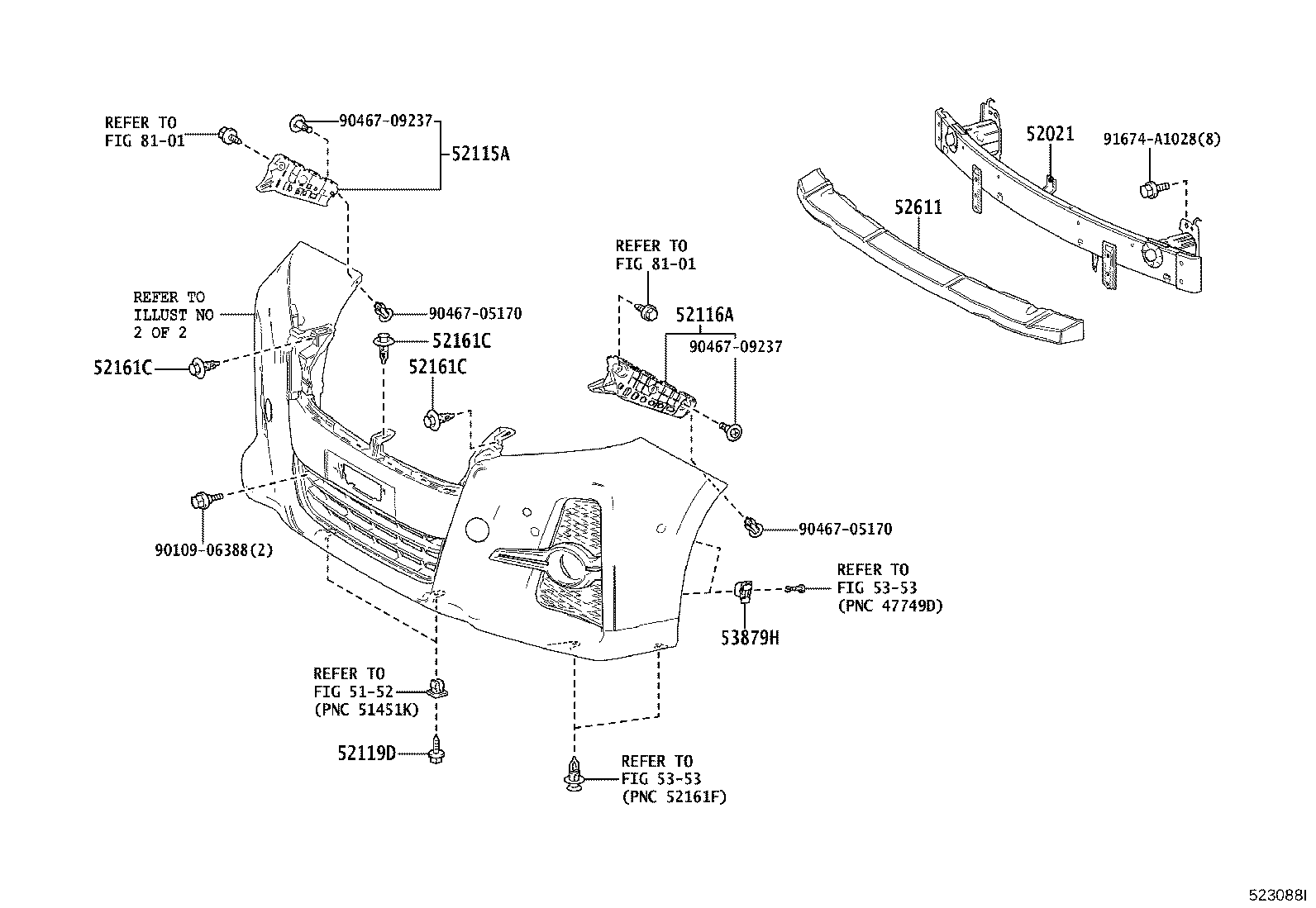

ILLUST NO. 1 OF 2(1501-1801)S,SA,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58070 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58070 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60431 |
AGH3#,AYH30,GGH3# |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30050 |
AGH3#,AYH30,GGH3# |
4 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90467-05170 | ||||
| 90467-09237 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8101 | ||||

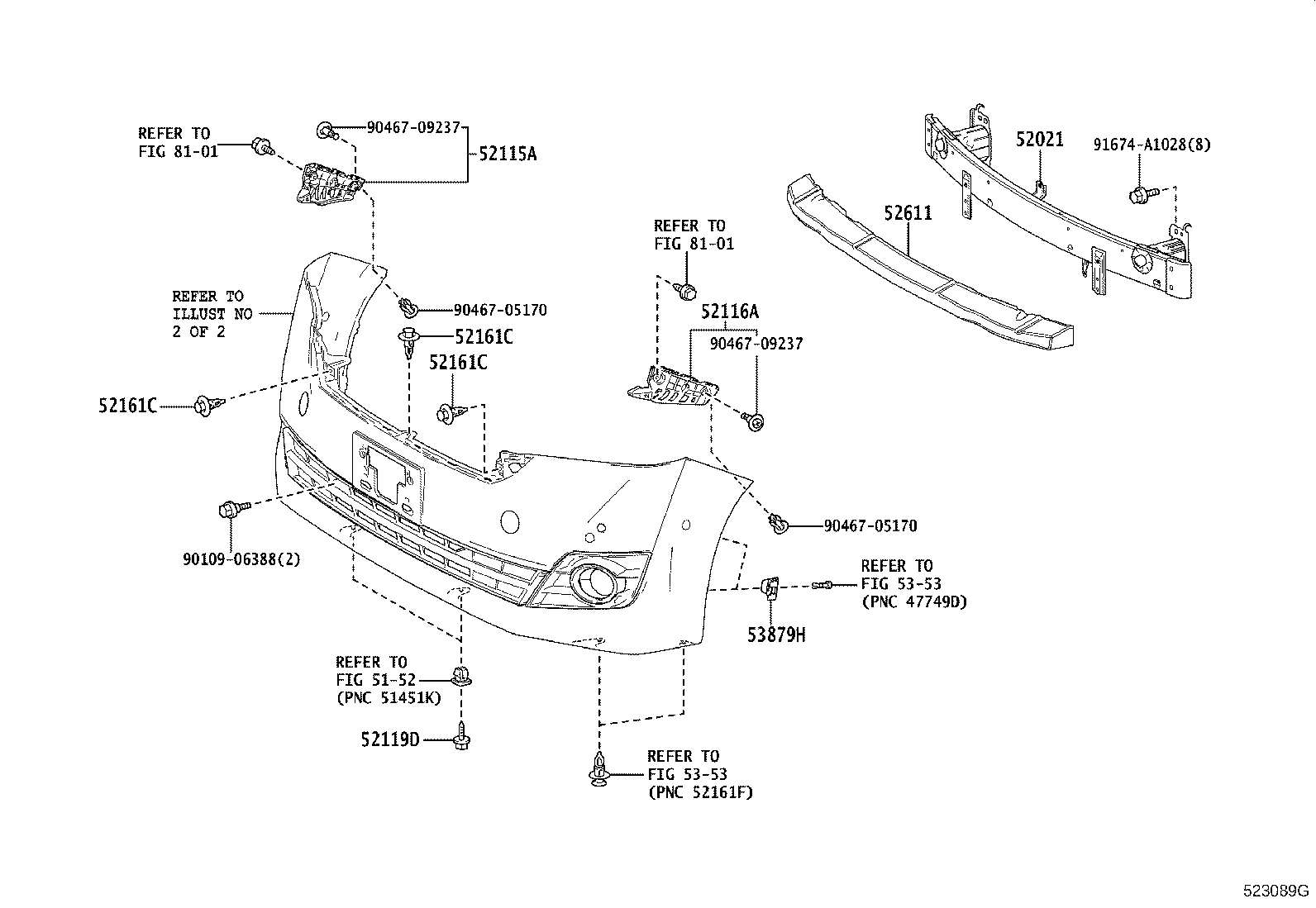

ILLUST NO. 1 OF 2(1501-1801)VFIRE..EL,V,VL,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58070 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58070 |
AGH3#,AYH30,GGH3#..VFIRE |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60431 |
AGH3#,AYH30,GGH3# |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30050 |
AGH3#,AYH30,GGH3# |
4 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90467-05170 | ||||
| 90467-09237 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8101 | ||||

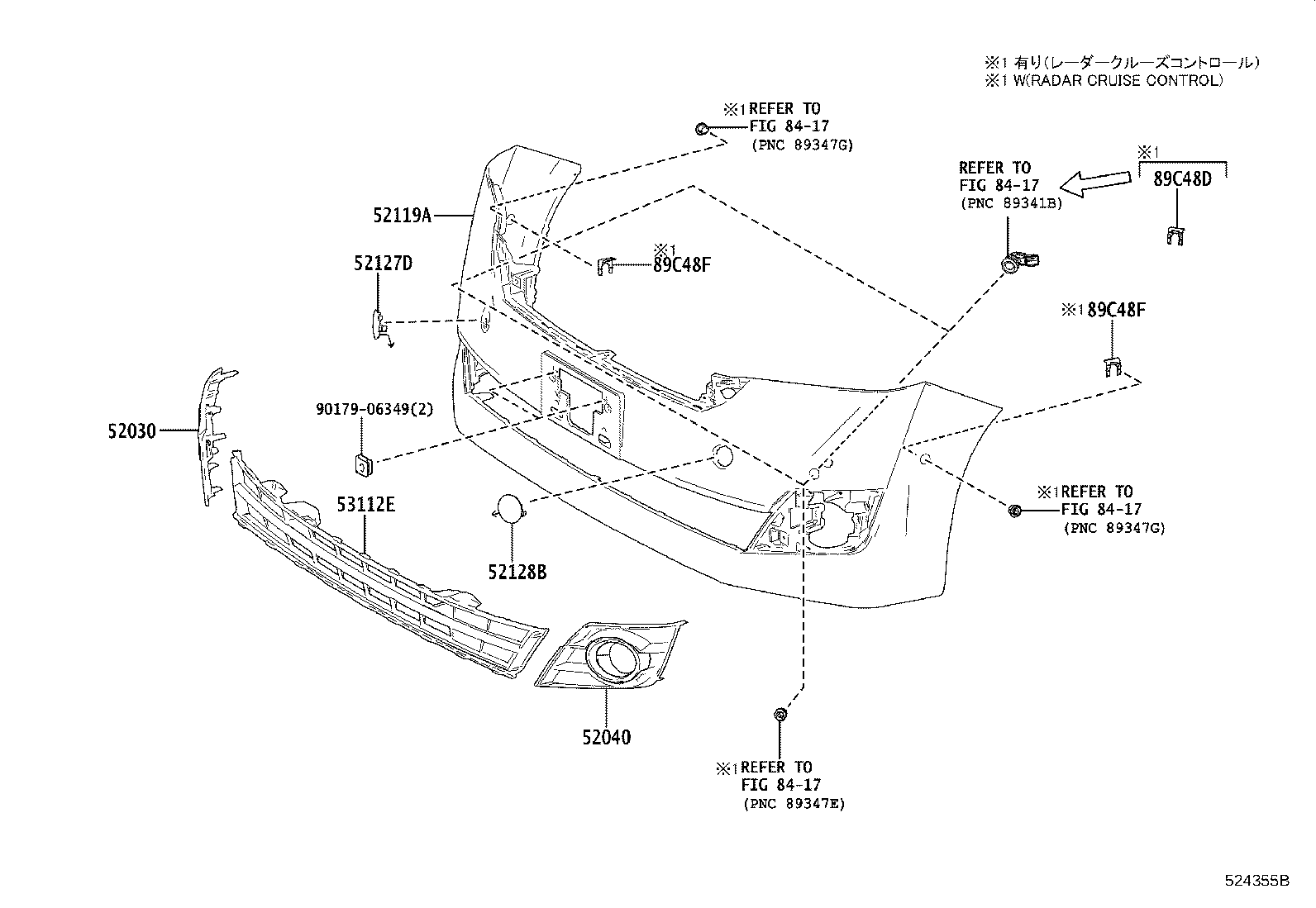

ILLUST NO. 2 OF 2(1501-1801)S,SA,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-58130 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) ﾒｯｷ |
1 | ||
| 52030-58120 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾒｯｷ |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-58120 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾒｯｷ |
1 | ||
| 52040-58130 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) ﾒｯｷ |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58470A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58470A0 |
AGH3#,AYH30,GGH3#..S,SA,SR WHITE PEARL CS.,070 |
1 | ||
| 52119-58480A0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52119-58470B1 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAY ME.,1G3 |
1 | ||
| 52119-58480A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58480C0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52119-58470J0 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58470C0 |
AGH3#,AYH30,GGH3#..S,SA,SR BLACK,202 |
1 | ||
| 52119-58480J0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58510C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52119-58480C1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58470C1 |
AGH3#,AYH30,GGH3#..S,SA,SR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58480B1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAY ME.,1G3 |
1 | ||
| 52119-58490A0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58490A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURYWHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58490A0 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58490C0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58490C0 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58490B1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52119-58490B1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52119-58490C1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490C1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58500A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 52119-58500C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 52119-58490J0 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58500B0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) SILVER ME.,1F7 |
1 | ||
| 52119-58500C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,202 |
1 | ||
| 52119-58500J0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58510A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52119-58490J0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58520C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58520A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58520B0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVERME.,1F7 |
1 | ||
| 52119-58510B0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SILVER ME.,1F7 |
1 | ||
| 52119-58520C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BURNING BLACK CS.GF,222 |
1 | ||
| 52119-58510J0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58520C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BURNING BLACK CS.GF,222 |
1 | ||
| 52119-58520C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58520B0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVER ME.,1F7 |
1 | ||
| 52119-58520A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58520J0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58520J0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58510C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BURNING BLACK CS.GF,222 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-58260B1 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAY ME.,1G3 |
1 | ||
| 52127-58260A0 |
AGH3#,AYH30,GGH3#..S,SA,SR WHITE PEARL CS.,070 |
1 | ||
| 52127-58260A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52127-58270C2 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 52127-58260C0 |
AGH3#,AYH30,GGH3#..S,SA,SR BLACK,202 |
1 | ||
| 52127-58270A0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 52127-58260J0 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52127-58270C0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BLACK,202 |
1 | ||
| 52127-58270J0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52127-58260C1 |
AGH3#,AYH30,GGH3#..S,SA,SR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52127-58270B0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) SILVER ME.,1F7 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-58260A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52128-58260A0 |
AGH3#,AYH30,GGH3#..S,SA,SR WHITE PEARL CS.,070 |
1 | ||
| 52128-58260C0 |
AGH3#,AYH30,GGH3#..S,SA,SR BLACK,202 |
1 | ||
| 52128-58270B0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) SILVER ME.,1F7 |
1 | ||
| 52128-58260J0 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52128-58270C0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BLACK,202 |
1 | ||
| 52128-58260C1 |
AGH3#,AYH30,GGH3#..S,SA,SR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52128-58270J0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52128-58270C2 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 52128-58270A0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 52128-58260B1 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAY ME.,1G3 |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 53105-58010 |
AGH3#,AYH30,GGH3#..S,SA,SR 塗装不要 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-58140 |
AGH3#,AYH30,GGH3#..S,SA,SR 塗装不要 |
1 | ||
| 53112-58150 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) 塗装不要 |
1 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| Common parts | ||||
| 90167-40057 | ||||
| 90179-06349 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 8417 | ||||

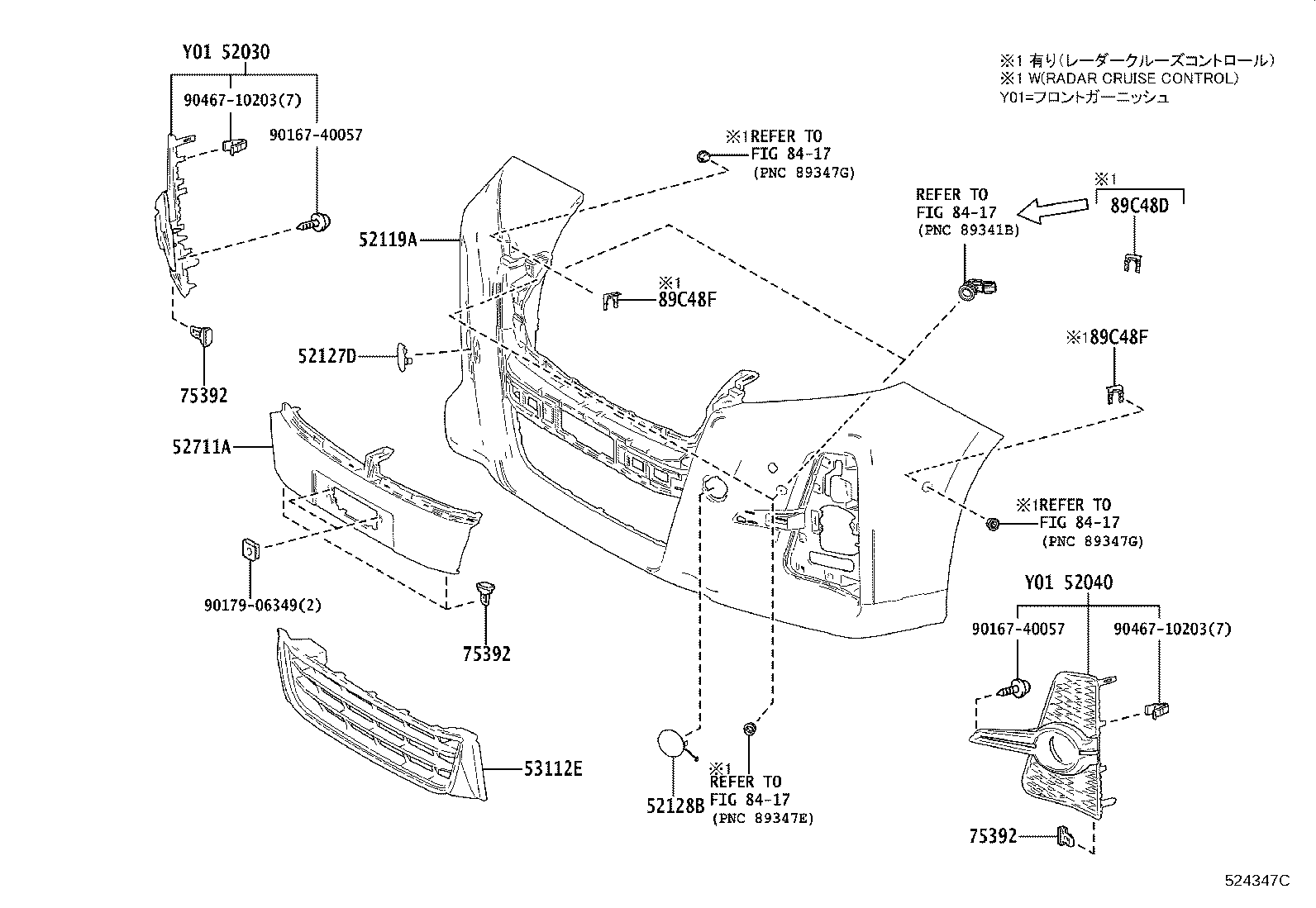

ILLUST NO. 2 OF 2(1501-1801)VFIRE..EL,V,VL,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-58130 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) ﾒｯｷ |
1 | ||
| 52030-58120 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾒｯｷ |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-58120 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾒｯｷ |
1 | ||
| 52040-58130 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) ﾒｯｷ |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-58470A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58470A0 |
AGH3#,AYH30,GGH3#..S,SA,SR WHITE PEARL CS.,070 |
1 | ||
| 52119-58480A0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52119-58470B1 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAY ME.,1G3 |
1 | ||
| 52119-58480A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58480C0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52119-58470J0 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58470C0 |
AGH3#,AYH30,GGH3#..S,SA,SR BLACK,202 |
1 | ||
| 52119-58480J0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58480C1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58470C1 |
AGH3#,AYH30,GGH3#..S,SA,SR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58480B1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAY ME.,1G3 |
1 | ||
| 52119-58490A0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58490A1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),LUXURYWHITE PEARL CS.GF.,086 |
1 | ||
| 52119-58490A0 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58510C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BLACK,202 |
1 | ||
| 52119-58490C0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58490C0 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58490B1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52119-58490B1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAY ME.,1G3 |
1 | ||
| 52119-58490C1 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58490C1 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52119-58500A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 52119-58500C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 52119-58490J0 |
AGH3#,AYH30,GGH3#..S,SA,SR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58500B0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) SILVER ME.,1F7 |
1 | ||
| 52119-58500C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,202 |
1 | ||
| 52119-58500J0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58510A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),WHITE PEARL CS.,070 |
1 | ||
| 52119-58490J0 |
AGH3#,AYH30,GGH3#..S,SA,SR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58520C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58520A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58520B0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVERME.,1F7 |
1 | ||
| 52119-58510B0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),SILVER ME.,1F7 |
1 | ||
| 52119-58520C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BURNING BLACK CS.GF,222 |
1 | ||
| 52119-58510J0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58520C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BURNING BLACK CS.GF,222 |
1 | ||
| 52119-58520C0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-58520B0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVER ME.,1F7 |
1 | ||
| 52119-58520A0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,070 |
1 | ||
| 52119-58520J0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58520J0 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-58510C2 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)),BURNING BLACK CS.GF,222 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-58260B1 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAY ME.,1G3 |
1 | ||
| 52127-58260A0 |
AGH3#,AYH30,GGH3#..S,SA,SR WHITE PEARL CS.,070 |
1 | ||
| 52127-58260A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52127-58270C2 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 52127-58260C0 |
AGH3#,AYH30,GGH3#..S,SA,SR BLACK,202 |
1 | ||
| 52127-58270A0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 52127-58260J0 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52127-58270C0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BLACK,202 |
1 | ||
| 52127-58270J0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52127-58260C1 |
AGH3#,AYH30,GGH3#..S,SA,SR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52127-58270B0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) SILVER ME.,1F7 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-58260A1 |
AGH3#,AYH30,GGH3#..S,SA,SR LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 52128-58260A0 |
AGH3#,AYH30,GGH3#..S,SA,SR WHITE PEARL CS.,070 |
1 | ||
| 52128-58260C0 |
AGH3#,AYH30,GGH3#..S,SA,SR BLACK,202 |
1 | ||
| 52128-58270B0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) SILVER ME.,1F7 |
1 | ||
| 52128-58260J0 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52128-58270C0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BLACK,202 |
1 | ||
| 52128-58260C1 |
AGH3#,AYH30,GGH3#..S,SA,SR SPARKLING BLACK PEARL CS.,220 |
1 | ||
| 52128-58270J0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52128-58270C2 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) BURNING BLACK CS.GF,222 |
1 | ||
| 52128-58270A0 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) WHITE PEARL CS.,070 |
1 | ||
| 52128-58260B1 |
AGH3#,AYH30,GGH3#..S,SA,SR GRAY ME.,1G3 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-58140 |
AGH3#,AYH30,GGH3#..S,SA,SR 塗装不要 |
1 | ||
| 53112-58150 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,V,VL,X) 塗装不要 |
1 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き)) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(ﾚｰﾀﾞｰｸﾙｰｽﾞｺﾝﾄﾛｰﾙ(ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ付き))&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| 89348-58120 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
2 | ||
| Common parts | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
