Toyota Alphard/vellfire/hv AGH35 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty
86183D - COVER, AUDIO AMPLIFIER
86183-58010	AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL	01/2018 - 01/2020	1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-48080	AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL	01/2018 - 01/2020	1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-48080	AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL	01/2018 - 01/2020	1
86203D - WIRE, STEREO COMPONENT, NO.1
86203-58090	AGH3#..S,X,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL	01/2018 - 01/2020	1
86203-58100	AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”(C)or“Gｴﾃﾞｨｼｮﾝ”(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL	01/2018 - 01/2020	1
86203-58100	AYH30..G,S,SR,V,X,Z,ZR;AGH3#,GGH3#..G,GF,SC,V,VL,ZG ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL	01/2018 - 01/2020	1
86203D - WIRE, STEREO COMPONENT, NO.1
86203-58090	AGH3#..S,X,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL	01/2018 - 01/2020	1
86203-58100	AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”(C)or“Gｴﾃﾞｨｼｮﾝ”(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL	01/2018 - 01/2020	1
86203-58100	AYH30..G,S,SR,V,X,Z,ZR;AGH3#,GGH3#..G,GF,SC,V,VL,ZG ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL	01/2018 - 01/2020	1
86211 - BRACKET, RADIO, NO.1
86211-58100	AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR	01/2018 - 01/2020	1
86212 - BRACKET, RADIO, NO.2
86212-58100	AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR	01/2018 - 01/2020	1
86280G - AMPLIFIER ASSY, STEREO COMPONENT
86280-58070	AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL	01/2018 - 01/2020	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-58190	AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL	01/2018 - 01/2020	1
86286 - BRACKET, AMPLIFIER, NO.2
86286-58010	AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL	01/2018 - 01/2020	1
Common parts
63395-12150
90105-08466
90153-50010
91673-80616
Linked diagrams
5551
8603
8604

AGH35W-NFXQK (2018)

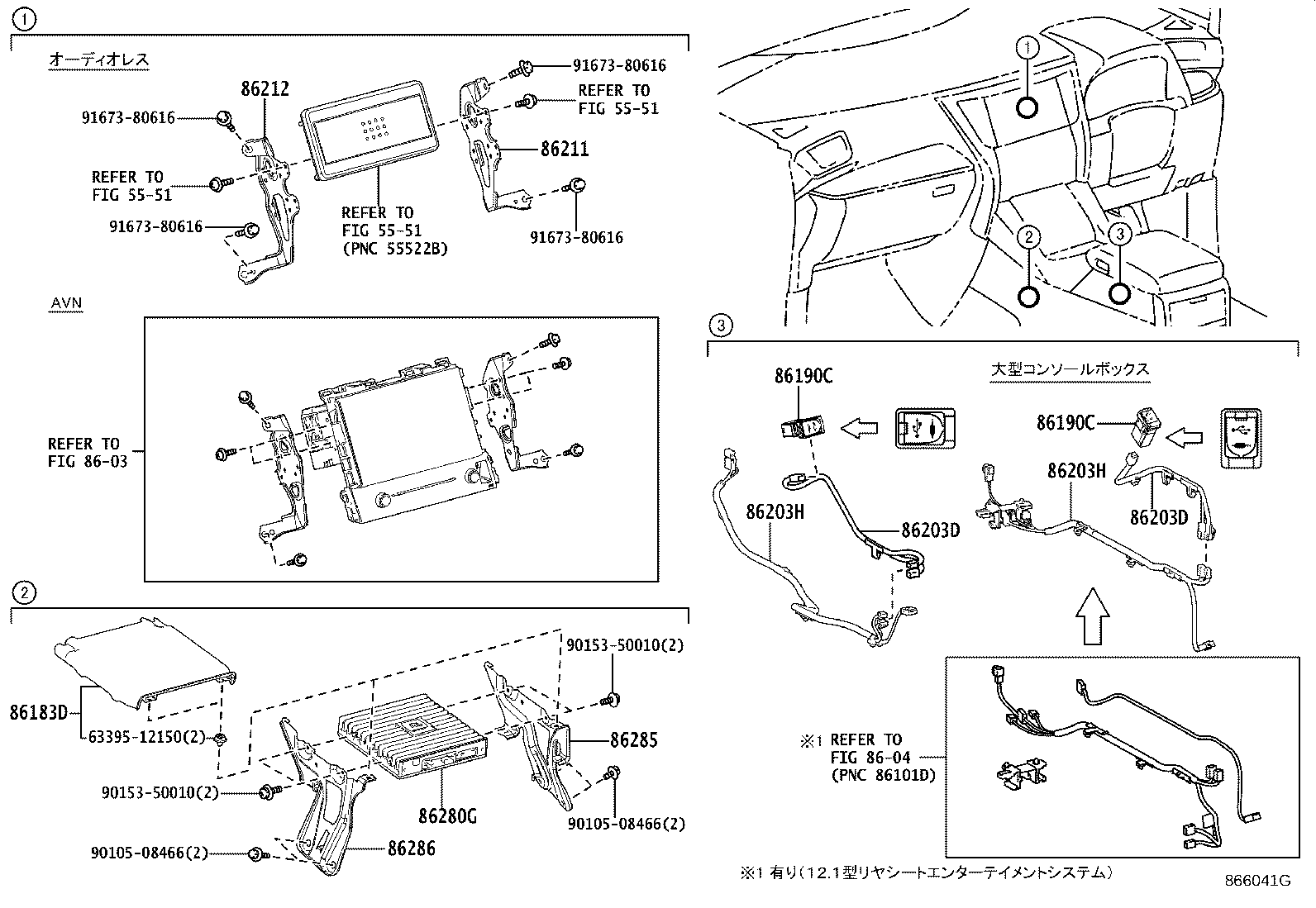

ILLUST NO. 1 OF 2(1501-2001)
