AGH35W-NFXQK (2015)
Toyota Alphard/Vellfire/Hv
(1501- )

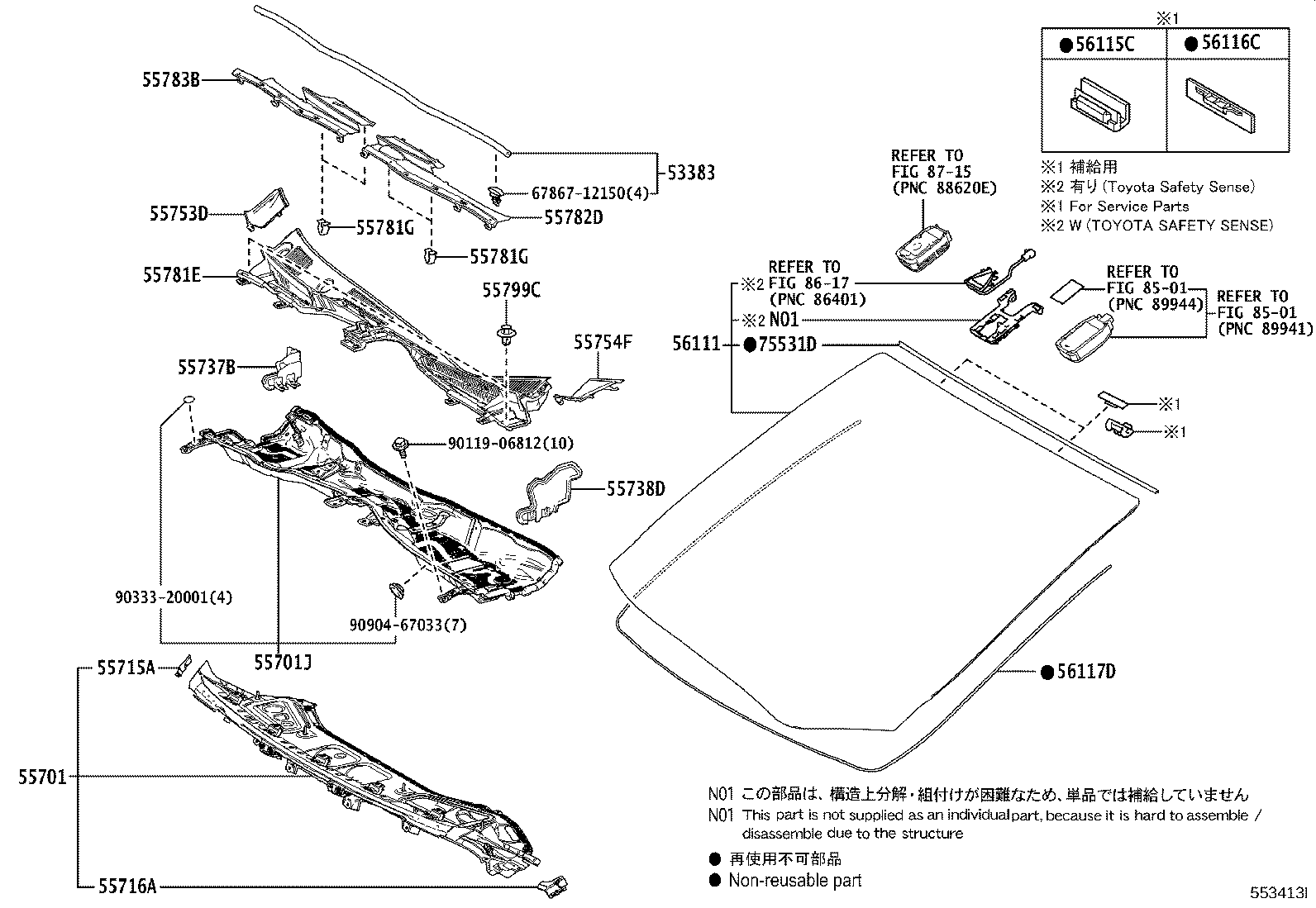

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-58040 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-58050 |
AGH3#,GGH3# |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-58111 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55701-58113 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55738-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55738-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55753D - SHIELD, COWL WATER EXTRACT, RH | ||||
| 55753-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55754F - SHIELD, COWL WATER EXTRACT, LH | ||||
| 55754-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-58090 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55708-58100 |
AGH3#,AYH30,GGH3# 寒冷地仕様 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-05171 |
AGH3#,AYH30,GGH3# |
4 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-05171 |
AGH3#,AYH30,GGH3# |
4 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-58030 |
AGH3#,AYH30,GGH3# |
1 | ||
| 55799C - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07215 |
AGH3#,AYH30,GGH3# |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-58510 |
AGH3#,GGH3#..G,GF,V,VL 寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り |
1 | ||
| 56101-58450 |
AGH3#,GGH3#..S,SA,X,Z,ZA 寒冷地仕様 |
1 | ||
| 56101-58460 |
AGH3#,GGH3#..S,SA,X,Z,ZA ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り |
1 | ||
| 56101-58490 |
AGH3#,GGH3#..G,GF,V,VL 寒冷地仕様 |
1 | ||
| 56101-58490 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様 |
1 | ||
| 56101-58510 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り |
1 | ||
| 56101-58470 |
AGH3#,GGH3#..S,SA,X,Z,ZA 寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り |
1 | ||
| 56101-58480 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 56101-58500 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り |
1 | ||
| 56101-58440 |
AGH3#,GGH3#..S,SA,X,Z,ZA |
1 | ||
| 56101-58500 |
AGH3#,GGH3#..G,GF,V,VL ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り |
1 | ||
| 56101-58480 |
AGH3#,GGH3#..G,GF,V,VL |
1 | ||
| 56115C - STOPPER, WINDSHIELD GLASS | ||||
| 56115-30120 |
AGH3#,AYH30,GGH3# |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
AGH3#,AYH30,GGH3# |
1 | ||
| 56117D - DAM, WINDSHIELD GLASS ADHESIVE | ||||
| 56117-50130 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR *D,L=3559,寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り |
1 | ||
| 56117-50130 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) *D,L=3559,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRo窒yR&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り |
1 | ||
| 56117-50130 |
AGH3#,AYH30,GGH3# *D,L=3559 |
1 | ||
| 56117-50130 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) *D,L=3559,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRo窒yR&寒冷地仕様&ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り |
1 | ||
| 56117-50130 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) *D,L=3559,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRo窒yR |
1 | ||
| 56117-50130 |
AGH3#,AYH30,GGH3# *D,L=3559,寒冷地仕様 |
1 | ||
| 56117-50130 |
AGH3#,GGH3#..07S..(S,SA,Z,ZA) *D,L=3559,“Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRo窒yR&寒冷地仕様 |
1 | ||
| 56117-50130 |
AGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR *D,L=3559,ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞﾁｭｰﾅ−有り |
1 | ||
| 75531D - MOULDING, WINDSHIELD, OUTSIDE UPPER | ||||
| 75531-58020 |
AGH3#,AYH30,GGH3# |
1 | ||
| Common parts | ||||
| 67867-12150 | ||||
| 90119-06812 | ||||
| 90333-20001 | ||||
| 90904-67033 | ||||
| Linked diagrams | ||||
| 8501 | ||||
| 8617 | ||||
| 8715 | ||||
