AGH35W-NFXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )AGH3#

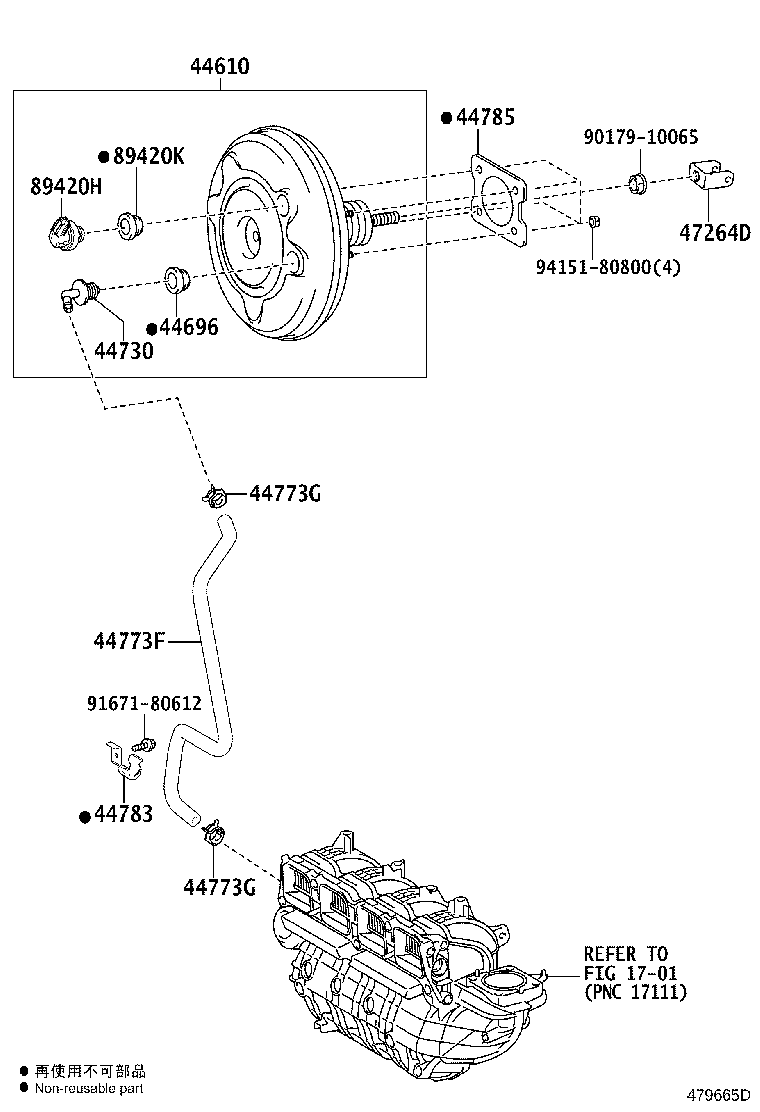

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44773F 44773G 44773G 44783 44785 47264D 89420H 89420K 9017910065 9167180612 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-58070

AGH3#

 1
44696 - GROMMET, CHECK VALVE
90480-24015

AGH3#,GGH3#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10020

AGH3#,GGH3#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-58050

AGH3#

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

AGH3#

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

AGH3#

 2
44783 - CLAMP, VACUUM HOSE
44783-42030

AGH3#

 1
44785 - GASKET, BRAKE BOOSTER
44785-12040

AGH3#,GGH3#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-30060

AGH3#,GGH3#

 1
89420H - SENSOR ASSY, VACUUM
89421-52020

AGH3#

 1
89420K - GROMMET, VACUUM SENSOR
90480-24439

AGH3#

 1
Common parts
90179-10065
91671-80612
94151-80800
Linked diagrams
1701
