AGH30W-PRXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

Click highlighted areas on diagram

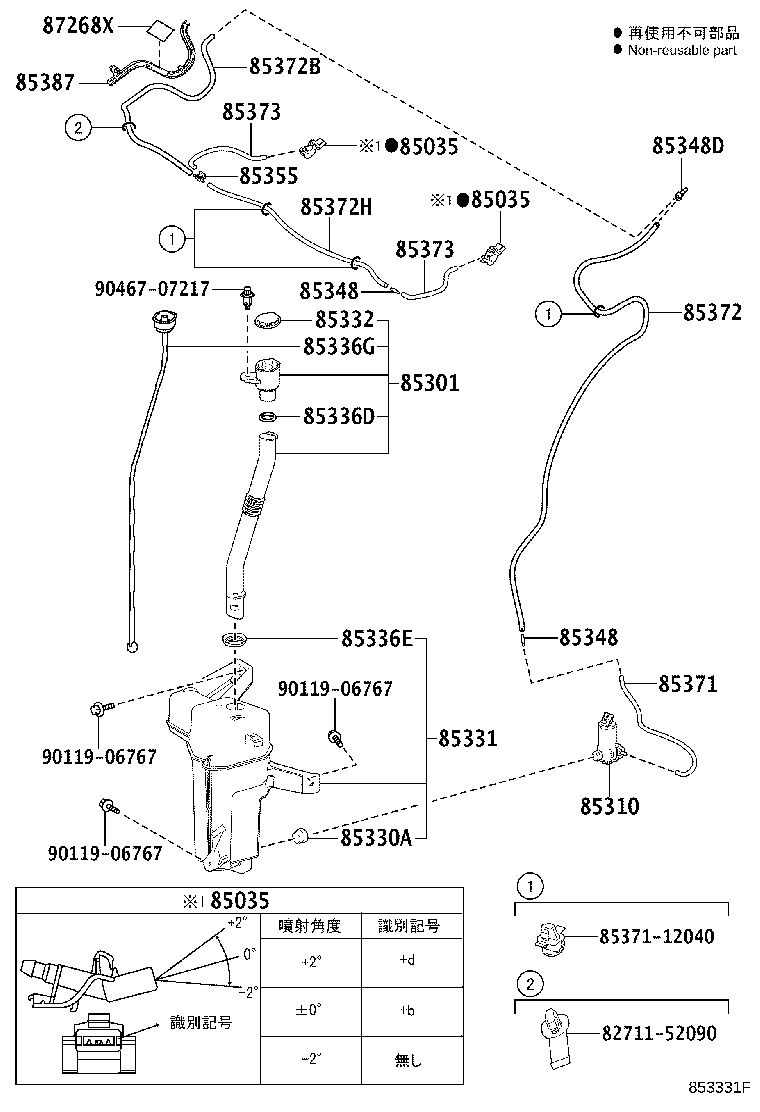

diagram 8271152090 85035 85035 85035 85301 85310 85330A 85331 85332 85336D 85336E 85336G 85348 85348 85348D 85355 85371 8537112040 85372 85372B 85372H 85373 85373 85387 87268X 9011906767 9011906767 9011906767 9046707217
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30220

AGH3#,AYH30,GGH3#

角度 0

 2
85381-30230

AGH3#,AYH30,GGH3#

角度 −2

 2
85381-30240

AGH3#,AYH30,GGH3#

角度 +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30220

AGH3#,AYH30,GGH3#

角度 0

 2
85381-30230

AGH3#,AYH30,GGH3#

角度 −2

 2
85381-30240

AGH3#,AYH30,GGH3#

角度 +2

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30220

AGH3#,AYH30,GGH3#

角度 0

 2
85381-30230

AGH3#,AYH30,GGH3#

角度 −2

 2
85381-30240

AGH3#,AYH30,GGH3#

角度 +2

 2
85301 - INLET SUB-ASSY, WASHER
85319-58030

AGH3#,AYH30,GGH3#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-47100

AGH3#,AYH30,GGH3#

 1
85330-58010

AGH3#,AYH30,GGH3#

 1
85330-58011

AGH3#,AYH30,GGH3#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AGH3#,AYH30,GGH3#

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85315-58030

AGH3#,AYH30,GGH3#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-26030

AGH3#,AYH30,GGH3#

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-42320

AGH3#,AYH30,GGH3#

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160

AGH3#,AYH30,GGH3#

 1
85336G - GAGE, WATER LEVEL
85312-28010

AGH3#,AYH30,GGH3#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AGH3#,AYH30,GGH3#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

AGH3#,AYH30,GGH3#

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200

AGH3#,AYH30,GGH3#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

AGH3#,AYH30,GGH3#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

AGH3#,AYH30,GGH3#

*H,L=300

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

AGH3#,AYH30,GGH3#

*H,L=1000

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

AGH3#,AYH30,GGH3#

*H,L=730

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

AGH3#,AYH30,GGH3#

*H,L=590

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AGH3#,AYH30,GGH3#

*H,L=180

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AGH3#,AYH30,GGH3#

*H,L=180

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387-58220

AGH3#,AYH30,GGH3#

 1
87268X - PROTECTOR
85389-58220

AGH3#,AYH30,GGH3#

 1
Common parts
82711-52090
85371-12040
90119-06767
90467-07217
