AGH30W-PRXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

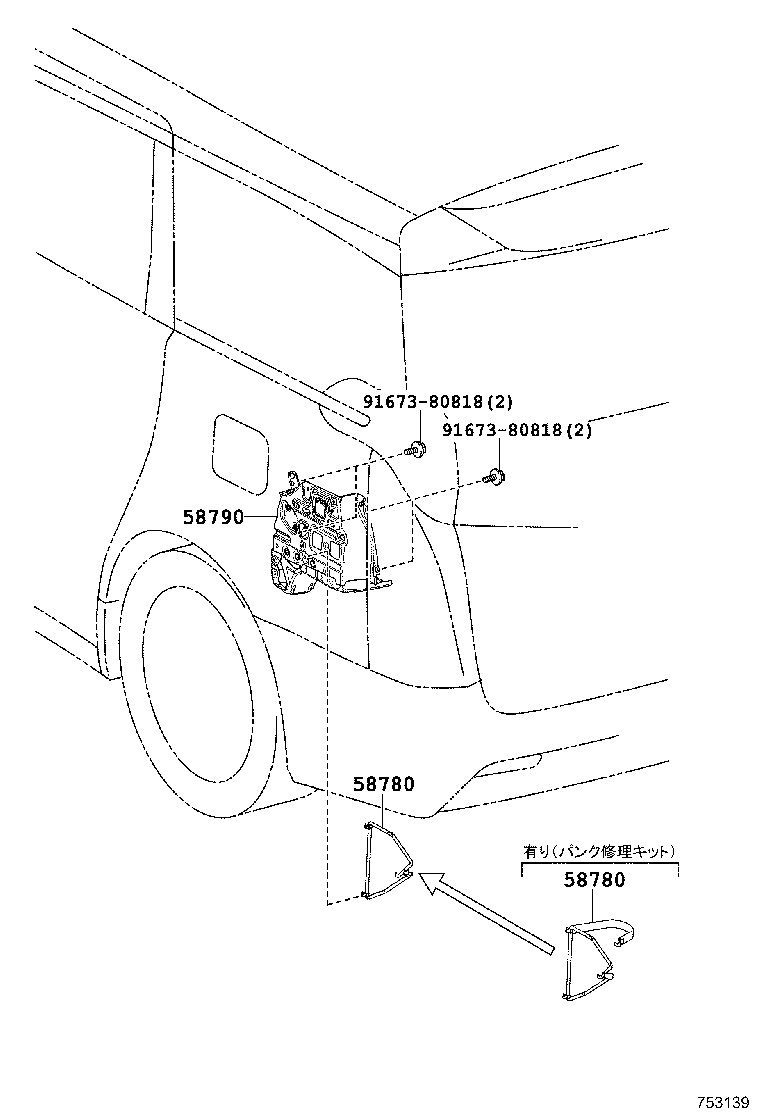

Click highlighted areas on diagram

diagram 58780 58780 58790 9167380818 9167380818
Part # Description Qty Price
58780 - BAND ASSY, TOOL BOX
58780-58050

AGH3#,AYH30,GGH3#

 1
58780-58040

AGH3#,AYH30,GGH3#

ｽﾍﾟｱﾀｲﾔ−T155/80D17(ﾃﾝﾊﾟ)

 1
58780 - BAND ASSY, TOOL BOX
58780-58050

AGH3#,AYH30,GGH3#

 1
58780-58040

AGH3#,AYH30,GGH3#

ｽﾍﾟｱﾀｲﾔ−T155/80D17(ﾃﾝﾊﾟ)

 1
58790 - CARRIER ASSY, JACK
58790-58041

AGH3#,AYH30,GGH3#

 1
58790-58040

AGH3#,AYH30,GGH3#

 1
Common parts
91673-80818
