AGH30W-PRXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

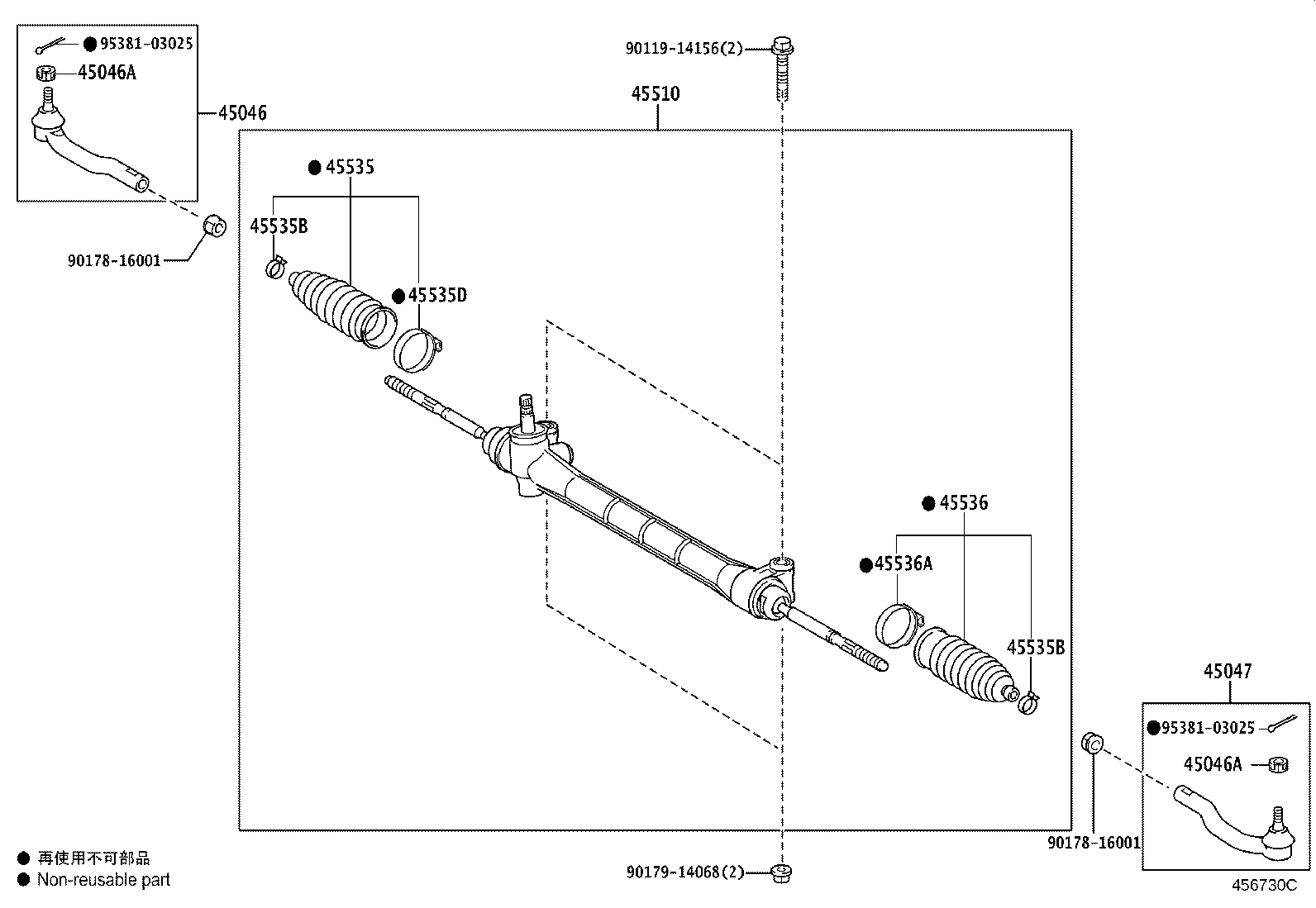

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45535D 45536 45536A 9011914156 9017816001 9017816001 9017914068 9538103025 9538103025
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-29515

AGH3#,AYH30,GGH3#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AGH3#,AYH30,GGH3#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AGH3#,AYH30,GGH3#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-29195

AGH3#,AYH30,GGH3#

 1
45510 - GEAR ASSY, STEERING
45510-58050

AYH30;AGH3#..X

 1
45510-58060

AGH3#,GGH3#..EL,G,GF,S,SA,V,VL,Z,ZA

 1
45535 - BOOT, STEERING RACK, NO.1
45535-59075

AGH3#,AYH30,GGH3#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

AGH3#,AYH30,GGH3#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

AGH3#,AYH30,GGH3#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-48020

AGH3#,AYH30,GGH3#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-59075

AGH3#,AYH30,GGH3#

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-48020

AGH3#,AYH30,GGH3#

 1
Common parts
90119-14156
90178-16001
90179-14068
95381-03025
