AGH30W-PRXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )2ARFE

Click highlighted areas on diagram

12V 150A

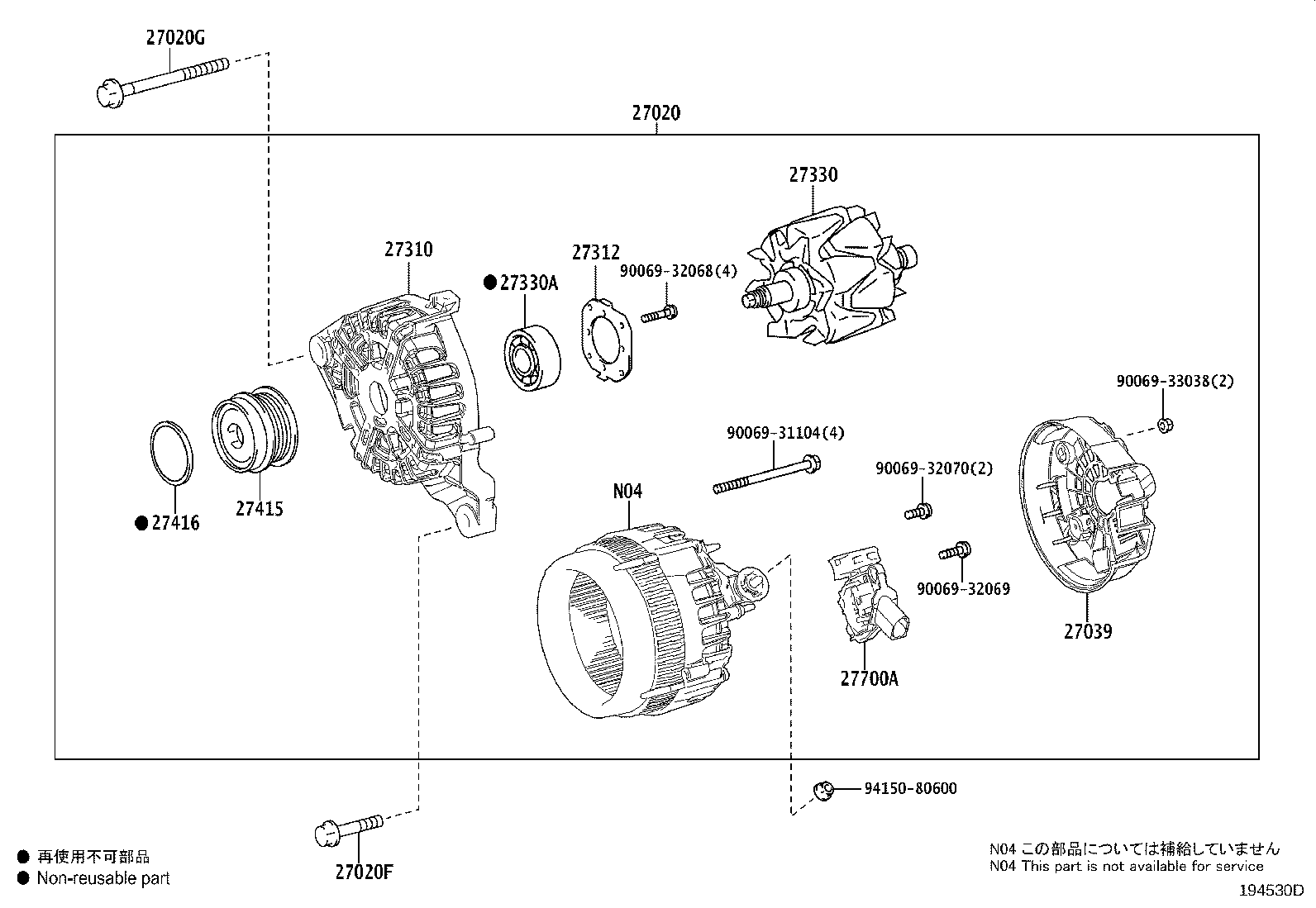

diagram 27020 27020F 27020G 27039 27310 27312 27330 27330A 27415 27416 27700A 9006931104 9006932068 9006932069 9006932070 9006933038 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0V280

2ARFE..AGH3#

12V 150A

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
91552-81045

2ARFE..AGH3#

 1
27020G - BOLT, NO.2(FOR ALTERNATOR)
90105-10562

2ARFE..AGH3#

 1
27039 - COVER, ALTERNATOR REAR END
27039-0V280

2ARFE..AGH3#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0V280

2ARFE..AGH3#

 1
27312 - PLATE, RETAINER
27312-0V280

2ARFE..AGH3#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0V280

2ARFE..AGH3#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90069-40009

2ARFE..AGH3#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W150

2ARFE..AGH3#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

2ARFE,2GRFE..AGH3#,GGH3#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-0V090

2ARFE..AGH3#

 1
Common parts
90069-31104
90069-32068
90069-32069
90069-32070
90069-33038
94150-80600
