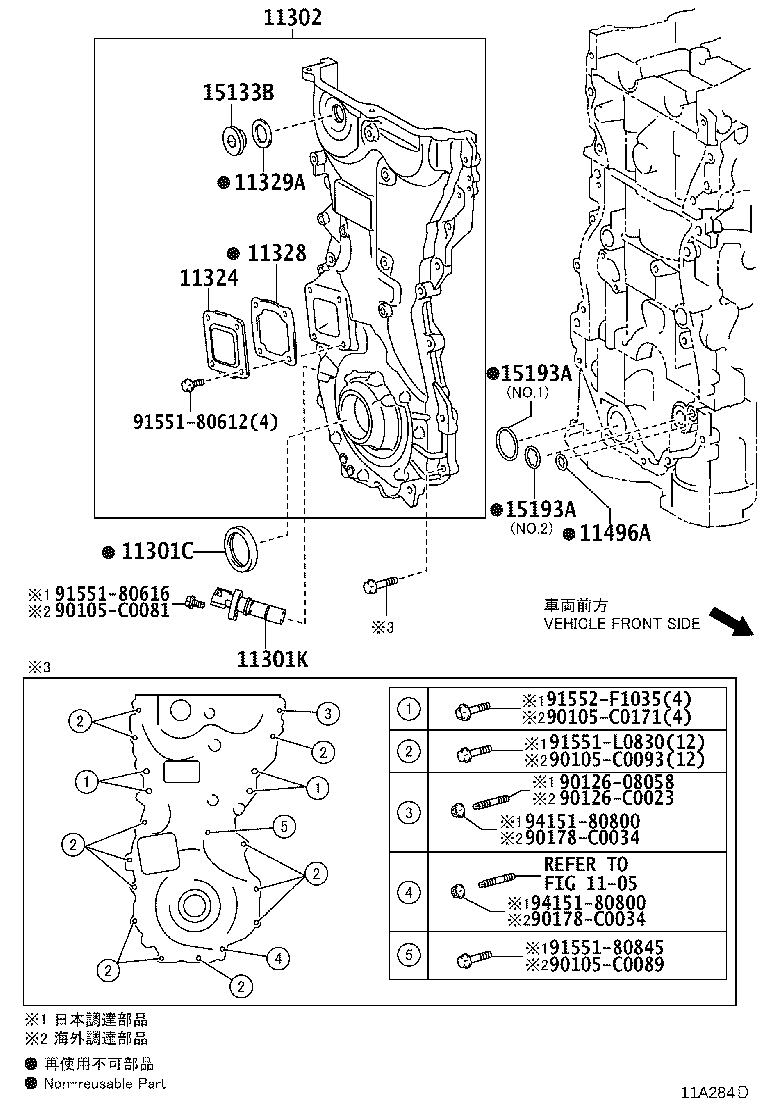

AGH30W-PRXQK (2015)
Toyota Alphard/Vellfire/Hv
(1501- )2AR#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-C0046 |
2ARFE..AGH3# *347 |
1 | ||
| 90311-40042 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524 |
1 | ||
| 90311-C0040 |
2ARFE..AGH3# *347 |
1 | ||
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05070 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524 |
1 | ||
| 90919-05070 |
2AR#..AGH30,AYH30 *347 |
1 | ||
| 90919-05088 |
2ARFE..AGH30 ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−有り,*347 |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-0V030 |
2AR#..AGH3#,AYH30 *347 |
1 | ||
| 11310-36020 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524 |
1 | ||
| 11324 - PLATE, TIMING CHAIN COVER | ||||
| 11324-36010 |
2AR#..AGH3#,AYH30 *347 |
1 | ||
| 11324-36010 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-36020 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524 |
1 | ||
| 11328-36020 |
2AR#..AGH3#,AYH30 *347 |
1 | ||
| 11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2 | ||||
| 11329-36020 |
2AR#..AGH3#,AYH30 *347 |
1 | ||
| 11329-36010 |
2AR#..AGH3#,AYH30 *347 |
1 | ||
| 11329-36010 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524 |
1 | ||
| 11329-36020 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524 |
1 | ||
| 11496A - GASKET, OIL HOLE COVER | ||||
| 11496-0V010 |
2AR#..AGH3#,AYH30 *347 |
1 | ||
| 11496-36010 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524 |
1 | ||
| 15133B - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-36020 |
2AR#..AGH3#,AYH30 *347 |
1 | ||
| 15133-36020 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524 |
1 | ||
| 15193A - GASKET, OIL PUMP | ||||
| 15197-36010 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524,NO.2:Cﾗｽﾄ参照 |
1 | ||
| 15193-36010 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524,NO.1:Cﾗｽﾄ参照 |
1 | ||
| 15193-0V010 |
2AR#..AGH3#,AYH30 *347,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 15197-0V010 |
2AR#..AGH3#,AYH30 *347,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 15193A - GASKET, OIL PUMP | ||||
| 15197-36010 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524,NO.2:Cﾗｽﾄ参照 |
1 | ||
| 15193-36010 |
2ARFE..AGH30 ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524,NO.1:Cﾗｽﾄ参照 |
1 | ||
| 15193-0V010 |
2AR#..AGH3#,AYH30 *347,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 15197-0V010 |
2AR#..AGH3#,AYH30 *347,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90105-C0081 | ||||
| 90105-C0089 | ||||
| 90105-C0093 | ||||
| 90105-C0171 | ||||
| 90126-08058 | ||||
| 90126-C0023 | ||||
| 90178-C0034 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91551-80845 | ||||
| 91551-L0830 | ||||
| 91552-F1035 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1105 | ||||
