AGH30W-PRXGK (2020)
Toyota Alphard/Vellfire/Hv
(2001- )AGH3#..S,X,Z

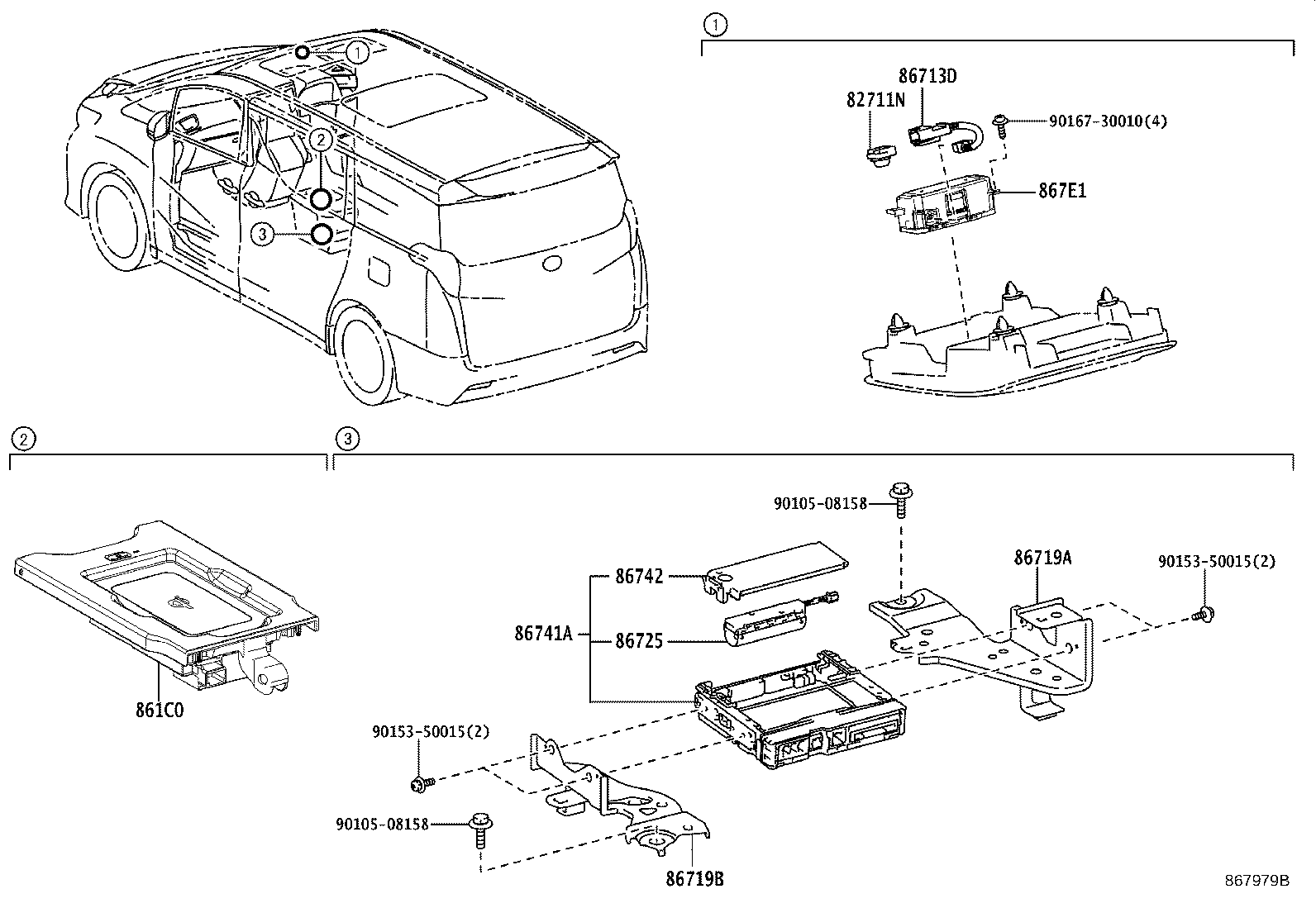

ｽﾀﾝﾀﾞｰﾄﾞORﾊｲｸﾞﾚｰﾄﾞｺﾝｿｰﾙﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82711N - CLAMP, WIRING HARNESS | ||||
| 82711-1E360 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 86713D - WIRE, MAYDAY | ||||
| 86713-33101 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 86713-33101 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86713-33101 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86713-33101 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86719A - BRACKET, TELEPHONE NO.1 | ||||
| 86719-58130 |
AYH30..Z;AYH30..ALPHD;AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,SC) |
1 | ||
| 86719-58150 |
AGH3#..07S..Z;AGH3#..ALPHD..(S,X) |
1 | ||
| 86719-58150 |
AGH3#..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86719-58150 |
AGH3#..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86719-58150 |
AGH3#..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86719B - BRACKET, TELEPHONE NO.2 | ||||
| 86719-58140 |
AYH30..Z;AYH30..ALPHD;AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,SC) |
1 | ||
| 86719-58160 |
AGH3#..07S..Z;AGH3#..ALPHD..(S,X) |
1 | ||
| 86719-58160 |
AGH3#..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86719-58160 |
AGH3#..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86719-58160 |
AGH3#..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86725 - BATTERY, MOBILEPHONE | ||||
| 86725-26010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86725-26010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86725-26010 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 86725-26010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86741A - TRANSCEIVER, TELEMATICS | ||||
| 86741-K0011 |
AGH3#,AYH30,GGH3# |
1 | ||
| 86741-K0011 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86741-10040 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 86741-K0011 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86741-K0011 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86741-10040 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86741-11041 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 86741-11041 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86741-11041 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86741-10040 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86741-11041 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86741-10040 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86742 - COVER, TRANSCEIVER | ||||
| 86742-26010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86742-26010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86742-26010 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 86742-26010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 867E1 - BOX, COMMUNICATION TELEMATICS | ||||
| 867E1-10010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 867E1-10010 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 867E1-10010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 867E1-10010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90153-50015 | ||||
| 90167-30010 | ||||
(2001- )

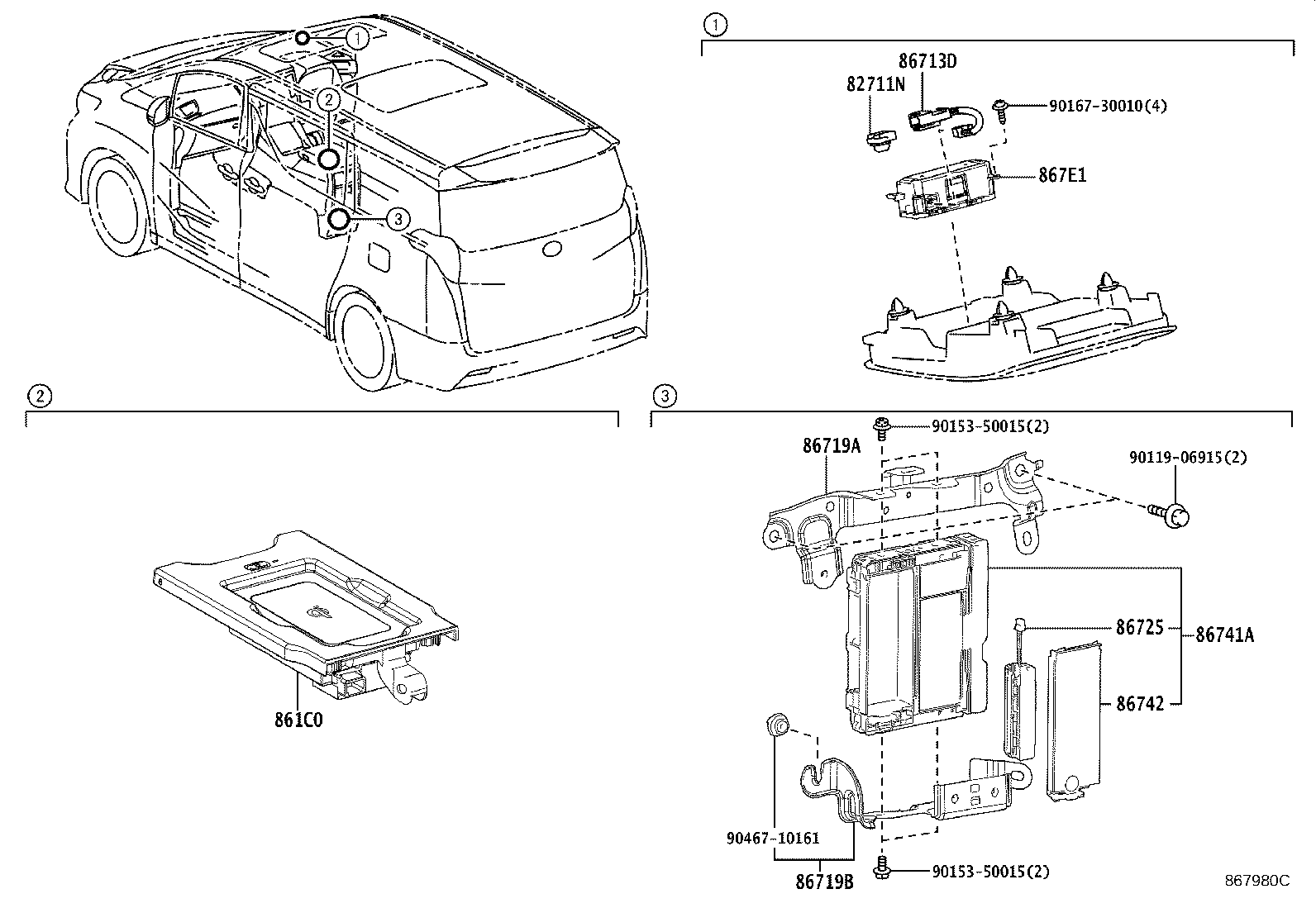

ｵｵｶﾞﾀ ｽﾀﾝﾀﾞｰﾄﾞORﾊｲｸﾞﾚｰﾄﾞ ｺﾝｿｰﾙﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82711N - CLAMP, WIRING HARNESS | ||||
| 82711-1E360 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 86713D - WIRE, MAYDAY | ||||
| 86713-33101 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 86713-33101 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86713-33101 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86713-33101 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86719A - BRACKET, TELEPHONE NO.1 | ||||
| 86719-58130 |
AYH30..Z;AYH30..ALPHD;AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,SC) |
1 | ||
| 86719-58150 |
AGH3#..07S..Z;AGH3#..ALPHD..(S,X) |
1 | ||
| 86719-58150 |
AGH3#..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86719-58150 |
AGH3#..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86719-58150 |
AGH3#..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86719B - BRACKET, TELEPHONE NO.2 | ||||
| 86719-58140 |
AYH30..Z;AYH30..ALPHD;AGH3#,GGH3#..ALPHD..(EL,ELS,G,GF,SC) |
1 | ||
| 86719-58160 |
AGH3#..07S..Z;AGH3#..ALPHD..(S,X) |
1 | ||
| 86719-58160 |
AGH3#..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86719-58160 |
AGH3#..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86719-58160 |
AGH3#..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86725 - BATTERY, MOBILEPHONE | ||||
| 86725-26010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86725-26010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86725-26010 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 86725-26010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86741A - TRANSCEIVER, TELEMATICS | ||||
| 86741-K0011 |
AGH3#,AYH30,GGH3# |
1 | ||
| 86741-K0011 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86741-10040 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 86741-K0011 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86741-K0011 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86741-10040 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86741-11041 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 86741-11041 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86741-11041 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86741-10040 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86741-11041 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86741-10040 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86742 - COVER, TRANSCEIVER | ||||
| 86742-26010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86742-26010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86742-26010 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 86742-26010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 867E1 - BOX, COMMUNICATION TELEMATICS | ||||
| 867E1-10010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 867E1-10010 |
AGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 867E1-10010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 867E1-10010 |
AGH3#,AYH30..ALPHD..(S,X) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90153-50015 | ||||
| 90167-30010 | ||||
| 90467-10161 | ||||
