AGH30W-PFXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )AGH3#

Click highlighted areas on diagram

K115,K115F

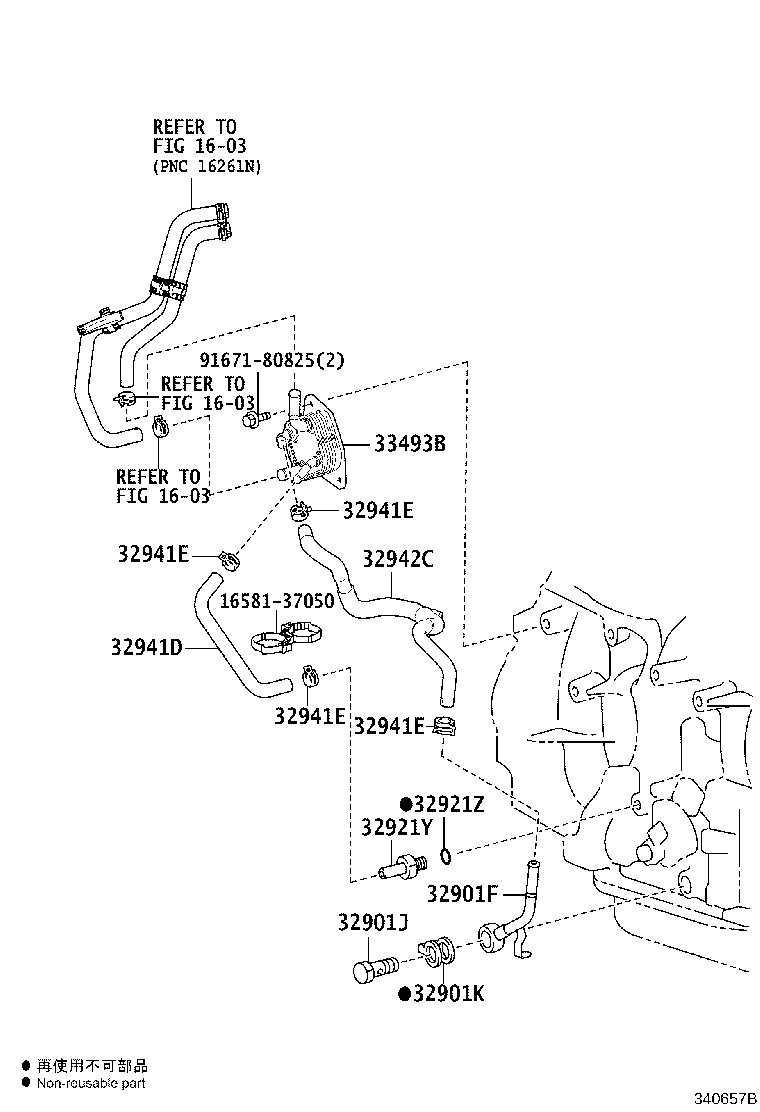

diagram 1603 1603 1603 1658137050 32901F 32901J 32901K 32921Y 32921Z 32941D 32941E 32941E 32941E 32941E 32942C 33493B 9167180825
Part # Description Qty Price
32901F - ELBOW SUB-ASSY, OIL COOLER
32901-28010

AGH3#

 1
32901J - BOLT, UNION(FOR OIL COOLER)
90401-14003

AGH3#

 1
32901K - GASKET(FOR OIL COOLER UNION)
90430-14012

AGH3#

 1
32921Y - CONNECTOR, TUBE
90404-13009

AGH3#

 1
32921Z - RING, O(FOR TUBE CONNECTOR)
90301-10018

AGH3#

 1
32941D - HOSE, OIL COOLER INLET
32941-58050

AGH3#

 1
32941E - CLIP(FOR OIL COOLER TUBE)
90466-16004

AGH3#

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90466-16004

AGH3#

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90466-16004

AGH3#

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90466-16004

AGH3#

 4
32942C - HOSE, OIL COOLER OUTLET, NO.1
32942-58050

AGH3#

 1
33493B - COOLER, OIL
33493-58020

AGH3#

 1
Common parts
16581-37050
91671-80825
Linked diagrams
1603
