AGH30W-PFXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )AGH3#

Click highlighted areas on diagram

K115,K115F

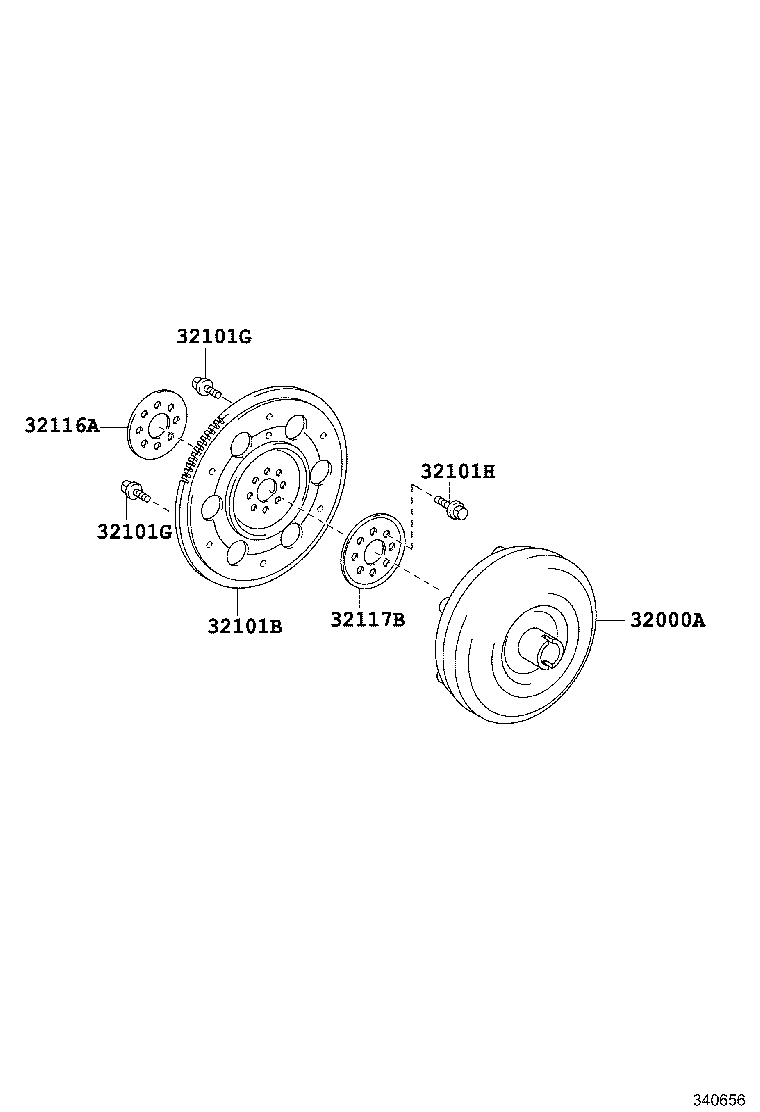

diagram 32000A 32101B 32101G 32101G 32101H 32116A 32117B
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-58010

AGH3#

 1
32000-58011

AGH3#

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-06060

AGH30

(L)

 1
32101-58011

AGH30

ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−有り

 1
32101-73010

AGH30

(J)

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-09001

AGH3#

*9−1.25PX12.4−7.3,ﾌﾞﾗｯｸ

 1
90119-09025

AGH3#

*9−1.25PX12.4−8.4,ｼﾙﾊﾞｰ

 5
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-09001

AGH3#

*9−1.25PX12.4−7.3,ﾌﾞﾗｯｸ

 1
90119-09025

AGH3#

*9−1.25PX12.4−8.4,ｼﾙﾊﾞｰ

 5
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-12384

AGH3#

 8
32116A - SPACER, DRIVE PLATE, FRONT
32116-20050

AGH3#

 1
32117B - SPACER, DRIVE PLATE, REAR
32117-06010

AGH3#

(L)

 1
32117-20060

AGH3#

(J)

 1
