AGH30W-PFXQK (2015)
Toyota Alphard/Vellfire/Hv
Production
Jan 2015
-
Jan 2018
Engine
2ARFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

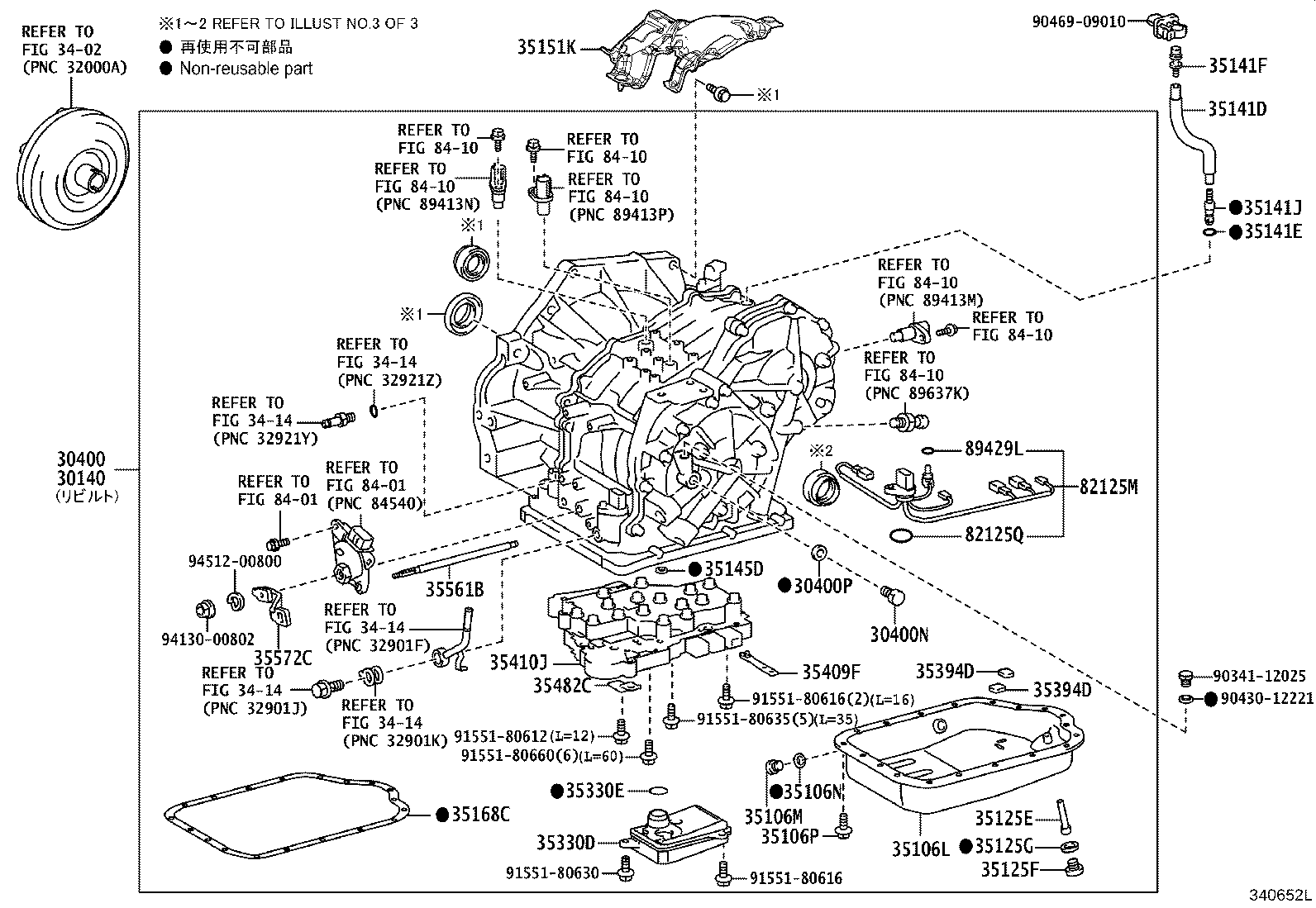

ILLUST NO. 1 OF 2(1501- )AGH30
Click highlighted areas on diagram
K115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER) | ||||
| 30140-58051 |
AGH30 K115,ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−有り |
1 | ||
| 30140-58041 |
AGH30 K115 |
1 | ||
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-58051 |
AGH30 K115,ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−有り |
1 | ||
| 30400-58041 |
AGH30 K115 |
1 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18077 |
AGH3# |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
AGH3# |
1 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-28100 |
AGH3# |
1 | ||
| 35106M - PLUG SUB-ASSY, DRAIN(CVT) | ||||
| 90341-18016 |
AGH3# |
1 | ||
| 35106N - GASKET, DRAIN PLUG(CVT) | ||||
| 90430-01001 |
AGH3# |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
AGH3# |
19 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-58010 |
AGH3# |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
AGH3# |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
AGH3# |
1 | ||
| 35141D - HOSE(FOR BREATHER PLUG) | ||||
| 35121-58020 |
AGH3# |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06021 |
AGH3# |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03216 |
AGH3# |
1 | ||
| 35141J - PLUG, BREATHER, NO.2(CVT) | ||||
| 90930-03157 |
AGH3# |
1 | ||
| 35145D - GASKET, TRANSAXLE CASE | ||||
| 35145-33010 |
AGH3# |
2 | ||
| 35151K - COVER, AUTOMATIC TRANSMISSION CASE | ||||
| 35151-48070 |
AGH3# |
1 | ||
| 35168C - GASKET, TRANSAXLE OIL PAN(CVT) | ||||
| 35168-28020 |
AGH3# |
1 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35330-28020 |
AGH3# |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90301-24013 |
AGH3# |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
AGH3# |
2 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
AGH3# |
2 | ||
| 35409F - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-44010 |
AGH3# |
1 | ||
| 35410J - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-28481 |
AGH3# |
1 | ||
| 35482C - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-73010 |
AGH3# |
1 | ||
| 35561B - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-28020 |
AGH3# |
1 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-28130 |
AGH3# |
1 | ||
| 82125M - WIRE, TRANSMISSION | ||||
| 82125-48030 |
AGH3# |
1 | ||
| 82125Q - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
AGH3# |
1 | ||
| 89429L - RING, O(FOR OIL TEMPERATURE SENSOR) | ||||
| 90301-06004 |
AGH3# |
1 | ||
| Common parts | ||||
| 90341-12025 | ||||
| 90430-12221 | ||||
| 90469-09010 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91551-80630 | ||||
| 91551-80635 | ||||
| 91551-80660 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 3414 | ||||
| 8401 | ||||
| 8410 | ||||

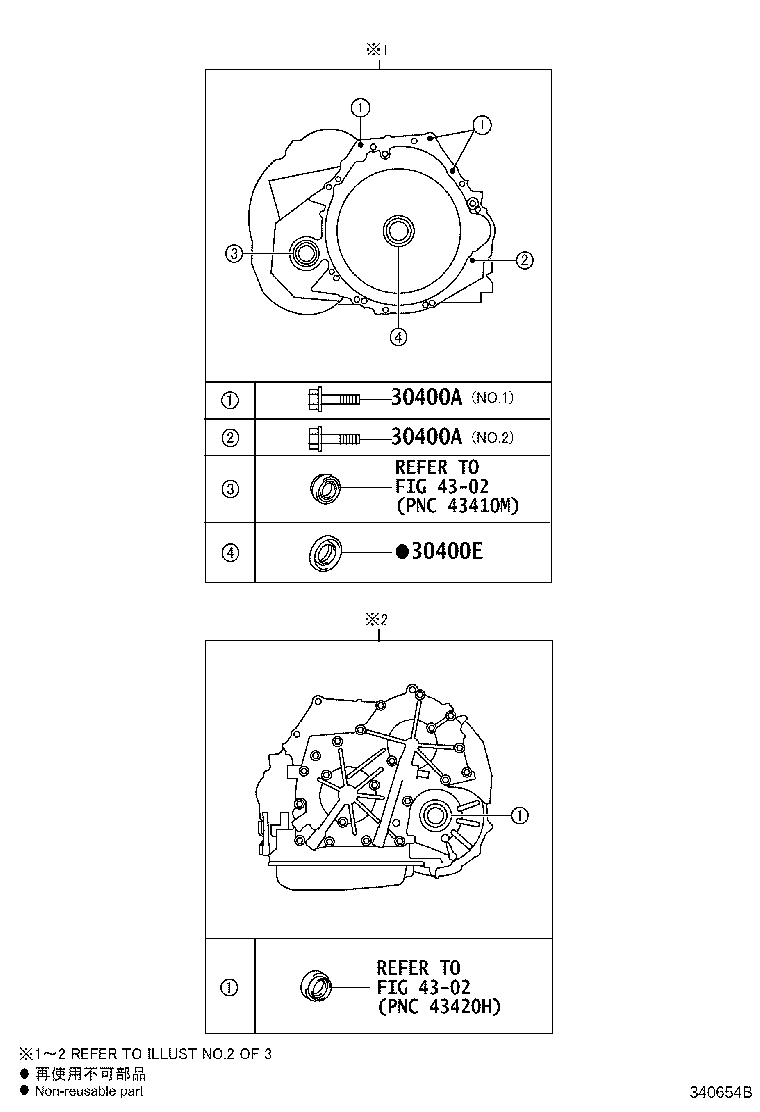

ILLUST NO. 2 OF 2(1501- )AGH30
Click highlighted areas on diagram
K115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90119-12168 |
AGH3# NO.1 |
3 | ||
| 91512-61050 |
AGH3# NO.2 |
1 | ||
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90119-12168 |
AGH3# NO.1 |
3 | ||
| 91512-61050 |
AGH3# NO.2 |
1 | ||
| 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) | ||||
| 90311-45027 |
AGH3# |
1 | ||
| Linked diagrams | ||||
| 4302 | ||||
