AGH30W-PFXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )2ARFE

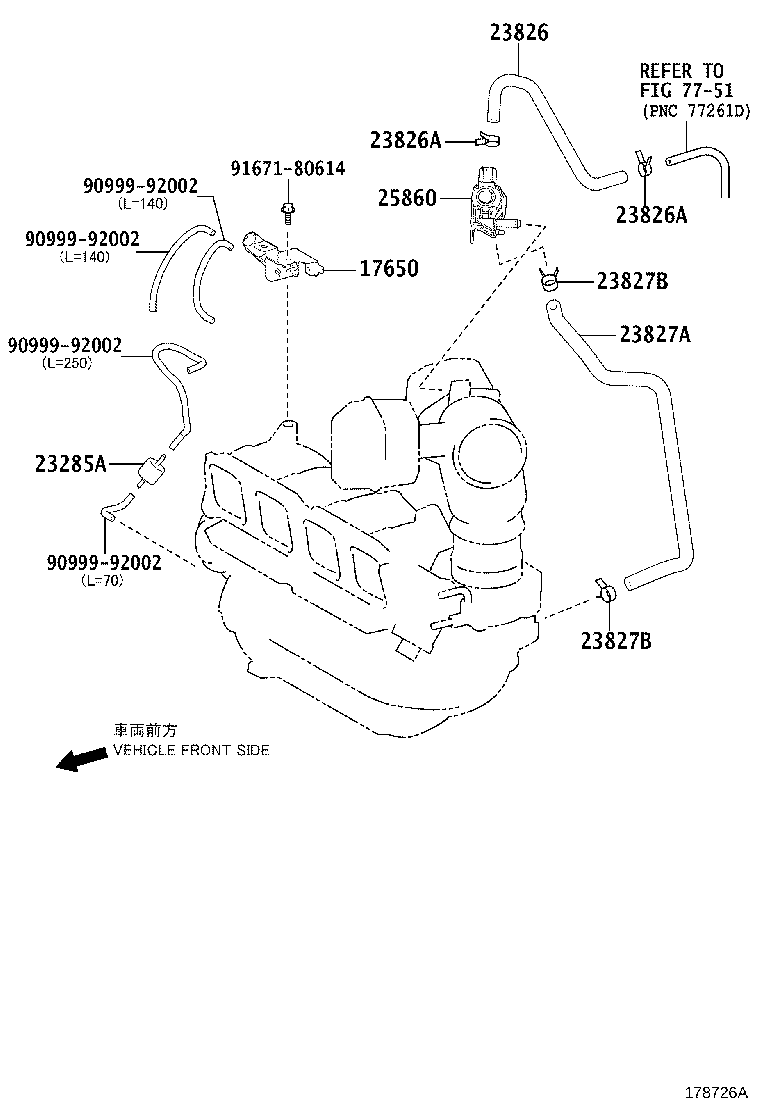

Click highlighted areas on diagram

diagram 17650 23285A 23826 23826A 23826A 23827A 23827B 23827B 25860 7751 9099992002 9099992002 9099992002 9099992002 9167180614
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
25860-36010

2ARFE..AGH3#

*347

 1
25860-36010

2ARFE..AGH30

ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524

 1
23285A - VALVE, CHECK, NO.1
90917-10065

2ARFE..AGH30

ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524

 1
90917-10065

2ARFE..AGH3#

*347

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-36180

2ARFE..AGH3#

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

2AR#..AGH3#,AYH30

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

2AR#..AGH3#,AYH30

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-36160

2ARFE..AGH3#

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90466-13004

2ARFE..AGH3#

 2
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90466-13004

2ARFE..AGH3#

 2
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-28200

2ARFE..AGH3#

 1
Common parts
90999-92002
91671-80614
Linked diagrams
7751
