AGH30W-PFXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )2ARFE

Click highlighted areas on diagram

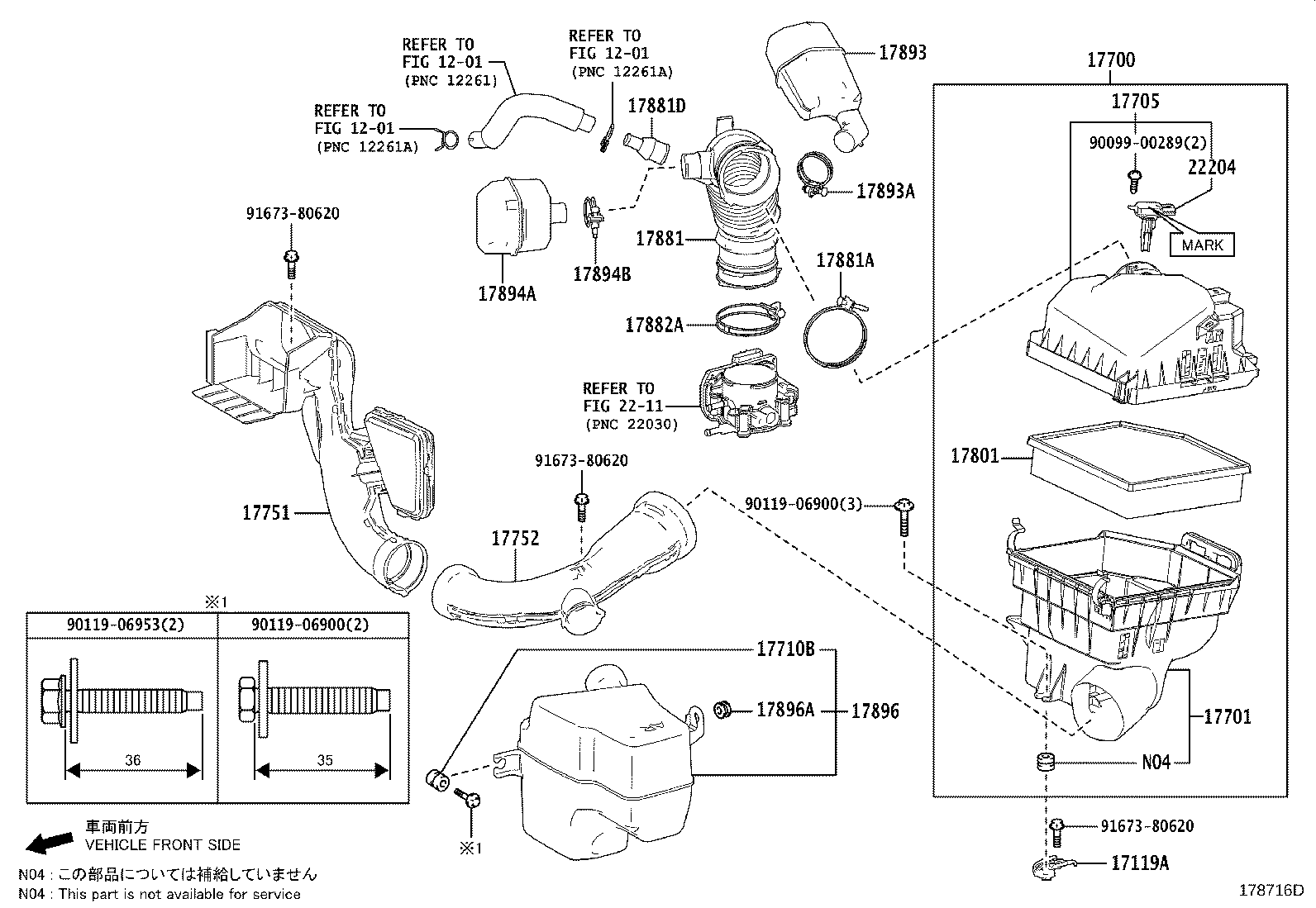

diagram 1201 1201 1201 17119A 17700 17701 17705 17710B 17751 17752 17801 17881 17881A 17881D 17882A 17893 17893A 17894A 17894B 17896 17896A 2211 22204 9009900289 9011906900 9011906900 9011906953 9167380620 9167380620 9167380620
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-31170

2ARFE..AGH3#

 1
17700 - CLEANER ASSY, AIR
17700-36380

2ARFE..AGH3#

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-31720

2ARFE..AGH3#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-36160

2ARFE..AGH3#

 1
17710B - GROMMET
90480-14022

2ARFE..AGH3#

 2
17751 - INLET, AIR CLEANER, NO.1
17751-36130

2ARFE..AGH3#

 1
17752 - INLET, AIR CLEANER, NO.2
17752-36040

2ARFE..AGH3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31170

2ARFE..AGH3#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-36170

2ARFE..AGH3#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

2AR#..AGH3#,AYH30

 1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
90904-06008

2ARFE..AGH3#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10850

2ARFE..AGH3#

 1
17893 - RESONATOR, INTAKE AIR
17893-36140

2ARFE..AGH3#

 1
17893A - CLAMP, HOSE
96111-10450

2ARFE..AGH3#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-36090

2ARFE..AGH3#

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10380

2ARFE..AGH3#

 1
17896 - RESONATOR, INTAKE AIR, NO.3
17896-36030

2ARFE..AGH3#

 1
17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3)
90385-07002

2ARFE..AGH3#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0T040

2AR#..AGH3#,AYH30

ﾏｰｸ 22204−0T040

 1
22204-0V010

2AR#..AGH3#,AYH30

ﾏｰｸ 22204−0V010

 1
22204-0V020

2AR#..AGH3#,AYH30

ﾏｰｸ 22204−0V020

 1
22204-28010

2AR#..AGH3#,AYH30

ﾏｰｸ 22204−28010

 1
Common parts
90099-00289
90119-06900
90119-06953
91673-80620
Linked diagrams
1201
2211
