AGH30W-PFXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )2ARFE

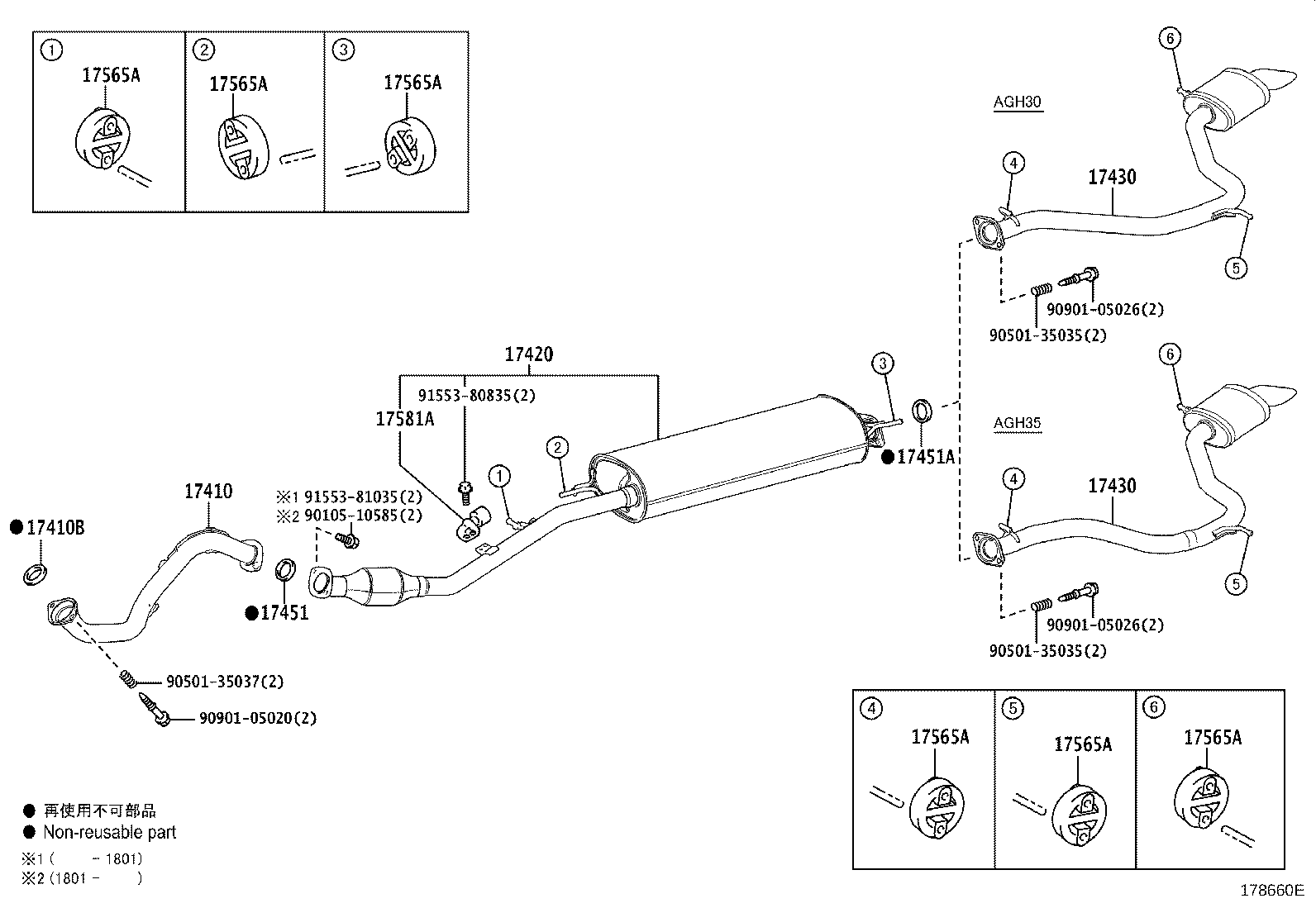

Click highlighted areas on diagram

diagram 17410 17410B 17420 17430 17430 17451 17451A 17565A 17565A 17565A 17565A 17565A 17565A 17581A 9010510585 9050135035 9050135035 9050135037 9090105020 9090105026 9090105026 9155380835 9155381035
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-36460

2ARFE..AGH3#

 1
17410B - GASKET, EXHAUST PIPE
17451-28040

2AR#..AGH3#,AYH30

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-36240

2ARFE..AGH3#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-36370

2ARFE..AGH30

 1
17430-36371

2ARFE..AGH30

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-36370

2ARFE..AGH30

 1
17430-36371

2ARFE..AGH30

 1
17451 - GASKET, EXHAUST PIPE
90917-06078

2AR#..AGH3#,AYH30

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-28022

2AR#..AGH3#,AYH30

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AR#,2GRFE..AGH3#,AYH30,GGH3#

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AR#,2GRFE..AGH3#,AYH30,GGH3#

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AR#,2GRFE..AGH3#,AYH30,GGH3#

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AR#,2GRFE..AGH3#,AYH30,GGH3#

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AR#,2GRFE..AGH3#,AYH30,GGH3#

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2AR#,2GRFE..AGH3#,AYH30,GGH3#

 6
17581A - DAMPER, EXHAUST PIPE
17581-75060

2ARFE..AGH3#

 1
Common parts
90105-10585
90501-35035
90501-35037
90901-05020
90901-05026
91553-80835
91553-81035
