AGH30W-PFXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )2ARFE

Click highlighted areas on diagram

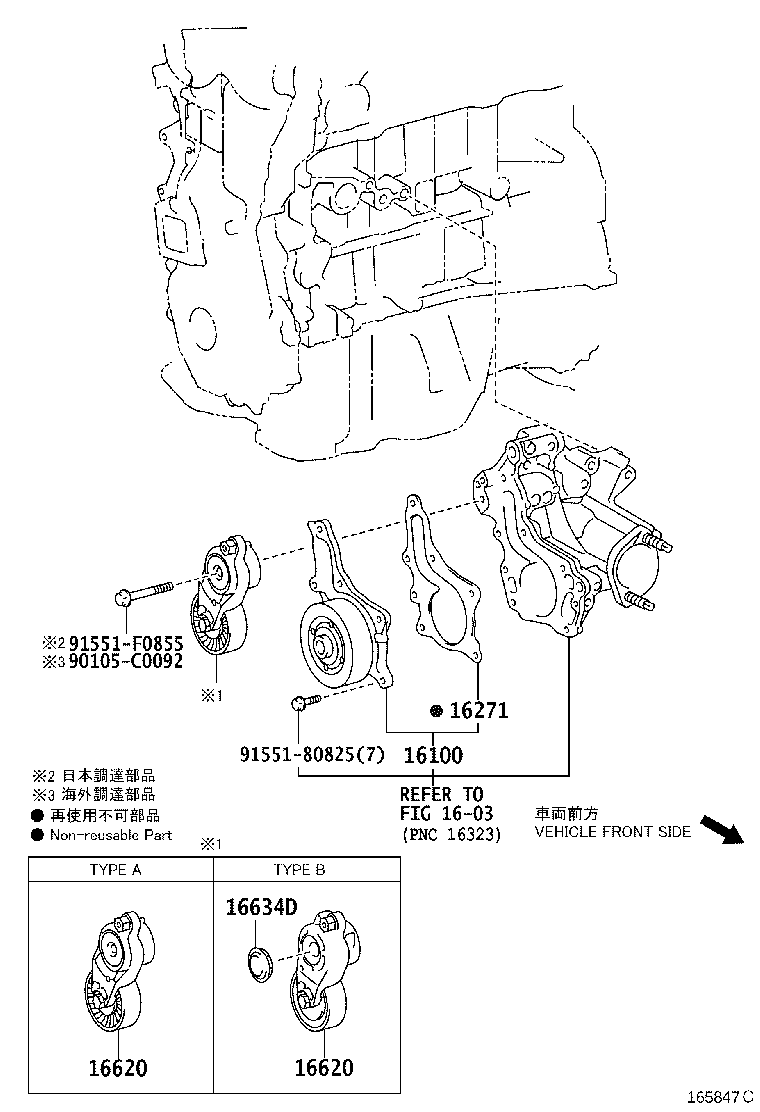

diagram 1603 16100 16271 16620 16620 16634D 90105C0092 9155180825 91551F0855
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39515

2ARFE..AGH30

ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524

 1
16100-09600

2ARFE..AGH3#

*347

 1
16271 - GASKET, WATER PUMP
16271-36010

2ARFE..AGH3#

*347

 1
16271-36010

2ARFE..AGH30

ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0V050

2AR#..AGH3#,AYH30

*347,TYPE B:ｲﾗｽﾄ参照

 1
16620-36011

2ARFE..AGH30

ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524

 1
16620-0V042

2AR#..AGH3#,AYH30

*347,TYPE A:ｲﾗｽﾄ参照

 1
16620-0V051

2AR#..AGH3#,AYH30

*347,TYPE B:ｲﾗｽﾄ参照

 1
16620-36012

2ARFE..AGH30

ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0V050

2AR#..AGH3#,AYH30

*347,TYPE B:ｲﾗｽﾄ参照

 1
16620-36011

2ARFE..AGH30

ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524

 1
16620-0V042

2AR#..AGH3#,AYH30

*347,TYPE A:ｲﾗｽﾄ参照

 1
16620-0V051

2AR#..AGH3#,AYH30

*347,TYPE B:ｲﾗｽﾄ参照

 1
16620-36012

2ARFE..AGH30

ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524

 1
16634D - COVER, DUST
16628-0V010

2AR#..AGH3#,AYH30

*347,TYPE B:ｲﾗｽﾄ参照

 1
Common parts
90105-C0092
91551-80825
91551-F0855
Linked diagrams
1603
