AGH30W-PFXQK (2015)

Toyota Alphard/Vellfire/Hv

Production Jan 2015 - Jan 2018
Engine 2ARFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )2ARFE

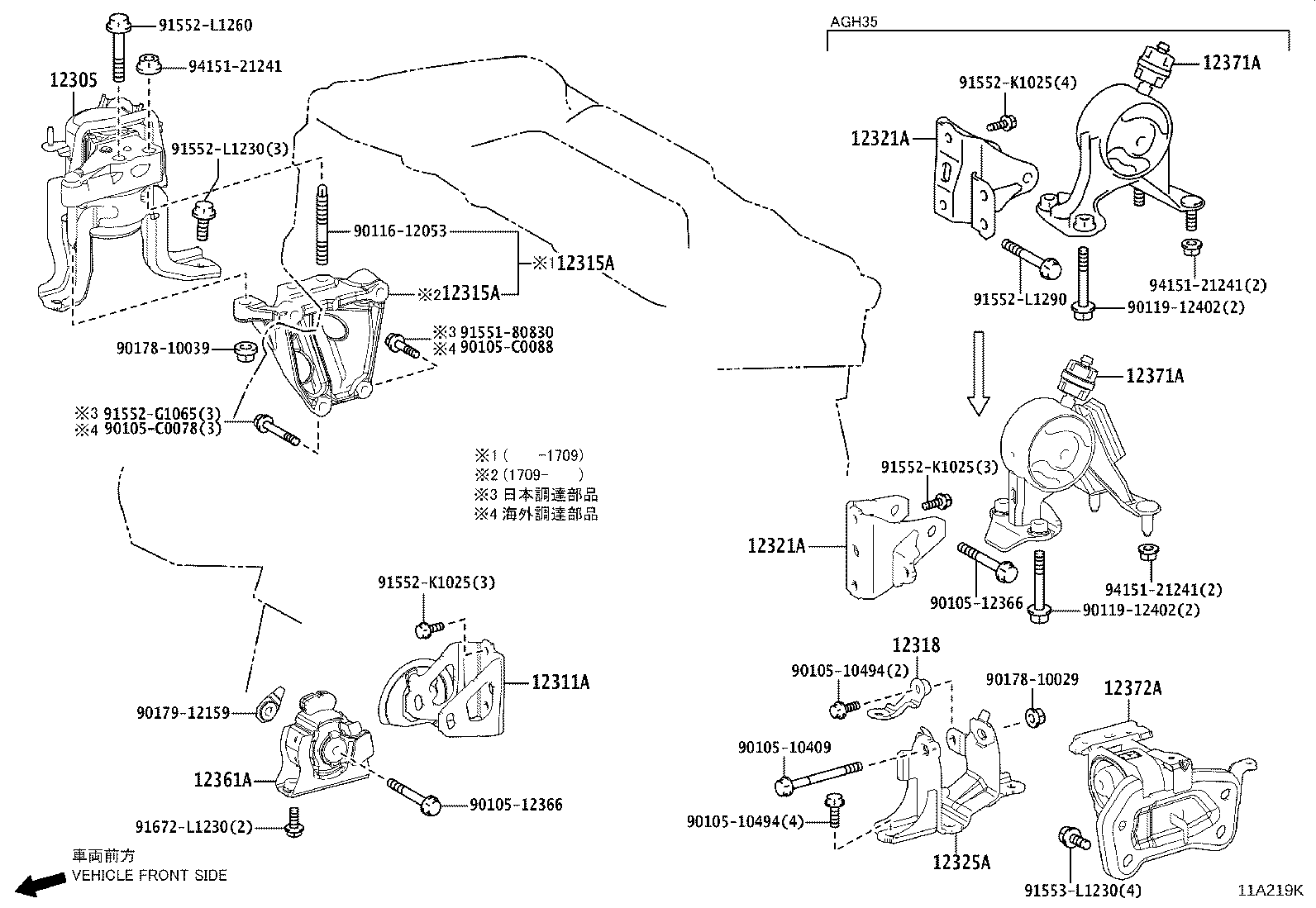

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12315A 12318 12321A 12321A 12325A 12361A 12371A 12371A 12372A 9010510409 9010510494 9010510494 9010512366 9010512366 90105C0078 90105C0088 9011612053 9011912402 9011912402 9017810029 9017810039 9017912159 9155180830 91552G1065 91552K1025 91552K1025 91552K1025 91552L1230 91552L1260 91552L1290 91553L1230 91672L1230 9415121241 9415121241 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-36070

2ARFE..AGH3#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-36150

2ARFE..AGH3#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-36010

2AR#..AGH3#,AYH30

(J),*347

 1
12315-0V031

2AR#..AGH3#,AYH30

(L),*347

 1
12315-36010

2ARFE..AGH30

ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524

 1
12315-0V030

2AR#..AGH3#,AYH30

(L),*347

 1
12315-36011

2AR#..AGH3#,AYH30

(J),*347

 1
12315-36011

2ARFE..AGH30

ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-36010

2AR#..AGH3#,AYH30

(J),*347

 1
12315-0V031

2AR#..AGH3#,AYH30

(L),*347

 1
12315-36010

2ARFE..AGH30

ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524

 1
12315-0V030

2AR#..AGH3#,AYH30

(L),*347

 1
12315-36011

2AR#..AGH3#,AYH30

(J),*347

 1
12315-36011

2ARFE..AGH30

ｴﾝｼﾞﾝ−2AR−FE,無し(STOP&STARTｼｽﾃﾑ),*524

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-36010

2ARFE..AGH3#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-36130

2ARFE..AGH30

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-36130

2ARFE..AGH30

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-36090

2ARFE..AGH3#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-36190

2ARFE..AGH3#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-36150

2ARFE..AGH30

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-36150

2ARFE..AGH30

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-36090

2ARFE..AGH3#

 1
Common parts
90105-10409
90105-10494
90105-12366
90105-C0078
90105-C0088
90116-12053
90119-12402
90178-10029
90178-10039
90179-12159
91551-80830
91552-G1065
91552-K1025
91552-L1230
91552-L1260
91552-L1290
91553-L1230
91672-L1230
94151-21241
