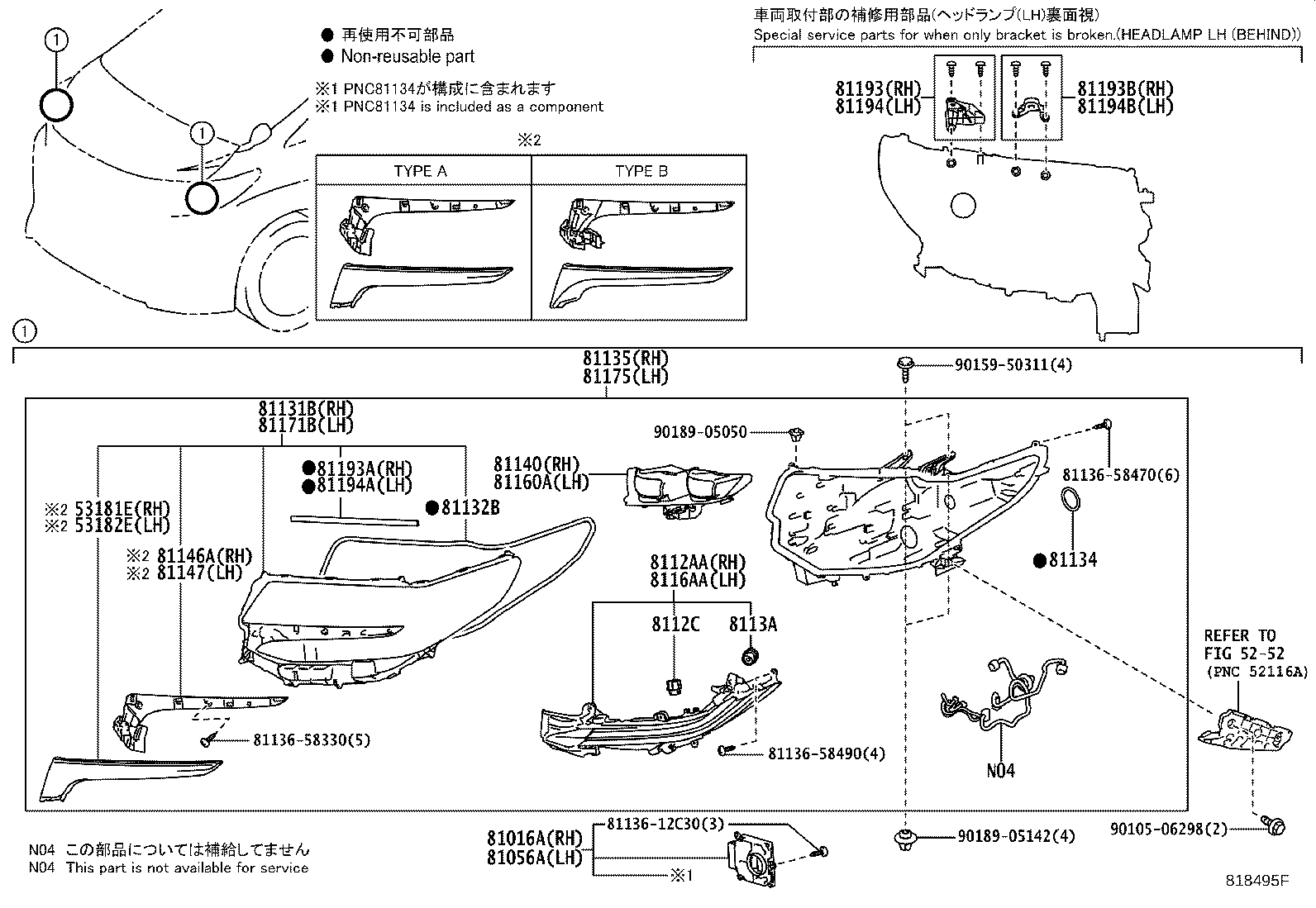

AGH30W-PFXGK (2018)
Toyota Alphard/Vellfire/Hv
(1801- )ALPHD..G,GF,S,SC,SR,X
ﾅｼ(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-58100 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 53181-58110 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-58110 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 53182-58100 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81016A - COMPUTER SUB-ASSY, HEADLAMP, RH | ||||
| 81016-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
1 | ||
| 81016-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81016-58480 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81016-58530 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81016-58530 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81016-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81016-58530 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81056A - COMPUTER SUB-ASSY, HEADLAMP, LH | ||||
| 81056-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
1 | ||
| 81056-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81056-58530 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81056-58480 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81056-58530 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81056-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81056-58530 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8112AA - UNIT, HEADLAMP CLEARANCE LED, RH | ||||
| 8112A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8112A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8112A-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 8112A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8112A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8112A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8112A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 8112C - SOCKET, HEADLAMP CLEARANCE LED | ||||
| 8112C-58330 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
2 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81131-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81131-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81131-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81131-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81131-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-58330 |
AGH3#,AYH30,GGH3# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-58340 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81145-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81145-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81145-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81145-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81145-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81145-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81145-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8113A - LED, HEADLAMP FRONT TURN SIGNAL | ||||
| 8113A-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
2 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-58450 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81140-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81140-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81140-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81140-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81140-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81146A - FITTING, HEADLAMP, RH | ||||
| 81146-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81146-58490 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81147 - FITTING, HEADLAMP, LH | ||||
| 81186-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81186-58490 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81160-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81160-58450 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81160-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81160-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81160-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8116AA - UNIT, HEADLAMP CLEARANCE LED, LH | ||||
| 8116A-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 8116A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8116A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 8116A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8116A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8116A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8116A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81171-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81171-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81171-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81171-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81171-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81185-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81185-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81185-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81185-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81185-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81185-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81185-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-58110 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81117-58450 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-58080 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81193-58081 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-58110 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81157-58450 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-58081 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194-58080 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| Common parts | ||||
| 81136-12C30 | ||||
| 81136-58330 | ||||
| 81136-58470 | ||||
| 81136-58490 | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90189-05050 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 5252 | ||||

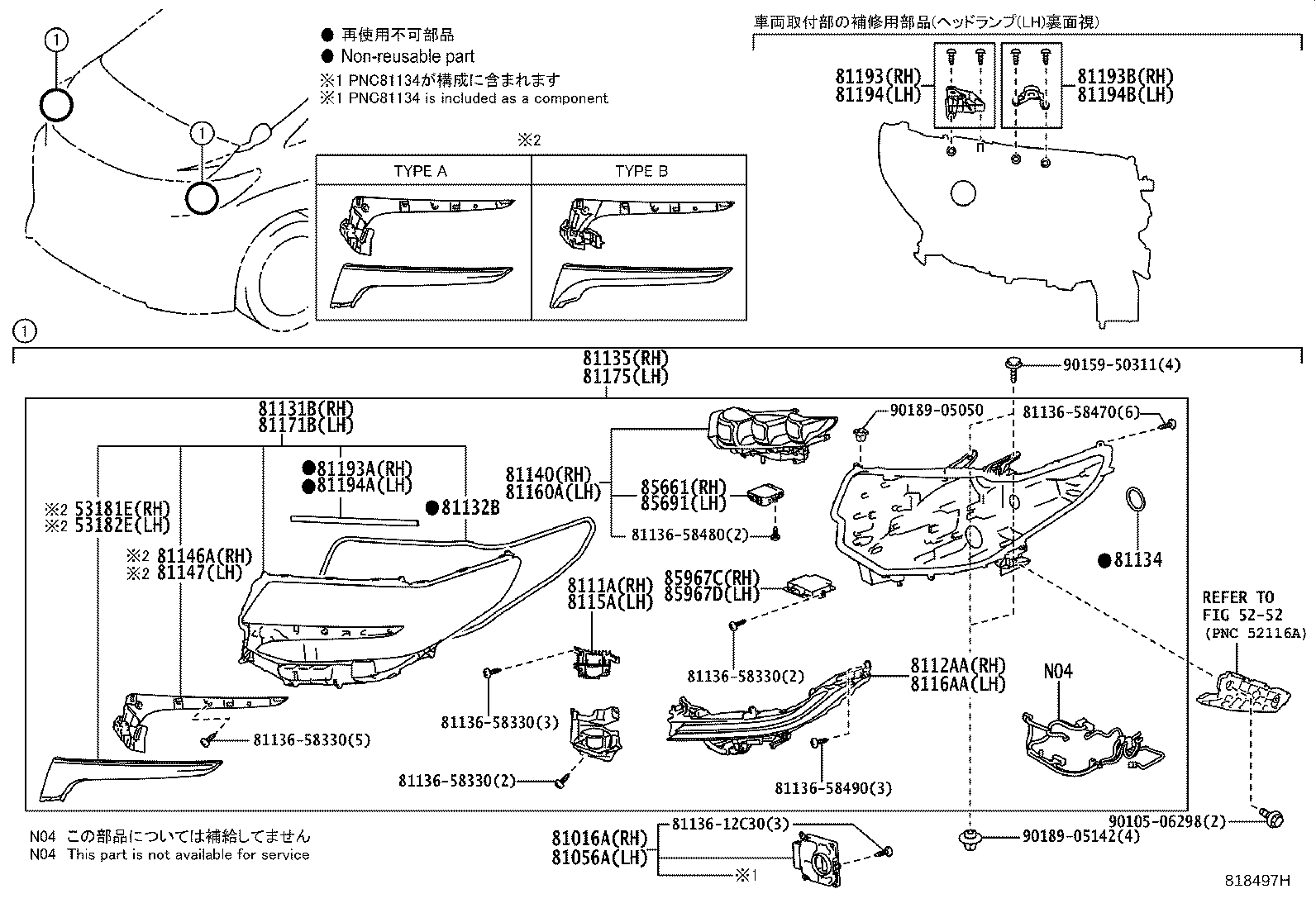

(1801- )07S..G,GF,S,SC,SR
ｱﾘ(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-58100 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 53181-58110 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-58110 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 53182-58100 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81016A - COMPUTER SUB-ASSY, HEADLAMP, RH | ||||
| 81016-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
1 | ||
| 81016-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81016-58480 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81016-58530 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81016-58530 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81016-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81016-58530 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81056A - COMPUTER SUB-ASSY, HEADLAMP, LH | ||||
| 81056-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
1 | ||
| 81056-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81056-58530 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81056-58480 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81056-58530 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81056-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81056-58530 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8111A - UNIT, HEADLAMP CORNERING LED, RH | ||||
| 8111A-58340 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 8111A-58340 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8111A-58340 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8111A-58340 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8112AA - UNIT, HEADLAMP CLEARANCE LED, RH | ||||
| 8112A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8112A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8112A-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 8112A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8112A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8112A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8112A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81131-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81131-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81131-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81131-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81131-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-58330 |
AGH3#,AYH30,GGH3# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-58340 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81145-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81145-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81145-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81145-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81145-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81145-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81145-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-58450 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81140-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81140-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81140-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81140-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81140-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81146A - FITTING, HEADLAMP, RH | ||||
| 81146-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81146-58490 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81147 - FITTING, HEADLAMP, LH | ||||
| 81186-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81186-58490 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 8115A - UNIT, HEADLAMP CORNERING LED, LH | ||||
| 8115A-58340 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8115A-58340 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8115A-58340 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8115A-58340 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81160-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81160-58450 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81160-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81160-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81160-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8116AA - UNIT, HEADLAMP CLEARANCE LED, LH | ||||
| 8116A-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 8116A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8116A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 8116A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8116A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8116A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8116A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81171-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81171-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81171-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81171-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81171-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81185-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81185-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81185-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81185-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81185-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81185-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81185-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-58110 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81117-58450 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-58080 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81193-58081 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-58110 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81157-58450 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-58081 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194-58080 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| Common parts | ||||
| 81136-12C30 | ||||
| 81136-58330 | ||||
| 81136-58470 | ||||
| 81136-58490 | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90189-05050 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 5252 | ||||
(1801- )ALPHD..07S..EL,ELS,G,GF,S,SC,SR
ｱﾘ(ｱﾀﾞﾌﾟﾃｨﾌﾞﾊｲﾋﾞｰﾑｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-58100 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 53181-58110 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-58110 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 53182-58100 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81016A - COMPUTER SUB-ASSY, HEADLAMP, RH | ||||
| 81016-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
1 | ||
| 81016-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81016-58480 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81016-58530 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81016-58530 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81016-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81016-58530 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81056A - COMPUTER SUB-ASSY, HEADLAMP, LH | ||||
| 81056-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
1 | ||
| 81056-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81056-58530 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81056-58480 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81056-58530 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81056-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81056-58530 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8111A - UNIT, HEADLAMP CORNERING LED, RH | ||||
| 8111A-58340 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 8111A-58340 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8111A-58340 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8111A-58340 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8112AA - UNIT, HEADLAMP CLEARANCE LED, RH | ||||
| 8112A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8112A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8112A-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 8112A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8112A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8112A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8112A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81131-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81131-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81131-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81131-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81131-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-58330 |
AGH3#,AYH30,GGH3# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-58340 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81145-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81145-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81145-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81145-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81145-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81145-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81145-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81140-58450 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81140-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81140-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81140-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81140-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81146A - FITTING, HEADLAMP, RH | ||||
| 81146-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81146-58490 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81147 - FITTING, HEADLAMP, LH | ||||
| 81186-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81186-58490 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 8115A - UNIT, HEADLAMP CORNERING LED, LH | ||||
| 8115A-58340 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8115A-58340 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8115A-58340 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8115A-58340 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81160-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81160-58450 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81160-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81160-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81160-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8116AA - UNIT, HEADLAMP CLEARANCE LED, LH | ||||
| 8116A-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 8116A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8116A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 8116A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8116A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8116A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8116A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81171-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81171-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81171-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81171-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81171-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81185-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81185-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81185-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81185-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81185-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81185-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81185-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-58110 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81117-58450 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-58080 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81193-58081 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-58110 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81157-58450 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-58081 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194-58080 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48060 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 85661-48060 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 85661-48060 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 85691 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-48010 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 85691-48010 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 85691-48010 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 85967C - COMPUTER, LIGHT CONTROL LED, RH | ||||
| 85967-12040 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 85967-12040 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 85967-12040 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 85967D - COMPUTER, LIGHT CONTROL LED, LH | ||||
| 85967-12030 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 85967-12030 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 85967-12030 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| Common parts | ||||
| 81136-12C30 | ||||
| 81136-58330 | ||||
| 81136-58470 | ||||
| 81136-58480 | ||||
| 81136-58490 | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90189-05050 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 5252 | ||||
(1801- )07S..V,VL,Z,ZG,ZR
ｱﾘ(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-58100 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 53181-58110 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-58110 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 53182-58100 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81016A - COMPUTER SUB-ASSY, HEADLAMP, RH | ||||
| 81016-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
1 | ||
| 81016-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81016-58480 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81016-58530 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81016-58530 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81016-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81016-58530 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81056A - COMPUTER SUB-ASSY, HEADLAMP, LH | ||||
| 81056-58450 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR |
1 | ||
| 81056-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81056-58530 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81056-58480 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81056-58530 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81056-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81056-58530 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8112AA - UNIT, HEADLAMP CLEARANCE LED, RH | ||||
| 8112A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8112A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8112A-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 8112A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8112A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8112A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8112A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81131-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81131-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81131-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81131-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81131-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-58330 |
AGH3#,AYH30,GGH3# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-58340 |
AGH3#,AYH30,GGH3# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81145-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81145-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81145-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81145-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81145-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81145-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81145-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-58450 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81140-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81140-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81140-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81140-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81140-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81146A - FITTING, HEADLAMP, RH | ||||
| 81146-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81146-58490 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81147 - FITTING, HEADLAMP, LH | ||||
| 81186-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 81186-58490 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-58480 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81160-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81160-58450 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81160-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81160-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81160-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8116AA - UNIT, HEADLAMP CLEARANCE LED, LH | ||||
| 8116A-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 8116A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8116A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 8116A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 8116A-58470 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 8116A-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 8116A-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81171-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81171-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81171-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81171-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81171-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-58450 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 81185-58490 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 81185-58520 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS&ｴｱﾛ専用) |
1 | ||
| 81185-58600 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81185-58590 |
AGH3#,AYH30,GGH3#..V,VL ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81185-58510 |
AGH3#..07S..S;AYH30,GGH3#..SC,SR ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&ｴｱﾛ専用)&無し(*AHS) |
1 | ||
| 81185-58470 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ)&無し(*AHS) |
1 | ||
| 81185-58480 |
AGH3#,AYH30,GGH3#..G,GF ﾍｯﾄﾞﾗﾝﾌﾟ−有り(ｺｰﾅﾘﾝｸﾞﾗﾝﾌﾟ&*AHS) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-58110 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81117-58450 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-58080 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81193-58081 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-58110 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81157-58450 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-58081 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 81194-58080 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| Common parts | ||||
| 81136-12C30 | ||||
| 81136-58330 | ||||
| 81136-58470 | ||||
| 81136-58490 | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90189-05050 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 5252 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
