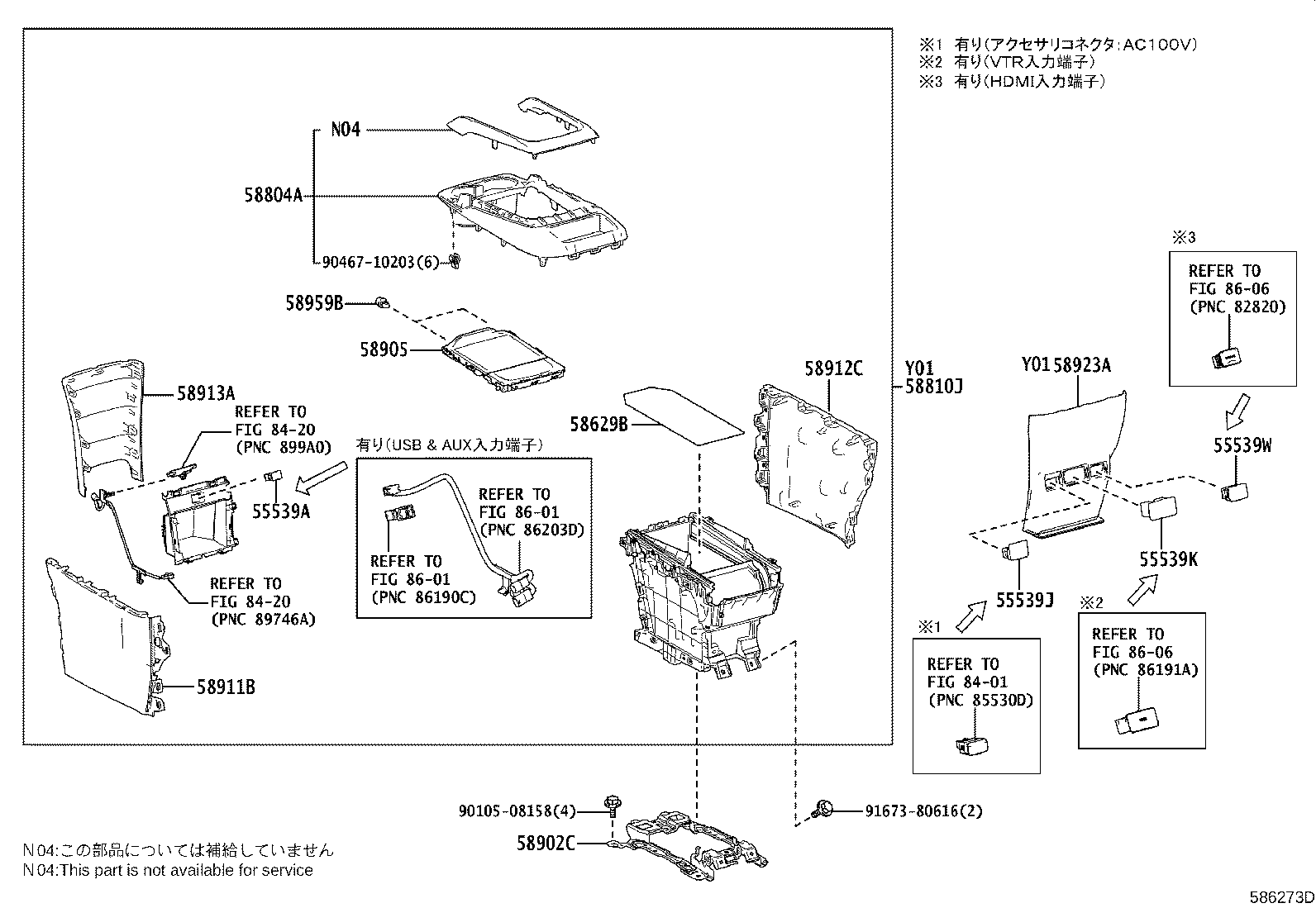

AGH30W-PFXGK (2018)
Toyota Alphard/Vellfire/Hv
(1501-2001)AGH3#..S,X,Z
ｽﾀﾝﾀﾞｰﾄﾞ ｺﾝｿｰﾙ ﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-58070C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 55539-58070C1 |
AGH3#..S,X,Z BLACK |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-58120C1 |
AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 55539-58120C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM0# |
1 | ||
| 55539-58120C1 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-58080C1 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 55539-58080C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0# |
1 | ||
| 55539-58080C1 |
AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 55539W - COVER, SPARE SWITCH HOLE | ||||
| 55539-58100C1 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 55539-58100C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0# |
1 | ||
| 55539-58100C1 |
AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 58629B - MAT, CENTER CONSOLE | ||||
| 58629-58020 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 58629-58020 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-58200 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58804-58130C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58804-58130C0 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58804-58200 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｼｰﾄ表皮−本革 |
1 | ||
| 58804-58140C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 58804-58180 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL |
1 | ||
| 58804-58140C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-58312C5 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 58810-58150C1 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58810-58260C0 |
AGH3#..X ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM0# |
1 | ||
| 58810-58260C0 |
AGH3#..S,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 58810-58312C6 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,BLACK,TRIM2# |
1 | ||
| 58810-58150C1 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58810-58362C7 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58810-58400C1 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58810-58352C5 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58810-58410C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 58810-58322C5 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM0# |
1 | ||
| 58810-58322C6 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-58060 |
AYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG |
1 | ||
| 58902-58051 |
AGH3#..S,X,Z |
1 | ||
| 58902-58060 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-58130 |
AGH3#..S,X,Z |
1 | ||
| 58905-58170 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR |
1 | ||
| 58905-58170 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 58911B - PANEL, BOX, NO.1 | ||||
| 58911-58060C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,BLACK,TRIM2# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58911-58070C0 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 58911-58060C0 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-58050C0 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58912-58050C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-58030C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58913-58030C0 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-58160C0 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58923-58160C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG |
2 | ||
| 58959-60060 |
AYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG |
2 | ||
| 58959-60060 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ |
2 | ||
| 58959-35010 |
AGH3#..S,X,Z |
2 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90467-10203 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8420 | ||||
| 8601 | ||||
| 8606 | ||||
(1501-2001)08S..G,V ; (1501-2001)6FC..GF,SA,VL,ZA ; (1501-2001)AGH3#..07S..G,S,V,Z
ﾊｲｸﾞﾚｰﾄﾞ ｺﾝｿｰﾙ ﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-58070C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 55539-58070C1 |
AGH3#..S,X,Z BLACK |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-58120C1 |
AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 55539-58120C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM0# |
1 | ||
| 55539-58120C1 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-58080C1 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 55539-58080C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0# |
1 | ||
| 55539-58080C1 |
AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 55539W - COVER, SPARE SWITCH HOLE | ||||
| 55539-58100C1 |
AGH3#,AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
1 | ||
| 55539-58100C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0# |
1 | ||
| 55539-58100C1 |
AGH3#,AYH30,GGH3#..S,SC,SR,Z,ZG,ZR BLACK,TRIM2# |
1 | ||
| 58629B - MAT, CENTER CONSOLE | ||||
| 58629-58020 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 58629-58020 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-58200 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58804-58130C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58804-58130C0 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58804-58200 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｼｰﾄ表皮−本革 |
1 | ||
| 58804-58140C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 58804-58180 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL |
1 | ||
| 58804-58140C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58806A - POCKET SUB-ASSY, CONSOLE BOX | ||||
| 58806-58050 |
AGH3#,AYH30,GGH3#..G,GF,V,VL |
1 | ||
| 58806-58010C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58806-58010C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 58806-58060 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 58806-58060 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-58312C5 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 58810-58150C1 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58810-58260C0 |
AGH3#..X ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM0# |
1 | ||
| 58810-58260C0 |
AGH3#..S,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 58810-58312C6 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,BLACK,TRIM2# |
1 | ||
| 58810-58150C1 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58810-58362C7 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58810-58400C1 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58810-58352C5 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58810-58410C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 58810-58322C5 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM0# |
1 | ||
| 58810-58322C6 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-58020 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 58825-58020 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR |
1 | ||
| 58827A - GARNISH, CONSOLE BOX POCKET | ||||
| 58827-58020 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 58827-58020 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-58150C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58833-58150C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 58833-58150A0 |
AYH30..EL,G,V,X;AGH3#,GGH3#..EL,G,GF,V,VL FLAXEN,TRIM0# |
1 | ||
| 58833-58140 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 58833-58150C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,BLACK,TRIM2# |
1 | ||
| 58833-58150C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58833-58140 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-58060 |
AYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG |
1 | ||
| 58902-58051 |
AGH3#..S,X,Z |
1 | ||
| 58902-58060 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-58130 |
AGH3#..S,X,Z |
1 | ||
| 58905-58170 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR |
1 | ||
| 58905-58170 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 58911B - PANEL, BOX, NO.1 | ||||
| 58911-58060C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,BLACK,TRIM2# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58911-58070C0 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 58911-58060C0 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL,BLACK,TRIM2# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-58050C0 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58912-58050C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-58030C0 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58913-58030C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-58160C0 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58923-58160C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG |
2 | ||
| 58959-60060 |
AYH30;AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG |
2 | ||
| 58959-60060 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−12.1ｲﾝﾁﾘﾔﾓﾆﾀ |
2 | ||
| 58959-35010 |
AGH3#..S,X,Z |
2 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90467-10203 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8420 | ||||
| 8601 | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
