AGH30W-PFXGK (2018)
Toyota Alphard/Vellfire/Hv
(1801- )AGH3#,GGH3#..G,GF,V,VL

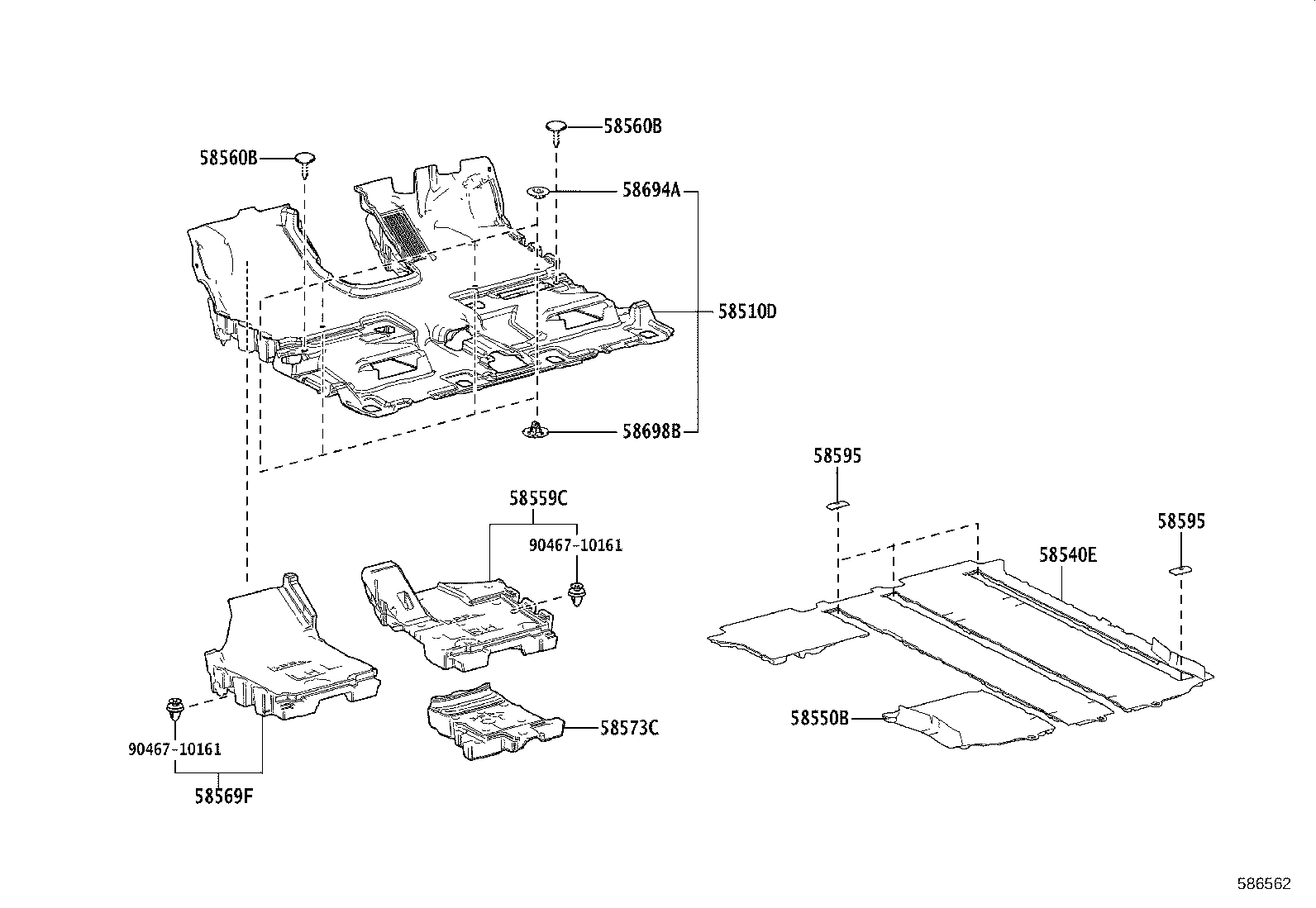

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58051 - MAT SET, FLOOR | ||||
| 58051-58330B1 |
AGH3#,AYH30..07S..(S,SR,Z,ZR) DK. GREY,TRIM2# |
1 | ||
| 58051-58330B1 |
AYH30..07S..(G,V,X);AGH3#,GGH3#..G,GF,V,VL DK. GREY,TRIM0# |
1 | ||
| 58051-58340B1 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,DK. GREY,TRIM2# |
1 | ||
| 58051-58360B1 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),DK. GREY,TRIM0# |
1 | ||
| 58051-58360B1 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),DK. GREY,TRIM2# |
1 | ||
| 58051-58360B1 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),DK. GREY,TRIM2# |
1 | ||
| 58051-58360B1 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),DK. GREY,TRIM0# |
1 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58500-58200C1 |
AGH3#,GGH3#..G,GF,V,VL DK. GREY,TRIM0# |
1 | ||
| 58500-58200C1 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,DK. GREY,TRIM2# |
1 | ||
| 58500-58260C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58500-58250C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58500-58250C0 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58540E - MAT ASSY, FLOOR, REAR RH | ||||
| 58540-58070B0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),DK. GREY,TRIM0# |
1 | ||
| 58540-58070B0 |
AGH3#..07S..X DK. GREY,TRIM0# |
1 | ||
| 58540-58070B0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),DK. GREY,TRIM2# |
1 | ||
| 58540-58040B1 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,DK. GREY,TRIM2# |
1 | ||
| 58550B - MAT ASSY, FLOOR, REAR LH | ||||
| 58550-58020B0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),DK. GREY,TRIM2# |
1 | ||
| 58550-58020B0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),DK. GREY,TRIM0# |
1 | ||
| 58550-58020B0 |
AGH3#..07S..X DK. GREY,TRIM0# |
1 | ||
| 58550-58010B1 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,DK. GREY,TRIM2# |
1 | ||
| 58559C - PAD, FRONT FLOOR SIDE, RH | ||||
| 58559-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 58560B - CLIP(FOR FLOOR CARPET, REAR) | ||||
| 90467-05164C7 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK |
1 | ||
| 90467-05164C7 |
AGH3#,AYH30,GGH3# BLACK |
2 | ||
| 58560B - CLIP(FOR FLOOR CARPET, REAR) | ||||
| 90467-05164C7 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK |
1 | ||
| 90467-05164C7 |
AGH3#,AYH30,GGH3# BLACK |
2 | ||
| 58569F - PAD, FRONT FLOOR SIDE, LH | ||||
| 58569-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 58569-58020 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR |
1 | ||
| 58574D - PAD, FRONT FLOOR, CENTER NO.2 RH | ||||
| 58574-58010 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG |
1 | ||
| 58574-58010 |
AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM2# |
3 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM2# |
3 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
3 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
3 | ||
| 58595-28100C0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
4 | ||
| 58595-28100C0 |
AGH3#..07S..X BLACK,TRIM0# |
4 | ||
| 58595-28100C0 |
AGH3#,AYH30..S,SR,Z,ZR BLACK,TRIM2# |
6 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
5 | ||
| 58595-28100C0 |
AGH3#..G,V;AGH3#..08S..X;AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
6 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM2# |
3 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM2# |
3 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
3 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
3 | ||
| 58595-28100C0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
4 | ||
| 58595-28100C0 |
AGH3#..07S..X BLACK,TRIM0# |
4 | ||
| 58595-28100C0 |
AGH3#,AYH30..S,SR,Z,ZR BLACK,TRIM2# |
6 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
5 | ||
| 58595-28100C0 |
AGH3#..G,V;AGH3#..08S..X;AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
6 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM2# |
3 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM2# |
3 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
3 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
3 | ||
| 58595-28100C0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
4 | ||
| 58595-28100C0 |
AGH3#..07S..X BLACK,TRIM0# |
4 | ||
| 58595-28100C0 |
AGH3#,AYH30..S,SR,Z,ZR BLACK,TRIM2# |
6 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
5 | ||
| 58595-28100C0 |
AGH3#..G,V;AGH3#..08S..X;AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
6 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM2# |
3 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM2# |
3 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
3 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
3 | ||
| 58595-28100C0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
4 | ||
| 58595-28100C0 |
AGH3#..07S..X BLACK,TRIM0# |
4 | ||
| 58595-28100C0 |
AGH3#,AYH30..S,SR,Z,ZR BLACK,TRIM2# |
6 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
5 | ||
| 58595-28100C0 |
AGH3#..G,V;AGH3#..08S..X;AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
6 | ||
| 58621F - SILENCER, CENTER CONSOLE, NO.1 | ||||
| 58621-58010 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 58621-58010 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR |
1 | ||
| 58621-58010 |
AGH3#,AYH30..S,X,Z ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 58621-58010 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG&ｵｰﾃﾞｨｵ−AVN(9ｲﾝﾁ),17ｽﾋﾟｰｶ,JBL |
1 | ||
| 58621-58010 |
AGH3#,AYH30,GGH3#..EL,ELS,ELZ,G,GF,SC,SR,V,VL,ZG,ZR |
1 | ||
| 58621-58010 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG |
1 | ||
| 58622E - SILENCER, CENTER CONSOLE, NO.2 | ||||
| 58622-58010 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG |
1 | ||
| 58622-58010 |
AGH3#,GGH3#..EL,ELS,ELZ,G,GF,SC,V,VL,ZG |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-78010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-78010 |
AGH3#,AYH30,GGH3# |
3 | ||
| Common parts | ||||
| 90467-10161 | ||||
(1801- )AGH3#..07S..S,X,Z
ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟﾁﾙﾄｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58500-58200C1 |
AGH3#,GGH3#..G,GF,V,VL DK. GREY,TRIM0# |
1 | ||
| 58500-58200C1 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,DK. GREY,TRIM2# |
1 | ||
| 58500-58260C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58500-58250C0 |
AGH3#..S,Z BLACK,TRIM2# |
1 | ||
| 58500-58250C0 |
AGH3#..X BLACK,TRIM0# |
1 | ||
| 58540E - MAT ASSY, FLOOR, REAR RH | ||||
| 58540-58070B0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),DK. GREY,TRIM0# |
1 | ||
| 58540-58070B0 |
AGH3#..07S..X DK. GREY,TRIM0# |
1 | ||
| 58540-58070B0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),DK. GREY,TRIM2# |
1 | ||
| 58540-58040B1 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,DK. GREY,TRIM2# |
1 | ||
| 58550B - MAT ASSY, FLOOR, REAR LH | ||||
| 58550-58020B0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),DK. GREY,TRIM2# |
1 | ||
| 58550-58020B0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),DK. GREY,TRIM0# |
1 | ||
| 58550-58020B0 |
AGH3#..07S..X DK. GREY,TRIM0# |
1 | ||
| 58550-58010B1 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,DK. GREY,TRIM2# |
1 | ||
| 58559C - PAD, FRONT FLOOR SIDE, RH | ||||
| 58559-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 58560B - CLIP(FOR FLOOR CARPET, REAR) | ||||
| 90467-05164C7 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK |
1 | ||
| 90467-05164C7 |
AGH3#,AYH30,GGH3# BLACK |
2 | ||
| 58560B - CLIP(FOR FLOOR CARPET, REAR) | ||||
| 90467-05164C7 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK |
1 | ||
| 90467-05164C7 |
AGH3#,AYH30,GGH3# BLACK |
2 | ||
| 58569F - PAD, FRONT FLOOR SIDE, LH | ||||
| 58569-58010 |
AGH3#,AYH30,GGH3# |
1 | ||
| 58569-58020 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR |
1 | ||
| 58573C - PAD, FRONT FLOOR CENTER | ||||
| 58573-58030 |
AGH3#..S,X,Z |
1 | ||
| 58573-58040 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM2# |
3 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM2# |
3 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
3 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
3 | ||
| 58595-28100C0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
4 | ||
| 58595-28100C0 |
AGH3#..07S..X BLACK,TRIM0# |
4 | ||
| 58595-28100C0 |
AGH3#,AYH30..S,SR,Z,ZR BLACK,TRIM2# |
6 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
5 | ||
| 58595-28100C0 |
AGH3#..G,V;AGH3#..08S..X;AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
6 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM2# |
3 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM2# |
3 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ電動式),BLACK,TRIM0# |
3 | ||
| 58595-28100C0 |
AGH3#,AYH30,GGH3#..07S..(GF,VL,X) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(脱着ﾀｲﾌﾟ手動式),BLACK,TRIM0# |
3 | ||
| 58595-28100C0 |
AYH30..07S..X;AGH3#,GGH3#..G,GF,V,VL ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM0# |
4 | ||
| 58595-28100C0 |
AGH3#..07S..X BLACK,TRIM0# |
4 | ||
| 58595-28100C0 |
AGH3#,AYH30..S,SR,Z,ZR BLACK,TRIM2# |
6 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SCorZG,BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
AYH30..SR,ZR;AGH3#..07S..(S,Z) ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ装着車(標準ﾀｲﾌﾟ),BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
AGH3#..07S..(S,Z) “Aﾊﾟｯｹｰｼﾞ”*(D)or“Aｴﾃﾞｨｼｮﾝ”*(D)/SRorZR,BLACK,TRIM2# |
5 | ||
| 58595-28100C0 |
AGH3#..G,V;AGH3#..08S..X;AYH30,GGH3#..G,GF,V,VL,X BLACK,TRIM0# |
6 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-78010 |
AGH3#,AYH30,GGH3# |
3 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-78010 |
AGH3#,AYH30,GGH3# |
3 | ||
| Common parts | ||||
| 90467-10161 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
