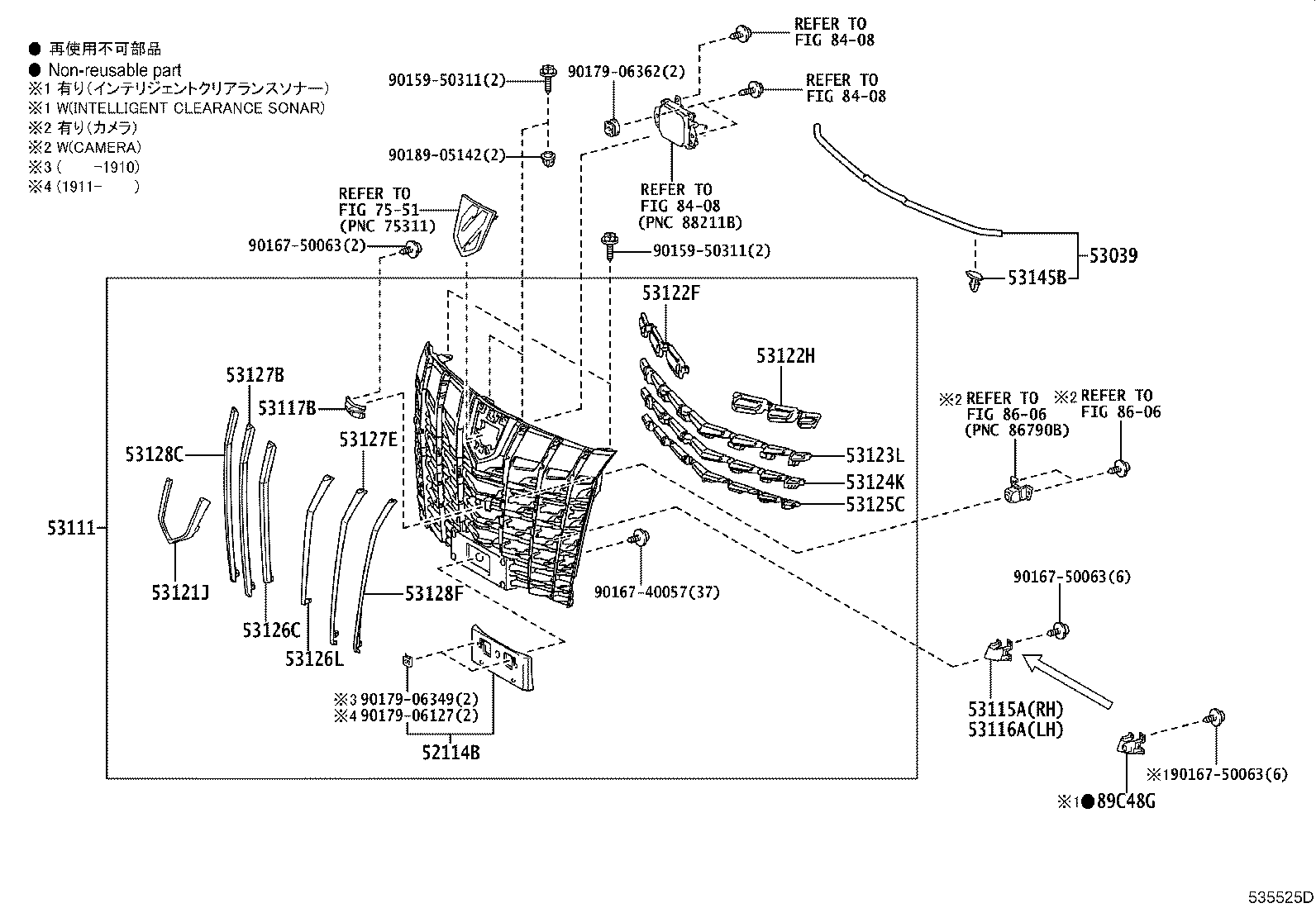

AGH30W-PFXGK (2018)
Toyota Alphard/Vellfire/Hv
(1801-2001)ALPHD..EL,G,GF,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-58070 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53039 - SEAL, RADIATOR, UPPER | ||||
| 53039-58080 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-58380 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53101-58360 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾒｯｷ |
1 | ||
| 53101-58380 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾒｯｷ,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰcjﾀ) |
1 | ||
| 53101-58460 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰcjﾀ) |
1 | ||
| 53101-58440 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ |
1 | ||
| 53101-58460 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53115A - BRACKET, RADIATOR GRILLE, RH | ||||
| 53115-58010 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 53116A - BRACKET, RADIATOR GRILLE, LH | ||||
| 53116-58020 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 53117B - BRACKET, RADIATOR GRILLE, LOWER | ||||
| 53117-58110 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 53117-58080 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53117-58080 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53117-58100 |
AGH3#,AYH30,GGH3#..S,SC,SR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53117-58090 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 53117-58100 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53121J - MOULDING, RADIATOR GRILLE, NO.1 | ||||
| 53121-58210 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53122F - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-58220 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53122H - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-58270 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53123L - MOULDING, RADIATOR GRILLE, NO.3 | ||||
| 53123-58300 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53124K - MOULDING, RADIATOR GRILLE, NO.4 | ||||
| 53124-58230 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) |
1 | ||
| 53124-58310 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53125C - MOULDING, RADIATOR GRILLE, NO.5 | ||||
| 53125-58130 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) |
1 | ||
| 53125-58180 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53126C - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58120 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53126L - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58180 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53127B - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-58070 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53127E - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-58110 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53128C - MOULDING, RADIATOR GRILLE, NO.8 | ||||
| 53128-58010 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53128F - MOULDING, RADIATOR GRILLE, NO.8 | ||||
| 53128-58040 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
AGH3#,AYH30,GGH3#..ALPHD |
14 | ||
| 89C48G - RETAINER, ULTRASONIC SENSOR, FRONT CENTER | ||||
| 89348-58200 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ,右側 |
1 | ||
| 89348-58200 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),右側 |
1 | ||
| 89348-58200 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),右側 |
1 | ||
| 89348-58200 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),右側 |
1 | ||
| 89348-58200 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),右側 |
1 | ||
| 89348-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),左側 |
1 | ||
| 89348-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),左側 |
1 | ||
| 89348-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ,左側 |
1 | ||
| 89348-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),左側 |
1 | ||
| 89348-58200 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) 右側 |
1 | ||
| 89348-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) 左側 |
1 | ||
| 89348-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),左側 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90179-06349 | ||||
| 90179-06362 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8408 | ||||
| 8606 | ||||
(1801-2001)ELS,S,SC,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-58070 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53039 - SEAL, RADIATOR, UPPER | ||||
| 53039-58080 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-58380 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53101-58360 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾒｯｷ |
1 | ||
| 53101-58380 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾒｯｷ,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰcjﾀ) |
1 | ||
| 53101-58460 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰcjﾀ) |
1 | ||
| 53101-58440 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ |
1 | ||
| 53101-58460 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53115A - BRACKET, RADIATOR GRILLE, RH | ||||
| 53115-58010 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 53116A - BRACKET, RADIATOR GRILLE, LH | ||||
| 53116-58020 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) |
1 | ||
| 53117B - BRACKET, RADIATOR GRILLE, LOWER | ||||
| 53117-58110 |
AGH3#,AYH30,GGH3#..S,SC,SR |
1 | ||
| 53117-58080 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53117-58080 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53117-58100 |
AGH3#,AYH30,GGH3#..S,SC,SR ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53117-58090 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,X) |
1 | ||
| 53117-58100 |
AGH3#,AYH30,GGH3#..S,SC,SR ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 53121J - MOULDING, RADIATOR GRILLE, NO.1 | ||||
| 53121-58210 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53122F - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-58220 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53122H - MOULDING, RADIATOR GRILLE, NO.2 | ||||
| 53122-58270 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53123L - MOULDING, RADIATOR GRILLE, NO.3 | ||||
| 53123-58300 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53124K - MOULDING, RADIATOR GRILLE, NO.4 | ||||
| 53124-58230 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) |
1 | ||
| 53124-58310 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53125C - MOULDING, RADIATOR GRILLE, NO.5 | ||||
| 53125-58130 |
AGH3#,AYH30,GGH3#..ALPHD..(EL,G,GF,X) |
1 | ||
| 53125-58180 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53126C - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58120 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53126L - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-58180 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53127B - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-58070 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53127E - MOULDING, RADIATOR GRILLE, NO.7 | ||||
| 53127-58110 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53128C - MOULDING, RADIATOR GRILLE, NO.8 | ||||
| 53128-58010 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53128F - MOULDING, RADIATOR GRILLE, NO.8 | ||||
| 53128-58040 |
AGH3#,AYH30,GGH3#..ALPHD |
1 | ||
| 53129B - MOULDING, RADIATOR GRILLE, NO.9 | ||||
| 53129-58010 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53129C - MOULDING, RADIATOR GRILLE, NO.9 | ||||
| 53129-58020 |
AGH3#,AYH30,GGH3#..ELS,S,SC,SR |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-60030 |
AGH3#,AYH30,GGH3#..ALPHD |
14 | ||
| 89C48G - RETAINER, ULTRASONIC SENSOR, FRONT CENTER | ||||
| 89348-58200 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ,右側 |
1 | ||
| 89348-58200 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),右側 |
1 | ||
| 89348-58200 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),右側 |
1 | ||
| 89348-58200 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),右側 |
1 | ||
| 89348-58200 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),右側 |
1 | ||
| 89348-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),左側 |
1 | ||
| 89348-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),左側 |
1 | ||
| 89348-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ,左側 |
1 | ||
| 89348-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),左側 |
1 | ||
| 89348-58200 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) 右側 |
1 | ||
| 89348-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) 左側 |
1 | ||
| 89348-58210 |
AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X) ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),左側 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90179-06349 | ||||
| 90179-06362 | ||||
| 90189-05142 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 7551 | ||||
| 8408 | ||||
| 8606 | ||||
