AGH30W-NFXGK (2020)
Toyota Alphard/Vellfire/Hv
(2001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86007 - COMPUTER SET, NAVIGATION | ||||
| 86007-52010 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR) ***,EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾛｳｸﾞﾚｰﾄﾞ),ﾛｰ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86007-52010 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ***,EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ),ﾛｰ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86007-52020 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR) ***,EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ),ﾊｲ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-58020 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR) PANASONIC,ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-58220 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 86118 - BRACKET, MULTI-DISPLAY CONTROLER, B | ||||
| 86118-58050 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-58040 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR) DENSO TEN,ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 86140-58030 |
AGH3#,AYH30..VFIRE..(X,Z) DENSO TEN,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86140-58030 |
AGH3#,AYH30..VFIRE..(X,Z) DENSO TEN,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀj |
1 | ||
| 86140-58040 |
AGH3#,AYH30..VFIRE..(X,Z) DENSO TEN,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86140-58030 |
AGH3#,AYH30..VFIRE..(X,Z) DENSO TEN,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86140-58040 |
AGH3#,AYH30..VFIRE..(X,Z) DENSO TEN,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86140-58040 |
AGH3#,AYH30..VFIRE..(X,Z) DENSO TEN,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀj |
1 | ||
| 86140-58030 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR DENSO TEN |
1 | ||
| 86170A - SWITCH & VOLUME ASSY | ||||
| 86170-58180 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR) ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-58110 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR) |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-58110 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR) |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86807-11012 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ) |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-28060 |
AGH3#,AYH30..VFIRE..(X,Z) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86730-28060 |
AGH3#,AYH30..VFIRE..(X,Z) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86730-28060 |
AGH3#,AYH30..VFIRE..(X,Z) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86730-28060 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-12030 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ),ﾊｲ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86840-58071 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 86840-58072 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 86840-58070 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 86840-K0042 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ),ﾊｲ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86840-K0032 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ),ﾛｰ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86840-K0043 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ),ﾊｲ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86840-K0031 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ),ﾛｰ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86840-K0033 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾛｳｸﾞﾚｰﾄﾞ),ﾛｰ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-12030 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ),ﾊｲ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86840-58071 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 86840-58072 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 86840-58070 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR ｵｰﾃﾞｨｵ−EMV 10.5ｲﾝﾁ 17SP JBL |
1 | ||
| 86840-K0042 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ),ﾊｲ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86840-K0032 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ),ﾛｰ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86840-K0043 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ),ﾊｲ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86840-K0031 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ),ﾛｰ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86840-K0033 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾛｳｸﾞﾚｰﾄﾞ),ﾛｰ ｸﾞﾚｰﾄﾞ |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-76330 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR) EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾛｳｸﾞﾚｰﾄﾞ) |
1 | ||
| 86842-76330 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR) EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ) |
1 | ||
| 86848A - CARD, SERIAL NUMBER MAP UPDATE | ||||
| 86848-33070 |
AGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86880-78010 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
1 | ||
| 86880-78010 |
AGH3#,AYH30..VFIRE..(X,Z) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86880-78010 |
AGH3#,AYH30..VFIRE..(X,Z) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86880-78010 |
AGH3#,AYH30..VFIRE..(X,Z) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-58020 |
AGH3#,AYH30..VFIRE..(X,Z) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86862-58020 |
AGH3#,AYH30..VFIRE..(X,Z) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP) |
1 | ||
| 86862-58020 |
AGH3#,AYH30..VFIRE..(X,Z) ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ) |
1 | ||
| 86862-58020 |
AGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR) |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90153-50015 | ||||
| 90159-50327 | ||||
| 91673-80616 | ||||

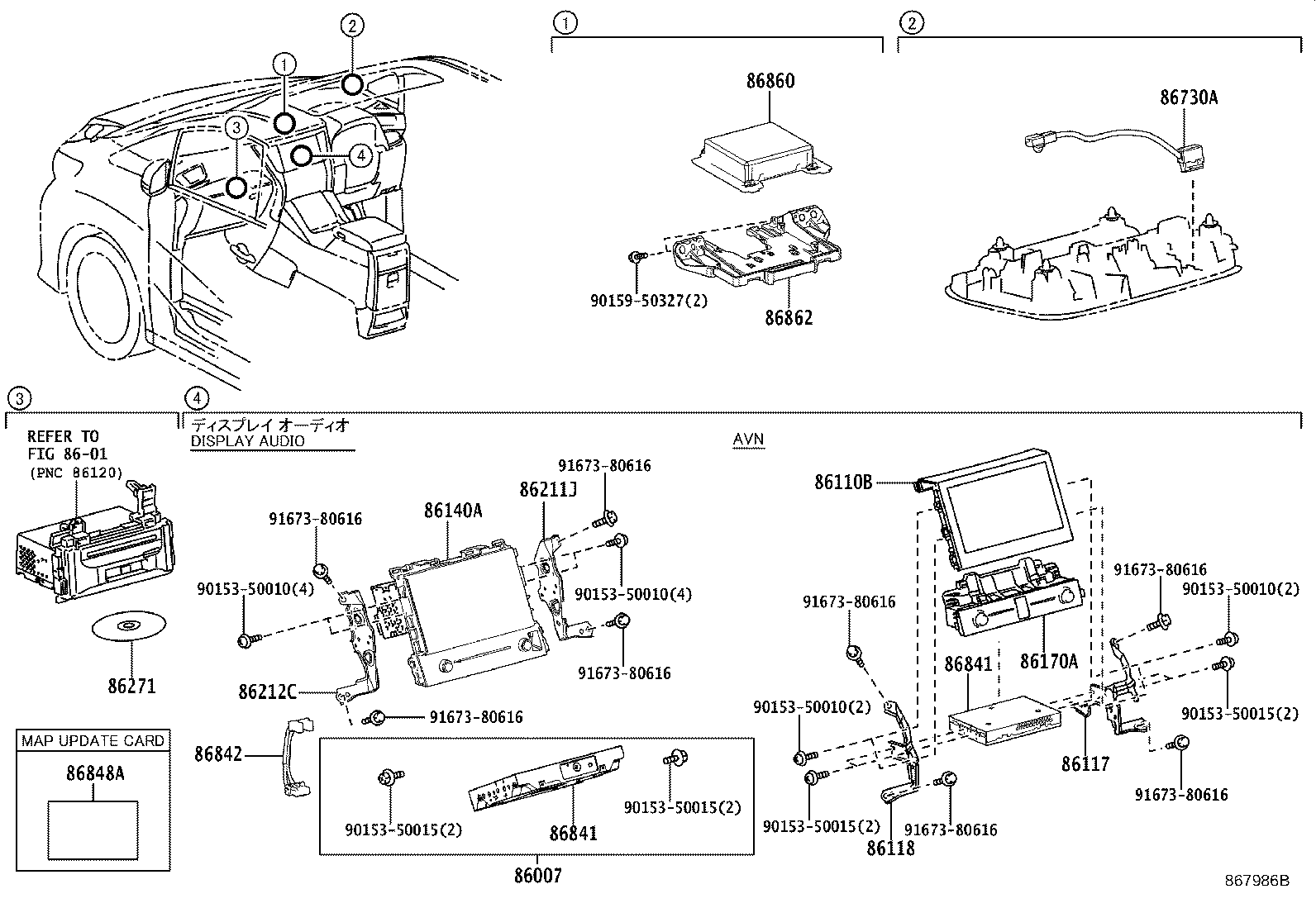

| Linked diagrams | ||||
| 8601 | ||||
