AGH30W-NFXGK (2020)
Toyota Alphard/Vellfire/Hv
(2001- )AGH3#..S,X,Z

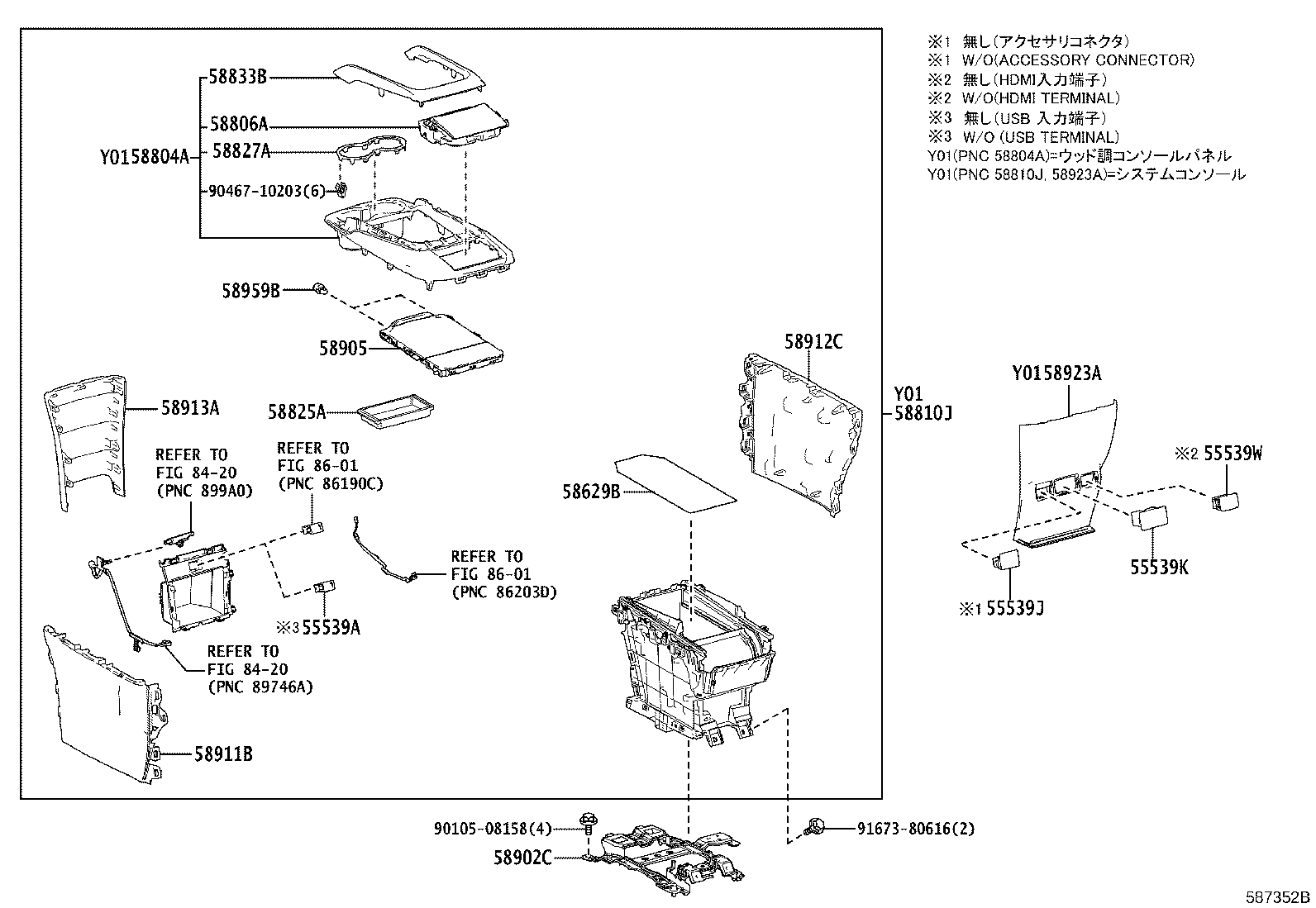

ｽﾀﾝﾀﾞｰﾄﾞ ｺﾝｿｰﾙﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55524-12010C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM0# |
1 | ||
| 55524-12010C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM0# |
1 | ||
| 55524-12010C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM2# |
1 | ||
| 55524-12010C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM0# |
1 | ||
| 55524-12010C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM2# |
1 | ||
| 55524-12010C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM2# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-58120C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58120C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539-58120C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM0# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-58140C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58140C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539W - COVER, SPARE SWITCH HOLE | ||||
| 55539-58100C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58100C1 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0# |
1 | ||
| 55539-58100C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539-58100C1 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-58180 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) |
1 | ||
| 58804-58320C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58804-58180 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) |
1 | ||
| 58804-58340C0 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,TRIM2# |
1 | ||
| 58804-58320C0 |
AGH3#..S BLACK,TRIM2# |
1 | ||
| 58804-V2030C0 |
AGH3#..07S..S “Type Gold 2”*(H),BLACK,TRIM2# |
1 | ||
| 58804-58200 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-58550C0 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) BLACK,TRIM0# |
1 | ||
| 58810-58540C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58810-58520C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM0# |
1 | ||
| 58810-58520C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM0# |
1 | ||
| 58810-58540C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58810-58560C1 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM0# |
1 | ||
| 58810-58530C0 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM2# |
1 | ||
| 58810-58550C1 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM2# |
1 | ||
| 58810-58540C1 |
AGH3#..S BLACK,TRIM2# |
1 | ||
| 58810-V2010C0 |
AGH3#..07S..S “Type Gold 2”*(H),BLACK,TRIM2# |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-58150A0 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) FLAXEN,TRIM0# |
1 | ||
| 58833-58200 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
1 | ||
| 58833-58210 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 58833-58150C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58833-58150C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58833-V2020 |
AGH3#..07S..S “Type Gold 2”*(H) |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-58060 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58902-58051 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
1 | ||
| 58902-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-58200 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 58905-V2010 |
AGH3#..07S..S “Type Gold 2”*(H) |
1 | ||
| 58905-58180 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
1 | ||
| 58911B - PANEL, BOX, NO.1 | ||||
| 58911-58070C0 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) BLACK,TRIM0# |
1 | ||
| 58911-58060C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58911-58060C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58911-58070C0 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) BLACK,TRIM0# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-58050C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58912-58050C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-58030C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58913-58030C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-58160C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58923-58160C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
2 | ||
| 58959-60060 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
2 | ||
| 58959-60060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
2 | ||
| 58959-35010 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
2 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90467-10203 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8601 | ||||
(2001- )AGH3#..07S..S,Z
ﾊｲｸﾞﾚｰﾄﾞ ｺﾝｿｰﾙﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55524-12010C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM0# |
1 | ||
| 55524-12010C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM0# |
1 | ||
| 55524-12010C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM2# |
1 | ||
| 55524-12010C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM0# |
1 | ||
| 55524-12010C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM2# |
1 | ||
| 55524-12010C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM2# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-58120C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58120C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539-58120C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM0# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-58140C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58140C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539W - COVER, SPARE SWITCH HOLE | ||||
| 55539-58100C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58100C1 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0# |
1 | ||
| 55539-58100C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539-58100C1 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0# |
1 | ||
| 58629B - MAT, CENTER CONSOLE | ||||
| 58629-58020 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 58629-58020 |
AGH3#..07S..S “Type Gold 2”*(H) |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-58180 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) |
1 | ||
| 58804-58320C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58804-58180 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) |
1 | ||
| 58804-58340C0 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,TRIM2# |
1 | ||
| 58804-58320C0 |
AGH3#..S BLACK,TRIM2# |
1 | ||
| 58804-V2030C0 |
AGH3#..07S..S “Type Gold 2”*(H),BLACK,TRIM2# |
1 | ||
| 58804-58200 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58806A - POCKET SUB-ASSY, CONSOLE BOX | ||||
| 58806-58050 |
AGH3#,AYH30,GGH3#..V,VL |
1 | ||
| 58806-58010C0 |
AGH3#..07S..S “Type Gold 2”*(H),BLACK,TRIM2# |
1 | ||
| 58806-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 58806-58010C0 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,TRIM2# |
1 | ||
| 58806-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58806-58050 |
AGH3#,AYH30,GGH3#..G,GF |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-58550C0 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) BLACK,TRIM0# |
1 | ||
| 58810-58540C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58810-58520C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM0# |
1 | ||
| 58810-58520C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM0# |
1 | ||
| 58810-58540C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58810-58560C1 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM0# |
1 | ||
| 58810-58530C0 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM2# |
1 | ||
| 58810-58550C1 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM2# |
1 | ||
| 58810-58540C1 |
AGH3#..S BLACK,TRIM2# |
1 | ||
| 58810-V2010C0 |
AGH3#..07S..S “Type Gold 2”*(H),BLACK,TRIM2# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-58020 |
AGH3#..07S..S “Type Gold 2”*(H) |
1 | ||
| 58825-58020 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 58825-48040 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58827A - GARNISH, CONSOLE BOX POCKET | ||||
| 58827-58040 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 58827-58040 |
AGH3#..07S..S “Type Gold 2”*(H) |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-58150A0 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) FLAXEN,TRIM0# |
1 | ||
| 58833-58200 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
1 | ||
| 58833-58210 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 58833-58150C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58833-58150C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58833-V2020 |
AGH3#..07S..S “Type Gold 2”*(H) |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-58060 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58902-58051 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
1 | ||
| 58902-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-58200 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 58905-V2010 |
AGH3#..07S..S “Type Gold 2”*(H) |
1 | ||
| 58905-58180 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
1 | ||
| 58911B - PANEL, BOX, NO.1 | ||||
| 58911-58070C0 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) BLACK,TRIM0# |
1 | ||
| 58911-58060C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58911-58060C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58911-58070C0 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) BLACK,TRIM0# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58912C - PANEL, BOX SIDE, NO.2 | ||||
| 58912-58050C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58912-58050C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-58030C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58913-58030C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-58160C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58923-58160C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
2 | ||
| 58959-60060 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
2 | ||
| 58959-60060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
2 | ||
| 58959-35010 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
2 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90467-10203 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8601 | ||||

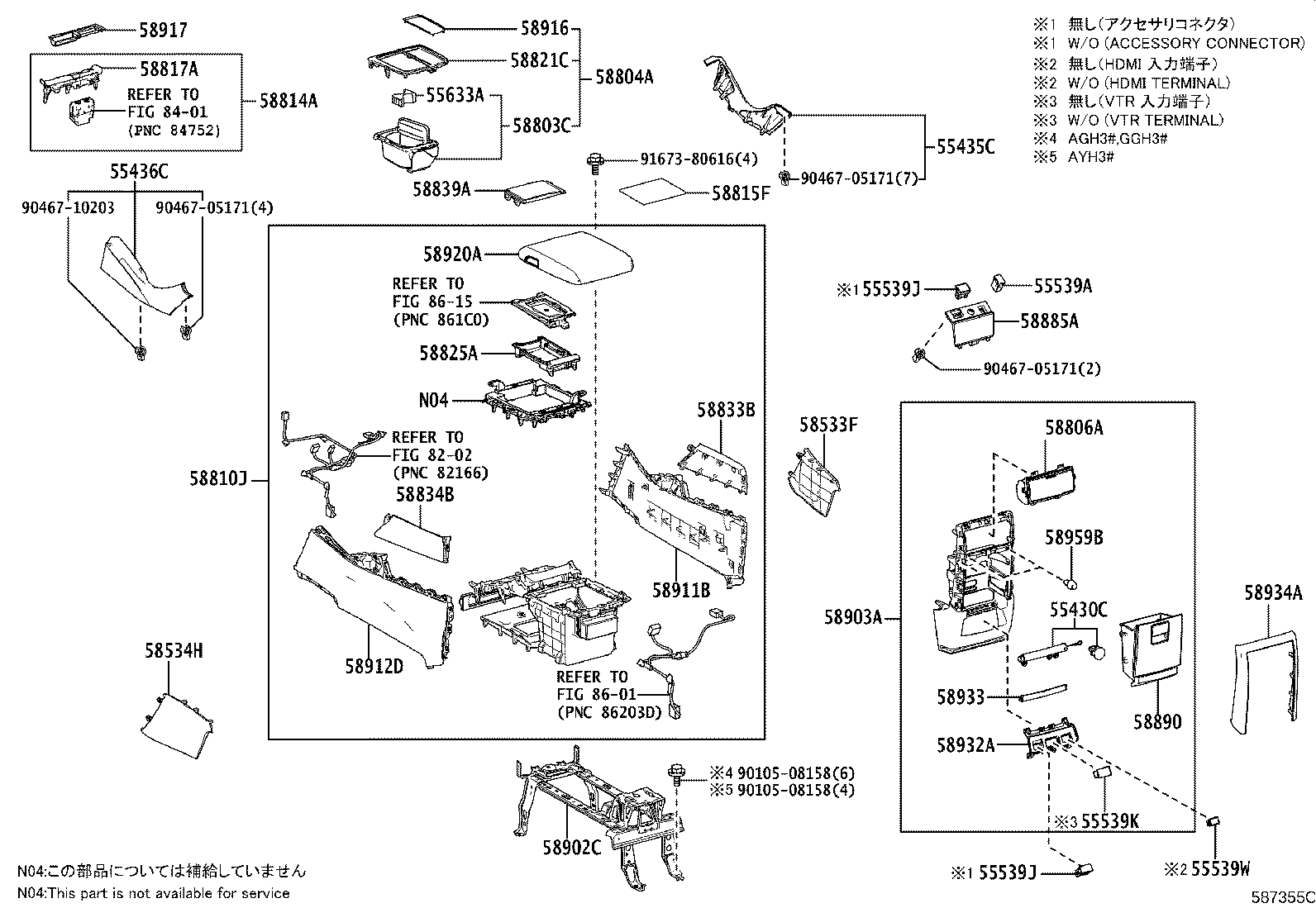

(2001- )AYH30,GGH3# ; (2001- )AGH3#..07S..G,S,V,Z ; (2001- )AGH35..VFIRE..
ｵｵｶﾞﾀ ｺﾝｿｰﾙﾎﾞｯｸｽ:ﾅｼ(ｵｸﾀﾞｹｼﾞｭｳﾃﾞﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55430C - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-58020 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 55430-58020 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 55430-58020 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55412-58210A2 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) FLAXEN,TRIM0# |
1 | ||
| 55412-58210C2 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革,BLACK,TRIM2# |
1 | ||
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55413-58050A2 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) FLAXEN,TRIM0# |
1 | ||
| 55413-58050C2 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革,BLACK,TRIM2# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-58120C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58120C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539-58120C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM0# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-58120C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58120C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539-58120C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM0# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-58140C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58140C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539W - COVER, SPARE SWITCH HOLE | ||||
| 55539-58100C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58100C1 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0# |
1 | ||
| 55539-58100C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539-58100C1 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0# |
1 | ||
| 55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1 | ||||
| 55633-58030 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 55633-58030 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58533F - COVER, FLOOR CARPET, CENTER RH | ||||
| 58533-58070C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革,BLACK,TRIM2# |
1 | ||
| 58533-58070C0 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) BLACK,TRIM0# |
1 | ||
| 58533-58070C0 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) BLACK,TRIM0# |
1 | ||
| 58534H - COVER, FLOOR CARPET, CENTER LH | ||||
| 58534-58070C0 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) BLACK,TRIM0# |
1 | ||
| 58534-58070C0 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) BLACK,TRIM0# |
1 | ||
| 58534-58070C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革,BLACK,TRIM2# |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-58210 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) |
1 | ||
| 58803-58220 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58803-58210 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-58180 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) |
1 | ||
| 58804-58320C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58804-58180 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) |
1 | ||
| 58804-58340C0 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,TRIM2# |
1 | ||
| 58804-58320C0 |
AGH3#..S BLACK,TRIM2# |
1 | ||
| 58804-V2030C0 |
AGH3#..07S..S “Type Gold 2”*(H),BLACK,TRIM2# |
1 | ||
| 58804-58200 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58806A - POCKET SUB-ASSY, CONSOLE BOX | ||||
| 58806-58050 |
AGH3#,AYH30,GGH3#..V,VL |
1 | ||
| 58806-58010C0 |
AGH3#..07S..S “Type Gold 2”*(H),BLACK,TRIM2# |
1 | ||
| 58806-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 58806-58010C0 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,TRIM2# |
1 | ||
| 58806-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58806-58050 |
AGH3#,AYH30,GGH3#..G,GF |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-58550C0 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) BLACK,TRIM0# |
1 | ||
| 58810-58540C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58810-58520C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM0# |
1 | ||
| 58810-58520C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM0# |
1 | ||
| 58810-58540C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58810-58560C1 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM0# |
1 | ||
| 58810-58530C0 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM2# |
1 | ||
| 58810-58550C1 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM2# |
1 | ||
| 58810-58540C1 |
AGH3#..S BLACK,TRIM2# |
1 | ||
| 58810-V2010C0 |
AGH3#..07S..S “Type Gold 2”*(H),BLACK,TRIM2# |
1 | ||
| 58814A - BASE, CONSOLE UPPER PANEL POWER SEAT SWITCH, NO.1 | ||||
| 58814-58011 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58814-58011 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG,ZR) |
1 | ||
| 58815F - CARPET, CONSOLE BOX | ||||
| 58815-58040 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58815-58040 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58815-58040 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-58030 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG,ZR) |
1 | ||
| 58817-58030 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-58220 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) |
1 | ||
| 58821-58230 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58821-58220 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-58150A0 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) FLAXEN,TRIM0# |
1 | ||
| 58833-58150C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58833-58200 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
1 | ||
| 58833-58210 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 58833-58150C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58833-V2020 |
AGH3#..07S..S “Type Gold 2”*(H) |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-58120A0 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) FLAXEN,TRIM0# |
1 | ||
| 58834-58120C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58834-58120C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-58040 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58839-58040 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58839-58040 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58885A - PANEL, EQUIPMENT SET | ||||
| 58885-58020C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 58885-58020 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58885-58020C1 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58885-58020 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58885-58020 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個 |
1 | ||
| 58885-58020C1 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM2# |
1 | ||
| 58890 - BOX ASSY, TRASH | ||||
| 58890-58050C0 |
AGH3#,AYH30,GGH3#..V,VL BLACK,TRIM0# |
1 | ||
| 58890-58060C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM2# |
1 | ||
| 58890-58060C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58890-58050C0 |
AGH3#,AYH30,GGH3#..G,GF BLACK,TRIM0# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-58060 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58902-58051 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
1 | ||
| 58902-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-58391C1 |
AGH3#,AYH30,GGH3#..G,GF BLACK,TRIM0# |
1 | ||
| 58903-58401C1 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM2# |
1 | ||
| 58903-58391C1 |
AGH3#,AYH30,GGH3#..V,VL BLACK,TRIM0# |
1 | ||
| 58903-58401C1 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58911B - PANEL, BOX, NO.1 | ||||
| 58911-58070C0 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) BLACK,TRIM0# |
1 | ||
| 58911-58060C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58911-58060C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58911-58070C0 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) BLACK,TRIM0# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58912D - PANEL, BOX, NO.2 | ||||
| 58912-58060C0 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) BLACK,TRIM0# |
1 | ||
| 58912-58060C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58912-58060C0 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) BLACK,TRIM0# |
1 | ||
| 58912-58060C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-58050 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58916-58050 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58917 - MAT, BOX BOTTOM, NO.2 | ||||
| 58917-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG,ZR) |
1 | ||
| 58917-58050 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-58020A4 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) FLAXEN,TRIM0# |
1 | ||
| 58920-58020C2 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58920-58020C2 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58932A - GARNISH, REAR CONSOLE BOX | ||||
| 58932-58011C0 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) BLACK,TRIM0# |
1 | ||
| 58932-58011C0 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) BLACK,TRIM0# |
1 | ||
| 58932-58011C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58932-58011C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM2# |
1 | ||
| 58933 - GARNISH, CONSOLE REAR END PANEL | ||||
| 58933-58050 |
AGH3#,AYH30,GGH3#..V,VL |
1 | ||
| 58933-58050 |
AGH3#,AYH30,GGH3#..G,GF |
1 | ||
| 58933-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58933-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 58934A - GARNISH, CONSOLE REAR END PANEL, NO.2 | ||||
| 58934-58010 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58934-58010 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58934-58010 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
2 | ||
| 58959-60060 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
2 | ||
| 58959-60060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
2 | ||
| 58959-35010 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
2 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90467-05171 | ||||
| 90467-10203 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
| 8601 | ||||

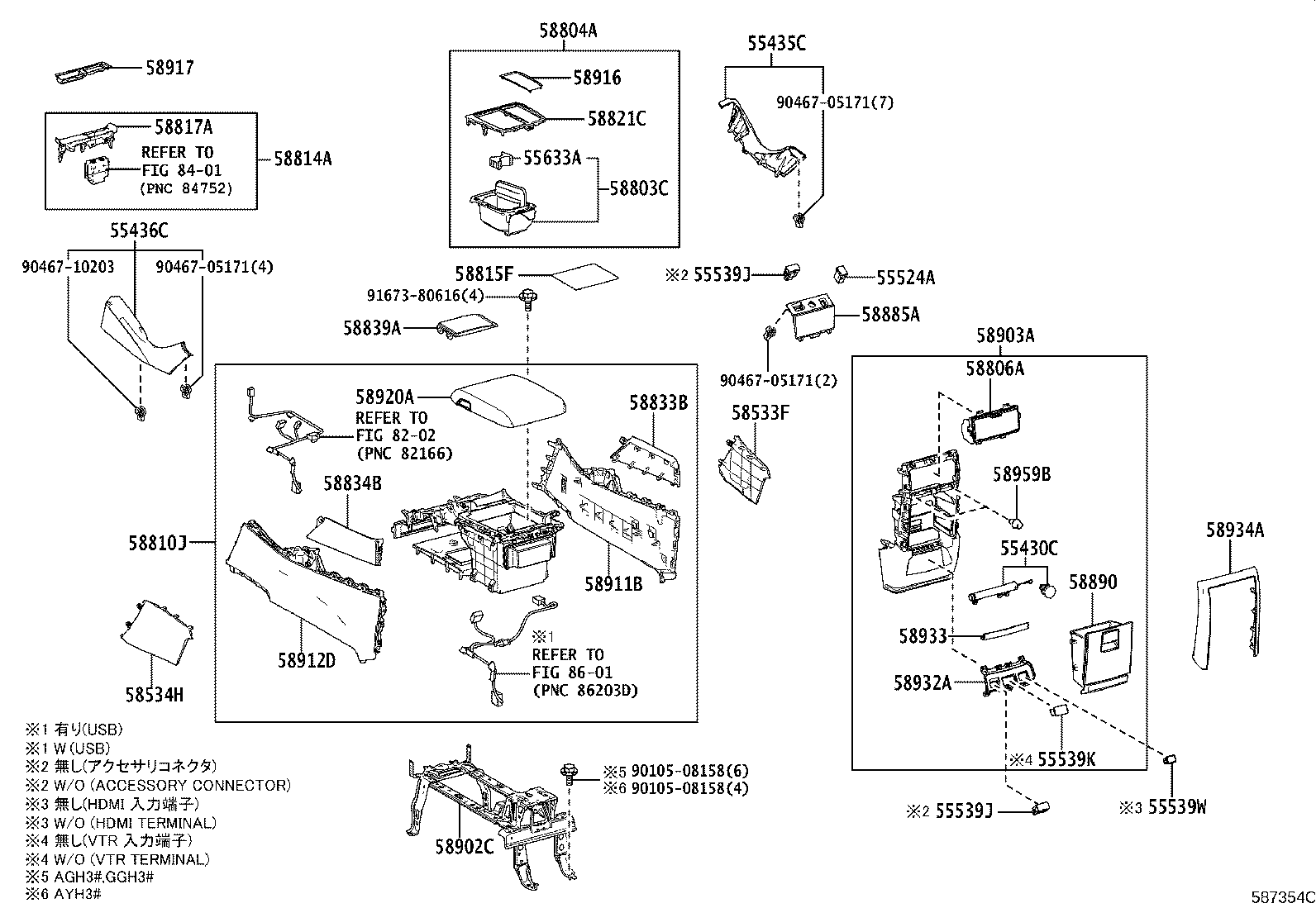

(2001- )AYH30,GGH3# ; (2001- )AGH3#..07S..G,S,V,Z ; (2001- )AGH35..VFIRE..
ｵｵｶﾞﾀ ｺﾝｿｰﾙﾎﾞｯｸｽ:ｱﾘ(ｵｸﾀﾞｹｼﾞｭｳﾃﾞﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55430C - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-58020 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 55430-58020 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 55430-58020 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55412-58210A2 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) FLAXEN,TRIM0# |
1 | ||
| 55412-58210C2 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革,BLACK,TRIM2# |
1 | ||
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55413-58050A2 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) FLAXEN,TRIM0# |
1 | ||
| 55413-58050C2 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革,BLACK,TRIM2# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55524-12010C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM0# |
1 | ||
| 55524-12010C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM0# |
1 | ||
| 55524-12010C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM2# |
1 | ||
| 55524-12010C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM0# |
1 | ||
| 55524-12010C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM2# |
1 | ||
| 55524-12010C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM2# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-58120C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58120C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539-58120C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM0# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-58120C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58120C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539-58120C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM0# |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-58140C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58140C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539W - COVER, SPARE SWITCH HOLE | ||||
| 55539-58100C1 |
AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X) BLACK,TRIM0# |
1 | ||
| 55539-58100C1 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0# |
1 | ||
| 55539-58100C1 |
AGH3#..S;AGH3#..07S..Z;AYH30,GGH3#..S,SC,SR,Z BLACK,TRIM2# |
1 | ||
| 55539-58100C1 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM0# |
1 | ||
| 55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1 | ||||
| 55633-58030 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 55633-58030 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58533F - COVER, FLOOR CARPET, CENTER RH | ||||
| 58533-58070C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革,BLACK,TRIM2# |
1 | ||
| 58533-58070C0 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) BLACK,TRIM0# |
1 | ||
| 58533-58070C0 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) BLACK,TRIM0# |
1 | ||
| 58534H - COVER, FLOOR CARPET, CENTER LH | ||||
| 58534-58070C0 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) BLACK,TRIM0# |
1 | ||
| 58534-58070C0 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) BLACK,TRIM0# |
1 | ||
| 58534-58070C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革,BLACK,TRIM2# |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-58210 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) |
1 | ||
| 58803-58220 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58803-58210 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-58180 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) |
1 | ||
| 58804-58320C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58804-58180 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) |
1 | ||
| 58804-58340C0 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,TRIM2# |
1 | ||
| 58804-58320C0 |
AGH3#..S BLACK,TRIM2# |
1 | ||
| 58804-V2030C0 |
AGH3#..07S..S “Type Gold 2”*(H),BLACK,TRIM2# |
1 | ||
| 58804-58200 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58806A - POCKET SUB-ASSY, CONSOLE BOX | ||||
| 58806-58050 |
AGH3#,AYH30,GGH3#..V,VL |
1 | ||
| 58806-58010C0 |
AGH3#..07S..S “Type Gold 2”*(H),BLACK,TRIM2# |
1 | ||
| 58806-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 58806-58010C0 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,TRIM2# |
1 | ||
| 58806-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58806-58050 |
AGH3#,AYH30,GGH3#..G,GF |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-58550C0 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) BLACK,TRIM0# |
1 | ||
| 58810-58540C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58810-58520C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM0# |
1 | ||
| 58810-58520C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM0# |
1 | ||
| 58810-58540C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58810-58560C1 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..VFIRE..X ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM0# |
1 | ||
| 58810-58530C0 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G),BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,有り(7ｲﾝﾁｸﾗｽﾀ),BLACK,TRIM2# |
1 | ||
| 58810-58550C1 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58810-58520C0 |
AGH3#..S ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,8ｽﾋﾟｰｶ,ｶﾊﾞｰ有り(*DOP),BLACK,TRIM2# |
1 | ||
| 58810-58540C1 |
AGH3#..S BLACK,TRIM2# |
1 | ||
| 58810-V2010C0 |
AGH3#..07S..S “Type Gold 2”*(H),BLACK,TRIM2# |
1 | ||
| 58814A - BASE, CONSOLE UPPER PANEL POWER SEAT SWITCH, NO.1 | ||||
| 58814-58011 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58814-58011 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG,ZR) |
1 | ||
| 58815F - CARPET, CONSOLE BOX | ||||
| 58815-58040 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58815-58040 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58815-58040 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-58030 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG,ZR) |
1 | ||
| 58817-58030 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-58220 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) |
1 | ||
| 58821-58230 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58821-58220 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-58020 |
AGH3#..07S..S “Type Gold 2”*(H) |
1 | ||
| 58825-58020 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 58825-48040 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-58150A0 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) FLAXEN,TRIM0# |
1 | ||
| 58833-58150C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58833-58200 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
1 | ||
| 58833-58210 |
AGH3#..07S..(S,Z) “TYPE GOLD”*(G)or“GOLDEN EYES″*(G) |
1 | ||
| 58833-58150C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58833-V2020 |
AGH3#..07S..S “Type Gold 2”*(H) |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-58120A0 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) FLAXEN,TRIM0# |
1 | ||
| 58834-58120C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58834-58120C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-58040 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58839-58040 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り |
1 | ||
| 58839-58040 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58885A - PANEL, EQUIPMENT SET | ||||
| 58885-58020C1 |
AYH30..G,V,X;AGH3#,GGH3#..G,GF,V,VL BLACK,TRIM0# |
1 | ||
| 58885-58020 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58885-58020C1 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58885-58020 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58885-58020 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個 |
1 | ||
| 58885-58020C1 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｱｸｾｻﾘｺﾈｸﾀ−12V:1個&100V(100W):2個,BLACK,TRIM2# |
1 | ||
| 58890 - BOX ASSY, TRASH | ||||
| 58890-58050C0 |
AGH3#,AYH30,GGH3#..V,VL BLACK,TRIM0# |
1 | ||
| 58890-58060C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM2# |
1 | ||
| 58890-58060C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58890-58050C0 |
AGH3#,AYH30,GGH3#..G,GF BLACK,TRIM0# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-58060 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58902-58051 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
1 | ||
| 58902-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-58391C1 |
AGH3#,AYH30,GGH3#..G,GF BLACK,TRIM0# |
1 | ||
| 58903-58401C1 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM2# |
1 | ||
| 58903-58391C1 |
AGH3#,AYH30,GGH3#..V,VL BLACK,TRIM0# |
1 | ||
| 58903-58401C1 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58911B - PANEL, BOX, NO.1 | ||||
| 58911-58070C0 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) BLACK,TRIM0# |
1 | ||
| 58911-58060C0 |
AGH3#..VFIRE..X BLACK,TRIM0# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58911-58060C0 |
AGH3#..S;AGH3#..07S..Z BLACK,TRIM2# |
1 | ||
| 58911-58070C0 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) BLACK,TRIM0# |
1 | ||
| 58911-58070C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58912D - PANEL, BOX, NO.2 | ||||
| 58912-58060C0 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) BLACK,TRIM0# |
1 | ||
| 58912-58060C0 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58912-58060C0 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) BLACK,TRIM0# |
1 | ||
| 58912-58060C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-58050 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58916-58050 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58917 - MAT, BOX BOTTOM, NO.2 | ||||
| 58917-58050 |
AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG,ZR) |
1 | ||
| 58917-58050 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ｼｰﾄ表皮−合成皮革 |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-58020A4 |
AYH30..VFIRE..(EL,ELZ,V,X);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL) FLAXEN,TRIM0# |
1 | ||
| 58920-58020C2 |
AGH3#..07S..(S,Z) “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&おくだけ充電(ﾜｲﾔﾚｽ充電器)−有り,BLACK,TRIM2# |
1 | ||
| 58920-58020C2 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58932A - GARNISH, REAR CONSOLE BOX | ||||
| 58932-58011C0 |
AGH3#,GGH3#..G,GF;AYH30..ALPHD..(G,X) BLACK,TRIM0# |
1 | ||
| 58932-58011C0 |
AGH3#,GGH3#..V,VL;AYH30..VFIRE..(V,X) BLACK,TRIM0# |
1 | ||
| 58932-58011C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR,BLACK,TRIM2# |
1 | ||
| 58932-58011C0 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ,BLACK,TRIM2# |
1 | ||
| 58933 - GARNISH, CONSOLE REAR END PANEL | ||||
| 58933-58050 |
AGH3#,AYH30,GGH3#..V,VL |
1 | ||
| 58933-58050 |
AGH3#,AYH30,GGH3#..G,GF |
1 | ||
| 58933-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58933-58060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 58934A - GARNISH, CONSOLE REAR END PANEL, NO.2 | ||||
| 58934-58010 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
1 | ||
| 58934-58010 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
1 | ||
| 58934-58010 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR&ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−13.3ｲﾝﾁﾘﾔﾓﾆﾀ |
2 | ||
| 58959-60060 |
AYH30..VFIRE..(EL,ELZ,V,X,ZR);AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,ZG) |
2 | ||
| 58959-60060 |
AGH3#..07S..S “Cﾊﾟｯｹｰｼﾞ”*(C)or“Gｴﾃﾞｨｼｮﾝ”*(C)/SRorZR |
2 | ||
| 58959-35010 |
AGH3#..08S..Z;AGH3#..VFIRE..X |
2 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90467-05171 | ||||
| 90467-10203 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
| 8601 | ||||
| 8615 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
