GRMN86-FRSPORT (2016)

Toyota 86 Grmn

Production Feb 2016 - May 2016
Engine FA20
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

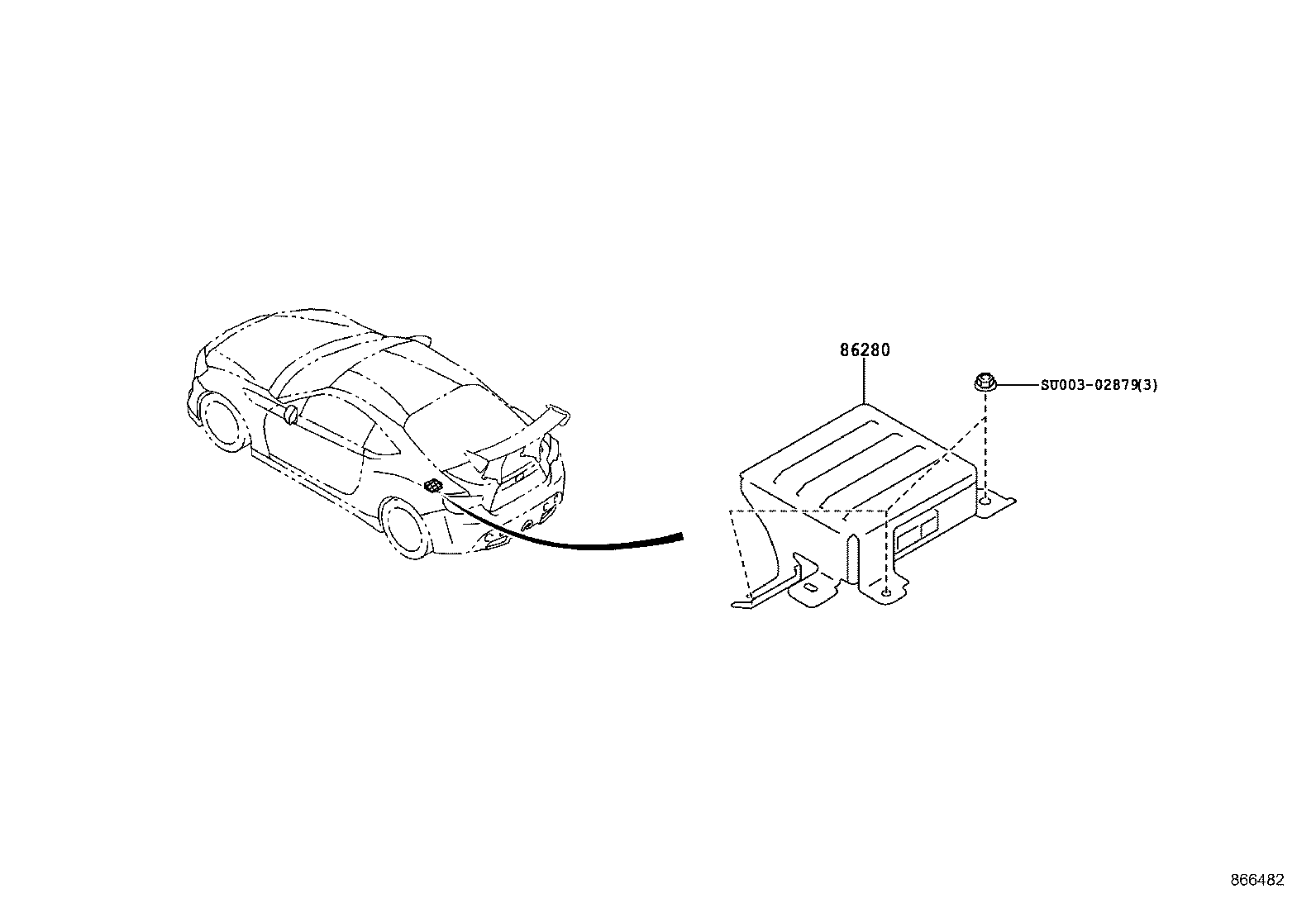

ILLUST NO. 2 OF 3(1602- )

Click highlighted areas on diagram

ｱﾝﾌﾟﾘﾌｧｲｱ

diagram 86280 SU00302879
Part # Description Qty Price
86280 - AMPLIFIER ASSY, STEREO COMPONENT
SU003-07080

GRMN86

 1
Common parts
SU003-02879

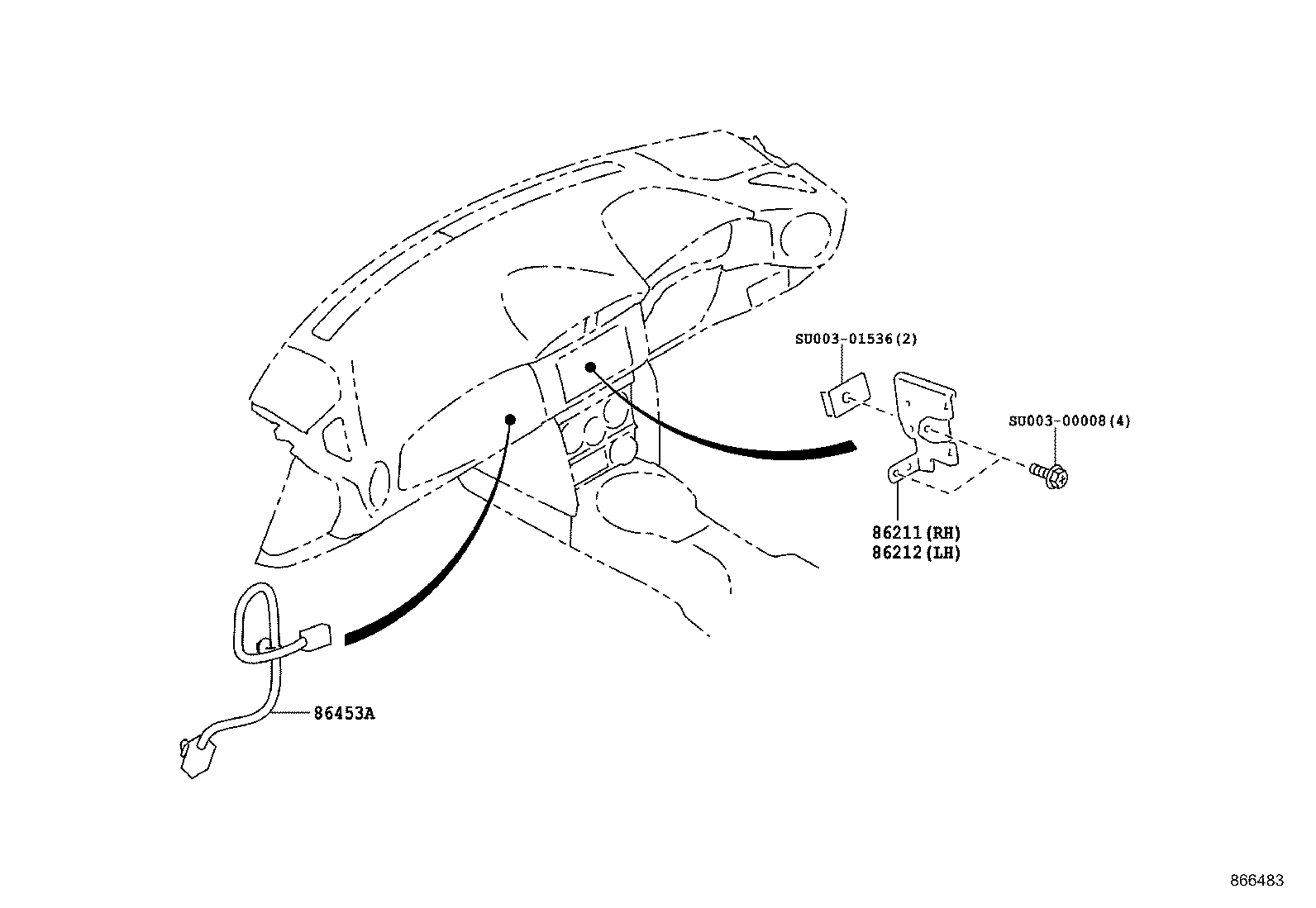

ILLUST NO. 1 OF 3(1602- )

Click highlighted areas on diagram

ﾗｼﾞｵﾌﾞﾗｹｯﾄ & ﾗｼﾞｵｱﾝﾃﾅﾜｲﾔ

diagram 86211 86212 86453A SU00300008 SU00301536
Part # Description Qty Price
86211 - BRACKET, RADIO, NO.1
SU003-01962

GRMN86

 1
86212 - BRACKET, RADIO, NO.2
SU003-01963

GRMN86

 1
86453A - WIRE, MULTI-MEDIA MODULE
SU003-05231

GRMN86

 1
Common parts
SU003-00008
SU003-01536

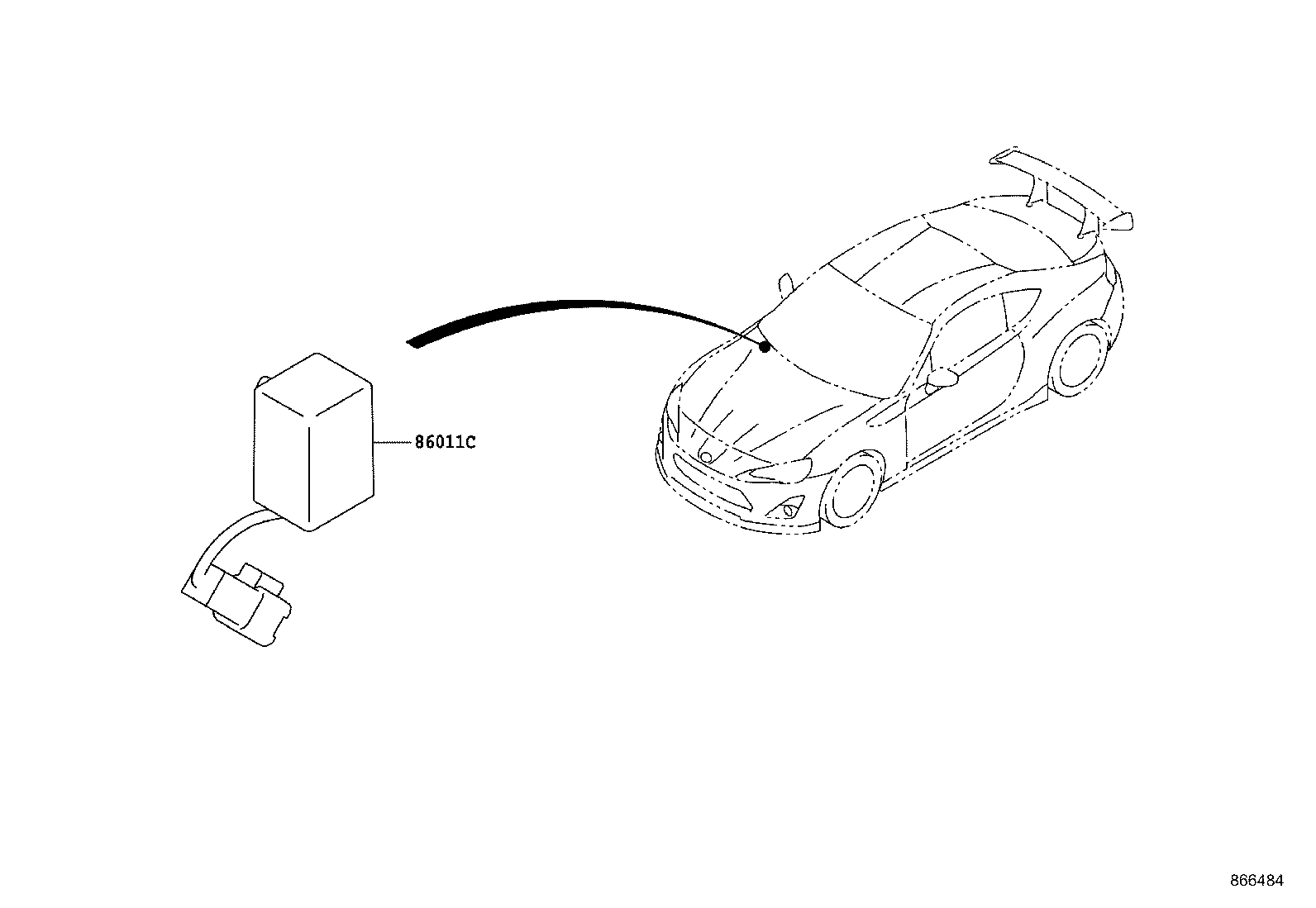

ILLUST NO. 3 OF 3(1602- )

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ

diagram 86011C
Part # Description Qty Price
86011C - FILTER, NOISE
SU003-02632

GRMN86

 1
