GRMN86-FRSPORT (2016)

Toyota 86 Grmn

Production Feb 2016 - May 2016
Engine FA20
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1602- )

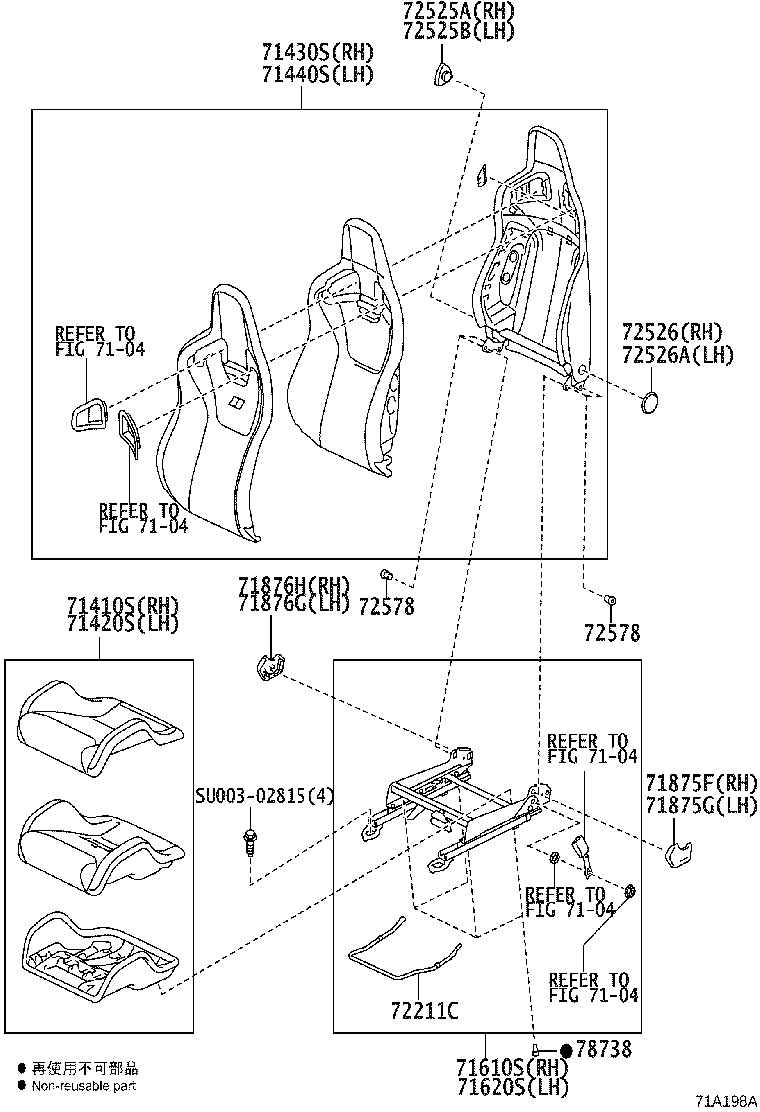

Click highlighted areas on diagram

diagram 7104 7104 7104 7104 7104 71410S 71420S 71430S 71440S 71610S 71620S 71875F 71875G 71876G 71876H 72211C 72525A 72525B 72526 72526A 72578 72578 78738 SU00302815
Part # Description Qty Price
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71501-18010

GRMN86

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71502-18020

GRMN86

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71505-18010

GRMN86

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71506-18010

GRMN86

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71102-18010

GRMN86

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71201-18010

GRMN86

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-18010

GRMN86

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-18010

GRMN86

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-18010

GRMN86

 1
71876H - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-18010

GRMN86

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
SU003-04401

GRMN86

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-18010

GRMN86

 1
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-18010

GRMN86

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-18010

GRMN86

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-18010

GRMN86

 1
72578 - PIN, FRONT SEAT BACK STOPPER
72578-18010

GRMN86

 8
72578 - PIN, FRONT SEAT BACK STOPPER
72578-18010

GRMN86

 8
78738 - PIN, SUB SEAT CUSHION PIN
78738-18010

GRMN86

 8
Common parts
SU003-02815
Linked diagrams
7104
