GRMN86-FRSPORT (2016)

Toyota 86 Grmn

Production Feb 2016 - May 2016
Engine FA20
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

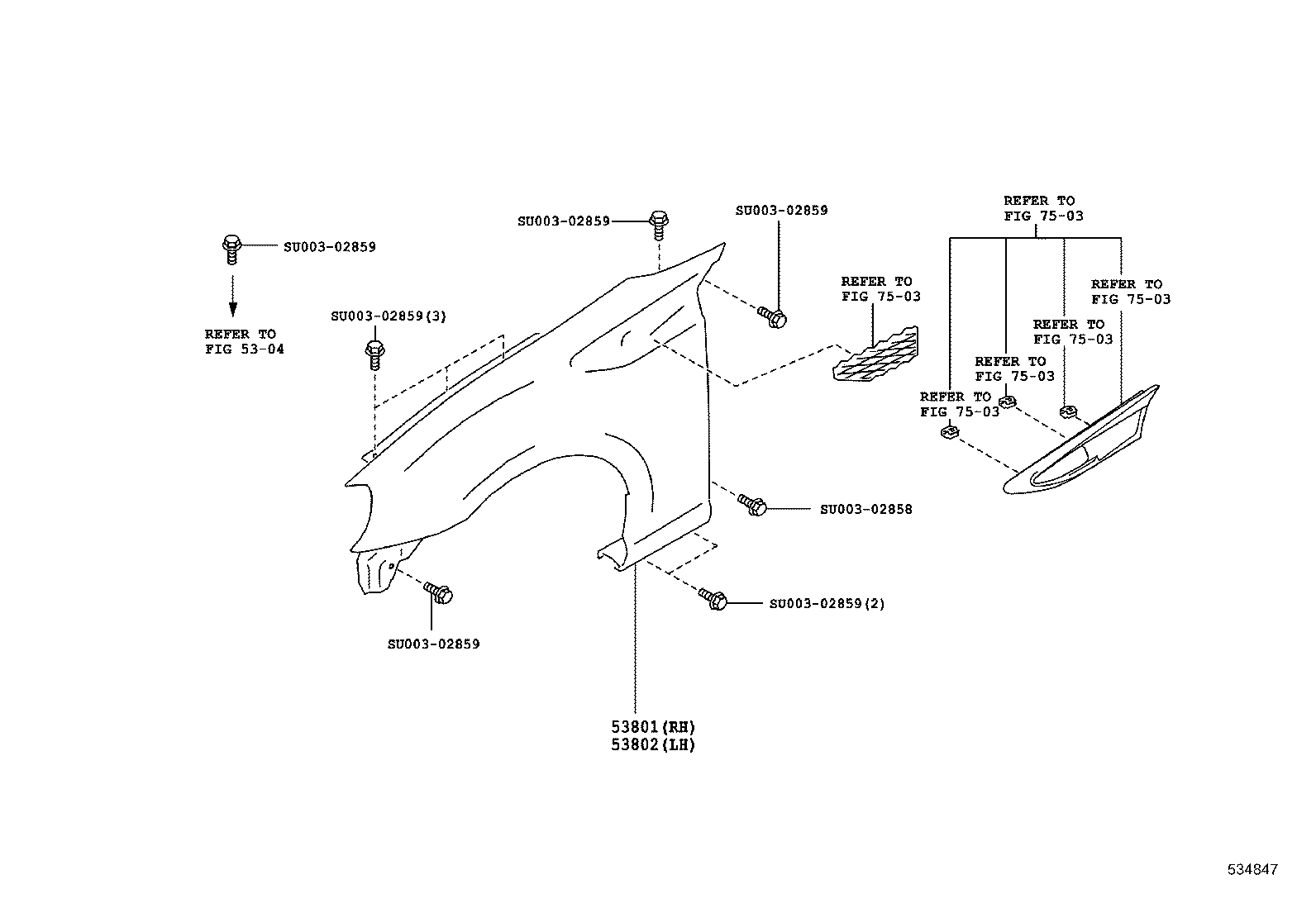

ILLUST NO. 3 OF 4(1602- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ﾌｪﾝﾀﾞ

diagram 5304 53801 53802 7503 7503 7503 7503 7503 7503 SU00302858 SU00302859 SU00302859 SU00302859 SU00302859 SU00302859 SU00302859
Part # Description Qty Price
53801 - FENDER SUB-ASSY, FRONT RH
53801-18030

GRMN86

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-18030

GRMN86

 1
Common parts
SU003-02858
SU003-02859
Linked diagrams
5304
7503

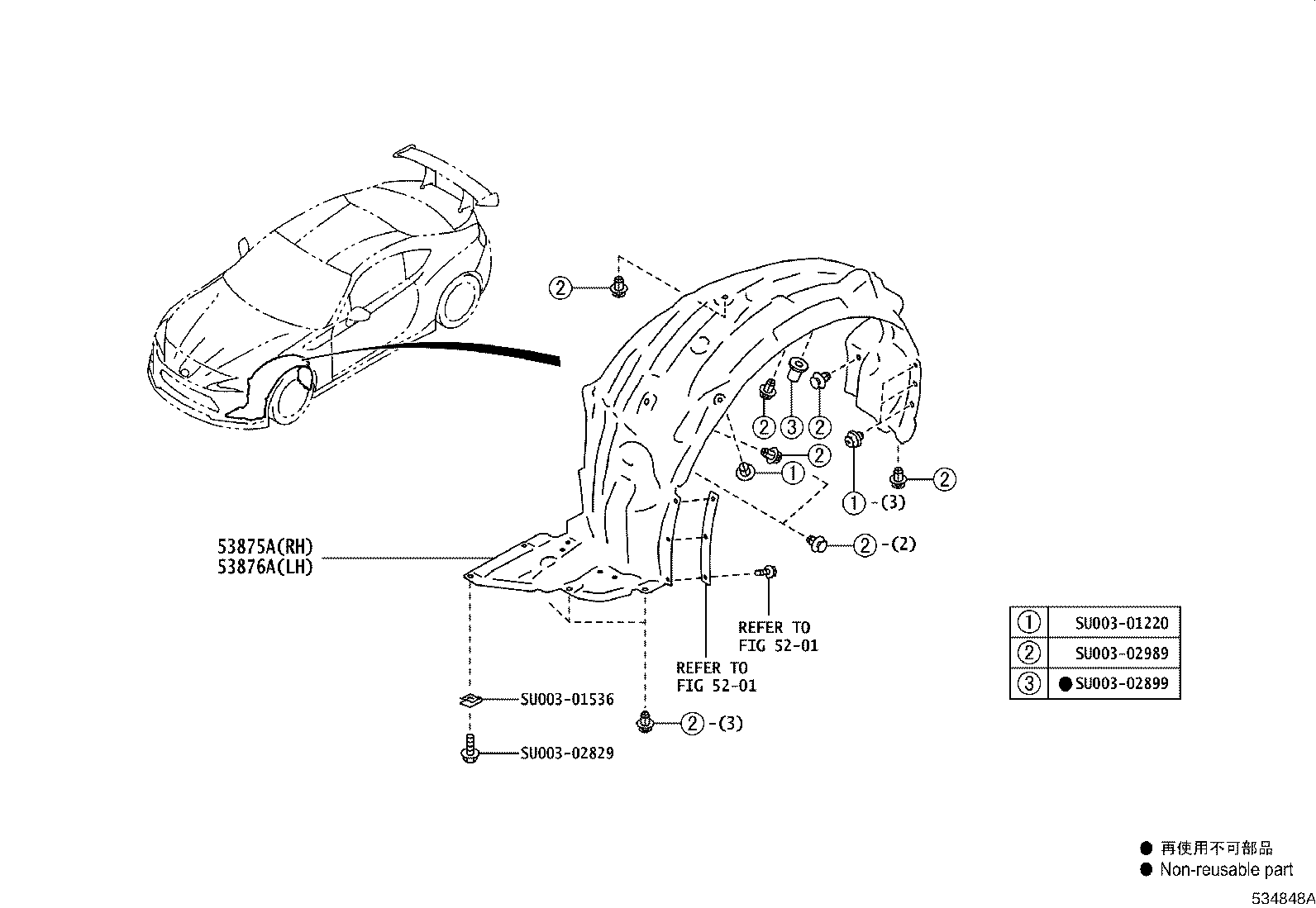

ILLUST NO. 4 OF 4(1602- )

Click highlighted areas on diagram

ﾌｪﾝﾀﾞﾗｲﾅ

diagram 5201 5201 53875A 53876A SU00301220 SU00301536 SU00302829 SU00302899 SU00302989
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
SU003-06093

GRMN86

 1
53876A - LINER, FRONT FENDER, LH
SU003-06094

GRMN86

 1
Common parts
SU003-01220
SU003-01536
SU003-02829
SU003-02899
SU003-02989
Linked diagrams
5201

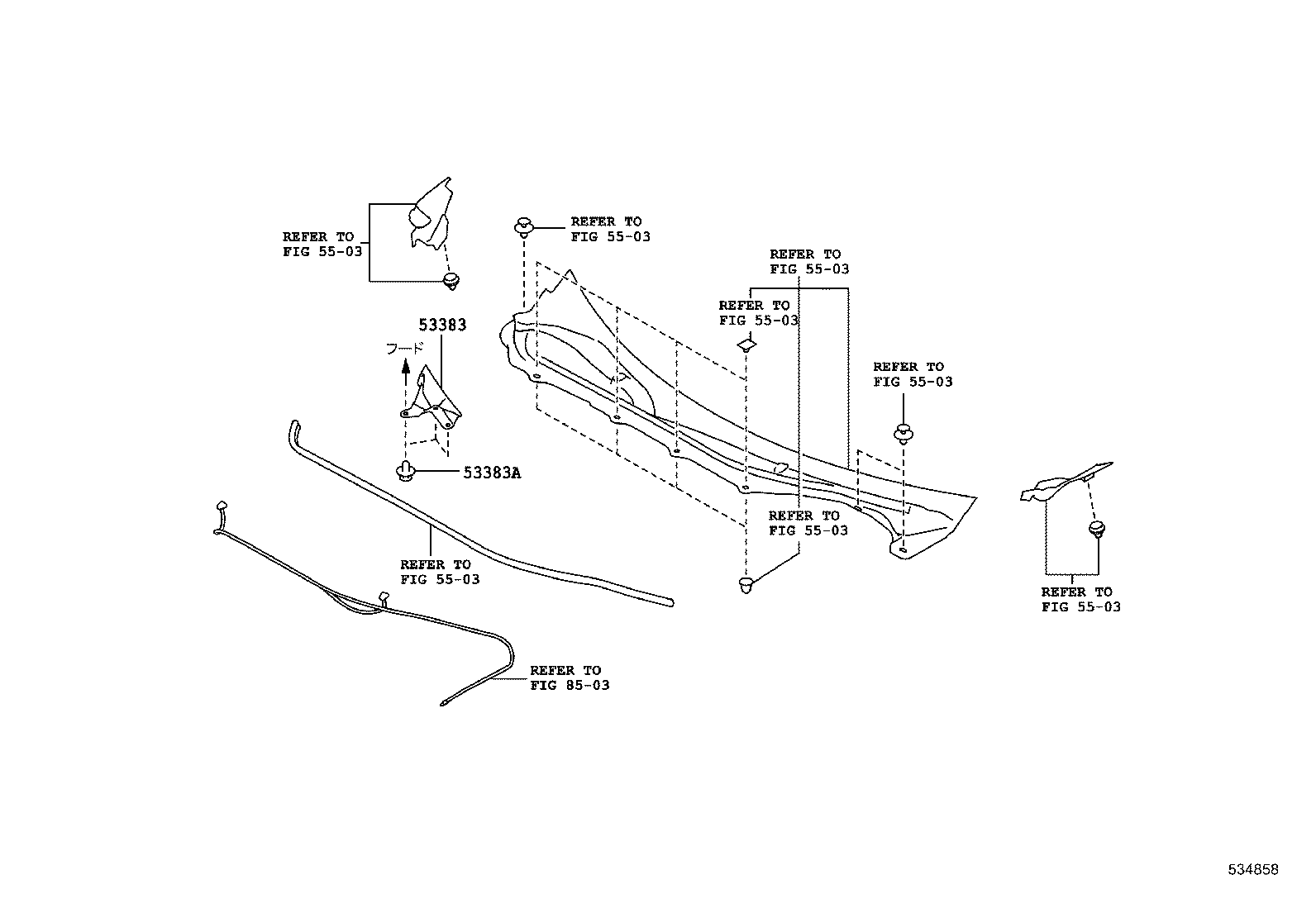

ILLUST NO. 2 OF 4(1602- )

Click highlighted areas on diagram

ﾌｰﾄﾞｼｰﾙ

diagram 53383 53383A 5503 5503 5503 5503 5503 5503 5503 5503 8503
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
SU003-03138

GRMN86

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
SU003-02964

GRMN86

 3
Linked diagrams
5503
8503

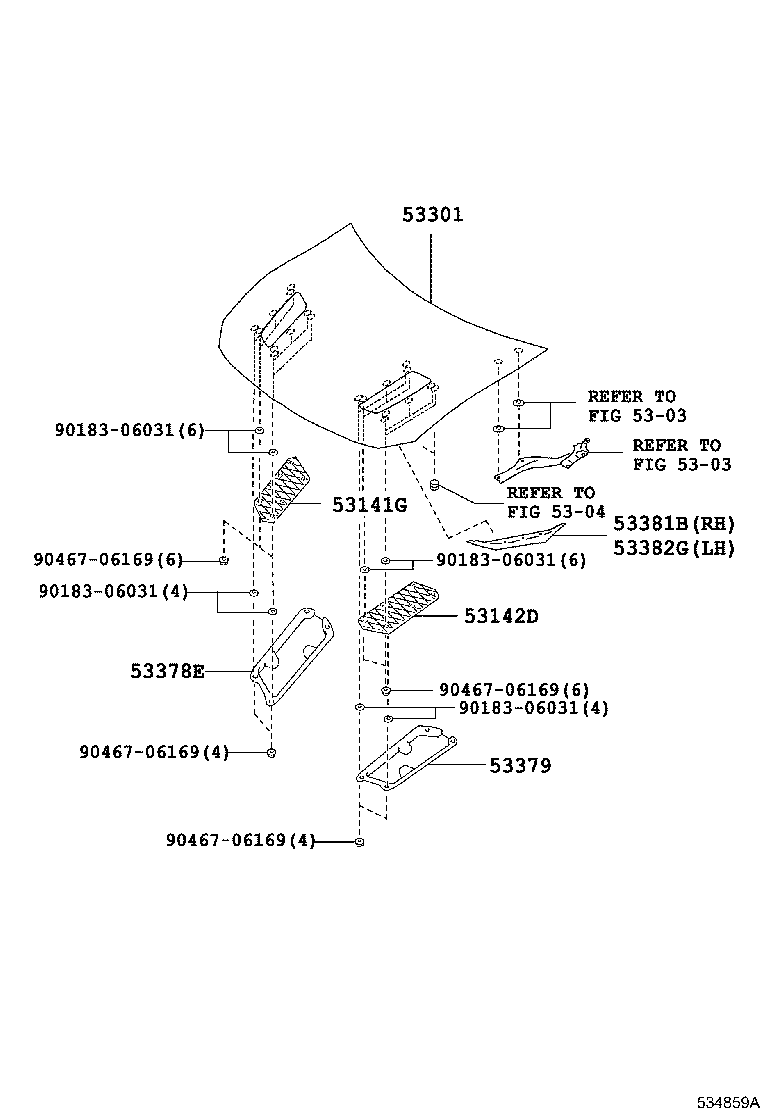

ILLUST NO. 1 OF 4(1602- )

Click highlighted areas on diagram

ﾌｰﾄﾞ

diagram 5303 5303 5304 53141G 53142D 53301 53378E 53379 53381B 53382G 9018306031 9018306031 9018306031 9018306031 9046706169 9046706169 9046706169 9046706169
Part # Description Qty Price
53141G - GARNISH, RADIATOR GRILLE, NO.1 RH
53141-18010

GRMN86

 1
53142D - GARNISH, RADIATOR GRILLE, NO.1 LH
53142-18010

GRMN86

 1
53301 - HOOD SUB-ASSY
53301-18020

GRMN86

 1
53378E - SEAL, HOOD AIR INTAKE DUCT, RH
53378-18010

GRMN86

 1
53379 - SEAL, HOOD AIR INTAKE DUCT, LH
53379-18010

GRMN86

 1
53381B - SEAL, HOOD TO RADIATOR SUPPORT, RH
SU003-01396

GRMN86

 1
53382G - SEAL, HOOD TO RADIATOR SUPPORT, LH
SU003-01396

GRMN86

 1
Common parts
90183-06031
90467-06169
Linked diagrams
5303
5304
