ZN6-F248 (2017)

Toyota 86

Production Dec 2017 - May 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )GR

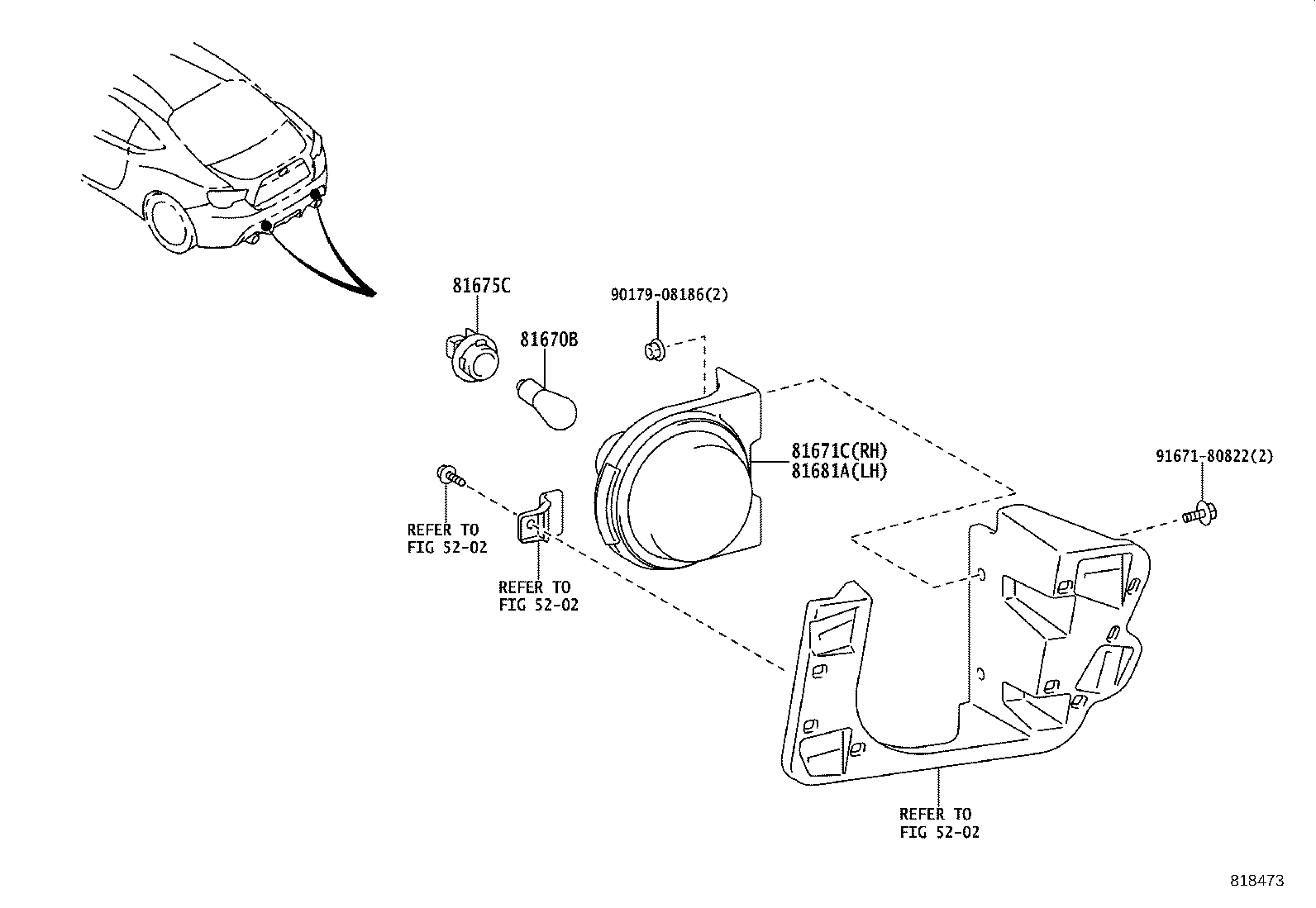

Click highlighted areas on diagram

diagram 5202 5202 5202 81670B 81671C 81675C 81681A 9017908186 9167180822
Part # Description Qty Price
81670B - BULB(FOR BACK-UP LAMP)
99132-11210

ZN6..GR

12V 21W

 2
81671C - LENS & BODY, BACK-UP LAMP, RH
81671-18020

ZN6..GR

 1
81675C - PLUG, SOCKET(FOR REAR FOG LAMP)
90075-60064

ZN6..GR

 2
81681A - LENS & BODY, BACK-UP LAMP, LH
81681-18020

ZN6..GR

 1
Common parts
90179-08186
91671-80822
Linked diagrams
5202
