ZN6-F248 (2017)

Toyota 86

Production Dec 2017 - May 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )GR,GRS

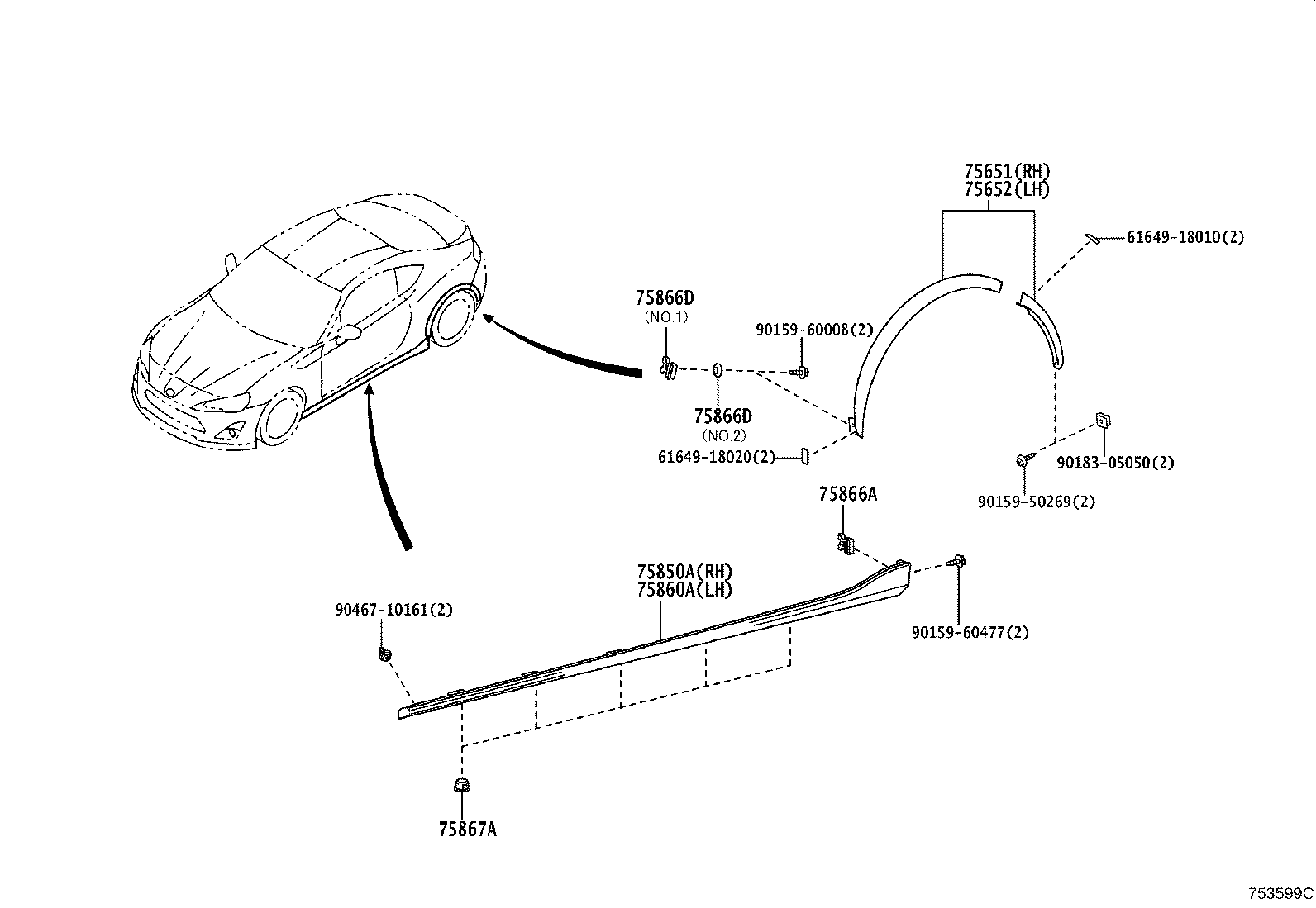

Click highlighted areas on diagram

ﾛｯｶﾊﾟﾈﾙ&ｸｫｰﾀｱｳﾄｻｲﾄﾞ

diagram 6164918010 6164918020 75651 75652 75850A 75860A 75866A 75866D 75866D 75867A 9015950269 9015960008 9015960477 9018305050 9046710161
Part # Description Qty Price
75651 - MOULDING, QUARTER, OUTSIDE RH
75061-18010

ZN6..GR..F

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75062-18010

ZN6..GR..F

 1
75850A - MOULDING ASSY, BODY ROCKER PANEL, RH
75850-18020

ZN6..GR..F

 1
75860A - MOULDING ASSY, BODY ROCKER PANEL, LH
75860-18020

ZN6..GR..F

 1
75866A - RETAINER, ROCKER PANEL MOULDING
75866-18010

ZN6..GR..F

 2
75866D - RETAINER, ROCKER PANEL MOULDING
75866-18010

ZN6..GR..F

NO.1:ｲﾗｽﾄ参照

 2
76861-18010

ZN6..GR..F

NO.2:ｲﾗｽﾄ参照

 2
75866D - RETAINER, ROCKER PANEL MOULDING
75866-18010

ZN6..GR..F

NO.1:ｲﾗｽﾄ参照

 2
76861-18010

ZN6..GR..F

NO.2:ｲﾗｽﾄ参照

 2
75867A - CLIP, ROCKER PANEL MOULDING
90467-18015

ZN6..GR..F

 10
Common parts
61649-18010
61649-18020
90159-50269
90159-60008
90159-60477
90183-05050
90467-10161
