ZN6-F248 (2017)

Toyota 86

Production Dec 2017 - May 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )GR

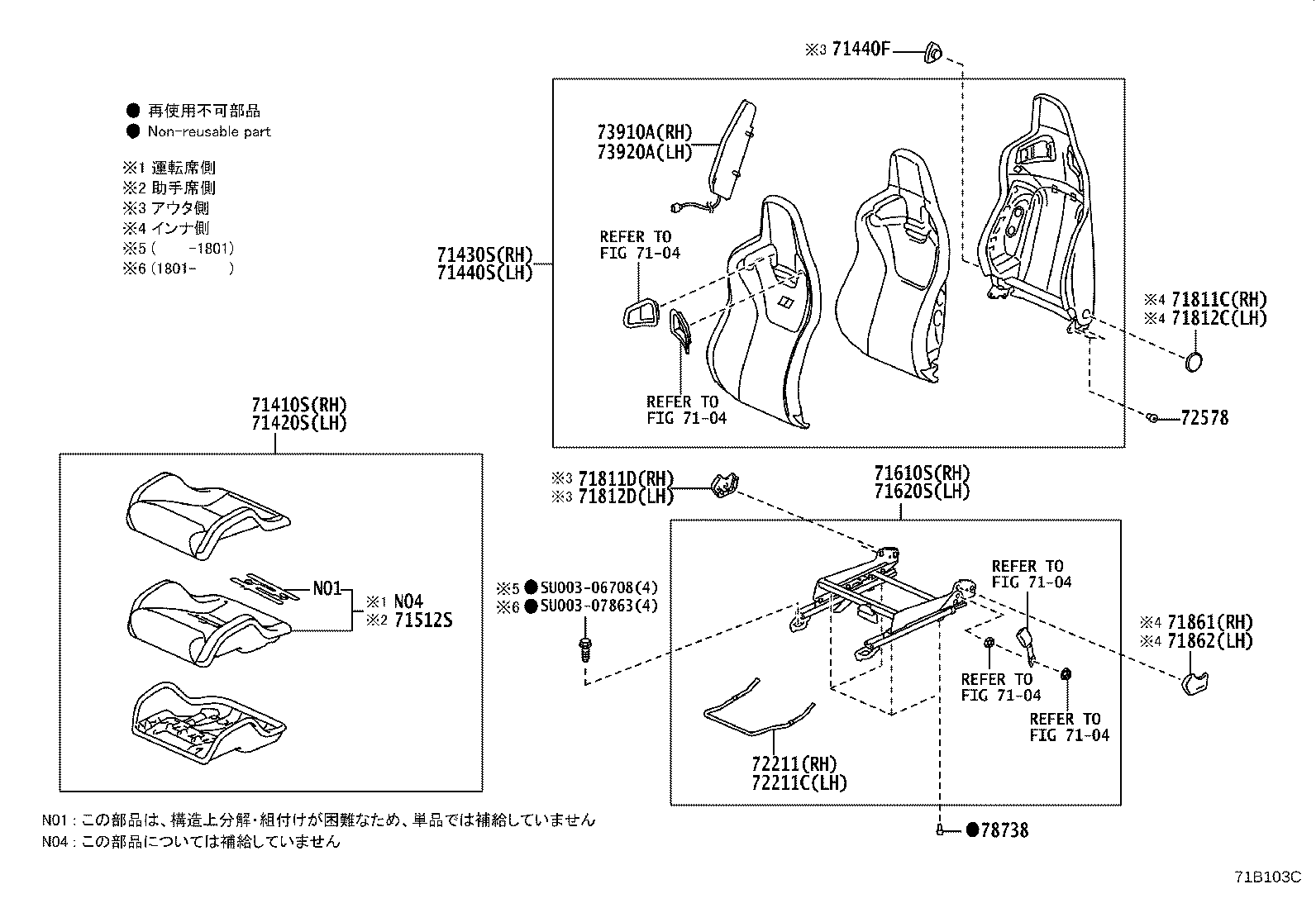

Click highlighted areas on diagram

diagram 7104 7104 7104 7104 7104 71410S 71420S 71430S 71440F 71440S 71512S 71610S 71620S 71811C 71811D 71812C 71812D 71861 71862 72211 72211C 72578 73910A 73920A 78738 SU00306708 SU00307863
Part # Description Qty Price
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71501-18020

ZN6..GR..F

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71502-18030

ZN6..GR..F

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71505-18020

ZN6..GR..F

 1
71440F - HANDLE, RECLINING ADJUSTOR
72525-18010

ZN6..GR..F

 2
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71506-18020

ZN6..GR..F

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-18020

ZN6..GR..F

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71102-18010

ZN6..GR..F

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71201-18010

ZN6..GR..F

 1
71811C - COVER, RECLINING ADJUSTER, RH
72526-18010

ZN6..GR..F

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71875-18010

ZN6..GR..F

 1
71812C - COVER, RECLINING ADJUSTER, LH
72526-18010

ZN6..GR..F

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71876-18010

ZN6..GR..F

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71876-18010

ZN6..GR..F

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71875-18010

ZN6..GR..F

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
SU003-04401

ZN6..GR..F

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
SU003-04401

ZN6..GR..F

 1
72578 - PIN, FRONT SEAT BACK STOPPER
72578-18010

ZN6..GR..F

 8
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-18010

ZN6..GR..F

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-18010

ZN6..GR..F

 1
78738 - PIN, SUB SEAT CUSHION PIN
78738-18010

ZN6..GR..F

 8
Common parts
SU003-06708
SU003-07863
Linked diagrams
7104
