ZN6-F248 (2017)
Toyota 86
Production
Dec 2017
-
May 2018
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1712- )GR

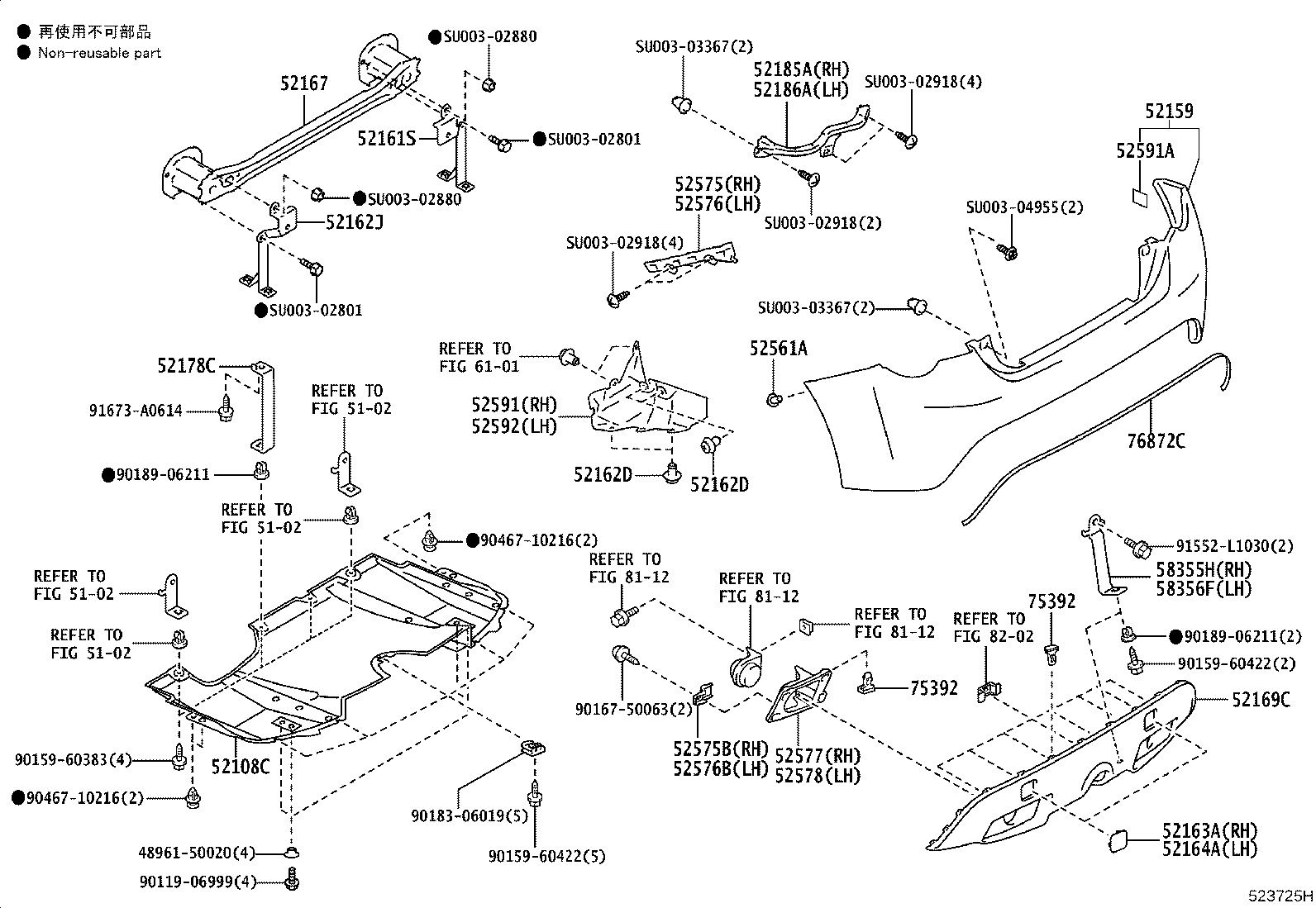

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52108C - EXTENSION SUB-ASSY, REAR BUMPER, CENTER | ||||
| 52108-18030 |
ZN6..GR..F |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-18040 |
ZN6..GR..F 塗装不要 |
1 | ||
| 52161S - BRACKET, REAR BUMPER REINFORCEMENT, NO.1 | ||||
| 52161-18040 |
ZN6..GR..F |
1 | ||
| 52162J - BRACKET, REAR BUMPER REINFORCEMENT, NO.2 | ||||
| 52162-18040 |
ZN6..GR..F |
1 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52161-18030 |
ZN6..GR..F |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52162-18030 |
ZN6..GR..F |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-18010 |
ZN6..GR..F 塗装不要 |
1 | ||
| 52178C - RETAINER, REAR BUMPER EXTENSION, LH | ||||
| 52178-18040 |
ZN6..GR..F |
1 | ||
| 52575B - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-18010 |
ZN6..GR..F |
1 | ||
| 52576B - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52575-18010 |
ZN6..GR..F |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-18010 |
ZN6..GR..F |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-18010 |
ZN6..GR..F |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| SU003-06126 |
ZN6..GR..F |
1 | ||
| 52591A - SEAL, REAR BUMPER | ||||
| 52591-18040 |
ZN6..GR..F |
2 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| SU003-06127 |
ZN6..GR..F |
1 | ||
| 58355H - BRACKET, REAR BUMPER ARM, RH | ||||
| 58355-18020 |
ZN6..GR..F |
1 | ||
| 58356F - BRACKET, REAR BUMPER ARM, LH | ||||
| 58356-18020 |
ZN6..GR..F |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ZN6..GR..F |
22 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ZN6..GR..F |
22 | ||
| 76872C - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-18020 |
ZN6..GR..F |
1 | ||
| Common parts | ||||
| 48961-50020 | ||||
| 90119-06999 | ||||
| 90159-60383 | ||||
| 90159-60422 | ||||
| 90167-50063 | ||||
| 90183-06019 | ||||
| 90189-06211 | ||||
| 90467-10216 | ||||
| 91552-L1030 | ||||
| 91673-A0614 | ||||
| SU003-02801 | ||||
| SU003-02880 | ||||
| SU003-02918 | ||||
| SU003-03367 | ||||
| SU003-04955 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 6101 | ||||
| 8112 | ||||
| 8202 | ||||
