ZN6-F248 (2017)
Toyota 86
Production
Dec 2017
-
May 2018
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

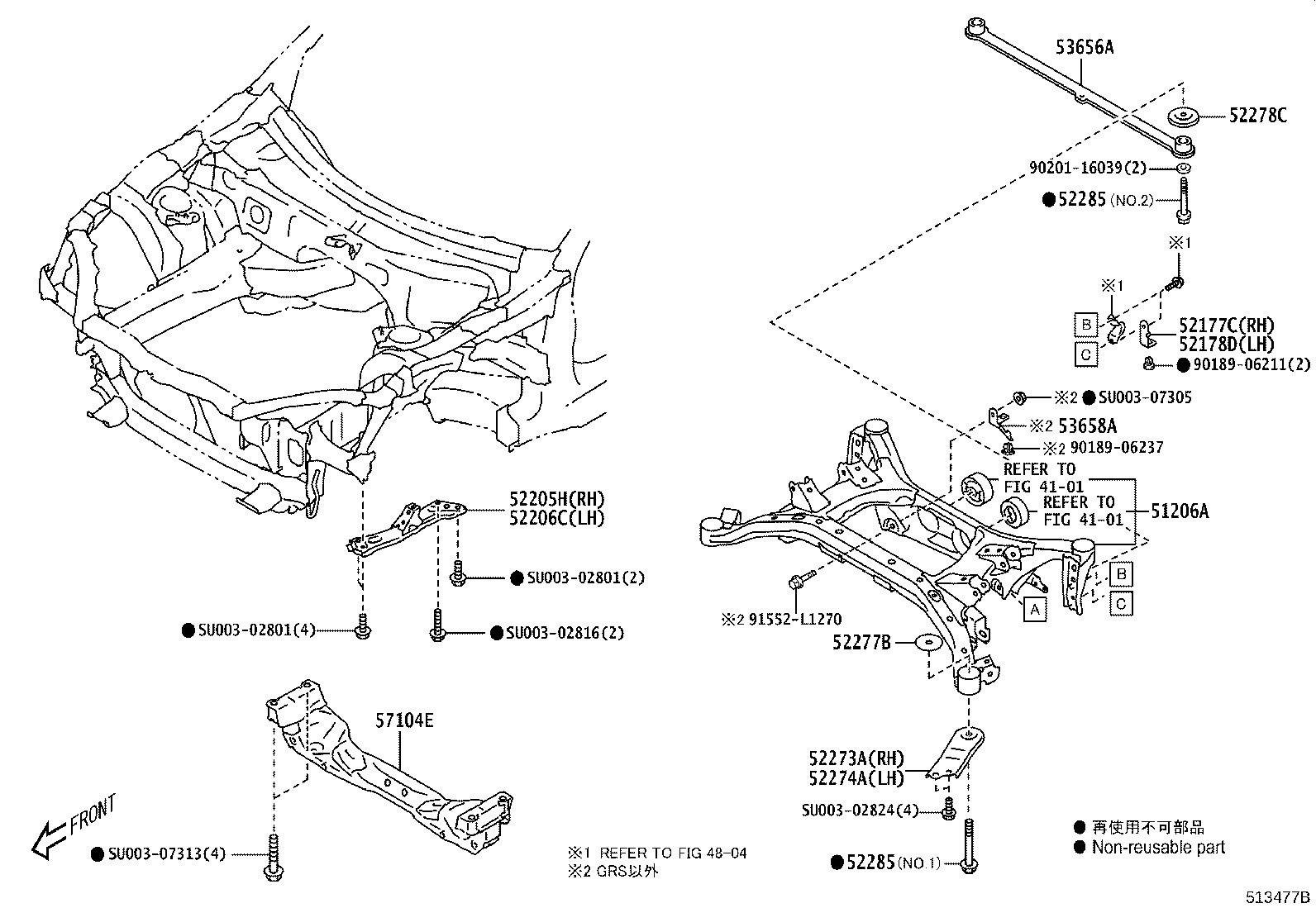

ILLUST NO. 1 OF 3(1712- )GR,GRS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52177C - RETAINER, REAR BUMPER EXTENSION, RH | ||||
| 52177-18030 |
ZN6..GR |
1 | ||
| 52178D - RETAINER, REAR BUMPER EXTENSION, LH | ||||
| 52588-18020 |
ZN6..GR |
1 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 90105-14163 |
ZN6..GR,GRS NO.2 |
2 | ||
| SU003-02807 |
ZN6..GR,GRS NO.1 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 90105-14163 |
ZN6..GR,GRS NO.2 |
2 | ||
| SU003-02807 |
ZN6..GR,GRS NO.1 |
2 | ||
| 53656A - BRACE, REAR SUSPENSION, LOWER CENTER | ||||
| 53656-18020 |
ZN6..GR,GRS |
1 | ||
| 53658A - BRACKET, REAR SUSPENSION BRACE, NO.2 | ||||
| 53658-18020 |
ZN6..GR |
1 | ||
| Common parts | ||||
| 90189-06211 | ||||
| 90189-06237 | ||||
| 90201-16039 | ||||
| 91552-L1270 | ||||
| SU003-02801 | ||||
| SU003-02816 | ||||
| SU003-02824 | ||||
| SU003-07305 | ||||
| SU003-07313 | ||||
| Linked diagrams | ||||
| 4101 | ||||
ILLUST NO. 2 OF 3(1608-1911)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00003 | ||||
| SU003-01536 | ||||
| SU003-02800 | ||||
| SU003-02984 | ||||
| SU003-02989 | ||||
| SU003-04132 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5202 | ||||
| 6101 | ||||
| 7701 | ||||
