ZN6-F248 (2017)

Toyota 86

Production Dec 2017 - May 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )GR

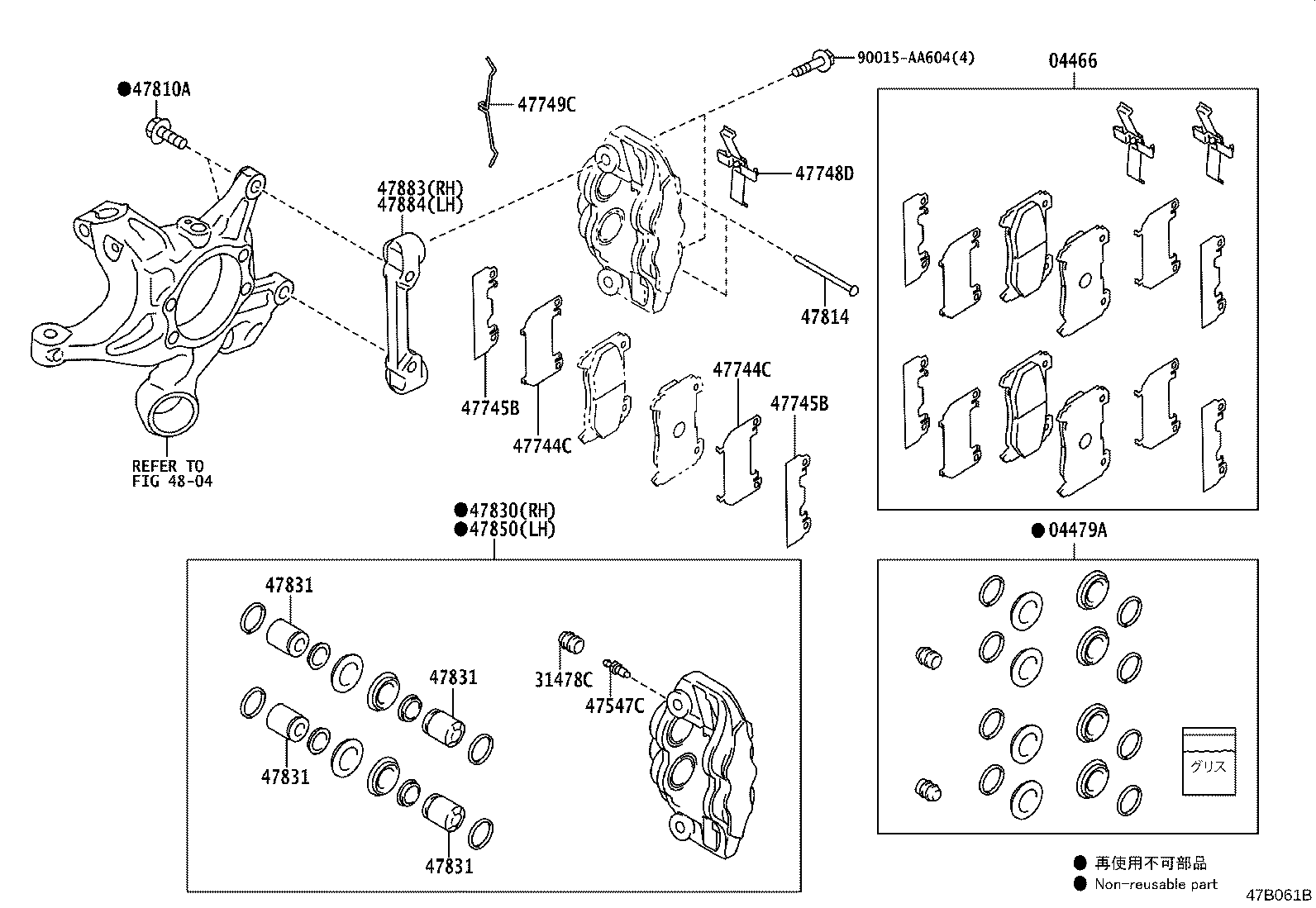

Click highlighted areas on diagram

diagram 04466 04479A 31478C 47547C 47744C 47744C 47745B 47745B 47748D 47749C 47810A 47814 47830 47831 47831 47831 47831 47850 47883 47884 4804 90015AA604
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-18020

ZN6..GR

ﾏｰｸ ADVICS M9287H

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-18010

ZN6..GR

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-50020

ZN6..GR

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-35020

ZN6..GR

 2
47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47744-18020

ZN6..GR

 4
47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47744-18020

ZN6..GR

 4
47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745-18020

ZN6..GR

 4
47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745-18020

ZN6..GR

 4
47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
47848-18020

ZN6..GR

 2
47749C - CLIP, PIN HOLD
47843-18020

ZN6..GR

 2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
SU003-02796

ZN6..GR

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
90240-06014

ZN6..GR

 4
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-18030

ZN6..GR

 1
47831 - PISTON, REAR DISC BRAKE
47831-18020

ZN6..GR

 8
47831 - PISTON, REAR DISC BRAKE
47831-18020

ZN6..GR

 8
47831 - PISTON, REAR DISC BRAKE
47831-18020

ZN6..GR

 8
47831 - PISTON, REAR DISC BRAKE
47831-18020

ZN6..GR

 8
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-18030

ZN6..GR

 1
47883 - BRACKET, CALIPER SUPPORT, REAR RH
47883-18010

ZN6..GR

 1
47884 - BRACKET, CALIPER SUPPORT, REAR LH
47883-18010

ZN6..GR

 1
Common parts
90015-AA604
Linked diagrams
4804
