ZN6-F248 (2017)
Toyota 86
Production
Dec 2017
-
May 2018
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1712- )GR

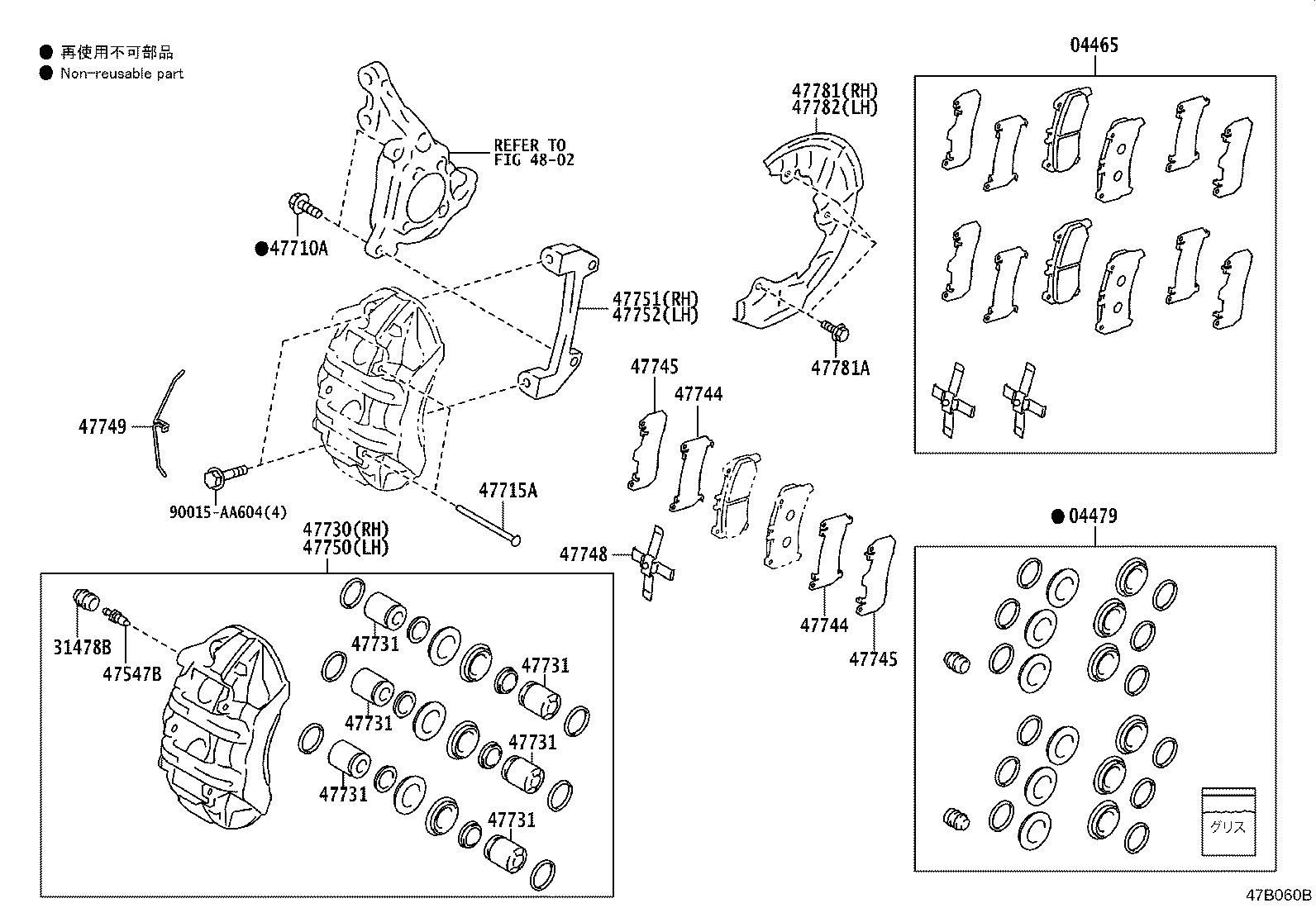

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-18010 |
ZN6..GR ﾏｰｸ ADVICS M9287H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-18010 |
ZN6..GR |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-50020 |
ZN6..GR |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-35020 |
ZN6..GR |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| SU003-02841 |
ZN6..GR |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47735-18030 |
ZN6..GR |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-18040 |
ZN6..GR |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-18030 |
ZN6..GR |
12 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-18030 |
ZN6..GR |
12 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-18030 |
ZN6..GR |
12 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-18030 |
ZN6..GR |
12 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-18030 |
ZN6..GR |
12 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-18030 |
ZN6..GR |
12 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-18010 |
ZN6..GR |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-18010 |
ZN6..GR |
4 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-18010 |
ZN6..GR |
4 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-18010 |
ZN6..GR |
4 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-18030 |
ZN6..GR |
2 | ||
| 47749 - CLIP, PIN HOLD | ||||
| 47743-18030 |
ZN6..GR |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-18040 |
ZN6..GR |
1 | ||
| 47751 - BRACKET, CALIPER SUPPORT, RH | ||||
| 47751-18010 |
ZN6..GR |
1 | ||
| 47752 - BRACKET, CALIPER SUPPORT, LH | ||||
| 47751-18010 |
ZN6..GR |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-18010 |
ZN6..GR |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-18010 |
ZN6..GR |
1 | ||
| Common parts | ||||
| 90015-AA604 | ||||
| Linked diagrams | ||||
| 4802 | ||||
