ZN6-F248 (2017)

Toyota 86

Production Dec 2017 - May 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

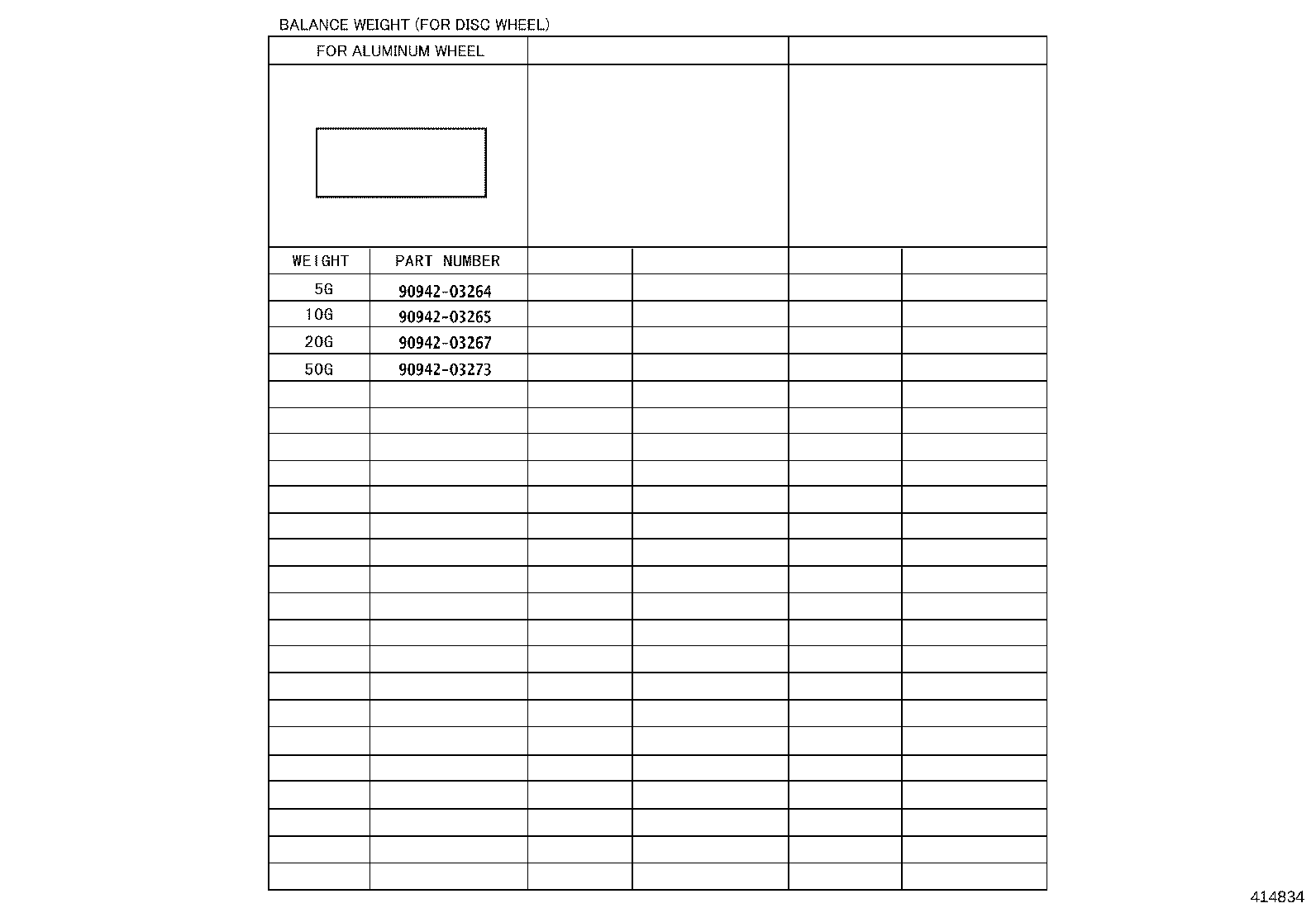

ILLUST NO. 3 OF 3(1712- )GR

Click highlighted areas on diagram

ﾊﾞﾗﾝｽｳｪｲﾄ

diagram 9094203264 9094203265 9094203267 9094203273
Part # Description Qty Price
Common parts
90942-03264
90942-03265
90942-03267
90942-03273
