ZN6-F248 (2017)

Toyota 86

Production Dec 2017 - May 2018
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

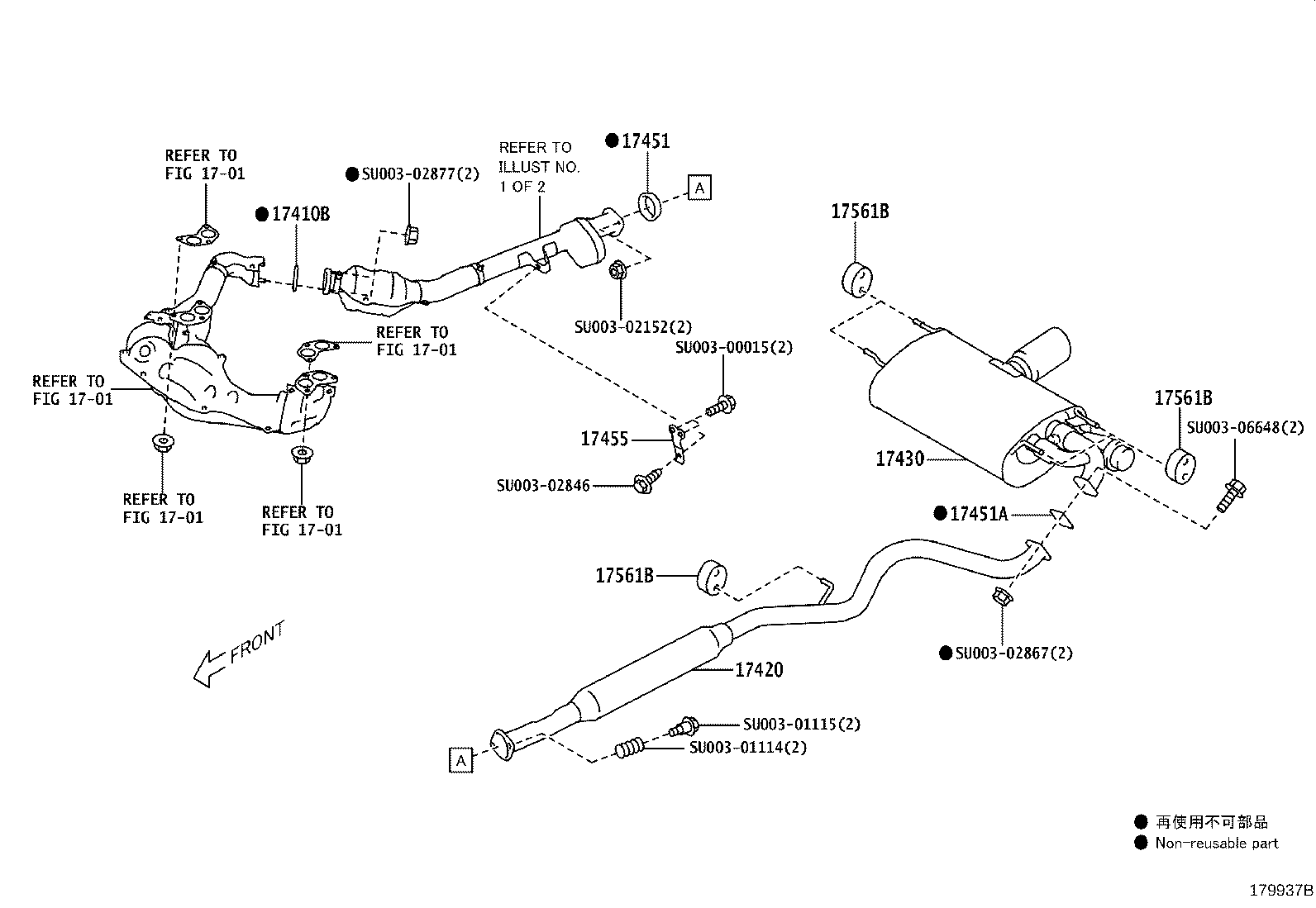

ILLUST NO. 2 OF 2(1712- )FA20..GR

Click highlighted areas on diagram

diagram 1701 1701 1701 1701 1701 17410B 17420 17430 17451 17451A 17455 17561B 17561B 17561B SU00300015 SU00301114 SU00301115 SU00302152 SU00302846 SU00302867 SU00302877 SU00306648
Part # Description Qty Price
17430 - PIPE ASSY, EXHAUST, TAIL
17430-53060

FA20..ZN6..GR..F

 1
17451 - GASKET, EXHAUST PIPE
SU003-01112

FA20..ZN6..GR..F

 1
17451A - GASKET, EXHAUST PIPE, NO.2
SU003-06425

FA20..ZN6..GR..F

 1
Common parts
SU003-00015
SU003-01114
SU003-01115
SU003-02152
SU003-02846
SU003-02867
SU003-02877
SU003-06648
Linked diagrams
1701
