ZN6-E2E7 (2016)
Toyota 86
Production
Aug 2016
-
Oct 2017
Engine
FA20
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 3 OF12(1608- )
Click highlighted areas on diagram
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| SU003-02428 |
ZN6 80A |
1 | ||
| SU003-02429 |
ZN6 30A−30A−40A |
1 | ||
| SU003-02431 |
ZN6 40A |
1 | ||
| SU003-02432 |
ZN6 50A |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| SU003-02428 |
ZN6 80A |
1 | ||
| SU003-02429 |
ZN6 30A−30A−40A |
1 | ||
| SU003-02431 |
ZN6 40A |
1 | ||
| SU003-02432 |
ZN6 50A |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| SU003-02428 |
ZN6 80A |
1 | ||
| SU003-02429 |
ZN6 30A−30A−40A |
1 | ||
| SU003-02431 |
ZN6 40A |
1 | ||
| SU003-02432 |
ZN6 50A |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| SU003-02425 |
ZN6 20A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| SU003-02424 |
ZN6 15A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| SU003-02423 |
ZN6 10A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| SU003-02427 |
ZN6 30A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| SU003-02426 |
ZN6 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| SU003-04126 |
ZN6 7.5A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| SU003-02425 |
ZN6 20A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| SU003-02424 |
ZN6 15A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| SU003-02423 |
ZN6 10A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| SU003-02427 |
ZN6 30A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| SU003-02426 |
ZN6 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| SU003-04126 |
ZN6 7.5A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82616 - PULLER, FUSE | ||||
| SU003-04209 |
ZN6 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| SU003-02430 |
ZN6 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| SU003-06956 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-02436 | ||||
| SU003-02438 | ||||
| SU003-07226 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 4 OF12(1608- )
Click highlighted areas on diagram
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-02435 | ||||
| SU003-02437 | ||||
| SU003-02439 | ||||
| SU003-07226 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 5 OF12(1608- )
Click highlighted areas on diagram
ｴﾝｼﾞﾝﾙｰﾑ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83650 - FUSEE | ||||
| SU003-06120 |
ZN6 |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| SU003-06153 |
ZN6..6FC |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| SU003-00812 |
ZN6..6FC |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| SU003-06817 |
ZN6 JTEKT |
1 | ||
| 89658 - BRACKET, POWER STEERING COMPUTER | ||||
| SU003-06246 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-00005 | ||||
| SU003-00009 | ||||
| SU003-00051 | ||||
| SU003-04417 | ||||
ILLUST NO. 6 OF12(1608- )
Click highlighted areas on diagram
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| SU003-02630 |
ZN6 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| SU003-02423 |
ZN6 10A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| SU003-04126 |
ZN6 7.5A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| SU003-02424 |
ZN6 15A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| SU003-02421 |
ZN6 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| SU003-02492 |
ZN6 |
1 | ||
| 85900 - RELAY ASSY, CONTROL UNIT | ||||
| SU003-07233 |
ZN6..6FC..G |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| SU003-07034 |
ZN6..6FC..G |
1 | ||
| SU003-07035 |
ZN6..6F..(GT,LHP,LIMD,SOLI) |
1 | ||
| SU003-07036 |
ZN6..6FC..(GT,LHP,LIMD,SOLI) |
1 | ||
| SU003-07033 |
ZN6..6F..(G,RCG) |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| SU003-02516 |
ZN6..GT,LHP,LIMD,SOLI |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| SU003-06981 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-00009 | ||||
| SU003-00059 | ||||
| SU003-00070 | ||||
| SU003-02874 | ||||
| SU003-02879 | ||||
| Linked diagrams | ||||
| 4601 | ||||
ILLUST NO. 7 OF12(1608- )
Click highlighted areas on diagram
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620C - CLIP | ||||
| SU003-02730 |
ZN6 |
1 | ||
| 83910G - CLOCK ASSY | ||||
| SU003-06147 |
ZN6..G,RCG |
1 | ||
| SU003-06144 |
ZN6..GT,LHP,LIMD,SOLI |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| SU003-02445 |
ZN6 |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| SU003-06079 |
ZN6 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| SU003-02441 |
ZN6..G,RCG |
1 | ||
| SU003-06958 |
ZN6..GT,LHP,LIMD,SOLI |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| SU003-02729 |
ZN6 OFF BLACK |
1 | ||
| 85535G - CAP, POWER OUTLET SOCKET | ||||
| SU003-04730 |
ZN6 OFF BLACK |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| SU003-07163 |
ZN6..GT,LHP,LIMD,SOLI |
1 | ||
| SU003-07509 |
ZN6..GT,LHP,LIMD,SOLI |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 8 OF12(1608- )
Click highlighted areas on diagram
ﾌﾞﾚｰｷ & ｸﾗｯﾁﾍﾟﾀﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| SU003-00988 |
ZN6..6F |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| SU003-05136 |
ZN6 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| SU003-05136 |
ZN6 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| SU003-02491 |
ZN6 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| SU003-02491 |
ZN6 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| SU003-04758 |
ZN6..6F |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| SU003-02488 |
ZN6..6F |
1 | ||
| Common parts | ||||
| SU003-00045 | ||||
| SU003-01904 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 4701 | ||||
ILLUST NO. 9 OF12(1608- )
Click highlighted areas on diagram
ｽﾃｱﾘﾝｸﾞ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| SU003-03996 |
ZN6..G,RCG |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| SU003-06964 |
ZN6..GT,LHP,LIMD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| SU003-02477 |
ZN6..G,RCG |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| SU003-07250 |
ZN6..6FC..(GT,LHP,LIMD,SOLI) |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| SU003-03989 |
ZN6..6FC..G |
1 | ||
| Common parts | ||||
| SU003-00855 | ||||
| SU003-00856 | ||||
| SU003-03990 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||
| 8408 | ||||
ILLUST NO.10 OF12(1608- )
Click highlighted areas on diagram
ｽﾃｱﾘﾝｸﾞ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| SU003-05796 |
ZN6..G,RCG |
1 | ||
| SU003-05798 |
ZN6..GT,SOLI |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| SU003-07185 |
ZN6 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| SU003-06959 |
ZN6 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| SU003-00670 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-02474 | ||||
| Linked diagrams | ||||
| 4504 | ||||
ILLUST NO.11 OF12(1608- )
Click highlighted areas on diagram
ｺﾝｿｰﾙ & ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| SU003-02494 |
ZN6 |
2 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| SU003-06969 |
ZN6..6F..(G,RCG,SOLI) |
1 | ||
| SU003-06967 |
ZN6..6F..(GT,LHP,LIMD) |
1 | ||
| SU003-06970 |
ZN6..6FC..(G,SOLI) |
1 | ||
| SU003-06968 |
ZN6..6FC..(GT,LHP,LIMD) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| SU003-05135 |
ZN6 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| SU003-05130 |
ZN6 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| SU003-02449 |
ZN6 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| SU003-02728 |
ZN6 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| SU003-02731 |
ZN6 OFF BLACK |
1 | ||
| Common parts | ||||
| SU003-02808 | ||||
| Linked diagrams | ||||
| 5806 | ||||
| 7401 | ||||
ILLUST NO.12 OF12(1608- )
Click highlighted areas on diagram
ﾌﾛｱ & ﾗｯｹﾞｰｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| SU003-01106 |
ZN6 |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| SU003-05826 |
ZN6 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| SU003-02777 |
ZN6..GT,LHP,LIMD,SOLI |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||
ILLUST NO. 2 OF12(1608- )
Click highlighted areas on diagram
ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| SU003-00821 |
ZN6..6F |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| SU003-00822 |
ZN6..6F |
1 | ||
| SU003-03837 |
ZN6..6FC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| SU003-00822 |
ZN6..6F |
1 | ||
| SU003-03837 |
ZN6..6FC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| SU003-00822 |
ZN6..6F |
1 | ||
| SU003-03837 |
ZN6..6FC |
1 | ||
| Common parts | ||||
| SU003-02158 | ||||
| SU003-03476 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 3312 | ||||
| 3513 | ||||
| 8410 | ||||
ILLUST NO. 1 OF12(1608- )6FC
Click highlighted areas on diagram

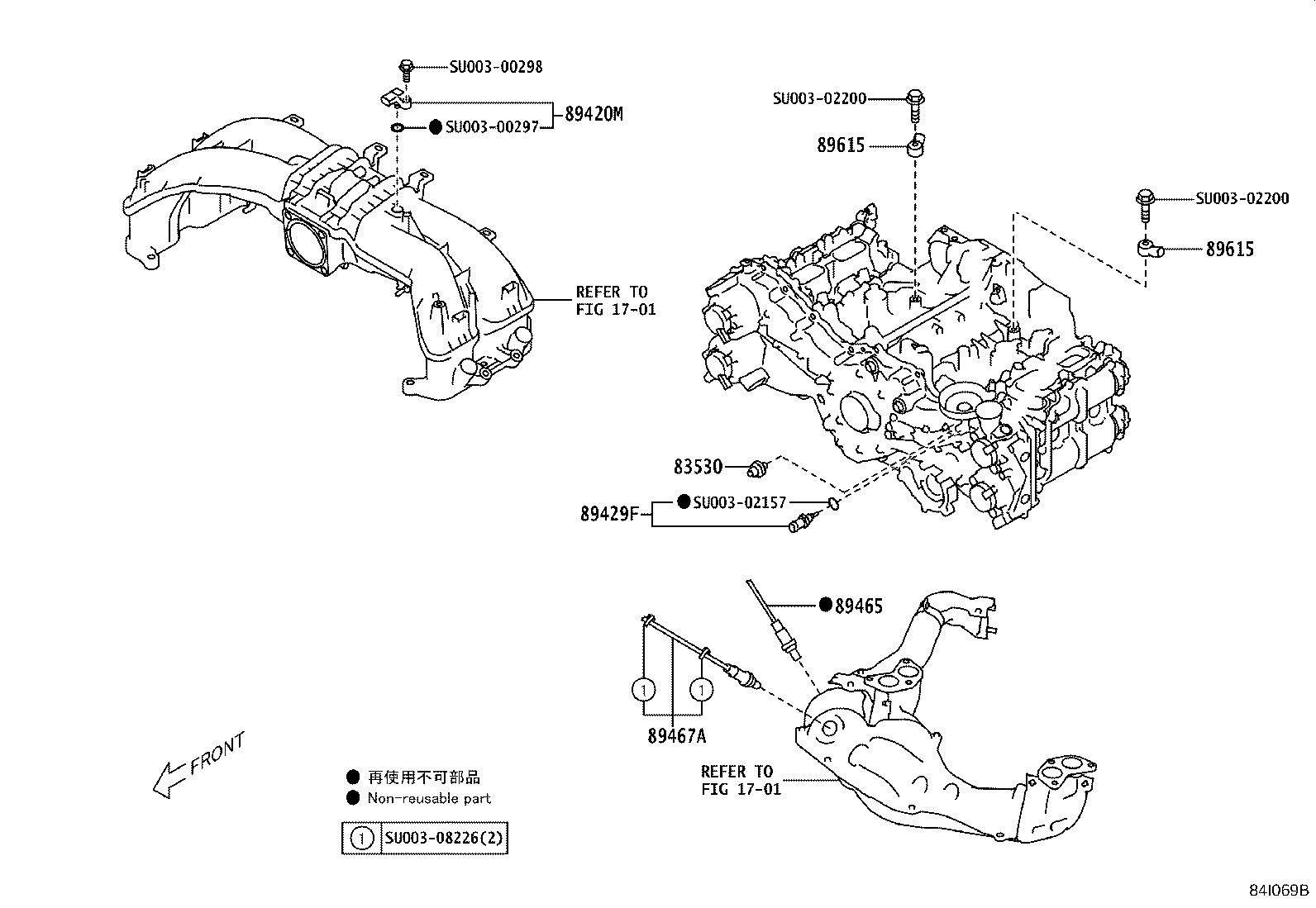

ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| SU003-06104 |
ZN6 |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| SU003-00419 |
ZN6 |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| SU003-04714 |
ZN6 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| SU003-00428 |
ZN6 |
1 | ||
| 89467A - SENSOR, WIDE RANGE AIR FUEL RATIO | ||||
| SU003-00425 |
ZN6 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| SU003-06707 |
ZN6 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| SU003-06707 |
ZN6 |
2 | ||
| Common parts | ||||
| SU003-00297 | ||||
| SU003-00298 | ||||
| SU003-02157 | ||||
| SU003-02200 | ||||
| SU003-08226 | ||||
| Linked diagrams | ||||
| 1701 | ||||
ILLUST NO. 1 OF12(1608- )6F
Click highlighted areas on diagram
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| SU003-06104 |
ZN6 |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| SU003-00419 |
ZN6 |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| SU003-04714 |
ZN6 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| SU003-00428 |
ZN6 |
1 | ||
| 89467A - SENSOR, WIDE RANGE AIR FUEL RATIO | ||||
| SU003-00425 |
ZN6 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| SU003-06707 |
ZN6 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| SU003-06707 |
ZN6 |
2 | ||
| Common parts | ||||
| SU003-00297 | ||||
| SU003-02157 | ||||
| SU003-02200 | ||||
| SU003-06627 | ||||
| SU003-08226 | ||||
| Linked diagrams | ||||
| 1701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
