ZN6-D2G8 (2015)

Toyota 86

Production Apr 2015 - Jul 2016
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

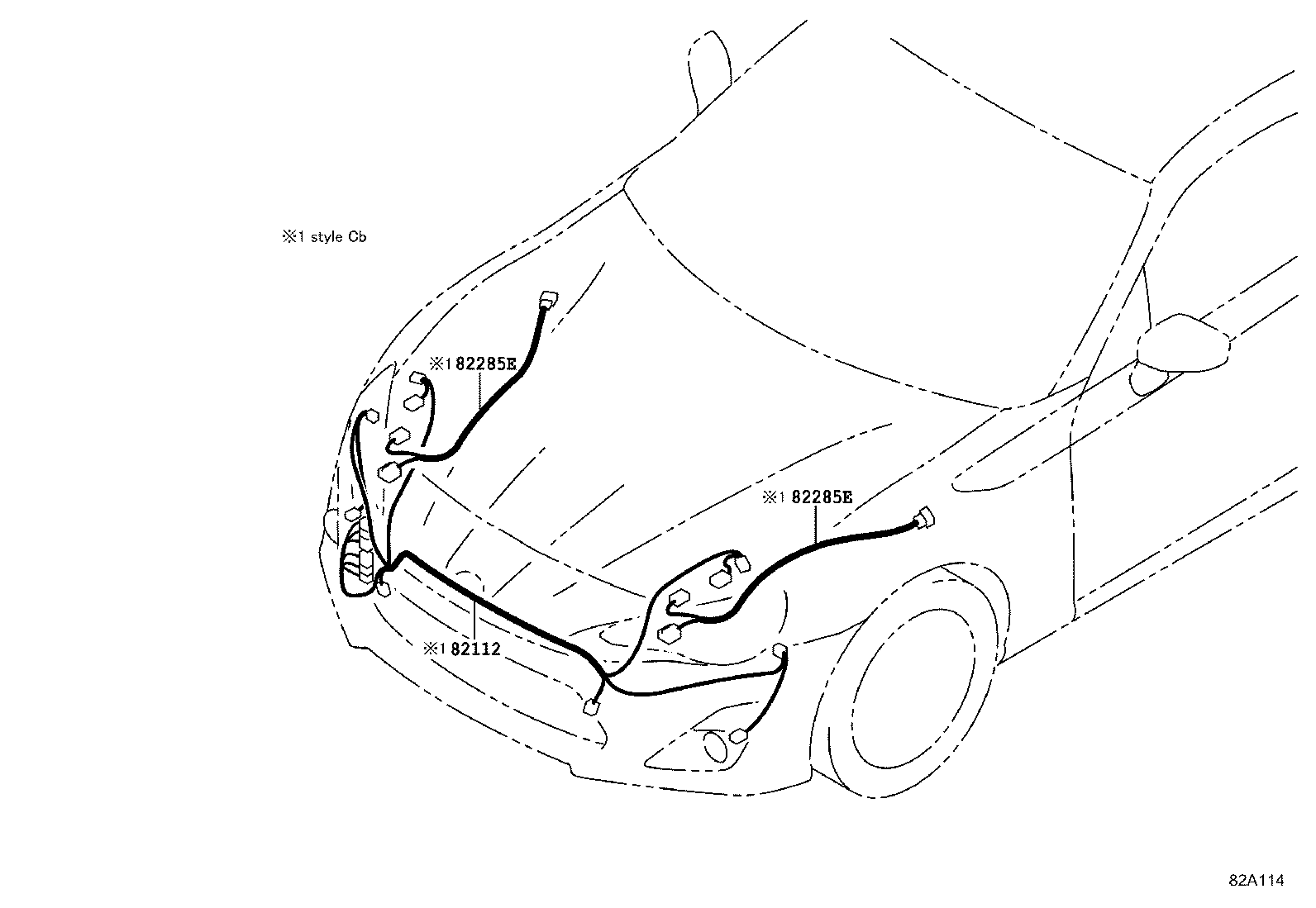

ILLUST NO. 1 OF18(1504- )CB

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ NO.2 & ｲﾙﾐﾈｰｼｮﾝ

diagram 82112 82285E 82285E
Part # Description Qty Price
82112 - WIRE, ENGINE ROOM, NO.2
82233-WY010

ZN6..CB

style Cb

 1
82285E - WIRE, ILLUMINATION
82285-WY010

ZN6..CB

style Cb

 2
82285E - WIRE, ILLUMINATION
82285-WY010

ZN6..CB

style Cb

 2
