ZN6-D288 (2015)
Toyota 86
Production
Apr 2015
-
Jul 2016
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(1203- )
Click highlighted areas on diagram
ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| SU003-02116 |
ZN6..G,GT,RCG |
1 | ||
| SU003-02116 |
ZN6 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| SU003-02118 |
ZN6..RC |
1 | ||
| SU003-02118 |
ZN6 |
2 | ||
| SU003-02118 |
ZN6..G,GT,RCG |
2 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| SU003-02117 |
ZN6..G,GT,RCG |
2 | ||
| SU003-02117 |
ZN6 |
2 | ||
| Common parts | ||||
| SU003-00037 | ||||
| SU003-03033 | ||||
| Linked diagrams | ||||
| 1603 | ||||

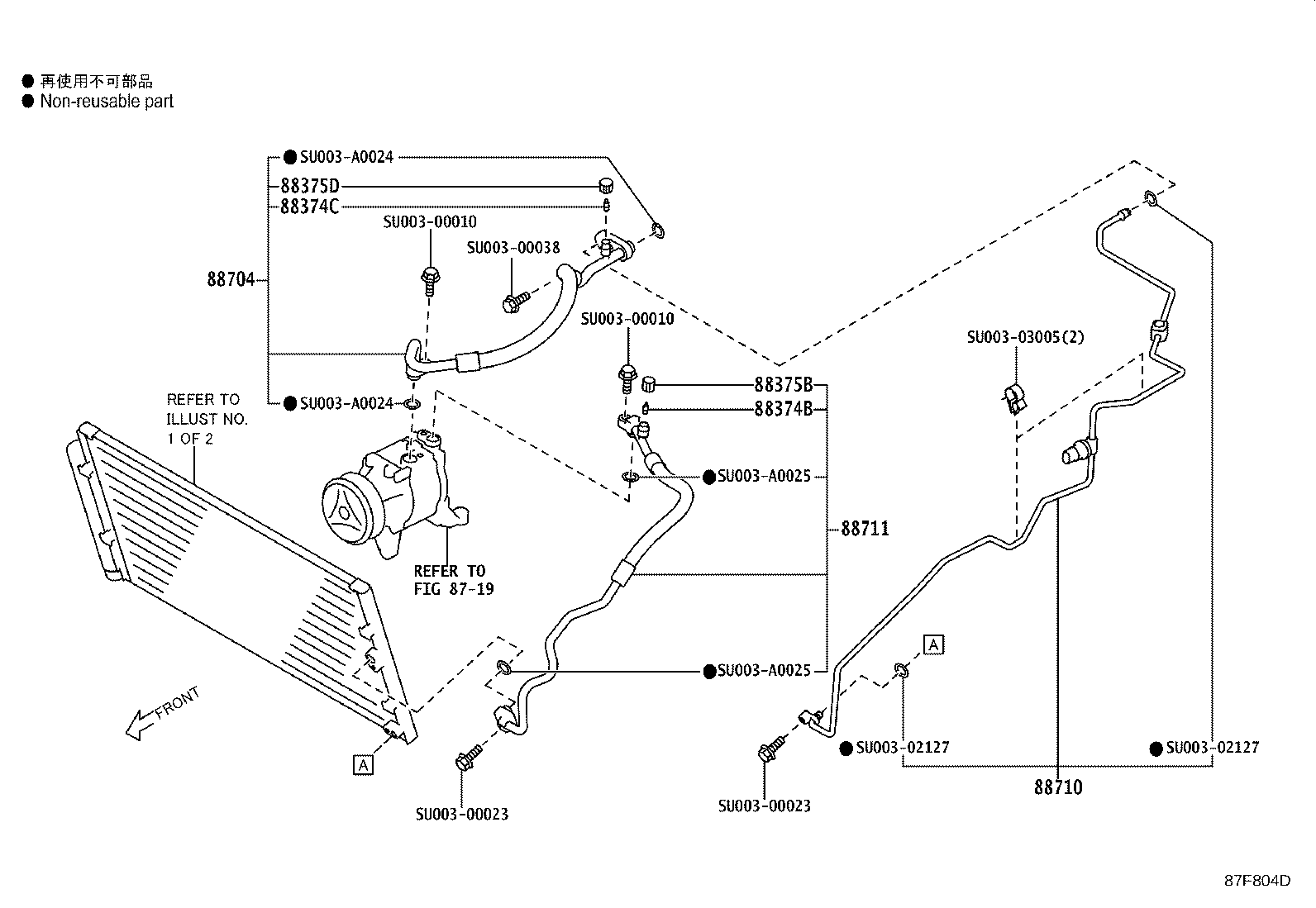

ILLUST NO. 2 OF 2(1203- )
Click highlighted areas on diagram
ﾊﾟｲﾋﾟﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| SU003-07345 |
ZN6 |
1 | ||
| SU003-07345 |
ZN6..G,GT,RCG |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| SU003-07345 |
ZN6..G,GT,RCG |
1 | ||
| SU003-07345 |
ZN6 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| SU003-07346 |
ZN6..G,GT,RCG |
1 | ||
| SU003-07346 |
ZN6 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| SU003-07347 |
ZN6..G,GT,RCG |
1 | ||
| SU003-07347 |
ZN6 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| SU003-A0004 |
ZN6..G,GT,RCG |
1 | ||
| SU003-A0004 |
ZN6 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| SU003-A0008 |
ZN6 |
1 | ||
| SU003-A0008 |
ZN6..G,GT,RCG |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| SU003-A0002 |
ZN6 |
1 | ||
| SU003-A0002 |
ZN6..G,GT,RCG |
1 | ||
| Common parts | ||||
| SU003-00010 | ||||
| SU003-00023 | ||||
| SU003-00038 | ||||
| SU003-02127 | ||||
| SU003-03005 | ||||
| SU003-A0024 | ||||
| SU003-A0025 | ||||
| Linked diagrams | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(1608- )
Click highlighted areas on diagram
ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00037 | ||||
| Linked diagrams | ||||
| 1603 | ||||
ILLUST NO. 2 OF 2(1608- )
Click highlighted areas on diagram
ﾊﾟｲﾋﾟﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00010 | ||||
| SU003-00023 | ||||
| SU003-00038 | ||||
| SU003-02127 | ||||
| SU003-03005 | ||||
| SU003-A0024 | ||||
| SU003-A0025 | ||||
| Linked diagrams | ||||
| 8719 | ||||
