ZN6-D288 (2015)
Toyota 86
Production
Apr 2015
-
Jul 2016
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 4(1203- )
Click highlighted areas on diagram
ﾋｰﾀｺﾝﾄﾛｰﾙ(ｵｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-02105 | ||||
| Linked diagrams | ||||
| 5501 | ||||

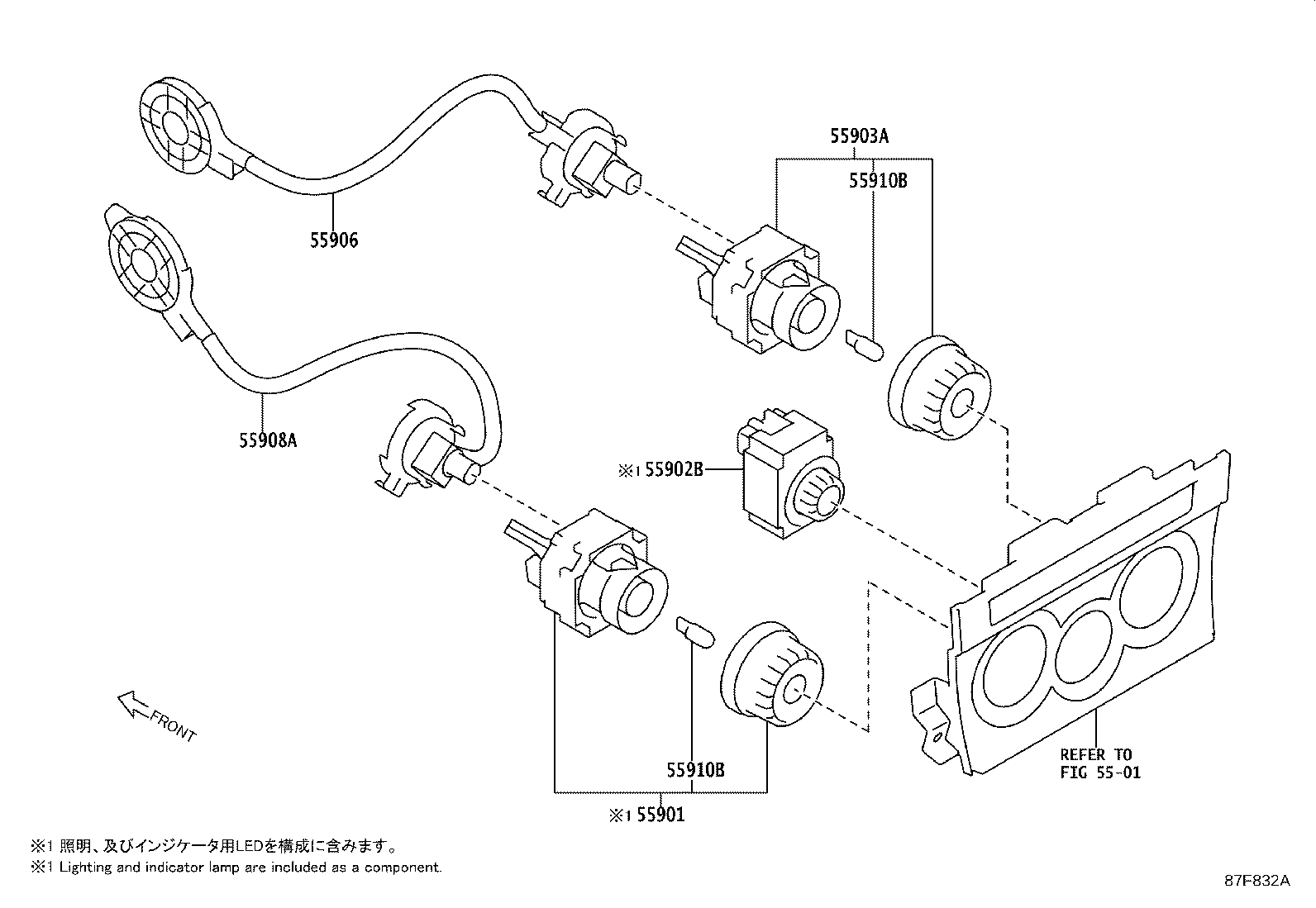

ILLUST NO. 1 OF 4(1203- )
Click highlighted areas on diagram
ﾋｰﾀｺﾝﾄﾛｰﾙ(ﾏﾆｭｱﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| SU003-02093 |
ZN6..G,RC,RCG |
1 | ||
| SU003-02093 |
ZN6..G,RCG |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| SU003-02087 |
ZN6..G,RC,RCG |
1 | ||
| SU003-02087 |
ZN6..G,RCG |
1 | ||
| 55903A - CONTROL SUB-ASSY, HEATER, NO.3 | ||||
| SU003-02088 |
ZN6..G,RCG |
1 | ||
| SU003-02088 |
ZN6..G,RCG |
1 | ||
| SU003-02090 |
ZN6..RC |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| SU003-02100 |
ZN6..G,RC,RCG |
1 | ||
| SU003-02100 |
ZN6..G,RCG |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| SU003-02098 |
ZN6..G,RC,RCG |
1 | ||
| SU003-02098 |
ZN6..G,RCG |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| SU003-02102 |
ZN6..G,RCG |
2 | ||
| SU003-02102 |
ZN6..G,RC,RCG |
2 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| SU003-02102 |
ZN6..G,RCG |
2 | ||
| SU003-02102 |
ZN6..G,RC,RCG |
2 | ||
| Linked diagrams | ||||
| 5501 | ||||

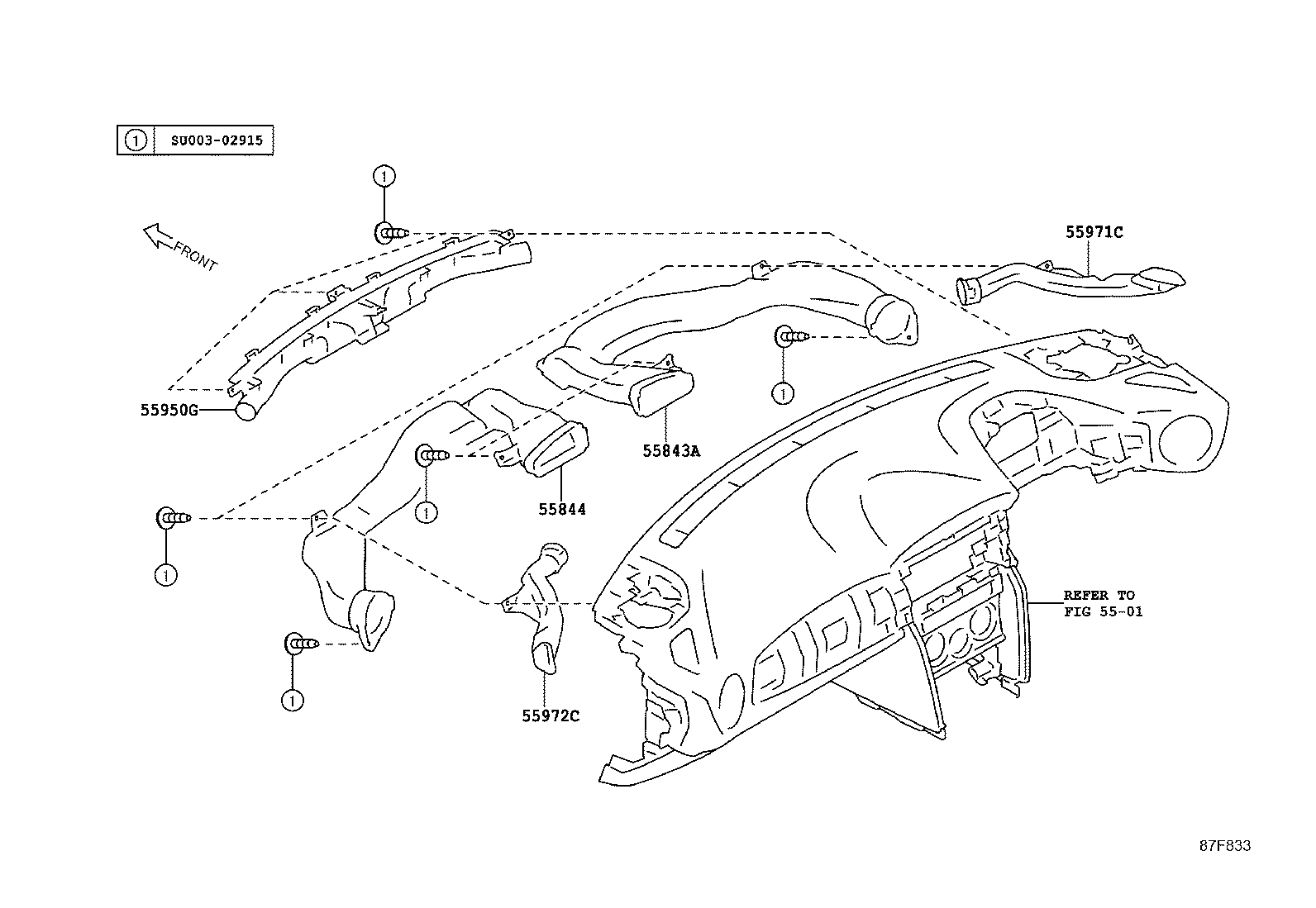

ILLUST NO. 2 OF 4(1203- )
Click highlighted areas on diagram

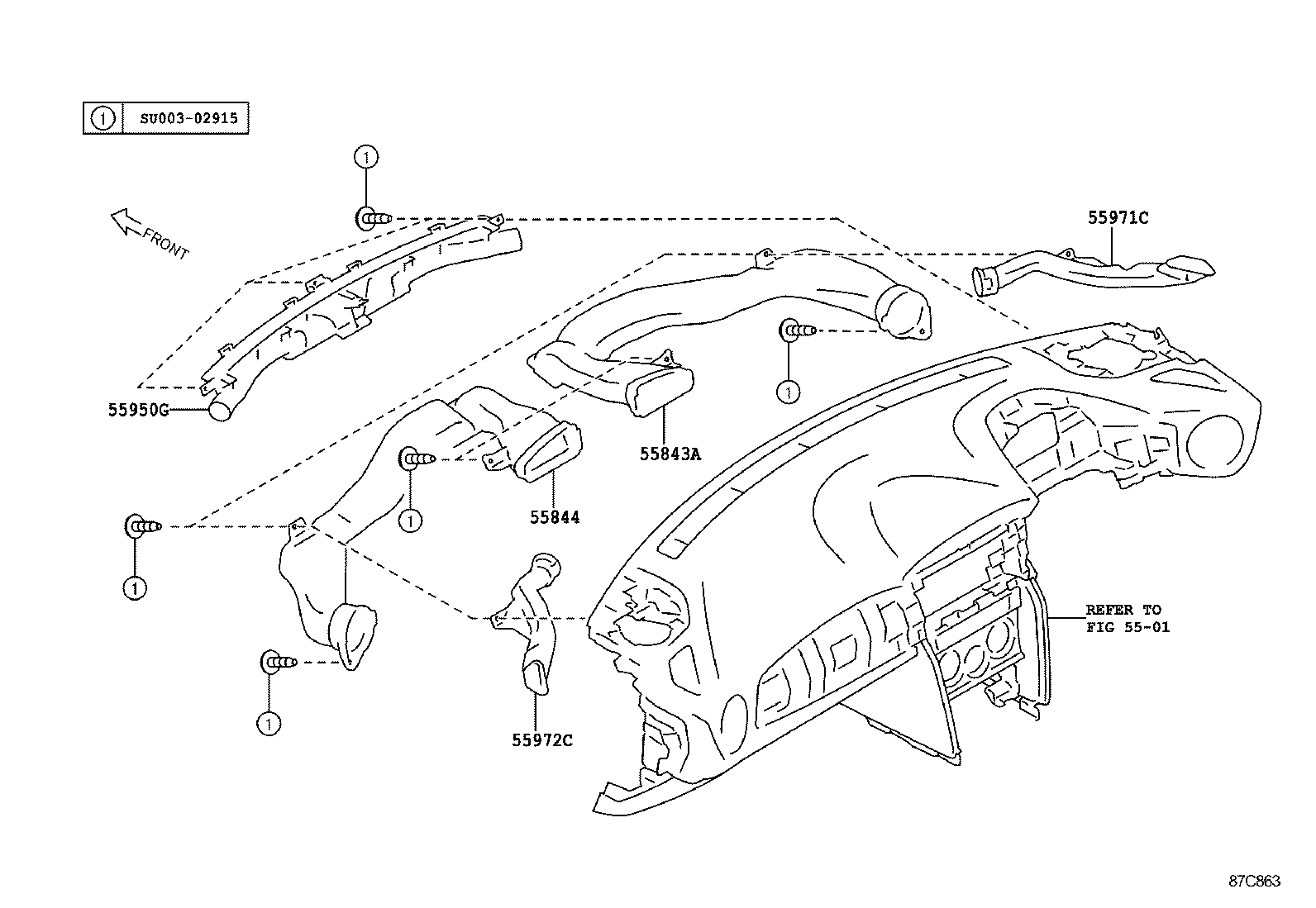

ｴｱﾀﾞｸﾄ(ｳｴｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| SU003-01935 |
ZN6 |
1 | ||
| SU003-01935 |
ZN6 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| SU003-01936 |
ZN6 |
1 | ||
| SU003-01936 |
ZN6 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| SU003-01939 |
ZN6 |
1 | ||
| SU003-01939 |
ZN6 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| SU003-01937 |
ZN6 |
1 | ||
| SU003-01937 |
ZN6 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| SU003-01938 |
ZN6 |
1 | ||
| SU003-01938 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-02915 | ||||
| Linked diagrams | ||||
| 5501 | ||||

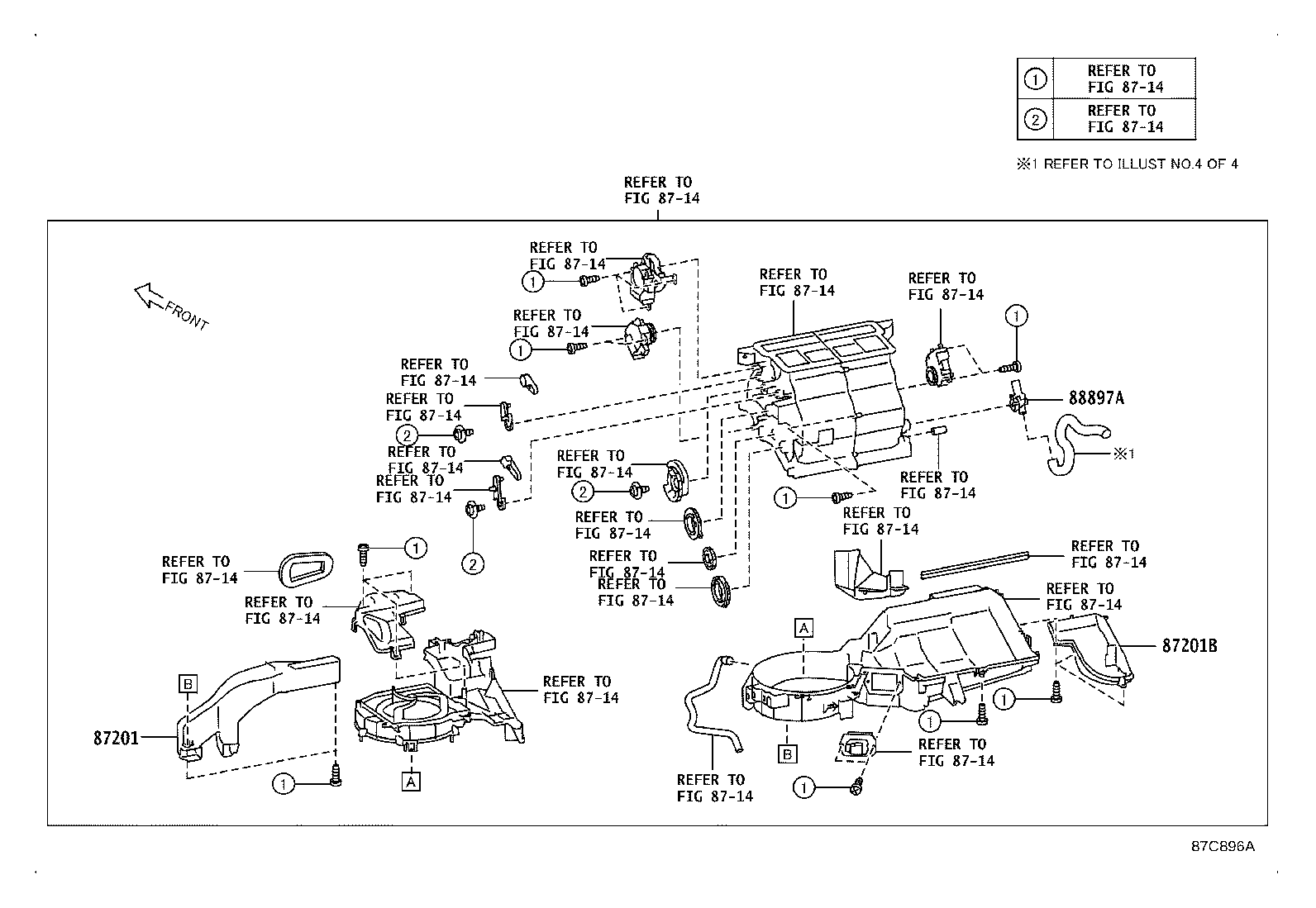

ILLUST NO. 3 OF 4(1203- )
Click highlighted areas on diagram
ｴｱﾀﾞｸﾄ(ｼﾀｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| SU003-02036 |
ZN6 |
1 | ||
| SU003-02036 |
ZN6 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| SU003-02035 |
ZN6 |
1 | ||
| SU003-02035 |
ZN6 |
1 | ||
| Linked diagrams | ||||
| 8714 | ||||

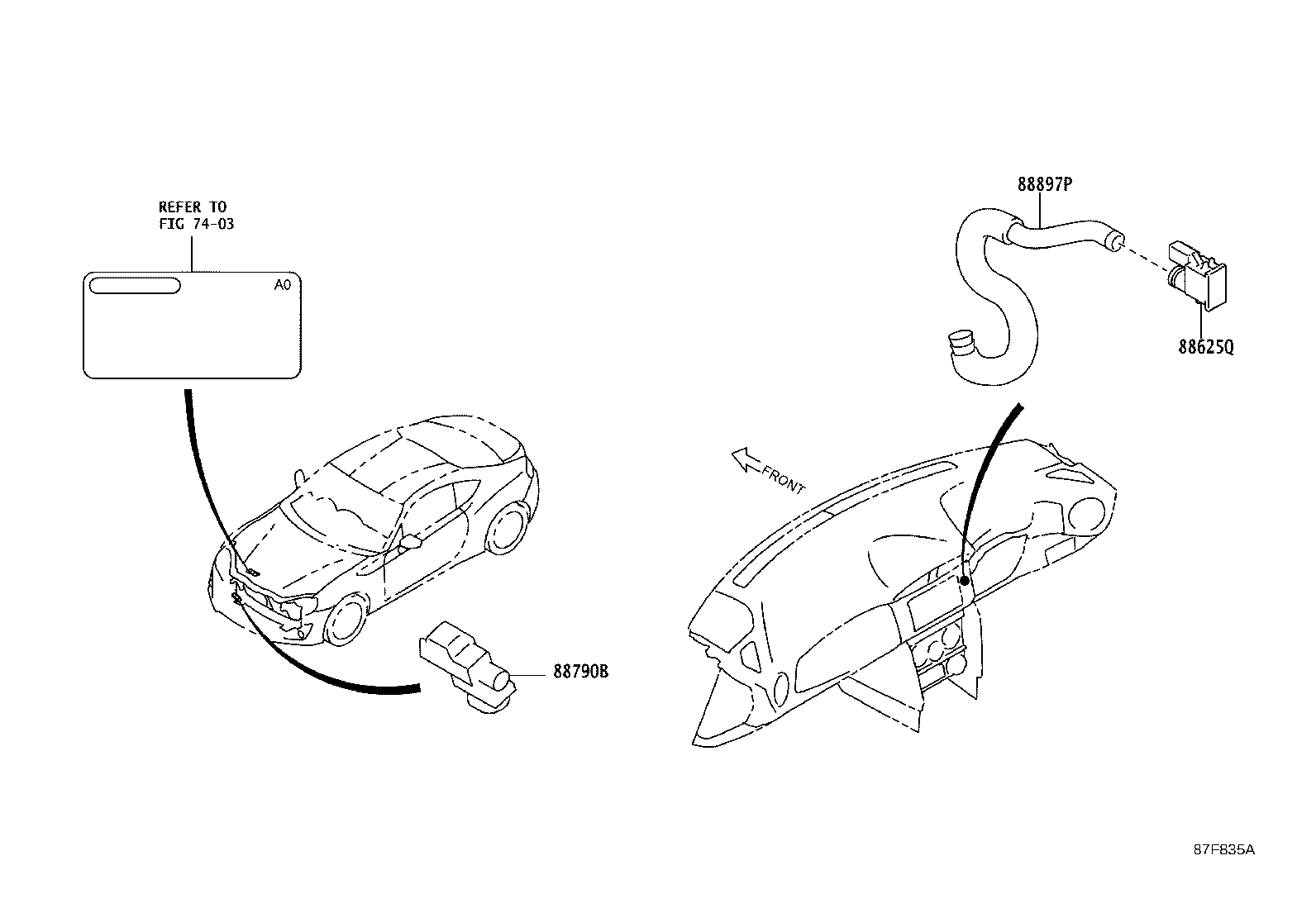

ILLUST NO. 4 OF 4(1203- )
Click highlighted areas on diagram
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88790B - THERMISTOR ASSY | ||||
| SU003-A0022 |
ZN6 |
1 | ||
| SU003-A0022 |
ZN6 |
1 | ||
| Linked diagrams | ||||
| 7403 | ||||

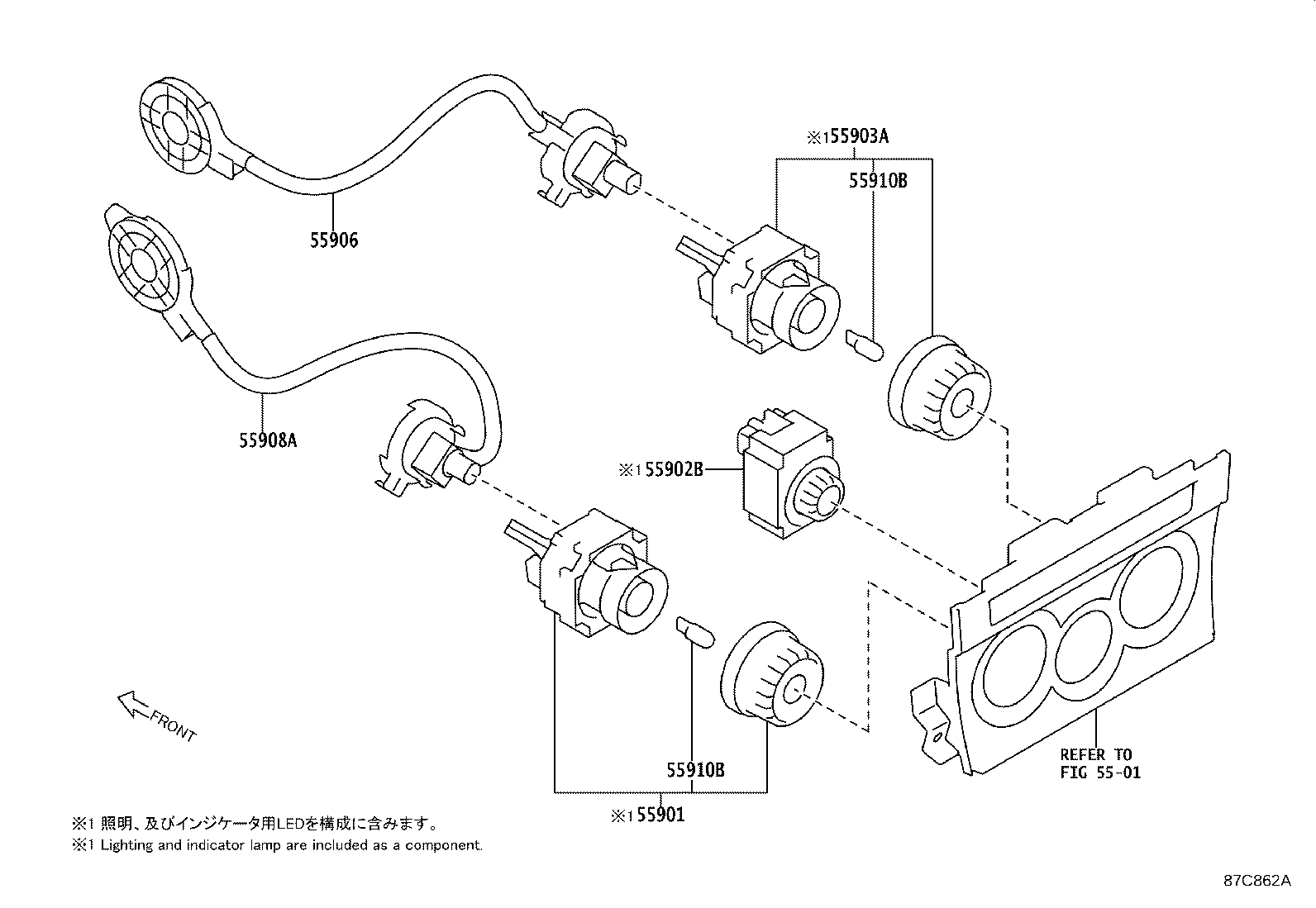

ILLUST NO. 1 OF 4(1608- )
Click highlighted areas on diagram
ﾋｰﾀｺﾝﾄﾛｰﾙ(ｵｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-02105 | ||||
| Linked diagrams | ||||
| 5501 | ||||

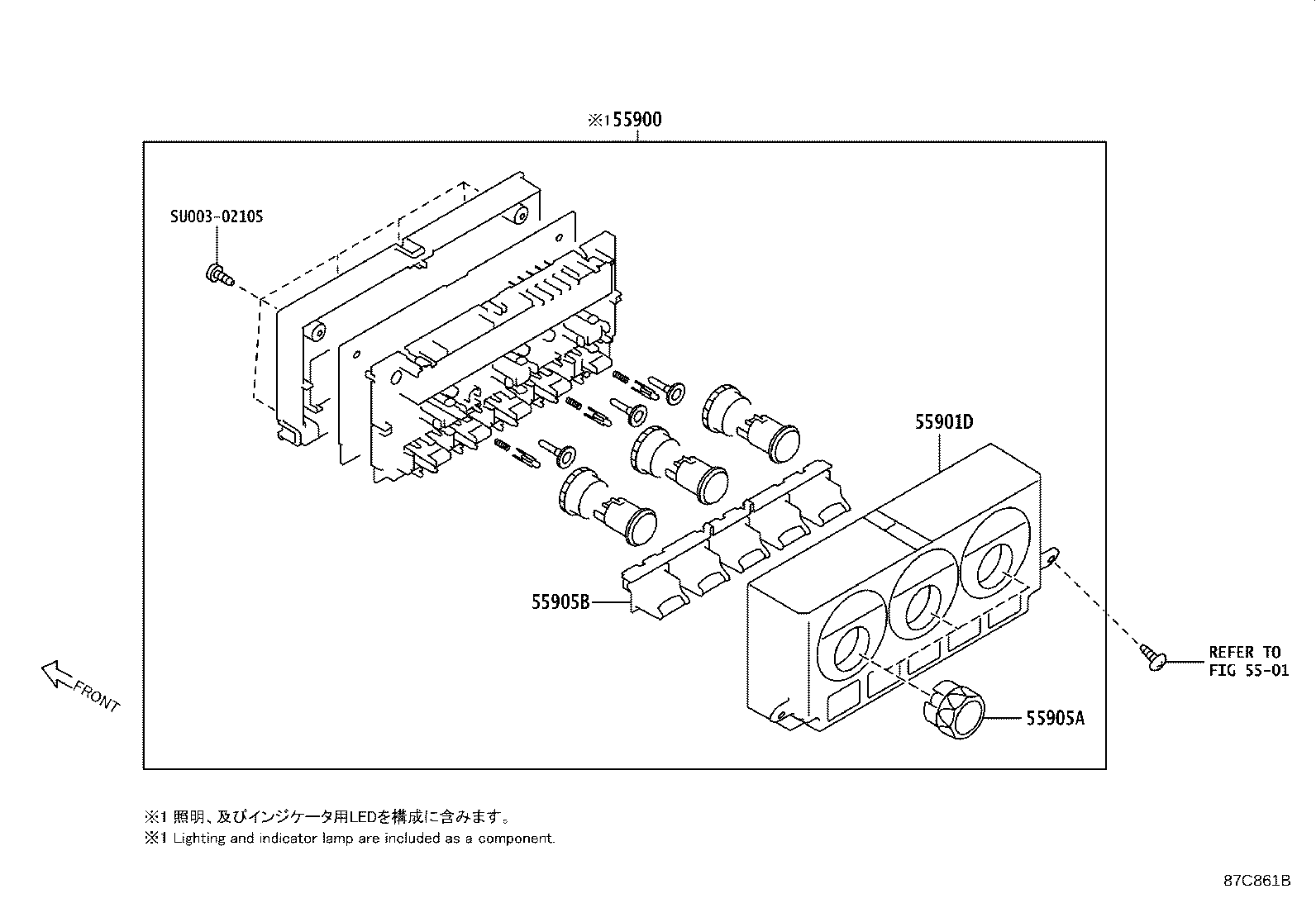

ILLUST NO. 1 OF 4(1608- )
Click highlighted areas on diagram
ﾋｰﾀｺﾝﾄﾛｰﾙ(ﾏﾆｭｱﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 5501 | ||||

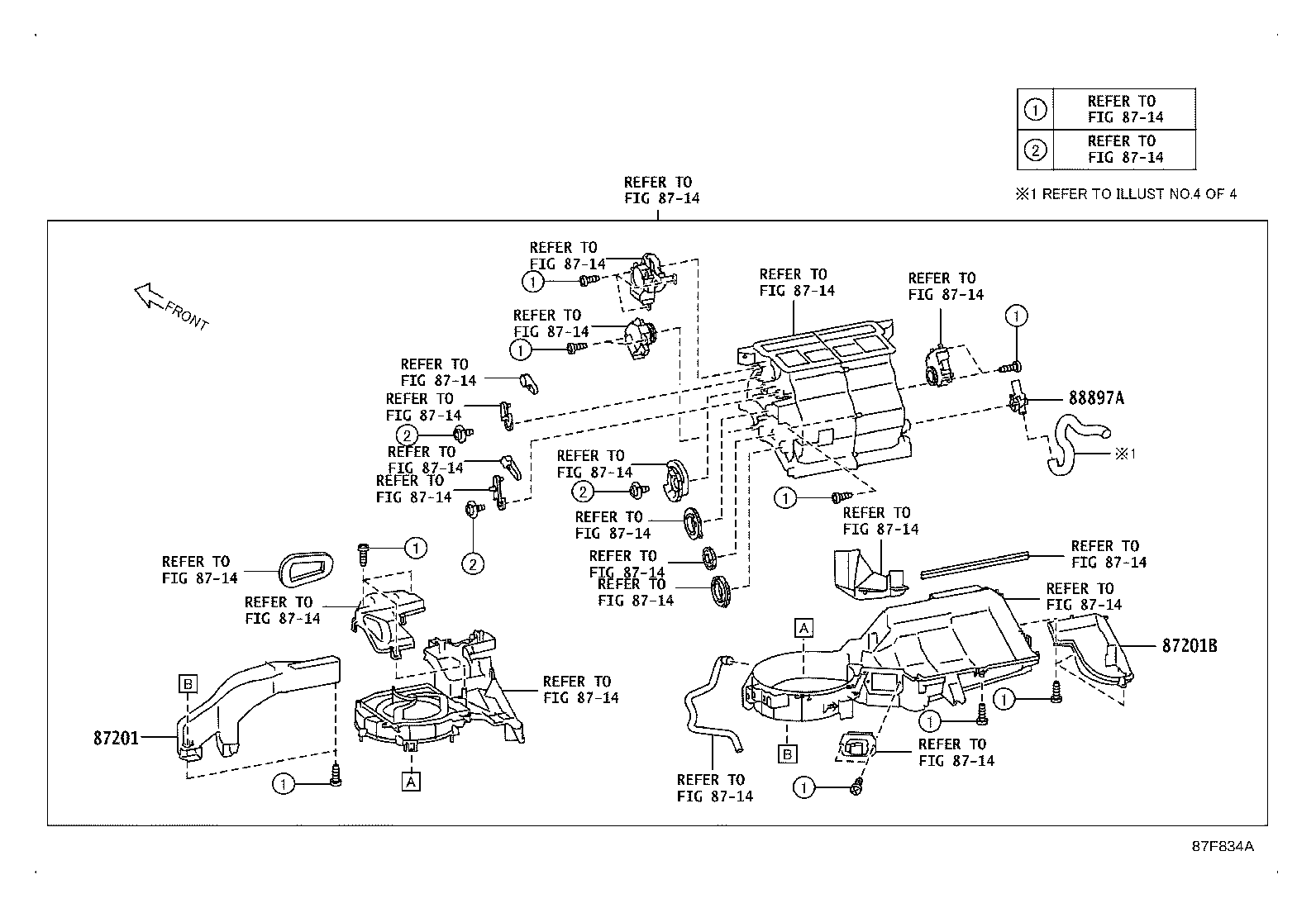

ILLUST NO. 2 OF 4(1608- )
Click highlighted areas on diagram
ｴｱﾀﾞｸﾄ(ｳｴｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-02915 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 3 OF 4(1608- )
Click highlighted areas on diagram
ｴｱﾀﾞｸﾄ(ｼﾀｶﾞﾜ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8714 | ||||

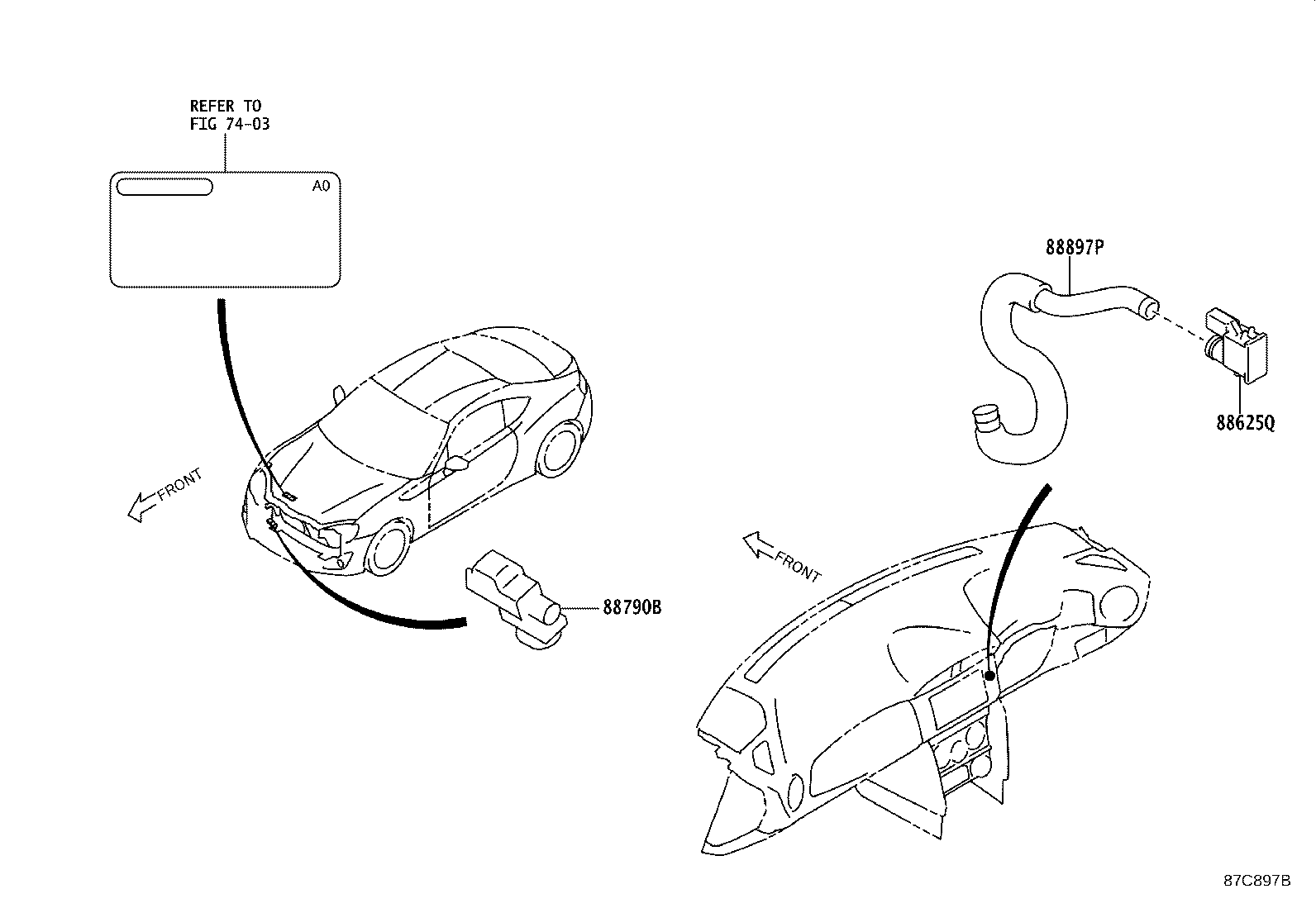

ILLUST NO. 4 OF 4(1608- )
Click highlighted areas on diagram
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 7403 | ||||
