ZN6-D288 (2015)
Toyota 86
Production
Apr 2015
-
Jul 2016
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1203- )

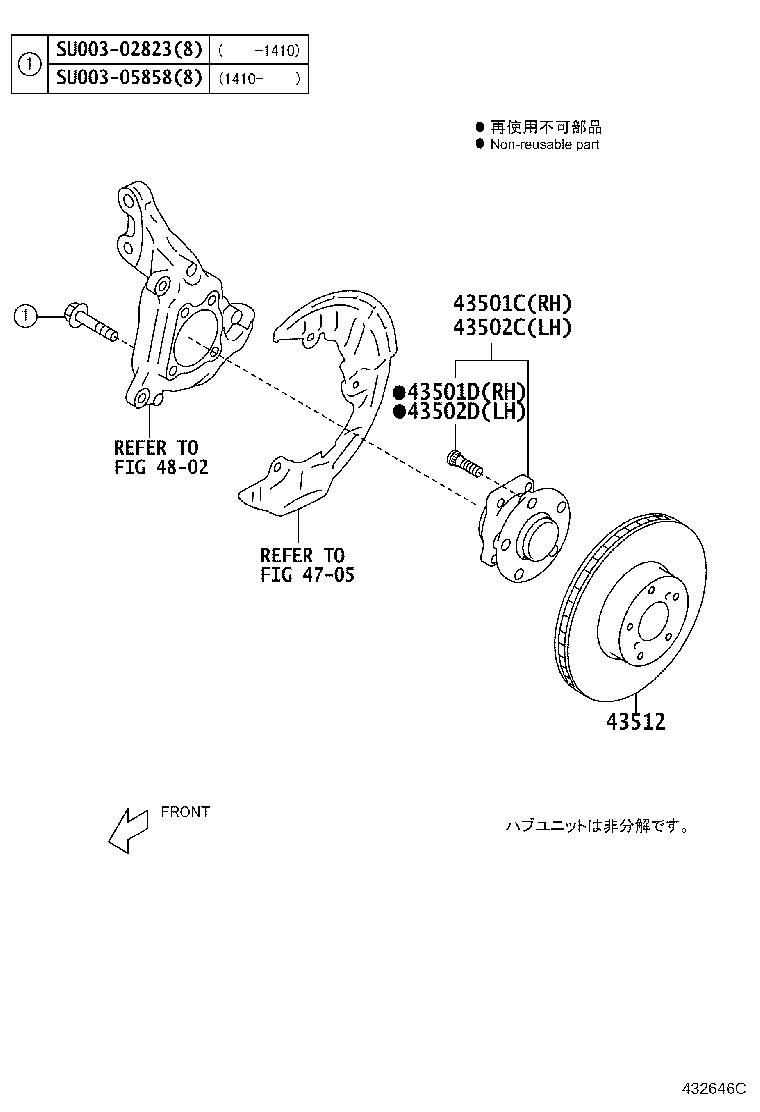

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| SU003-00782 |
ZN6 |
1 | ||
| SU003-00782 |
ZN6 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| SU003-00781 |
ZN6 |
5 | ||
| SU003-00781 |
ZN6 |
5 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| SU003-00782 |
ZN6 |
1 | ||
| SU003-00782 |
ZN6 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| SU003-00781 |
ZN6 |
5 | ||
| SU003-00781 |
ZN6 |
5 | ||
| 43512 - DISC, FRONT | ||||
| SU003-00586 |
ZN6..GT,RCG |
2 | ||
| SU003-00585 |
ZN6..G,RC |
2 | ||
| SU003-00585 |
ZN6..G |
2 | ||
| SU003-00586 |
ZN6..CB,GT,GTAE,LIMD,RCG,TRDGT,YEL,YLA |
2 | ||
| Common parts | ||||
| SU003-02823 | ||||
| SU003-05858 | ||||
| Linked diagrams | ||||
| 4705 | ||||
| 4802 | ||||
(1608- )

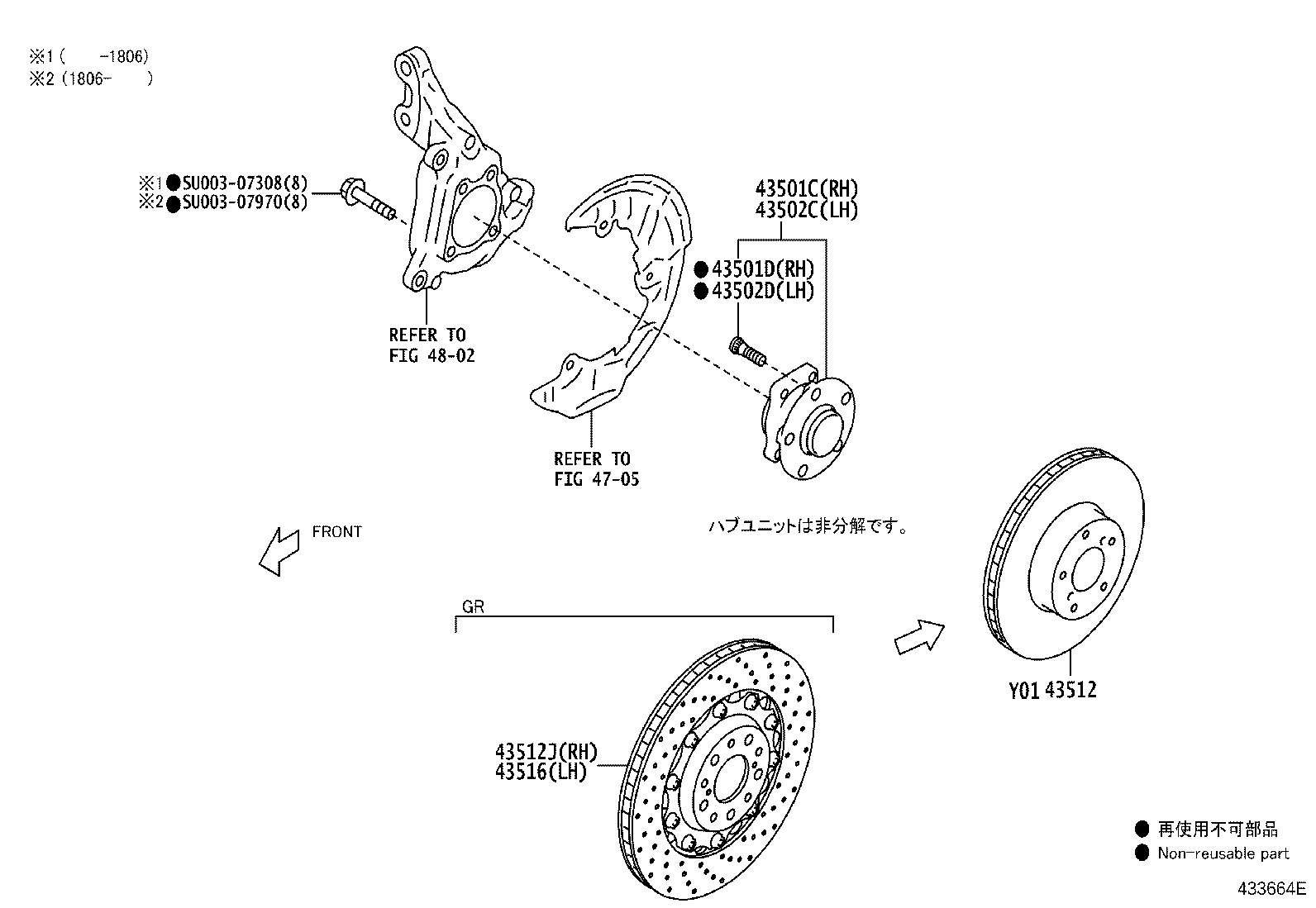

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-07308 | ||||
| SU003-07970 | ||||
| Linked diagrams | ||||
| 4705 | ||||
| 4802 | ||||
