ZN6-C248 (2014)
Toyota 86
Production
Nov 2014
-
Apr 2015
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1203- )

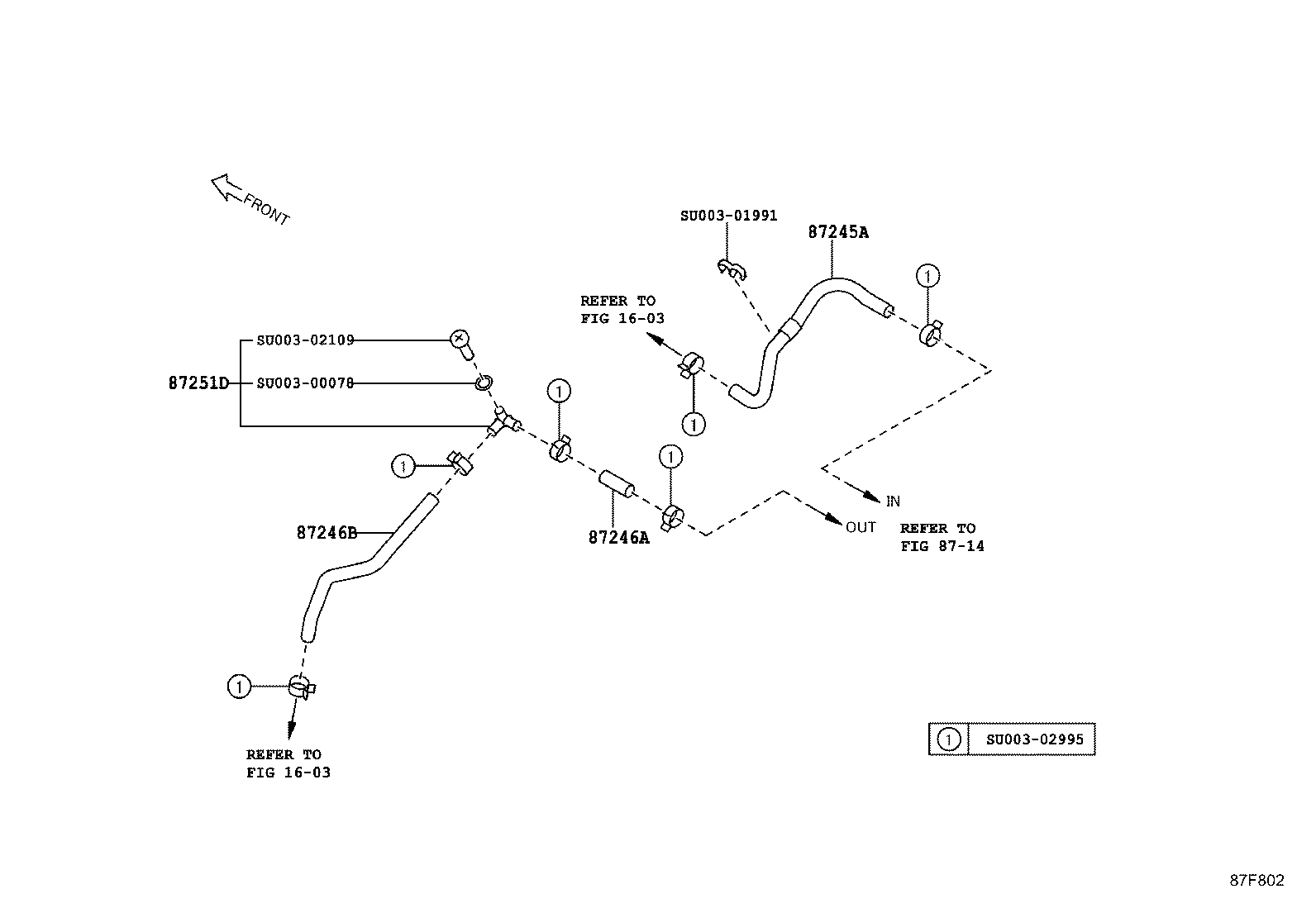

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| SU003-02106 |
ZN6 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| SU003-02107 |
ZN6 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| SU003-02108 |
ZN6 |
1 | ||
| 87251D - JOINT, WATER, NO.1 | ||||
| SU003-02110 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-00078 | ||||
| SU003-01991 | ||||
| SU003-02109 | ||||
| SU003-02995 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
(1608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00078 | ||||
| SU003-01991 | ||||
| SU003-02109 | ||||
| SU003-02995 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
