Toyota 86 ZN6 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
86
ZN6-C248 (2014)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ZN6-C248 (2014)

Toyota 86

Production Nov 2014 - Apr 2015

Engine FA20

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

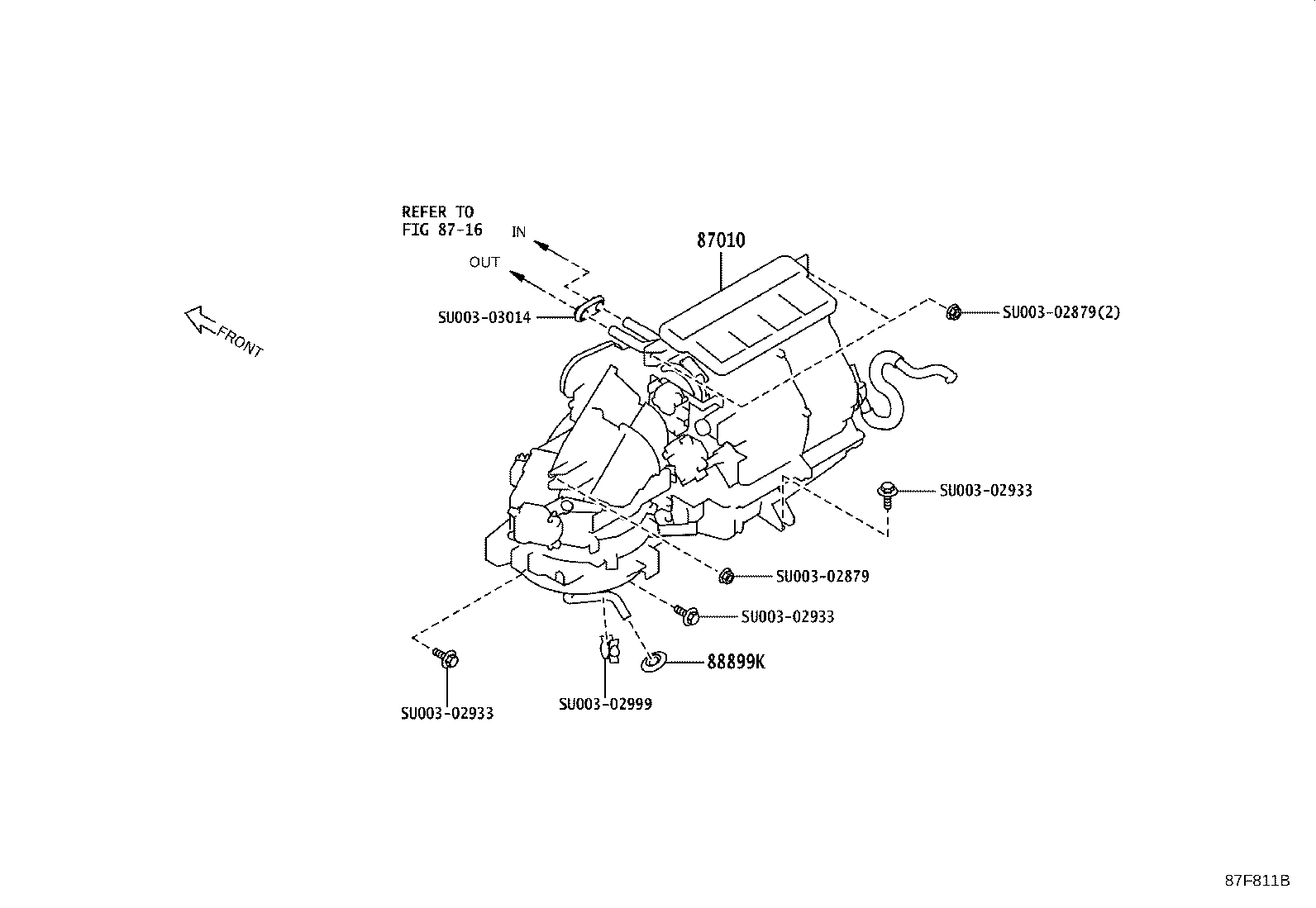

ILLUST NO. 1 OF 4(1203- )

Click highlighted areas on diagram

ﾕﾆｯﾄ

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
SU003-01998	ZN6..RC	03/2012 - 08/2013	1
88899K - PLATE, COVER
SU003-02085	ZN6	03/2012 - 08/2013	1
Common parts
SU003-02879
SU003-02933
SU003-02999
SU003-03014
Linked diagrams
8716

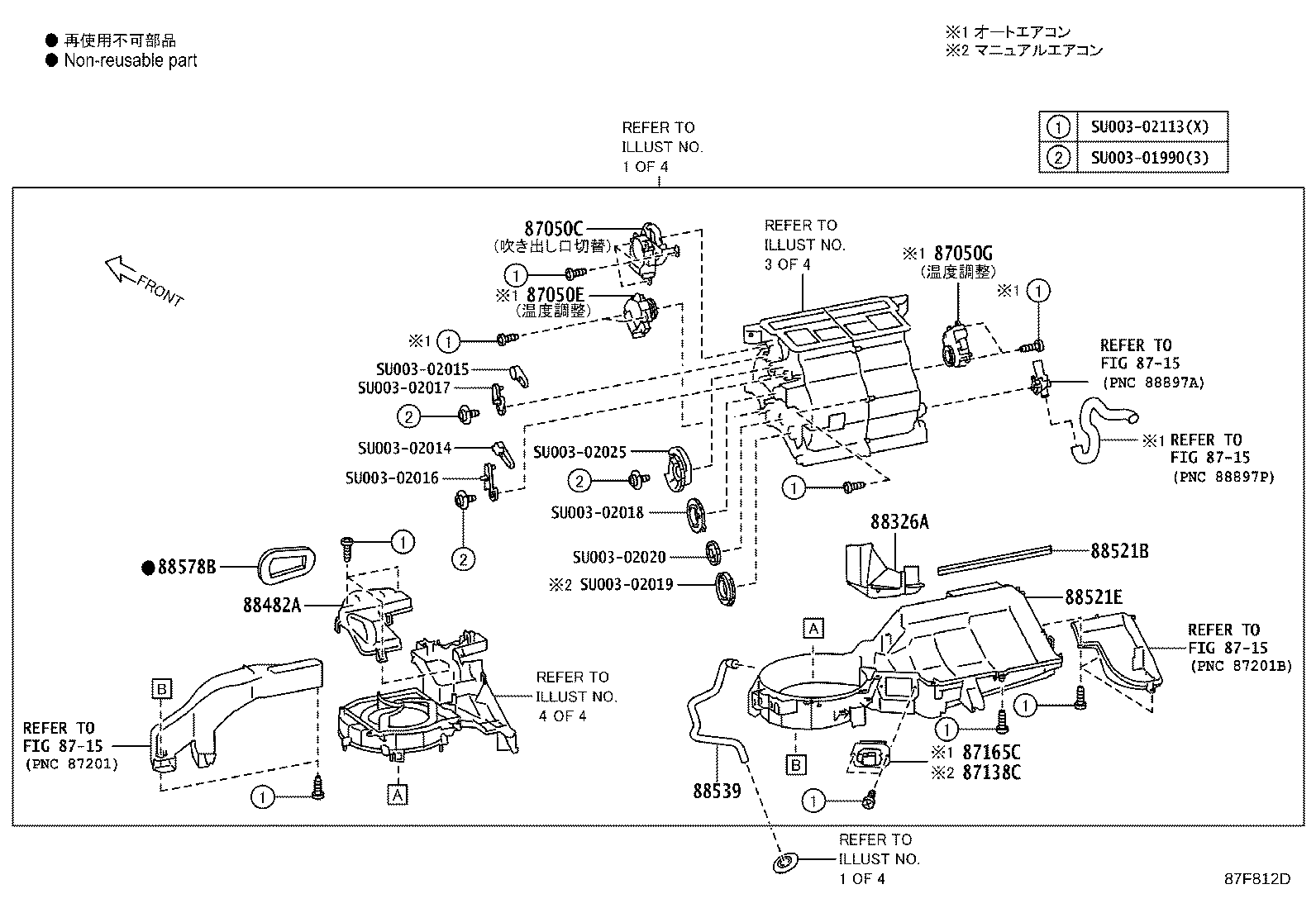

ILLUST NO. 2 OF 4(1203- )

Click highlighted areas on diagram

ﾗｼﾞｴﾀ(ｿﾄｶﾞﾜ)

Part #	Description	Period	Qty
87138C - RESISTOR, BLOWER
SU003-A0016	ZN6..G,RC,RCG	03/2012 - 08/2013	1
88326A - PLATE, COVER
SU003-02028	ZN6	03/2012 - 08/2013	1
88482A - COVER
SU003-04122	ZN6..RC	03/2012 - 08/2013	1
88521B - PACKING (FOR COOLER UNIT CASE)
SU003-02048	ZN6..RC	03/2012 - 08/2013	1
88521B - PACKING (FOR COOLER UNIT CASE)
SU003-02048	ZN6..RC	03/2012 - 08/2013	1
88521E - CASE SUB-ASSY, COOLING UNIT
SU003-02008	ZN6	03/2012 - 08/2013	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
SU003-02054	ZN6	03/2012 - 08/2013	1
88578B - PACKING, COOLING UNIT, NO.1
SU003-02050	ZN6..RC	03/2012 - 08/2013	1
Common parts
SU003-01990
SU003-02014
SU003-02015
SU003-02016
SU003-02017
SU003-02018
SU003-02019
SU003-02020
SU003-02025
SU003-02113
Linked diagrams
8715

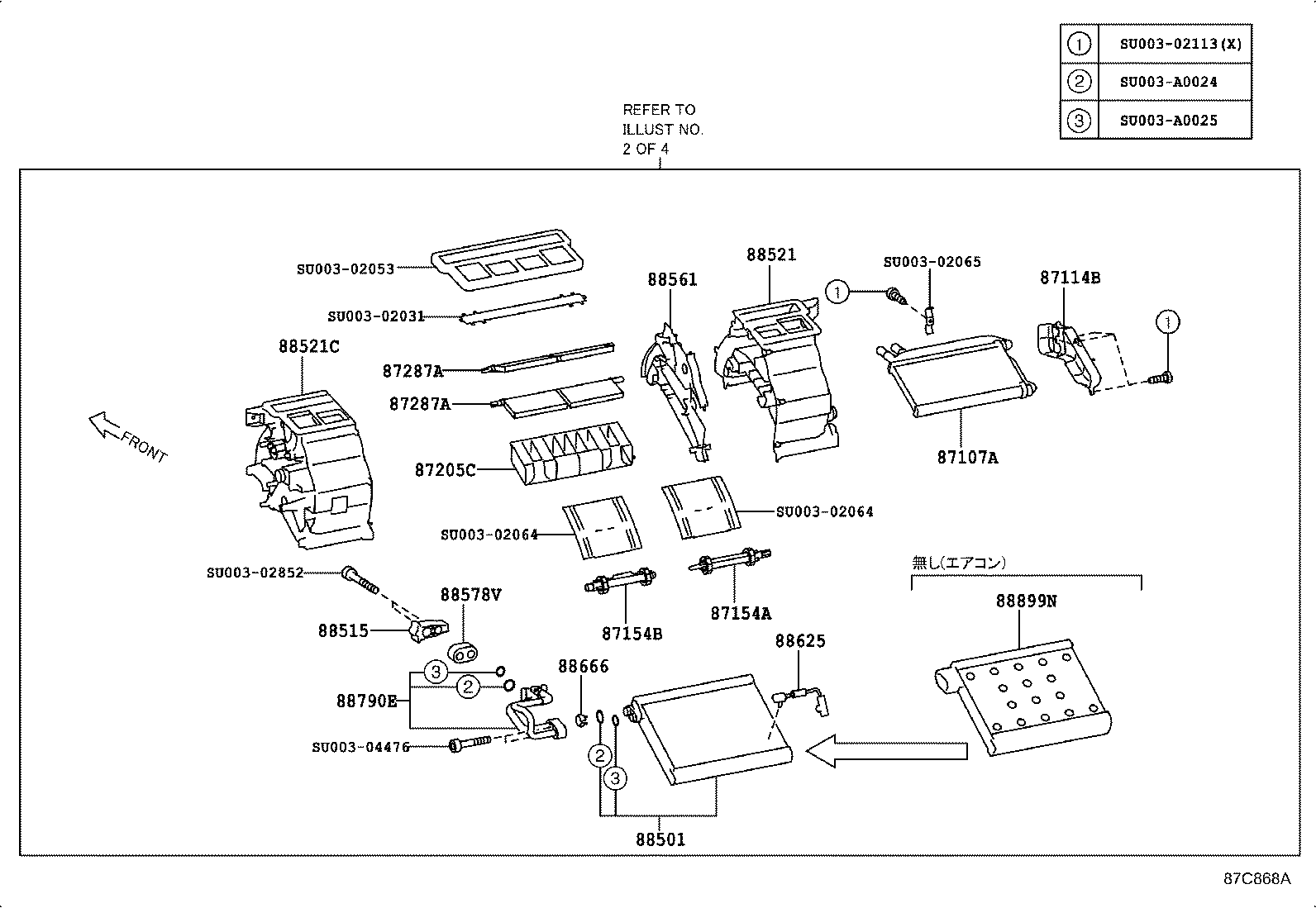

ILLUST NO. 3 OF 4(1203- )

Click highlighted areas on diagram

ﾗｼﾞｴﾀ

Part #	Description	Period	Qty
87107A - UNIT SUB-ASSY, HEATER RADIATOR
SU003-02039	ZN6	03/2012 - 08/2013	1
87114B - COVER, HEATER
SU003-02029	ZN6	03/2012 - 08/2013	1
87154A - SHAFT, DAMPER, NO.1
SU003-02058	ZN6	03/2012 - 08/2013	1
87154B - SHAFT, DAMPER, NO.2
SU003-02059	ZN6..G,RC,RCG	03/2012 - 08/2013	1
87205C - GUIDE SUB-ASSY, AIR DUCT
SU003-02062	ZN6	03/2012 - 08/2013	1
87287A - DAMPER, HEATER AIR
SU003-02063	ZN6	03/2012 - 08/2013	2
87287A - DAMPER, HEATER AIR
SU003-02063	ZN6	03/2012 - 08/2013	2
88521 - CASE, COOLER UNIT
SU003-02004	ZN6..G,RC,RCG	03/2012 - 08/2013	1
88521C - CASE, COOLING UNIT
SU003-02005	ZN6..G,RC,RCG	03/2012 - 08/2013	1
88561 - COVER, COOLER UNIT
SU003-02056	ZN6	03/2012 - 08/2013	1
88899N - PLATE, COVER
SU003-02081	ZN6..RC	03/2012 - 08/2013	1
Common parts
SU003-02031
SU003-02053
SU003-02064
SU003-02065
SU003-02113
SU003-02852
SU003-04476
SU003-A0024
SU003-A0025

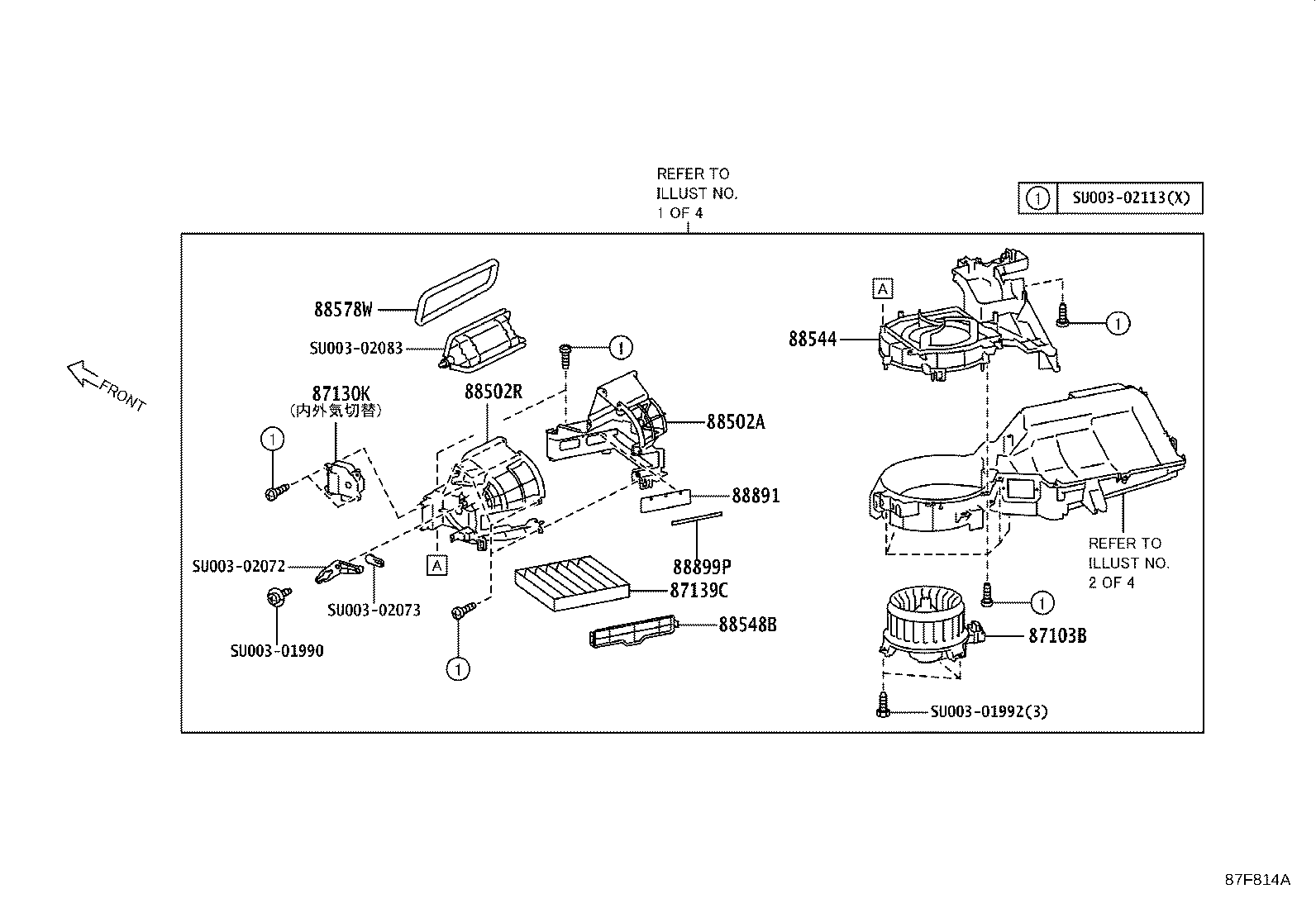

ILLUST NO. 4 OF 4(1203- )

Click highlighted areas on diagram

ﾌﾞﾛｱ

Part #	Description	Period	Qty
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
SU003-02078	ZN6	03/2012 - 08/2013	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
SU003-04469	ZN6	03/2012 - 08/2013	1
87139C - FILTER, CLEAN AIR
SU003-02112	ZN6	03/2012 - 08/2013	1
88502A - CASE SUB-ASSY, COOLING UNIT
SU003-02068	ZN6	03/2012 - 08/2013	1
88502R - CASE SUB-ASSY, COOLING UNIT
SU003-02067	ZN6	03/2012 - 08/2013	1
88544 - CASE, COOLER BLOWER
SU003-02066	ZN6	03/2012 - 08/2013	1
88548B - CASE, AIR FILTER
SU003-02084	ZN6	03/2012 - 08/2013	1
88578W - PACKING, COOLING UNIT, NO.4
SU003-02077	ZN6	03/2012 - 08/2013	1
88891 - PACKING (FOR COOLER)
SU003-02076	ZN6	03/2012 - 08/2013	1
88899P - PLATE, COVER
SU003-02080	ZN6	03/2012 - 08/2013	1
Common parts
SU003-01990
SU003-01992
SU003-02072
SU003-02073
SU003-02083
SU003-02113

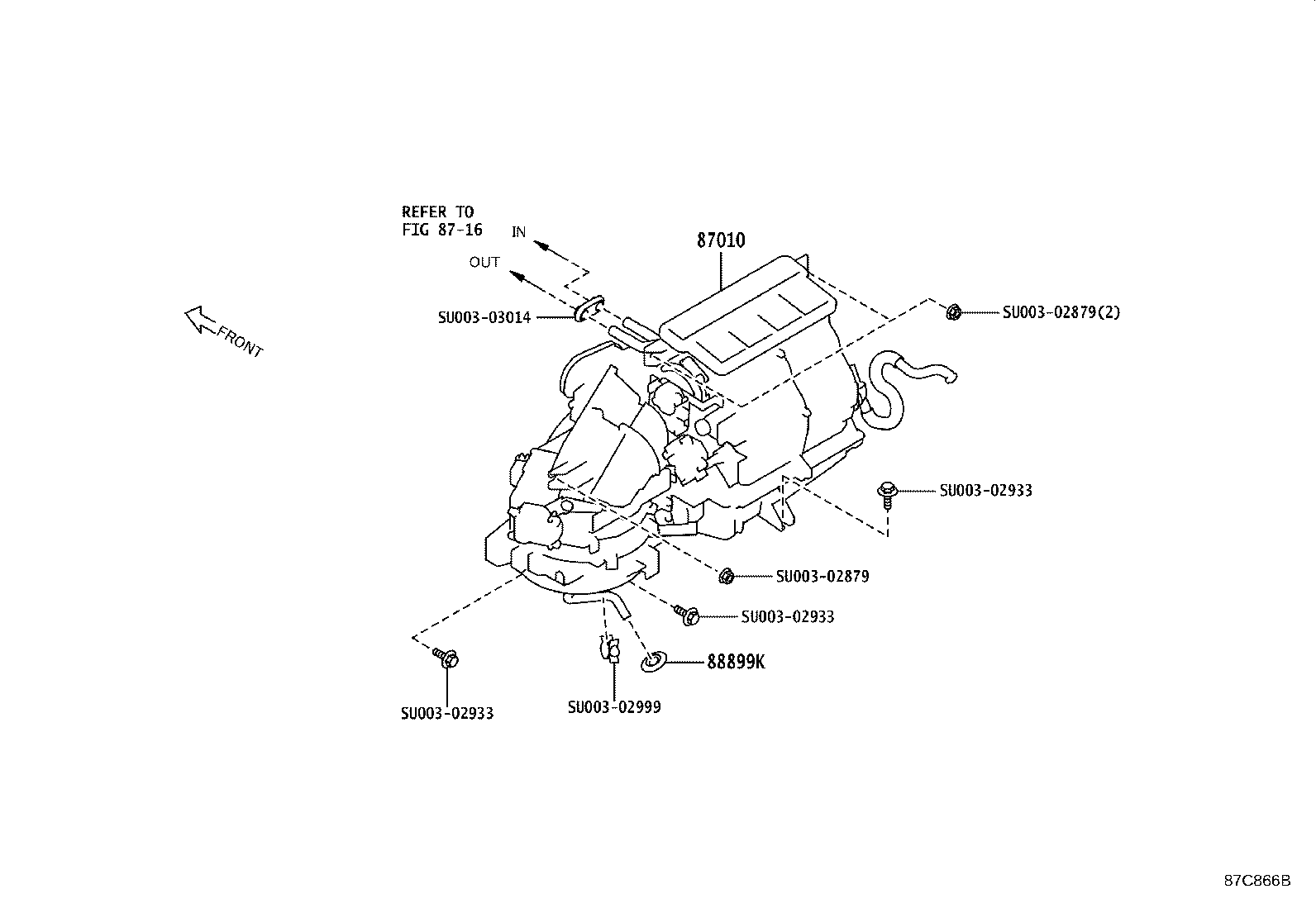

ILLUST NO. 1 OF 4(1608- )

Click highlighted areas on diagram

ﾕﾆｯﾄ

Part #	Description	Period	Qty	Price
Common parts
SU003-02879
SU003-02933
SU003-02999
SU003-03014
Linked diagrams
8716

ILLUST NO. 2 OF 4(1608- )

Click highlighted areas on diagram

ﾗｼﾞｴｰﾀ(ｿﾄｶﾞﾜ)

Part #	Description	Period	Qty	Price
Common parts
SU003-01990
SU003-02014
SU003-02015
SU003-02016
SU003-02017
SU003-02018
SU003-02019
SU003-02020
SU003-02025
SU003-02113
Linked diagrams
8715

ILLUST NO. 3 OF 4(1608- )

Click highlighted areas on diagram

ﾗｼﾞｴｰﾀ

Part #	Description	Period	Qty	Price
Common parts
SU003-02031
SU003-02053
SU003-02064
SU003-02065
SU003-02113
SU003-02852
SU003-04476
SU003-A0024
SU003-A0025

ILLUST NO. 4 OF 4(1608- )

Click highlighted areas on diagram

ﾌﾞﾛｱ

Part #	Description	Period	Qty	Price
Common parts
SU003-01990
SU003-01992
SU003-02072
SU003-02073
SU003-02083
SU003-02113
