ZN6-C248 (2014)
Toyota 86
Production
Nov 2014
-
Apr 2015
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1203- )

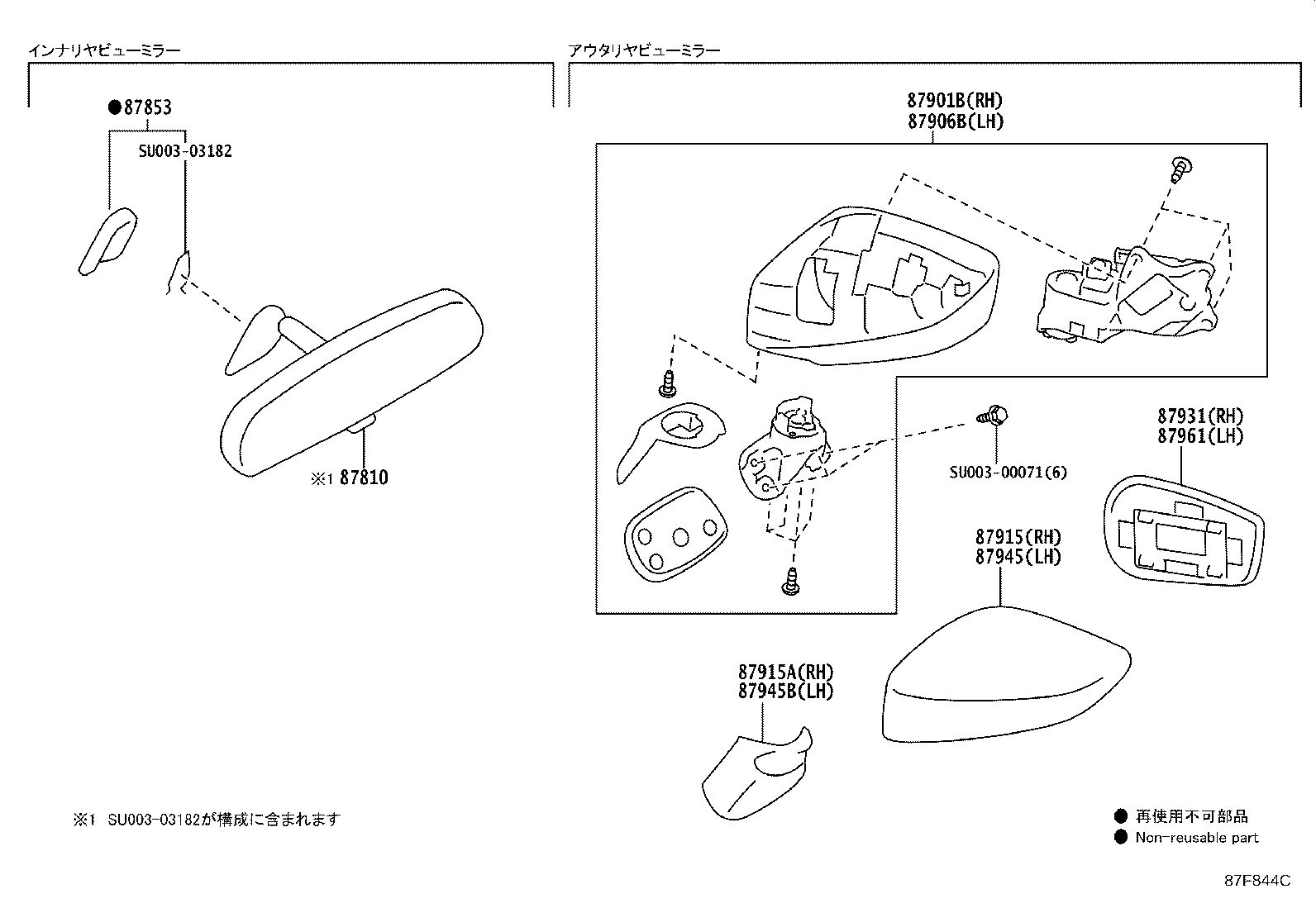

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| SU003-03184 |
ZN6..G,RC,RCG |
1 | ||
| 87853 - BASE, INNER REAR VIEW MIRROR | ||||
| SU003-03181 |
ZN6 |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| SU003-03046 |
ZN6..RC |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| SU003-03047 |
ZN6..RC |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| SU003-03073 |
ZN6..RC MATERIAL COLOR,材料着色(黒) |
1 | ||
| 87915A - COVER, OUTER MIRROR, RH | ||||
| SU003-03088 |
ZN6 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| SU003-03056 |
ZN6..RC |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| SU003-03081 |
ZN6..RC MATERIAL COLOR,材料着色(黒) |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| SU003-03089 |
ZN6 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| SU003-03057 |
ZN6..RC |
1 | ||
| Common parts | ||||
| SU003-00071 | ||||
| SU003-03182 | ||||
(1608- )

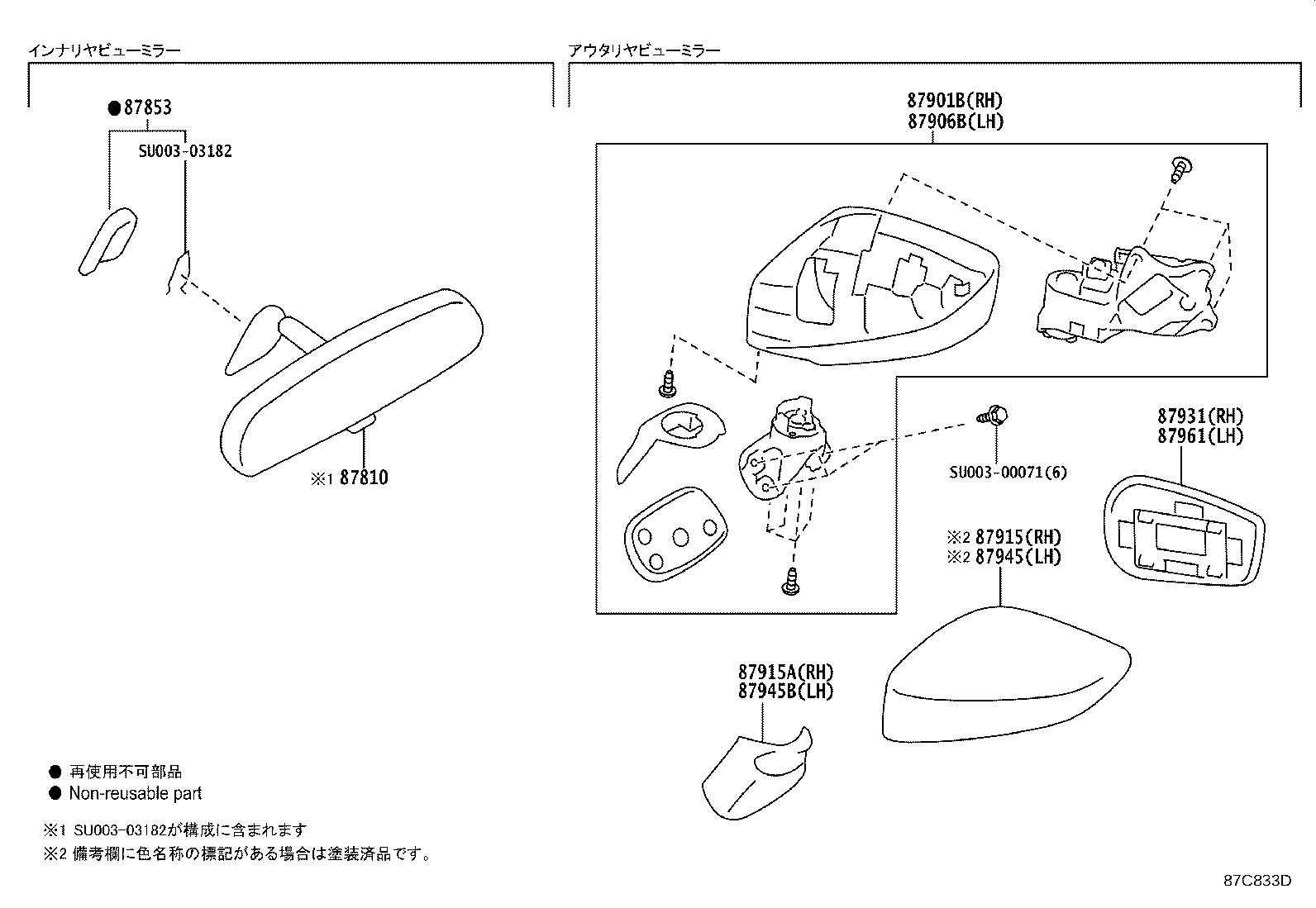

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00071 | ||||
| SU003-03182 | ||||
